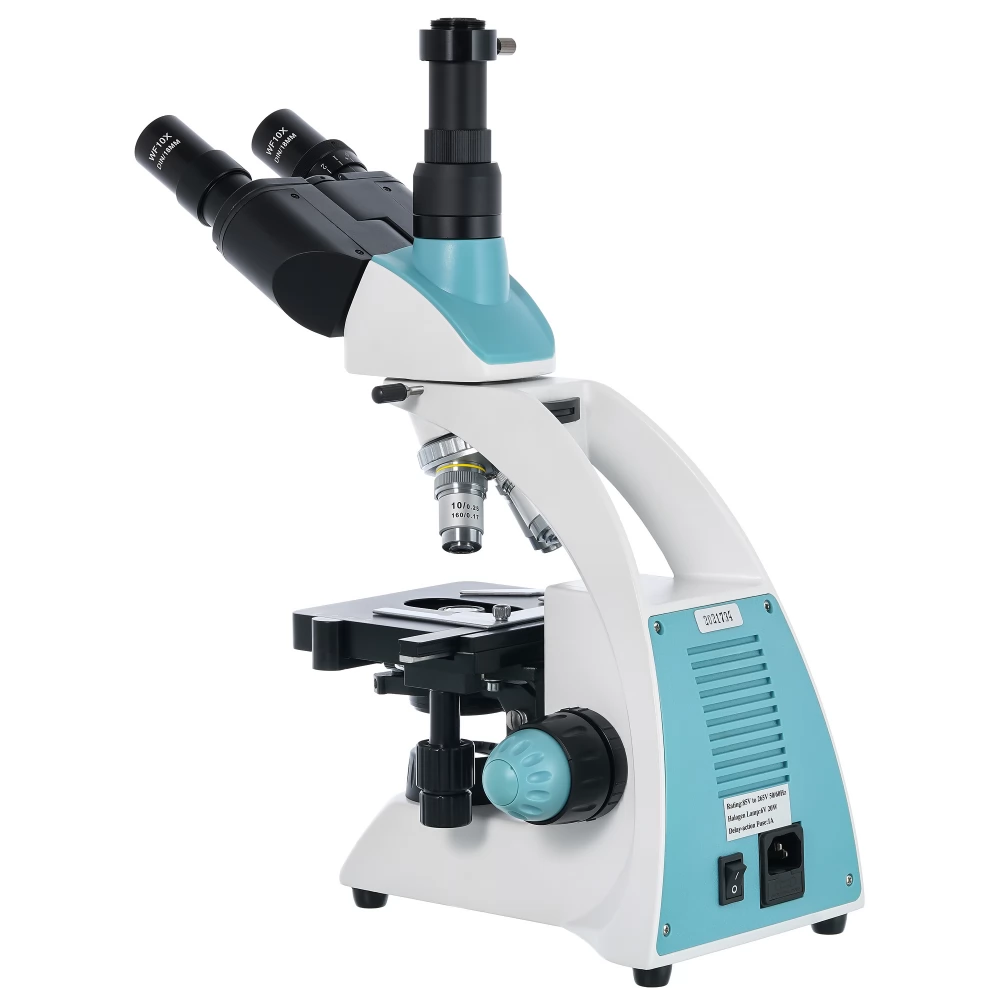

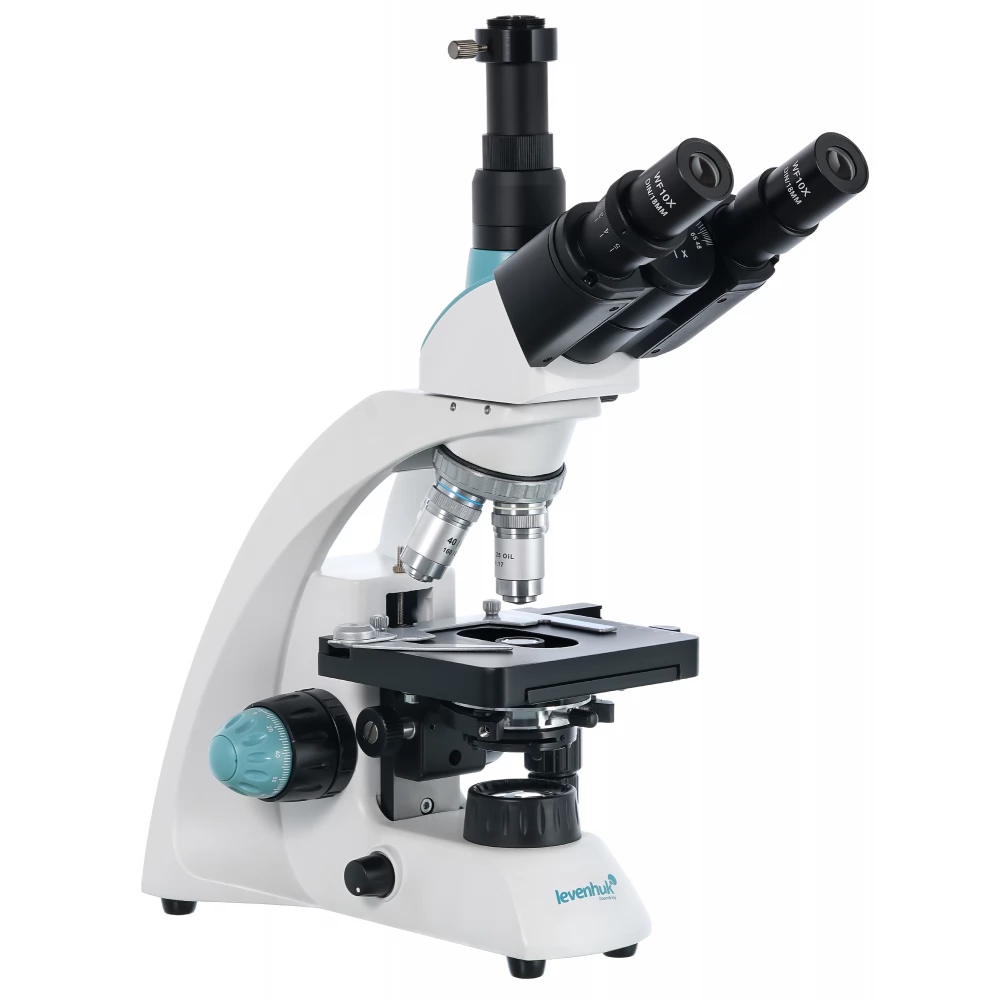

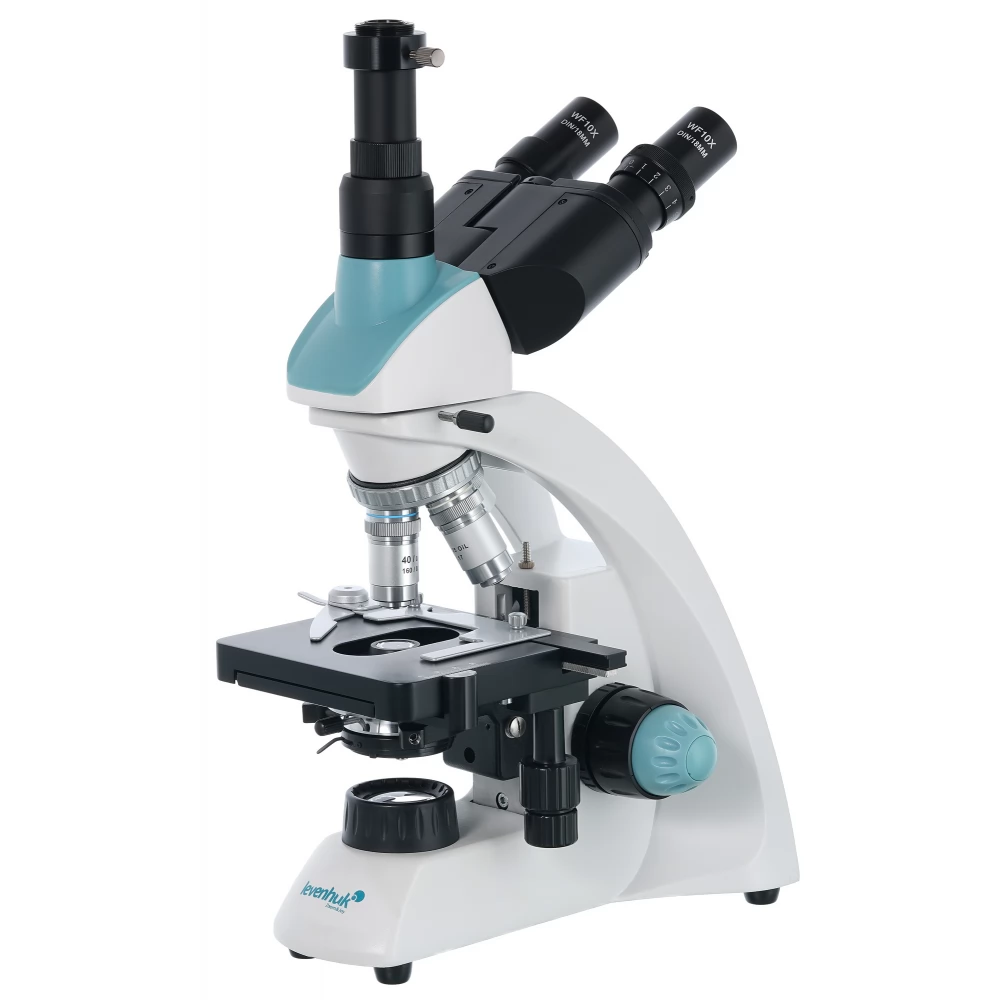

LEVENHUK 500T trinocular microscope
not available
Product description
The Levenhuk 500T trinocular laboratory microscope with magnification between 40x and 1000x. It has wide-field achromatic optics that give a clear, sharp image. Since the lighting is provided by a halogen bulb, the image is realistic, every color, every detail of the pattern is sharp and clear. The microscope is a real treasure for work in research laboratories, medical centers and veterinary clinics.

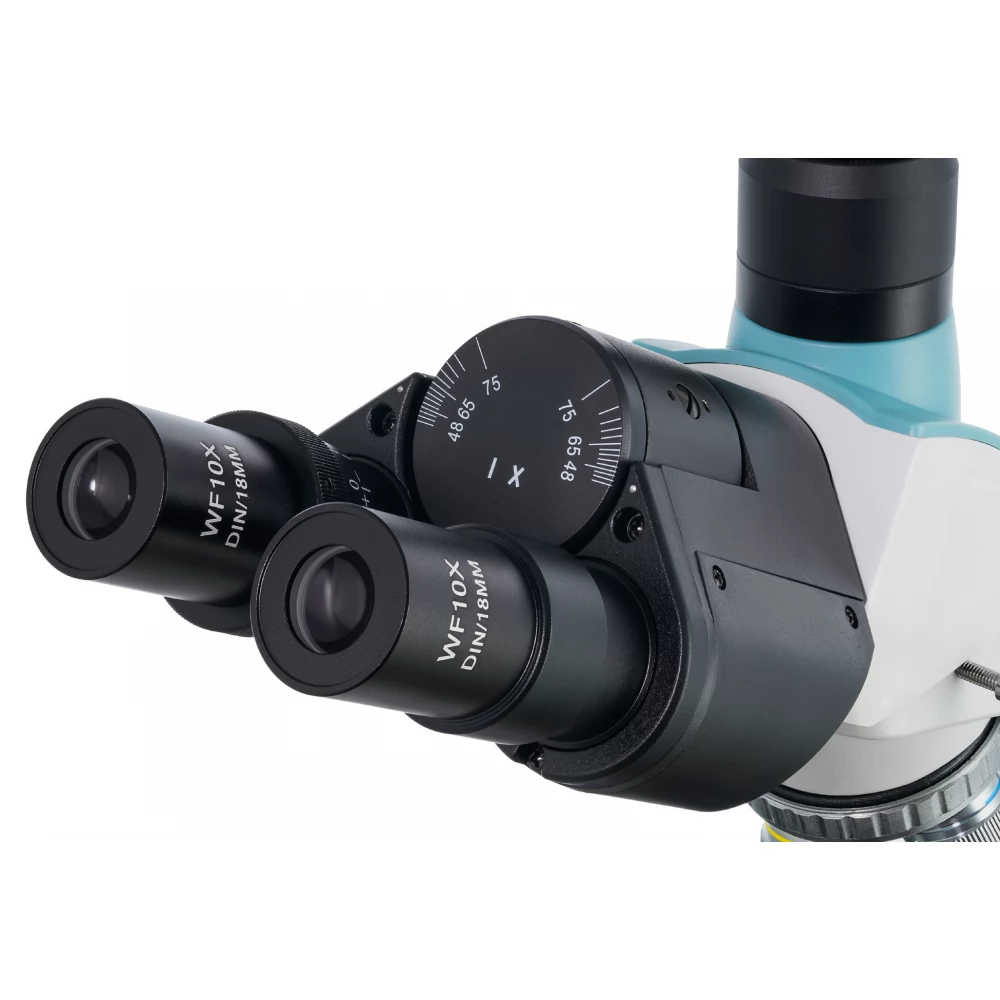

The head part consists of the inclined viewing part and the vertical tube that houses the digital camera (not part of the package). The head can be rotated 360°. The kit includes two wide-angle eyepieces and four achromatic lenses with different magnifications. The sharpness of the optics can be adjusted with the coarse and fine control buttons on the base of the microscope. The microscope is designed for bright field observations. The 100x objective can be used for observation using the oil immersion method. To protect the front lenses, the 40x and 100x objectives are equipped with a spring frame.

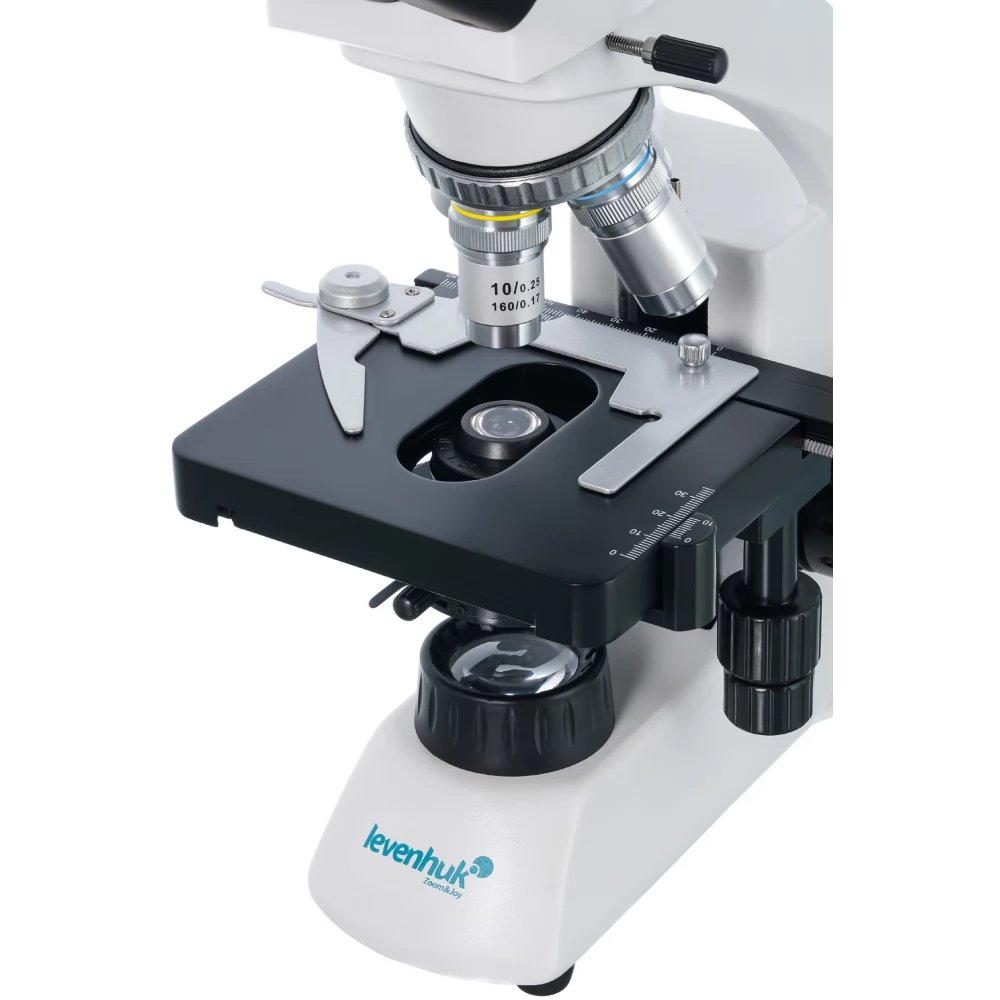

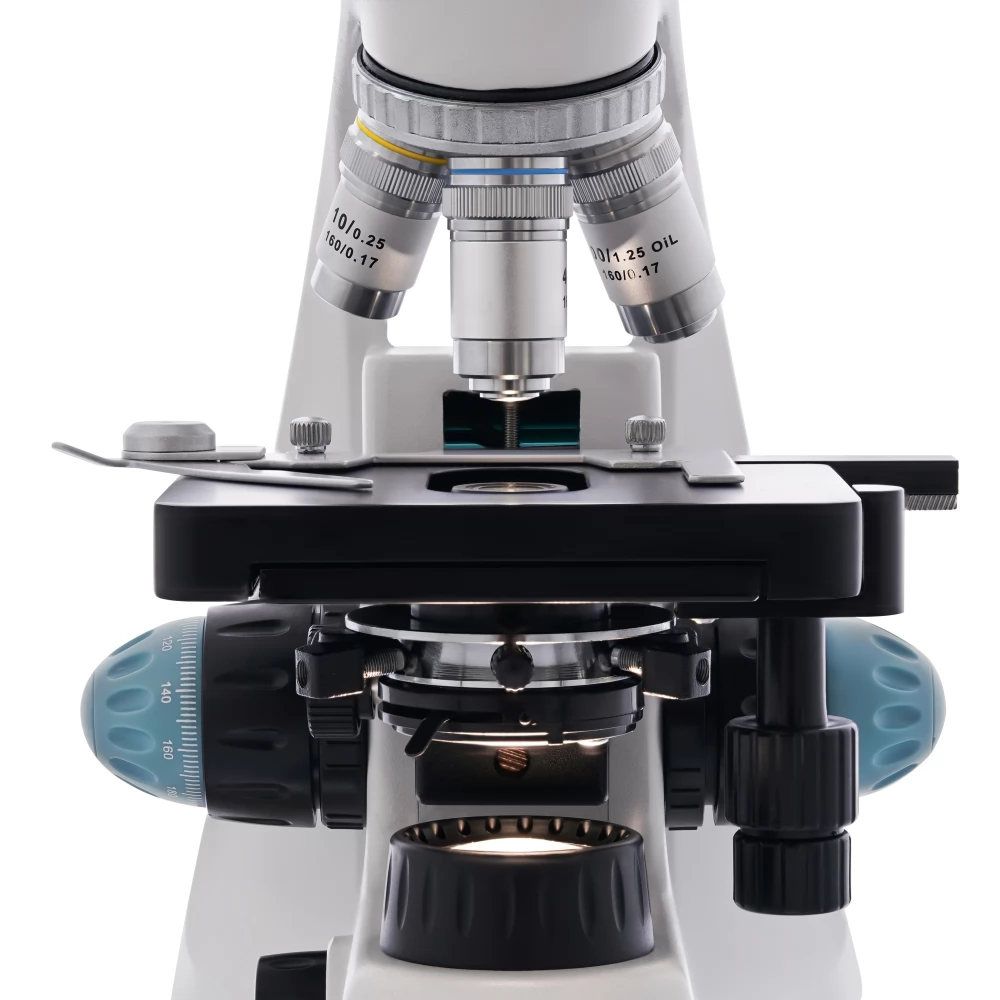

There is a mechanical scale on the stage: it helps to quickly place the specimen exactly under the objective. Under the stage there is an Abbe condenser with adjustable height and a clear field of view. Here is an iris compartment and filter holder. The lighting system includes a halogen bulb and a light collector. The powerful bulb illuminates the work area evenly and strongly. The brightness of the lighting is adjustable. It is powered by alternating current.
- Trinocular rotating head and tube for digital camera
- Wide-angle, 40-1000x magnification achromatic optics
- Halogen lighting with light collector and brightness control, operating from an AC power source
- Condenser with iris aperture, adjustable height

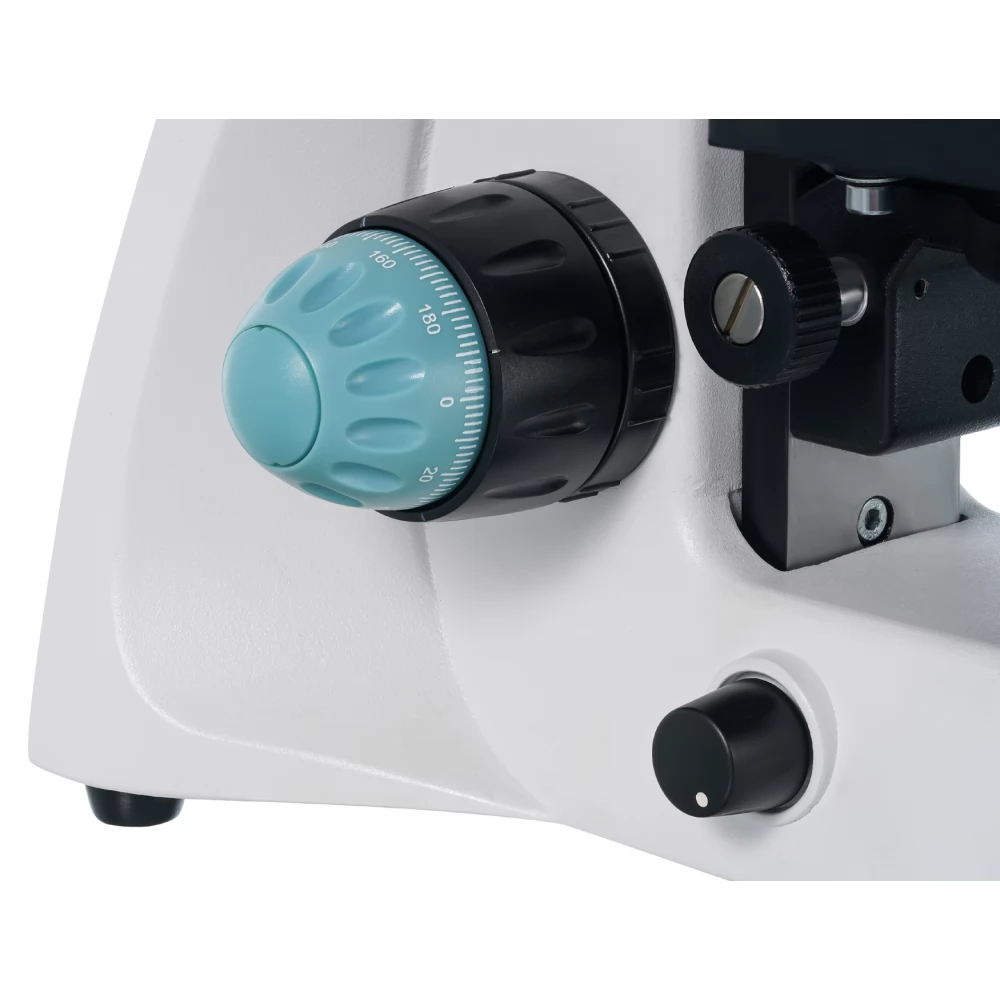

- Coarse and fine focus adjustment, metal frame
- Opening for connecting an analyzer (not part of the package)

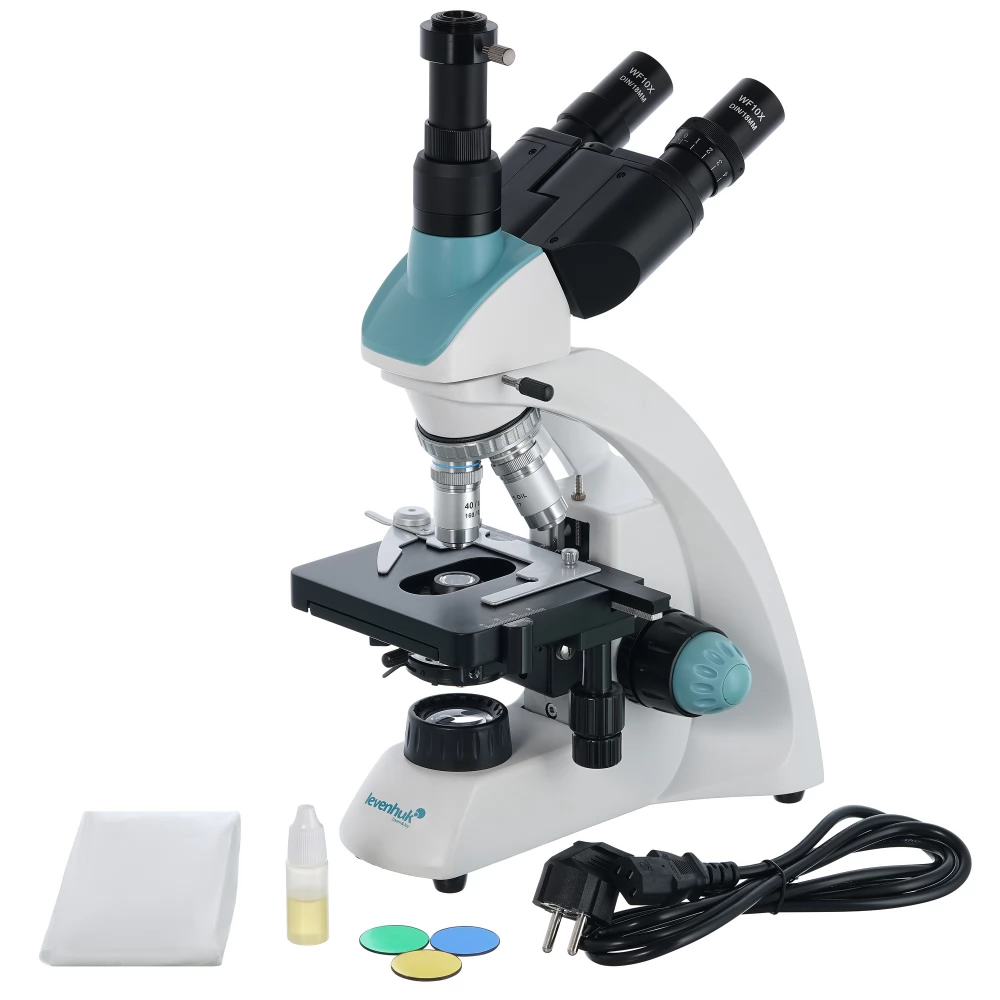

Contents of the package
- Microscope
- 4x, 10x, 40xs, 100xs (oil) achromatic objectives
- WF10x/18 mm eyepiece (2 pcs.)
- Abbe condenser N.A. 1.25 with iris aperture and filter holder
- Filters: blue, green, yellow
- Insurance
- C-stand
- Immersion oil vial
- Power cable
- Dust cover
- User's Guide
