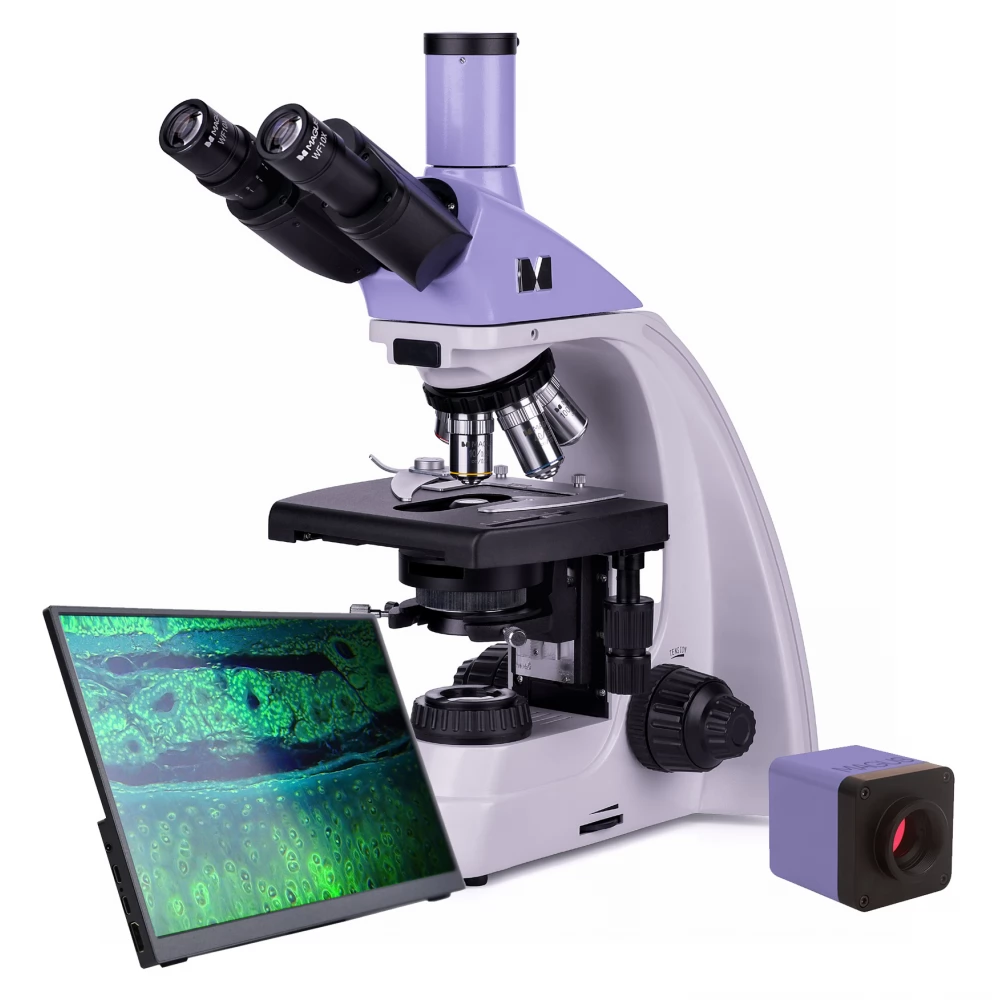

MAGUS Bio D230T LCD biological digital microscope

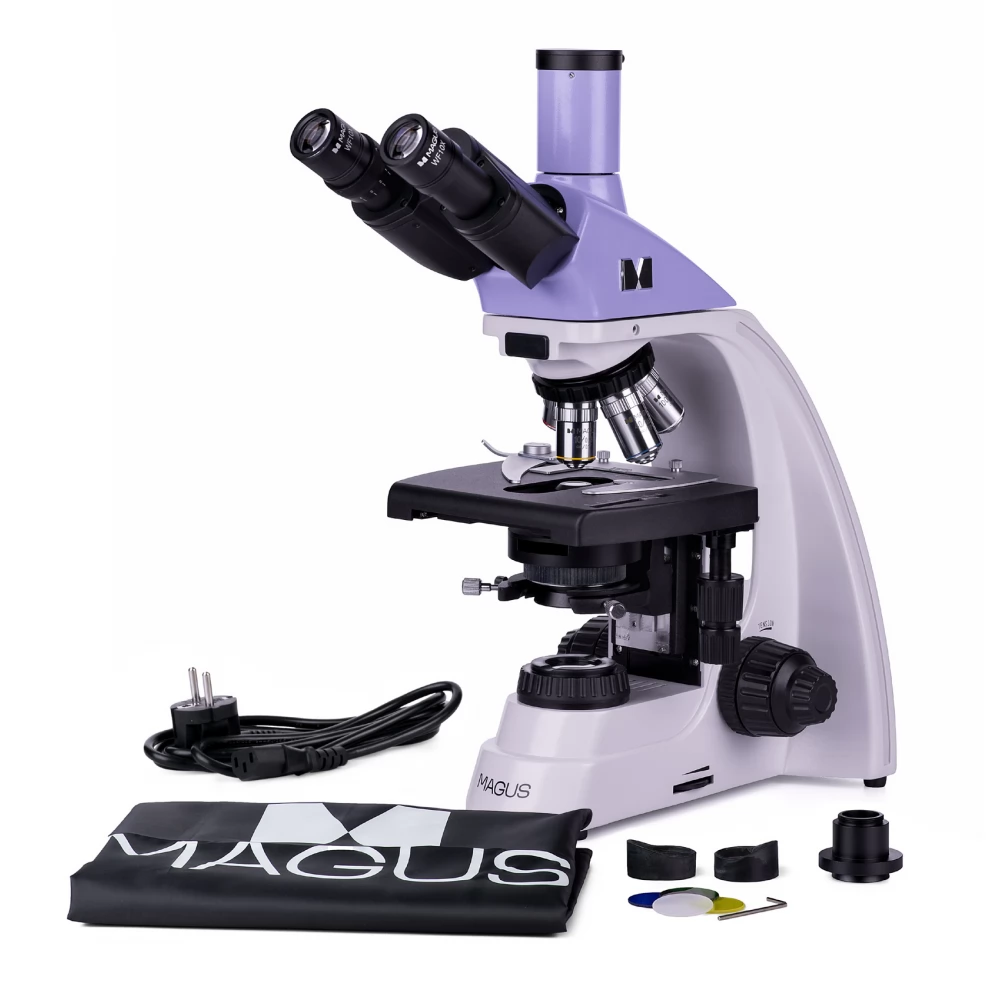

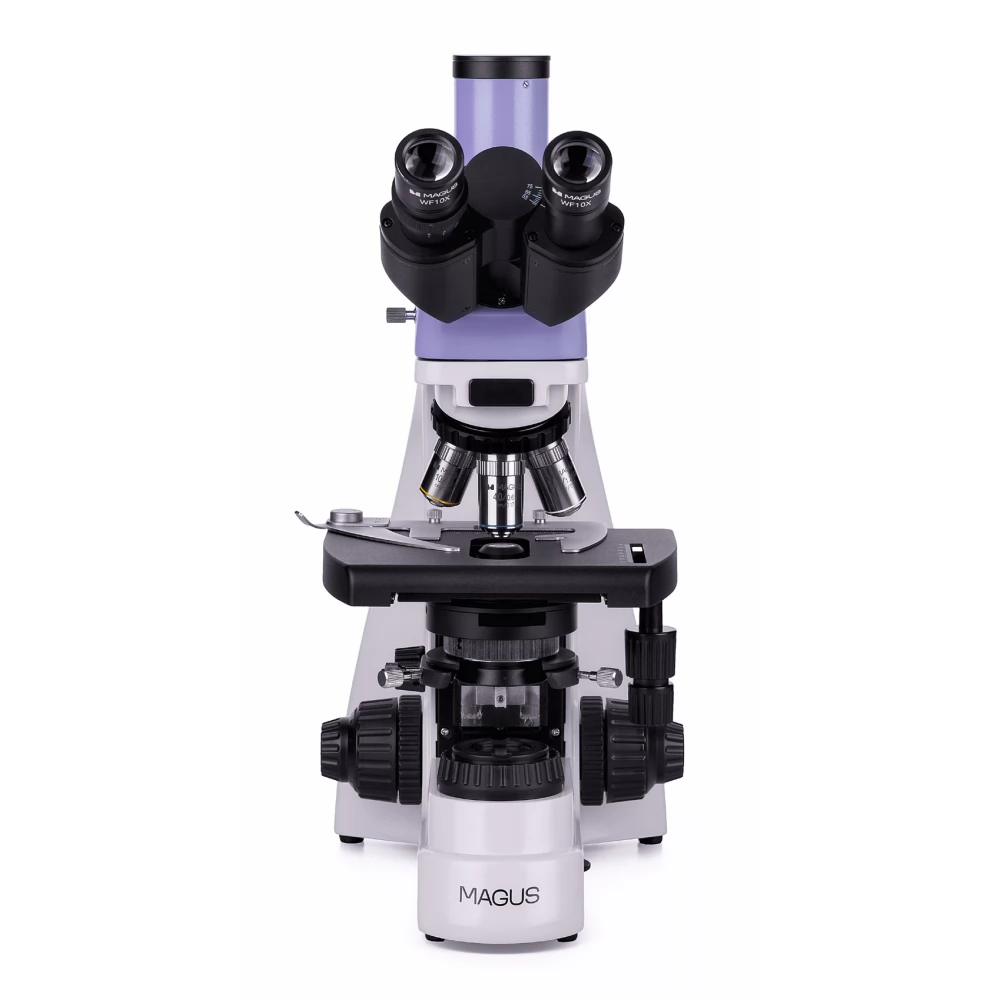

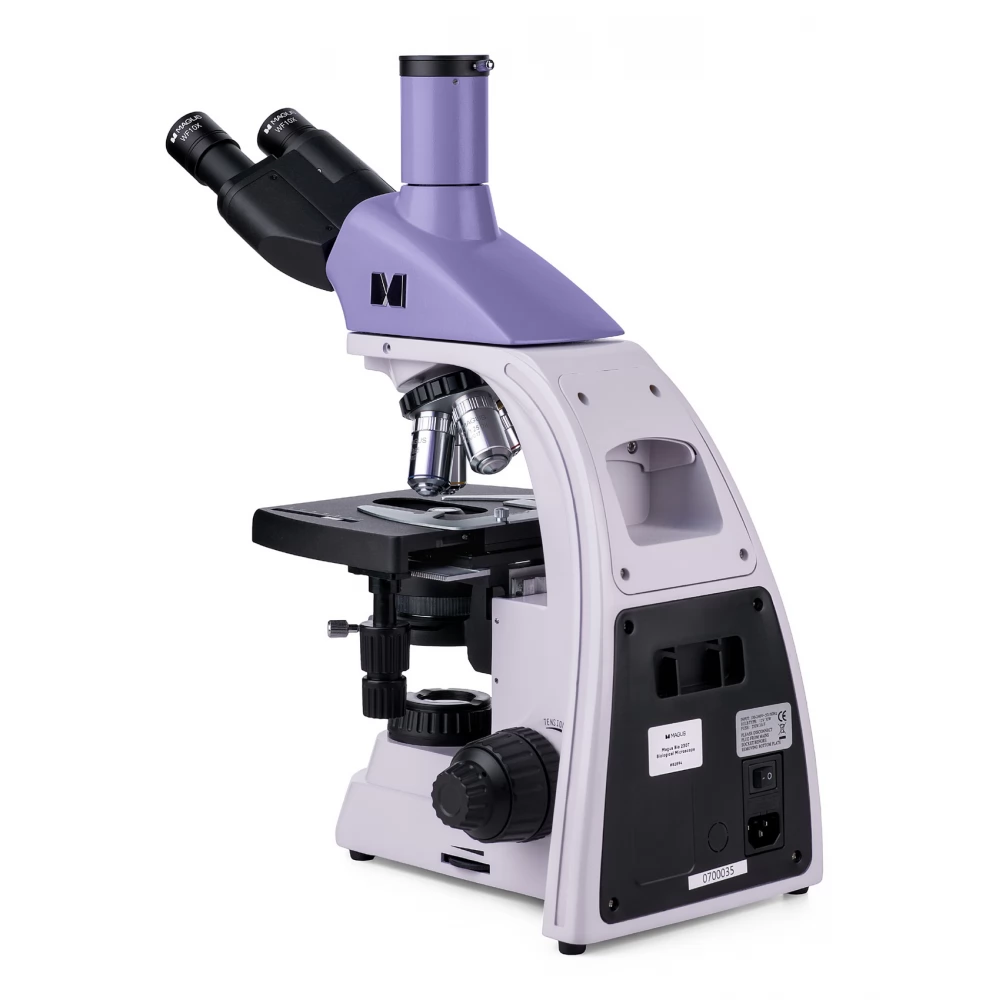

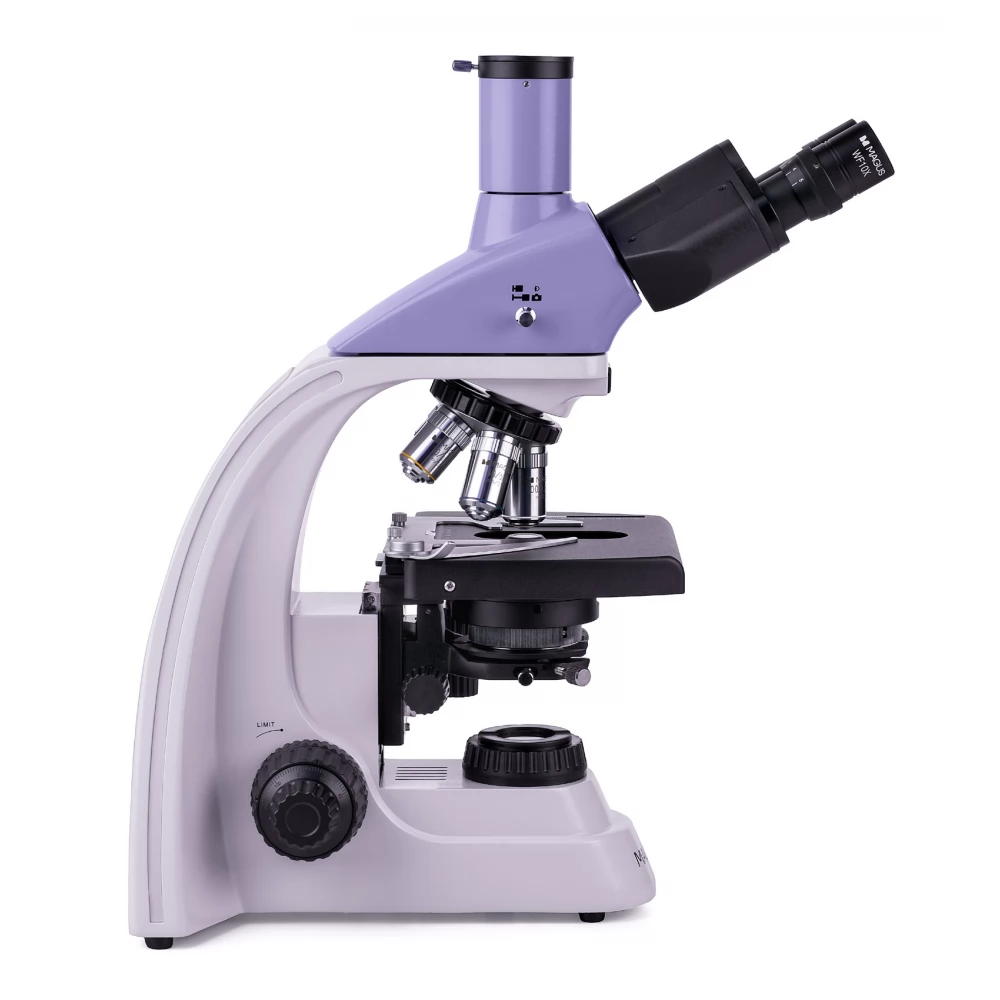

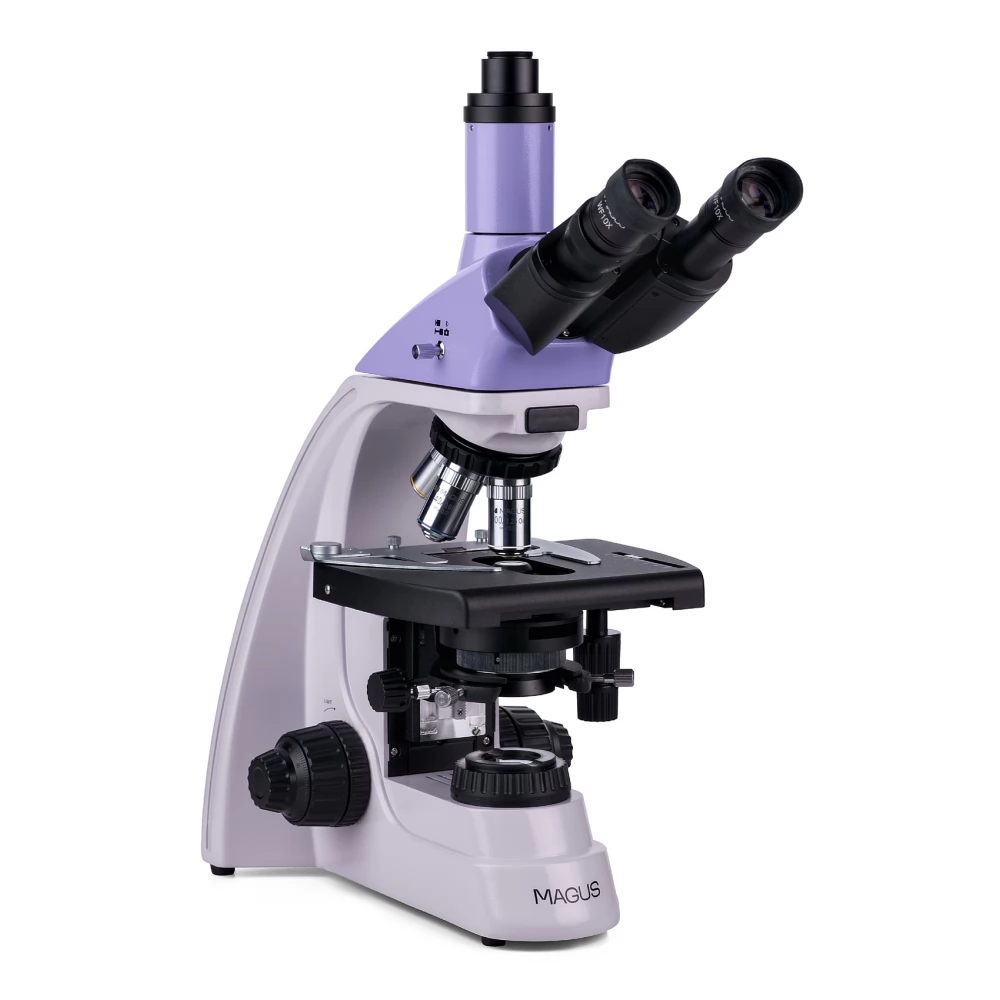

Magus Bio 230T is a biological trinocular microscope for laboratory and research observations, which is used in medicine, pharmaceutical industry, forensic medicine, biotechnology, etc. can be used in the area. Suitable for observing flat biological translucent and transparent samples (thin sections and smears). It is equipped with achromatic lenses and a halogen bulb, and uses the transmitted light (bright field of view) microscopic technique to examine the samples. The design of the microscope allows for the installation of additional accessories, with the help of which other microscopic techniques can also be used (dark field, phase contrast, polarized light).

Digital camera
The MAGUS CHD10 camera is equipped with a 2 MP sensor, so it captures realistic Full HD images with a resolution of 1920x1080 pixels.
It is an autonomous camera that does not need to be connected to a computer and does not require software installation. The camera can be connected directly to a TV, monitor or projector to display the image. The HDMI connector provides a high and stable transfer rate when transferring from the camera to an external screen. It records video at 60 fps.
The camera combines high FPS and high bandwidth HDMI. Thus, the videos have bright colors, there are no freezes or gaps between the frames. At maximum resolution, the image is well detailed, moving objects are visible without error, and the movement of objects is displayed without delay.

Monitor
MAGUS MCD monitors combined with MAGUS CHD cameras provide a complete imaging system for MAGUS microscopes.
The camera is connected via the HDMI interface. The monitor displays a real-time image. Its IPS LCD display provides a wide viewing angle, high brightness and good contrast. The image is not distorted, even if we look at the screen from a wide angle. The screen size is 13.3''.
The monitor can be installed on a horizontal surface using a foldable stand, or can be attached directly to the camera or tripod.

Optical elements

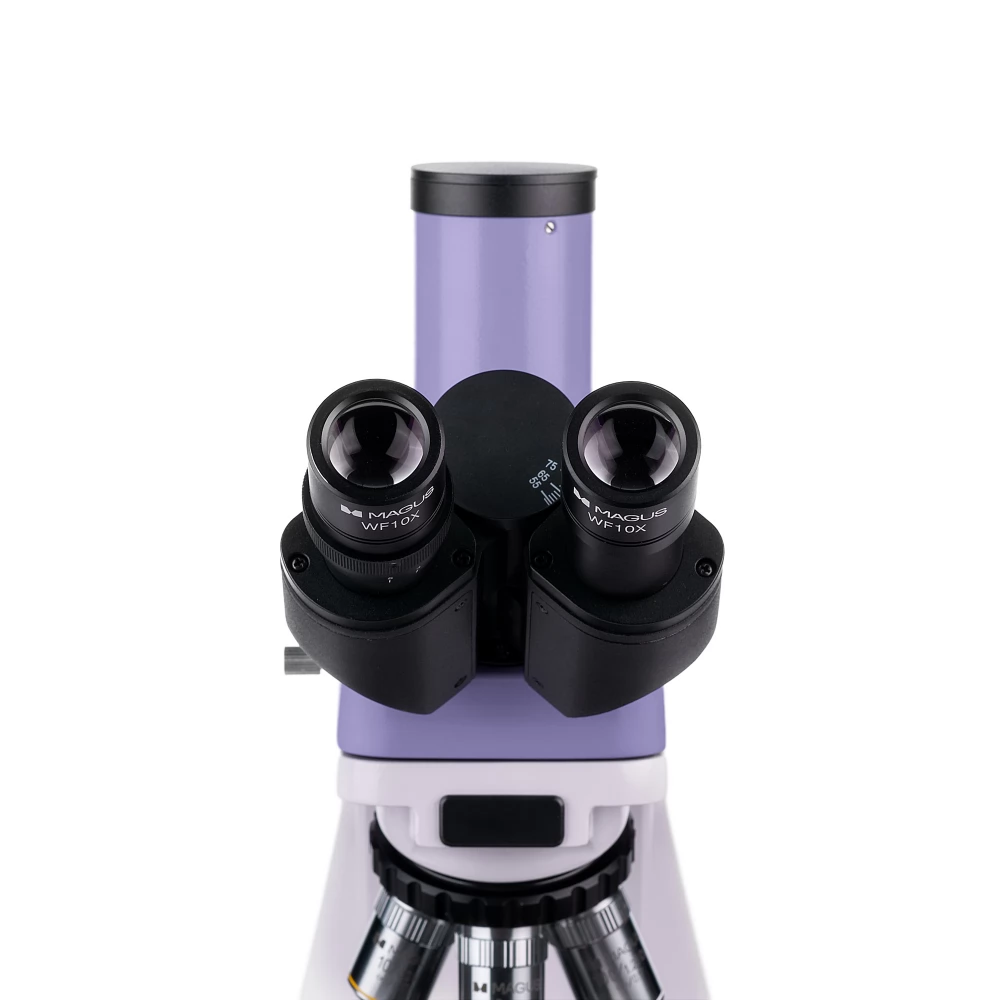

The three-lens head part has a vertical tube suitable for mounting a digital camera. The camera (sold separately) is an excellent solution for digitally archiving examinations and projecting images onto an external monitor screen. The observation tubes can be rotated 360° to a position corresponding to the height of the user. The left tube is equipped with a diopter adjustment ring.

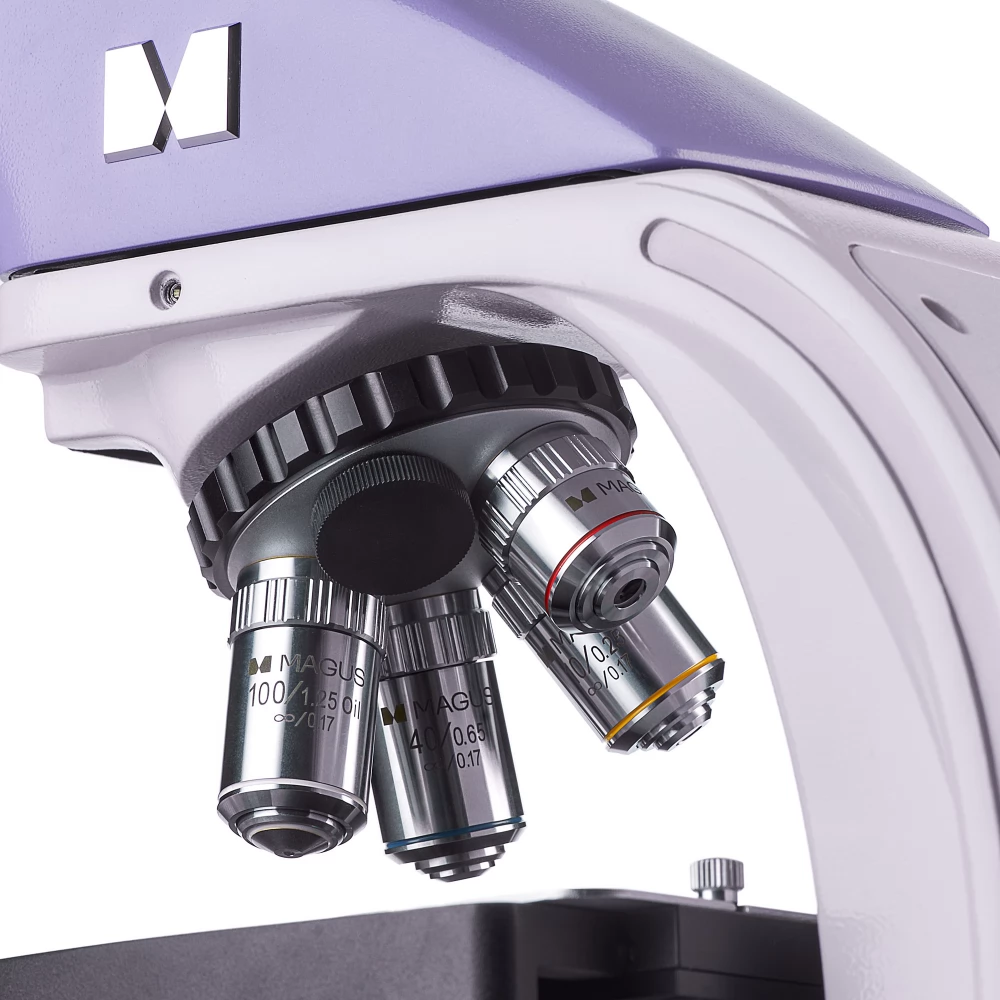

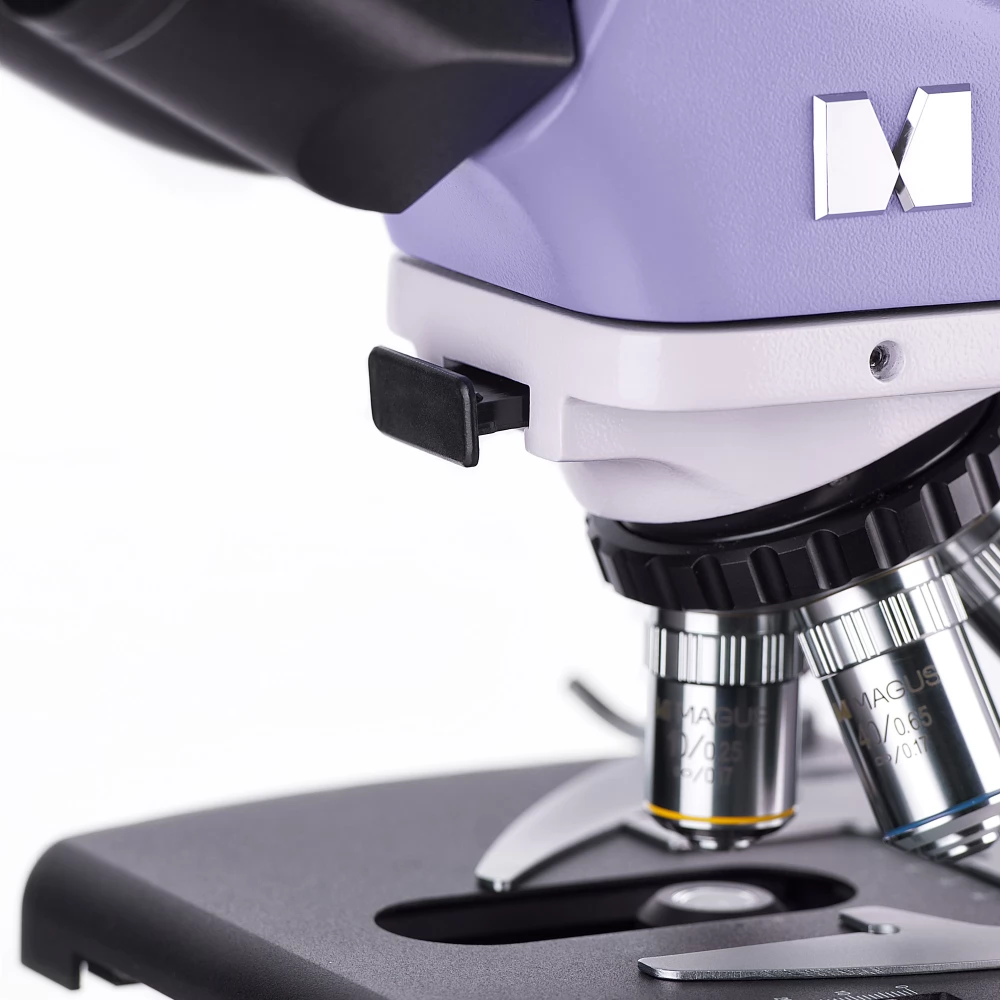

The revolver head faces the inner part, leaving the space above the stage free. Five lenses can be mounted in the turret at the same time (the kit contains 4 lenses, and the 5th slot is designed for an additional lens). In the basic configuration, the infinity-corrected objectives provide magnification between 40 and 1000x. With optional eyepieces, the upper limit can be increased to 1500, 1600 or 2000x.

Lighting
The halogen bulb provides a warm spectrum of light that reduces eye fatigue and is ideal for long hours of work with the microscope. The bulb is 30 W, so regardless of the type of lens used and the observation technique used, the brightness and contrast of the transferred image is high.

The Abbe condenser is adjustable in height and can be centered. Lighting can be controlled by adjusting the iris and field diaphragms, and it is also possible to adjust the Köhler lighting for clearer images. The condenser has an opening for mounting a phase-contrast or dark-field slide, which speeds up the process and makes it easy to switch between different microscopy techniques.

Stage and focusing structure
There is no positioning stand on the stage. This is an advantage of the design of the mechanical stage, as it facilitates the handling of the microscope. The sample can be easily moved on the stage. The mechanical mount is removable (can be removed for manual scanning).

Coarse and fine focus can be adjusted; moving the focus knob is simple and easy and requires no extra effort. The coarse focusing mechanism has a lock button and is adjustable in tension. The focus buttons are coaxial, positioned for maximum comfort during long hours of observation, and are located on the base of the microscope so that you can rest your hands comfortably on the table.

Accessories
In order to maximize the performance of the Magus Bio 230T microscope, you can further expand it with certain accessories. These include eyepieces and objectives, digital cameras and calibration slides, dark field condensers, polarized light and phase contrast microscopic observation devices.

- Three-eye lens head with vertical tube for mounting a digital camera
- 360° rotation adjusted to the height of the observer
- Infinity-achromatic objectives, turret for 5 objectives
- Diopter adjustment ring on the left tube
- 30 W halogen bulb with alternating current (AC) power supply, Abbe condenser with opening for dark field slider and phase contrast slider, field diaphragm
-
