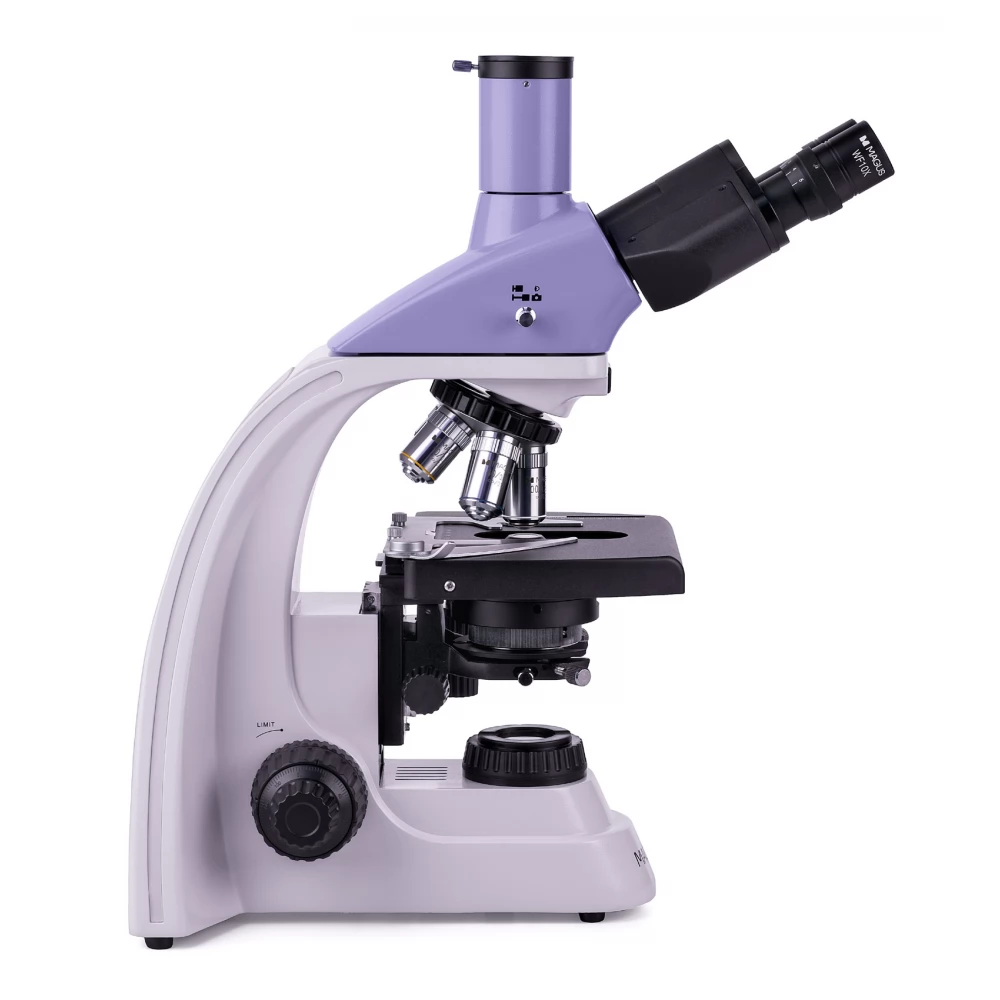

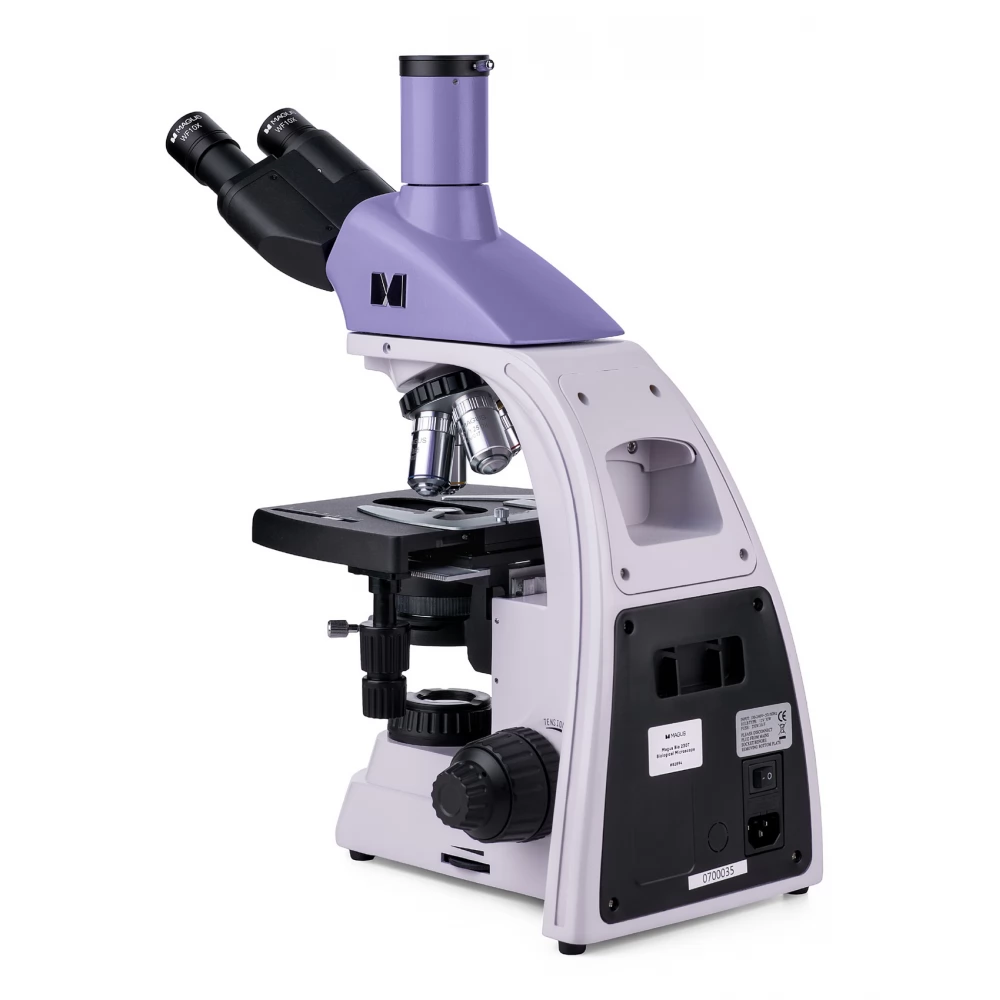

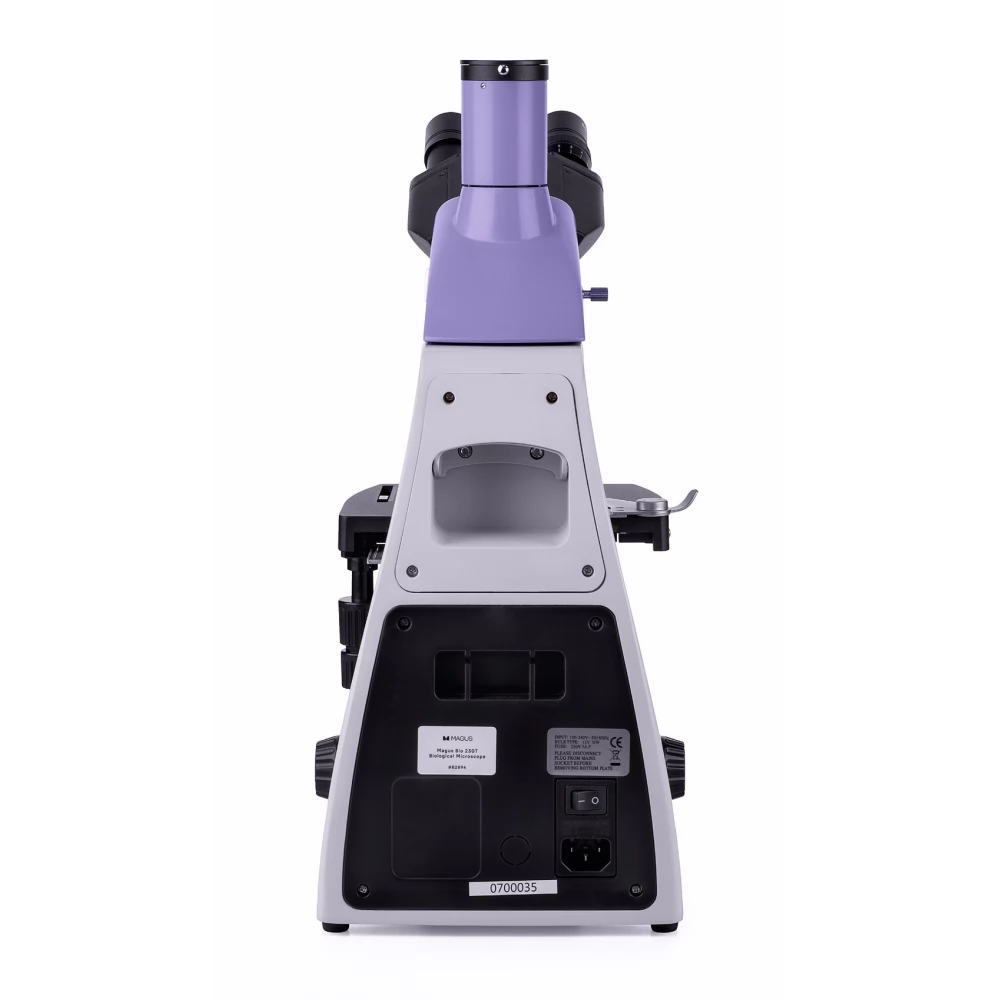

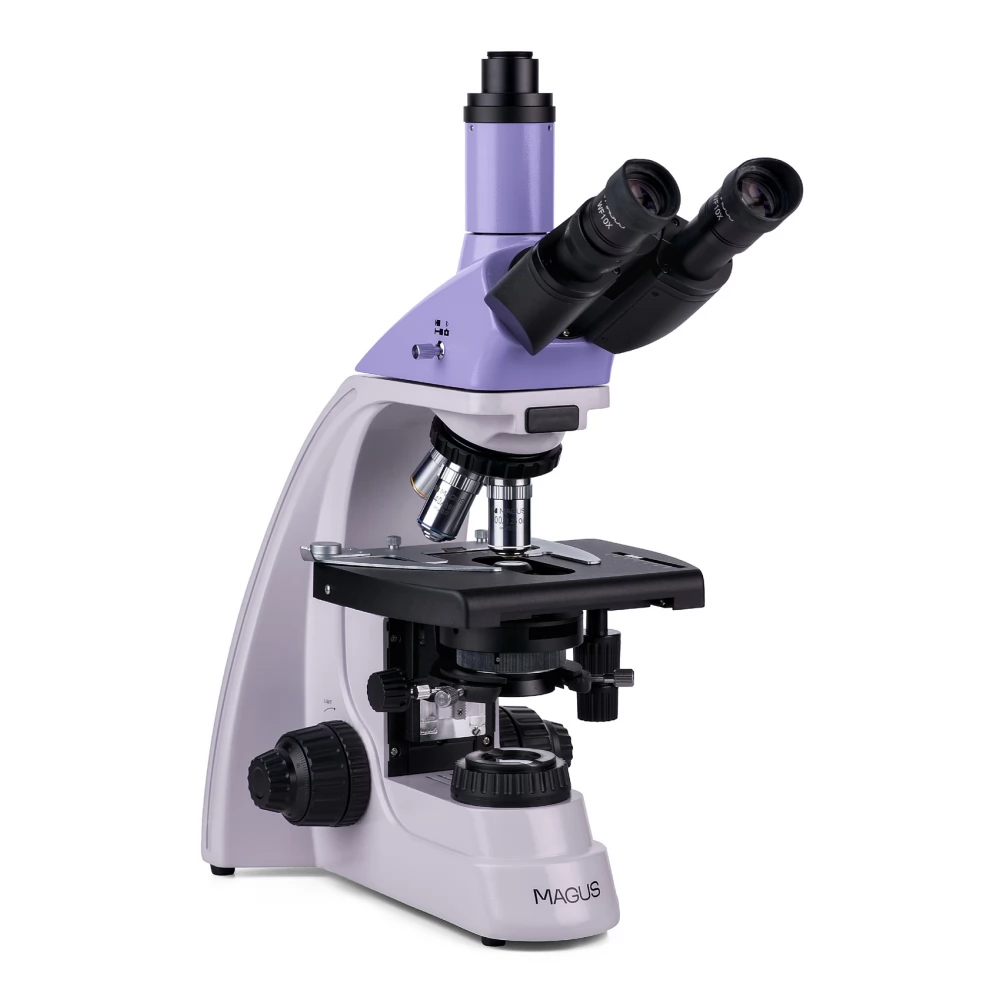

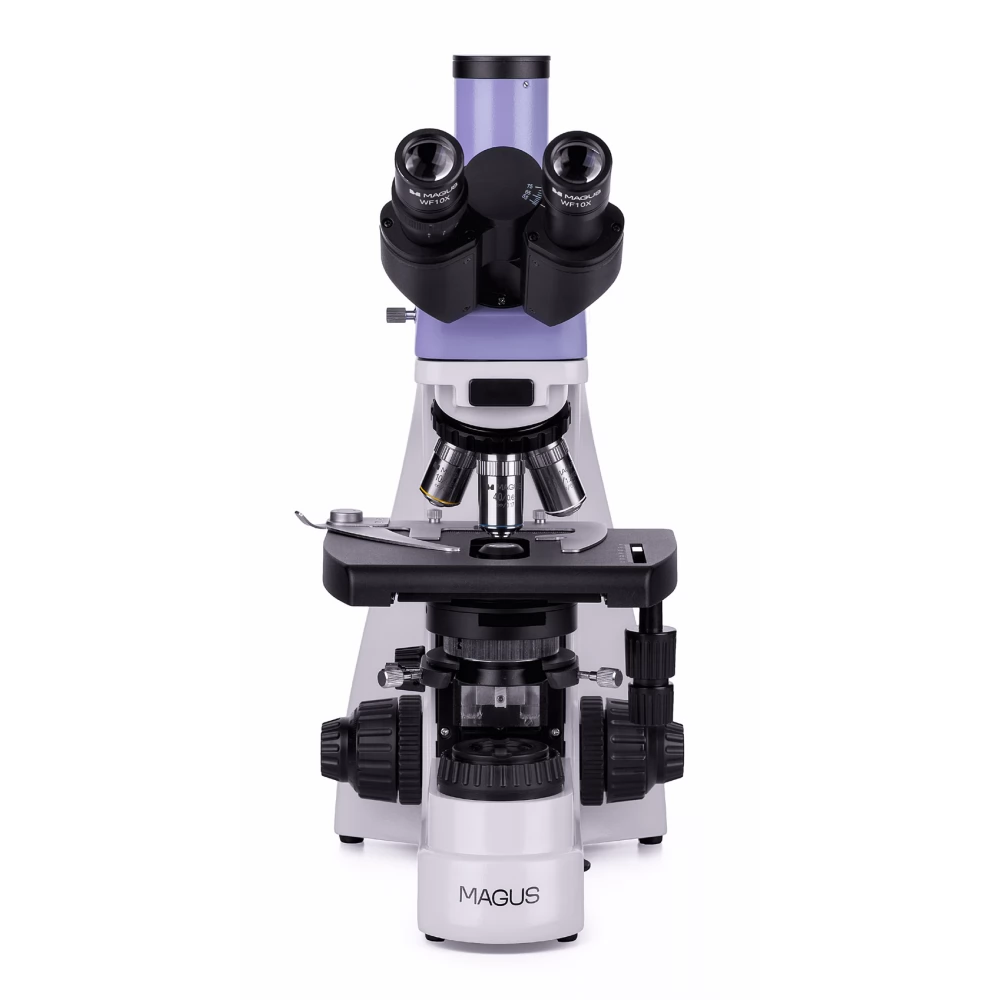

MAGUS Bio 230T is a biological trinocular microscope for laboratory and research observations, which is used in medicine, pharmaceutical industry, forensic medicine, biotechnology, etc. can be used in the area. Suitable for observing flat biological translucent and transparent samples (thin sections and smears). It is equipped with achromatic lenses and a halogen bulb, and uses the transmitted light (bright field of view) microscopic technique to examine the samples. The design of the microscope allows for the installation of additional accessories, with the help of which other microscopic techniques can also be used (dark field, phase contrast, polarized light).

Optical elements

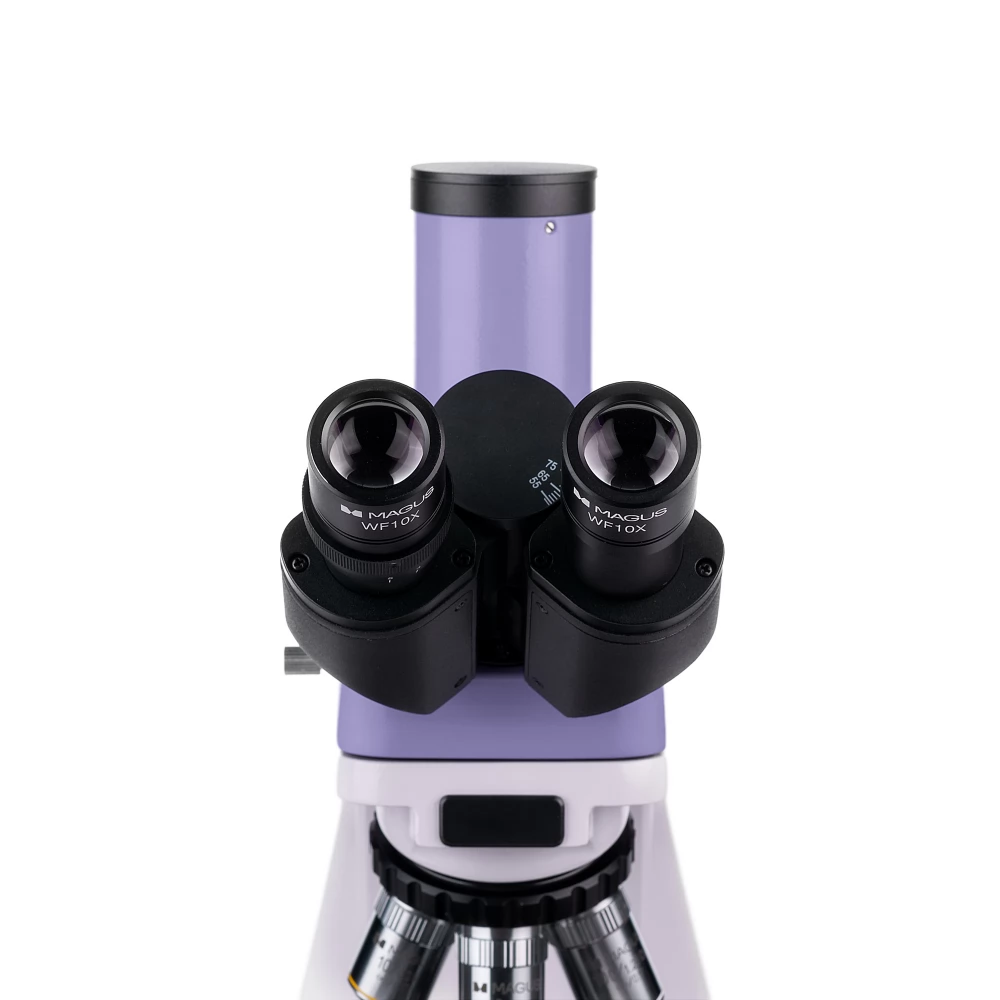

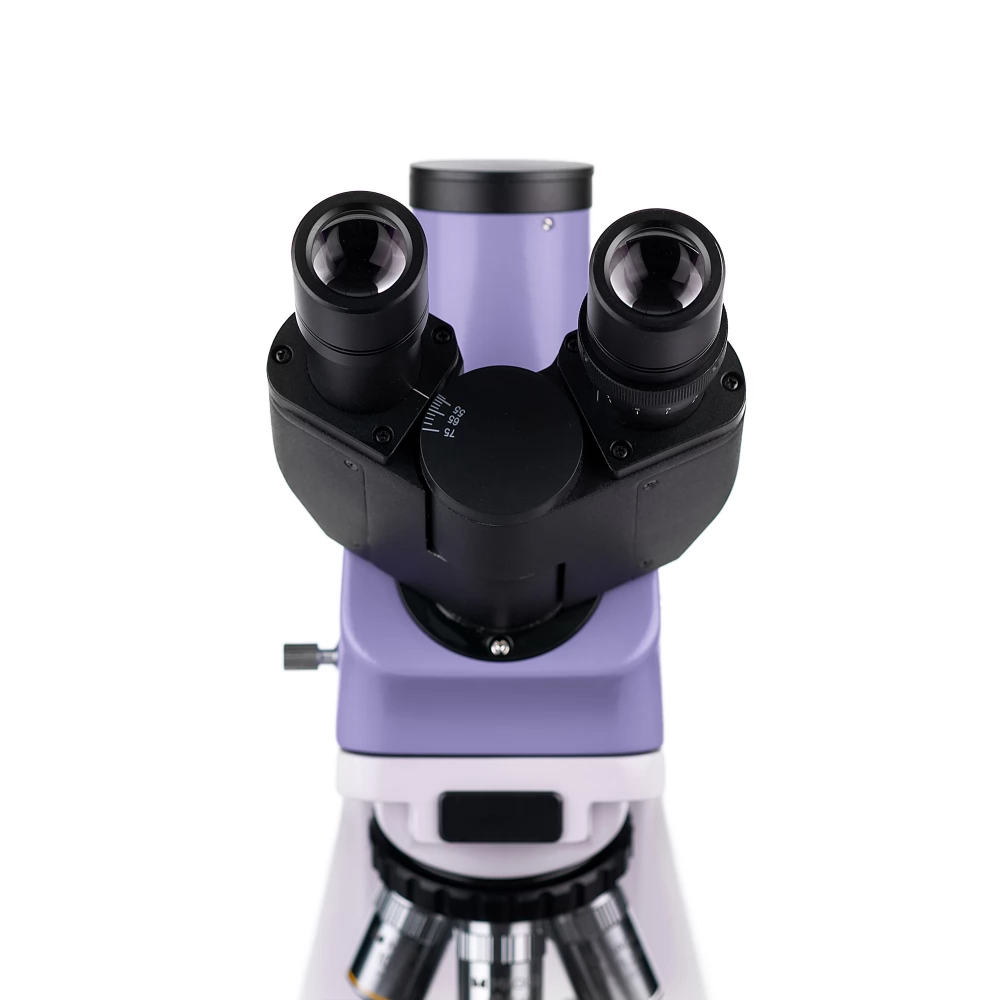

The three-lens head part has a vertical tube suitable for mounting a digital camera. The camera (sold separately) is an excellent solution for digitally archiving examinations and projecting images onto an external monitor screen. The observation tubes can be rotated 360° to a position corresponding to the height of the user. The left tube is equipped with a diopter adjustment ring.

The revolver head faces the inner part, leaving the space above the stage free. Five lenses can be mounted in the turret at the same time (the kit contains 4 lenses, and the 5th slot is designed for an additional lens). In the basic configuration, the infinity-corrected objectives provide magnification between 40 and 1000x. With optional eyepieces, the upper limit can be increased to 1500, 1600 or 2000x.

Lighting
The halogen bulb provides a warm spectrum of light that reduces eye fatigue and is ideal for long hours of work with the microscope. The bulb is 30 W, so regardless of the type of lens used and the observation technique used, the brightness and contrast of the transferred image is high.

The Abbe condenser is adjustable in height and can be centered. Lighting can be controlled by adjusting the iris and field diaphragms, and it is also possible to adjust the Köhler lighting for clearer images. The condenser has an opening for mounting a phase-contrast or dark-field slide, which speeds up the process and makes it easy to switch between different microscopy techniques.

Stage and focusing structure
There is no positioning stand on the stage. This is an advantage of the design of the mechanical stage, as it facilitates the handling of the microscope. The sample can be easily moved on the stage. The mechanical mount is removable (can be removed for manual scanning).

Coarse and fine focus can be adjusted; moving the focus knob is simple and easy and requires no extra effort. The coarse focusing mechanism has a lock button and is adjustable in tension. The focus buttons are coaxial, positioned for maximum comfort during long hours of observation, and are located on the base of the microscope so that you can rest your hands comfortably on the table.

Accessories
In order to maximize the performance of the MAGUS Bio 230T microscope, you can further expand it with certain accessories. These include eyepieces and objectives, digital cameras and calibration slides, dark field condensers, polarized light and phase contrast microscopic observation devices.

- Three-eye lens head with vertical tube for mounting a digital camera
- 360° rotation adjusted to the height of the observer
- Infinity-achromatic objectives, turret for 5 objectives
- Diopter adjustment ring on the left tube
- 30 W halogen bulb with alternating current (AC) power supply, Abbe condenser with opening for dark field slider and phase contrast slider, field diaphragm
- Coaxial coarse and fine focus buttons, locking button and coarse focus voltage control button
- Optional accessories to increase the performance of the microscope

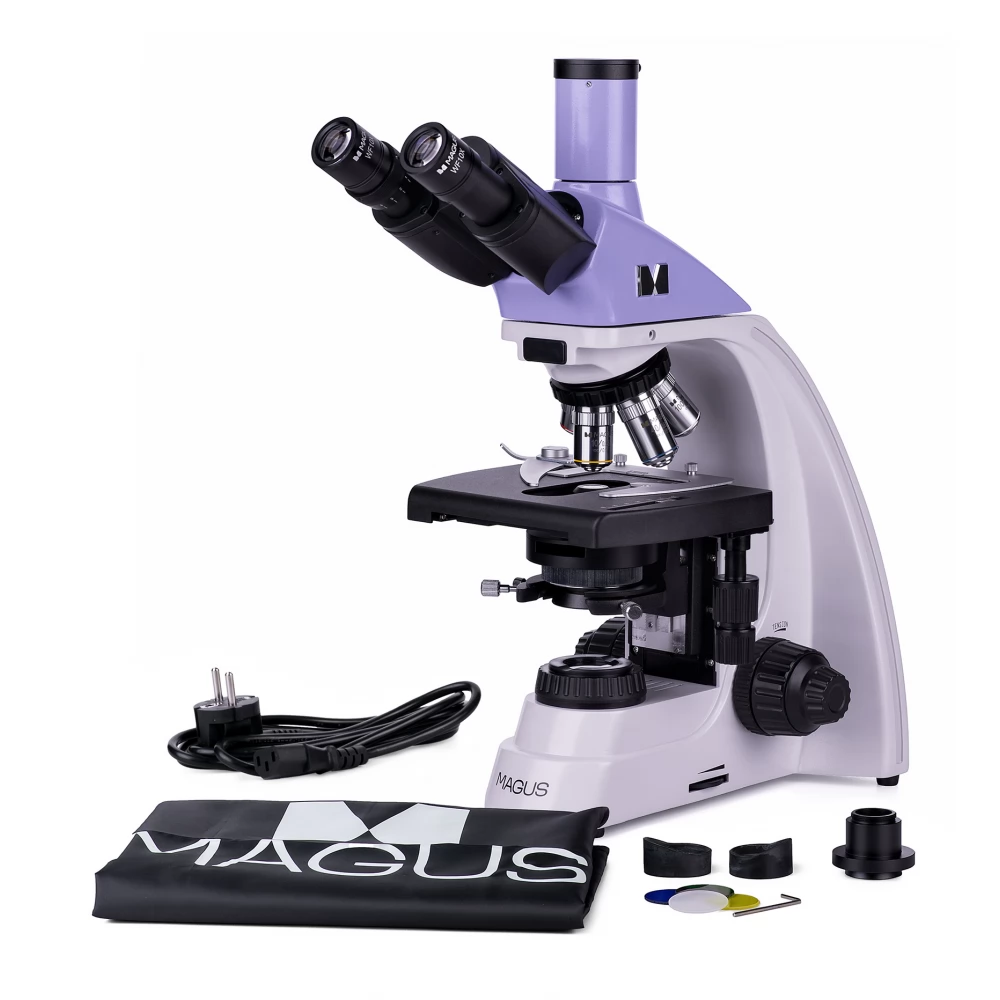

Contents of the set
- Base with power input, transmitted light source, focusing mechanism, stage, condenser holder, turret head
- Abbe condenser
- Head piece with three eye lenses
- Infinity-achromatic objective: 4x/0.10
- Infinity-achromatic objective: 10x/0.25
- Infinity-achromatic objective: 40x/0.65 (spring structure)
- Infinity-achromatic objective: 100x/1.25 oil (spring structure)
- 10x/18 mm eyepiece with long eye distance (2 pcs.)
- Eyecups (2 pcs.)
- Filter (4 pcs.)
- C-connector camera adapter
- Bottle containing immersion oil
- Alternating current (AC) power cable
- Dust cover
- User manual and warranty card
