- 16 pieces of 10/100/1000 MB/s RJ45
- equipped with 8 POE+ Supported connectors to make power and data transmission on a cable
- cooperate with IEEE 802.3AF/AT-compatible POE+ devices, expanding your home or office network
- Plug & Play Design Simple Network Setup
- Web user interface and control program for simpler treatment

Function

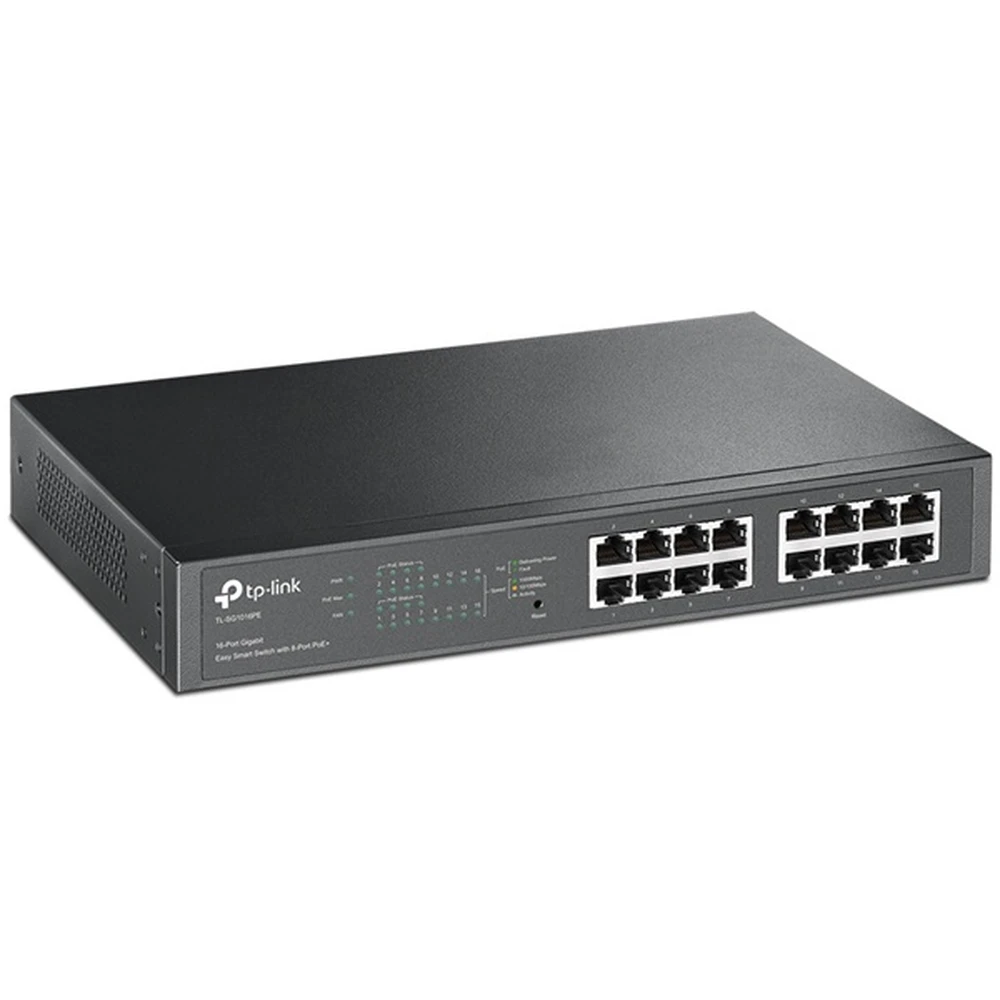

The TL-SG1016PE is a 16-port gigabit desktop/rack-mounted switch, 8 connectors supports POE+. It provides an opportunity to increase your wired network with a single Ethernet cable that is transmitted by data and power. With a total power of 110W, a 30 W-power connector, TL-SG1016PE is capable of providing devices such as wireless Access Point, IP camera or IP phone. In fact, innovative energy efficient technology can also achieve TL -SG1016PE 75% energy savings, an environmentally friendly solution for the corporate network.

How does it work?
The TL-SG1016PE 8 connector supports the Power Over Ethernet Plus (POE+) standard, which automatically detects and currently offers any IEEE 802.3AF/AT. In such cases, the current and data are transmitted together on a single cable, allowing you to increase your network and install devices such as APs, IP cameras or IP phones.

Overload
One of the higher priority tasks of the TL-SG1016PE is to protect the system if the power supply is overloaded. If you consume all POE+ devices is more than or equal than 110W, the most important ports are placed in highlights for 8 POE+ connectors, and you will eliminate power at lower priorities.

Port priority feature
*Priority (Port 1> Port> Port> Port> Port> Port> Port> Port> Port> Port> 7): This feature protects the system if the power supply is overloaded. For example, if connector 1, 2, 3, 30W, connector 5 uses 15W (maximum power per port 30W), system power is 110W total (POE Max LED turns green when all POE devices have a higher power supply or equal to 110W). If an additional device is fitted to Port 4 with 20W power, the system will eliminate port 5 power because power has reached the 110W limit. Thus, Ports 1, 2 and 3 will use 30W and port 4 will use 20W, and Port 5 is eliminated because it has a lower priority based on the rating.

Easy to use
TL-SG1016PE is easy to install and use. No need to configure or install. With desktop/rack-mounted execution, outstanding performance and quality, the TP-Link TL-SG1016PE 16 port gigabit switch 8 POE port is a great choice for expanding your home or office network.

- 16 pieces of gigabit lan port
- 1 piece of fans
- Size: 294 x 180 x 44 mm
- Operating temperature: 0 ° C ~ 40 ° C
- Storage temperature: -40 ° C ~ +70 ° C
- Operating humidity: 10% ~ 90%
- Storage humidity: 5% ~ 90%
