HOMEPILOT Intelligent 2 channel cable without switch 11941002

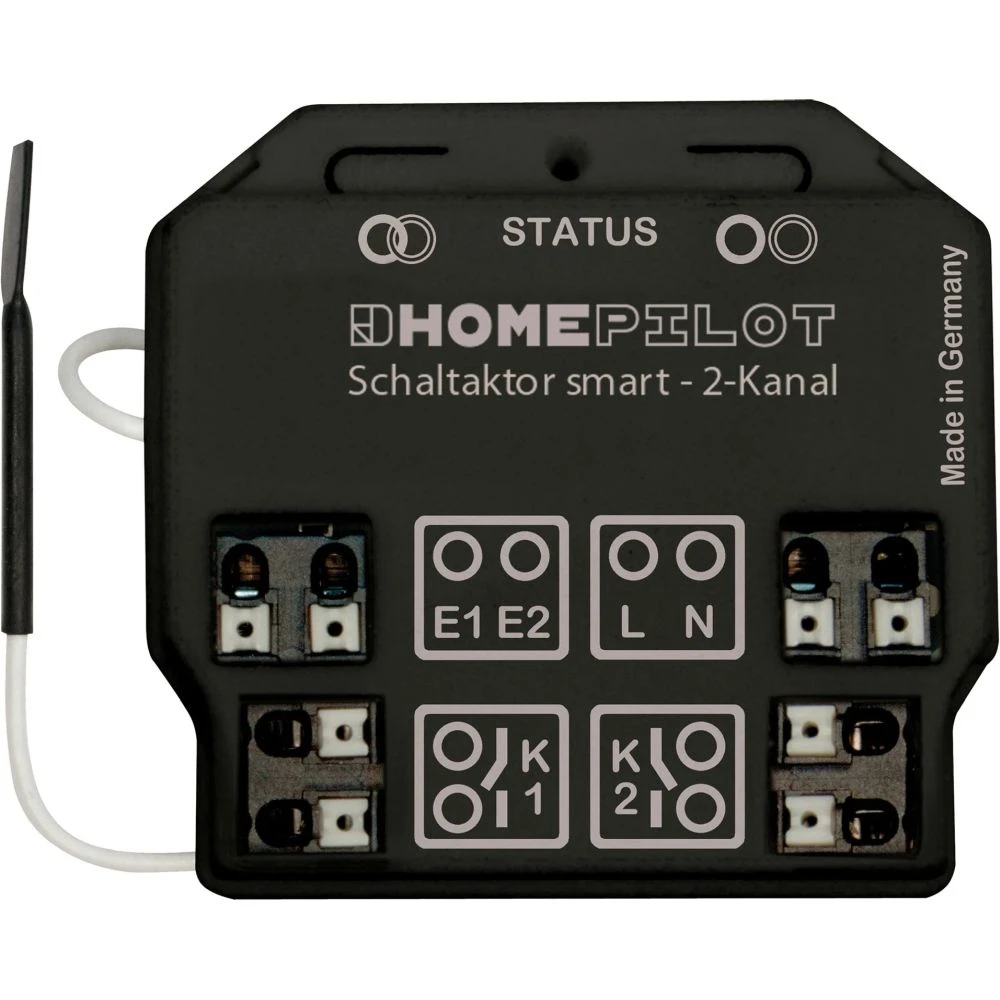

The compact and discreet HOMEPILOT intelligent two-channel switch actuator, complete with antenna, is perfect for retrofitting existing light switches or electrical appliance sockets (up to 1500 watts each), with independent wireless control via two channels, and integrating HOMEPILOT into a Smart Home system. The switch actuator can be controlled via various transmitters, such as a smart remote control or a smart wall switch. Together with the Gateway premium, the switch actuator can also be controlled via the app, which enables many automations. The intelligent two-channel switch actuator can be integrated into a DuoFern network to take advantage of the premium functionality of DuoFern sensors and transmitters such as the Gateway. The "staircase" function allows you to set a time after which the switch and the connected smart home lighting will automatically turn off. A total of up to 20 smart devices can be connected and integrated via the switch actuator. Of course, you can still use your existing light switches. The switch actuator can be used for on/off switching, two-way switching or even cross connection. Thanks to its compact design, it can be easily installed behind existing switches, push buttons or sockets. Installation can be done in a standard recessed box or electrical boxes.

Description:

- Type: actuator
- EAN: 4031909025715
- Manufacturer number: 11941002
- Smart home compatible: Alexa, DuoFern, Google Home, HOMEPILOT, DuoFern, Homepilot
- Intended use: Switching lamps or electrical devices on two channels, each with a maximum power of 1500 watts, via radio.
- Area of application: Interior spaces
- Installation: Recessed installation
- Switch type: Switch actuator
- Control: Manufacturer application
- Communication: Wi-Fi
- Switching functions: Random switching
- Devices: A maximum of 2 devices can be controlled.
- Radio range in open terrain: 100 meters
- Building range: 30 meters (depending on the structure of the building)
- Tax: A maximum of 20 channels can be registered.
- Frequency: 434.5 MHz
- Transmitter power: 10 mW
- Power supply Switching capacity: Max. 3000 watts, 16 A
- Switching capacity for ohmic load: Max. 6.5 A
- Switching capacity for inductive load: Max. 5 A
- Supply voltage: 230 volts, 50 Hz
- Output voltage: 230 volts
- Power consumption in standby mode: < 0.5 watts
- Protection class: IP00
- Operating temperature: between -20 °C and 55 °C
- Installation: In a standard recessed box or electronics box
- Available accessories: Instructions for use
- Optional: Gateway premium
- Dimensions: Width: 48.7 mm x Height: 45.7 mm x Depth: 19.8 mm
