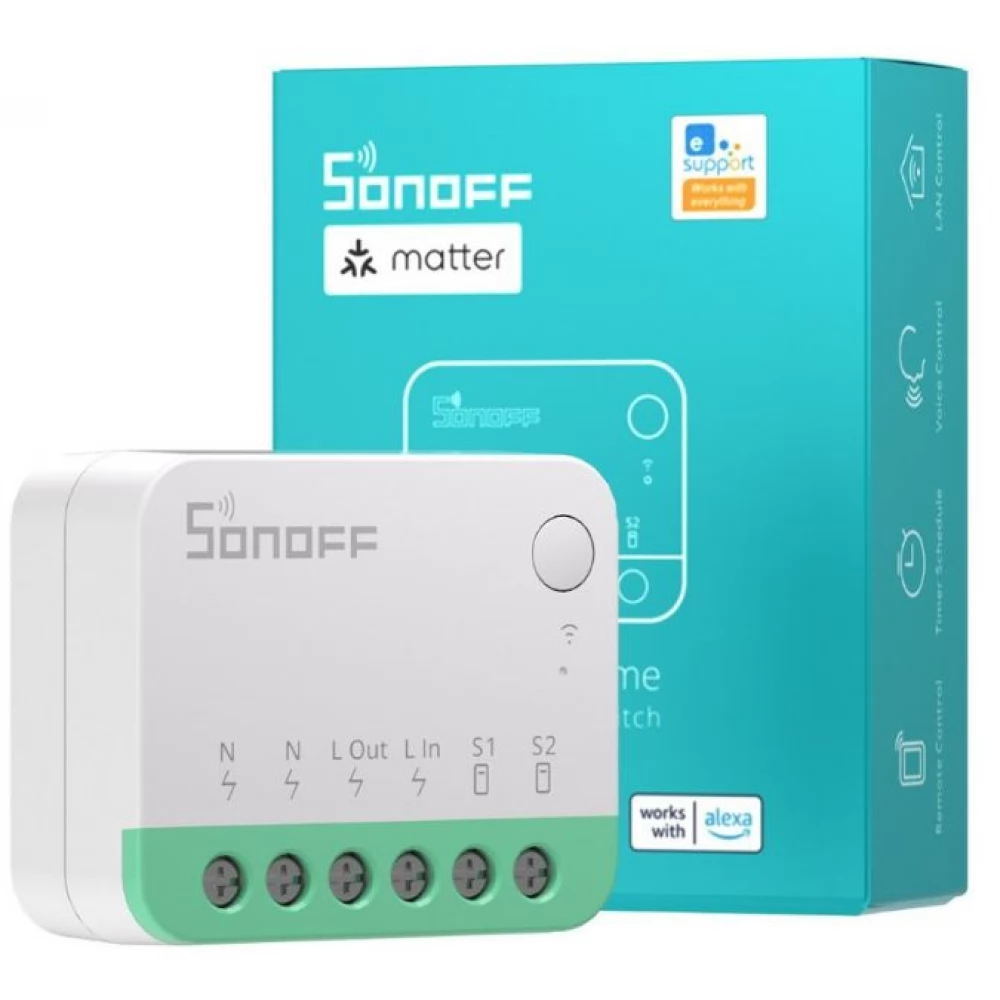

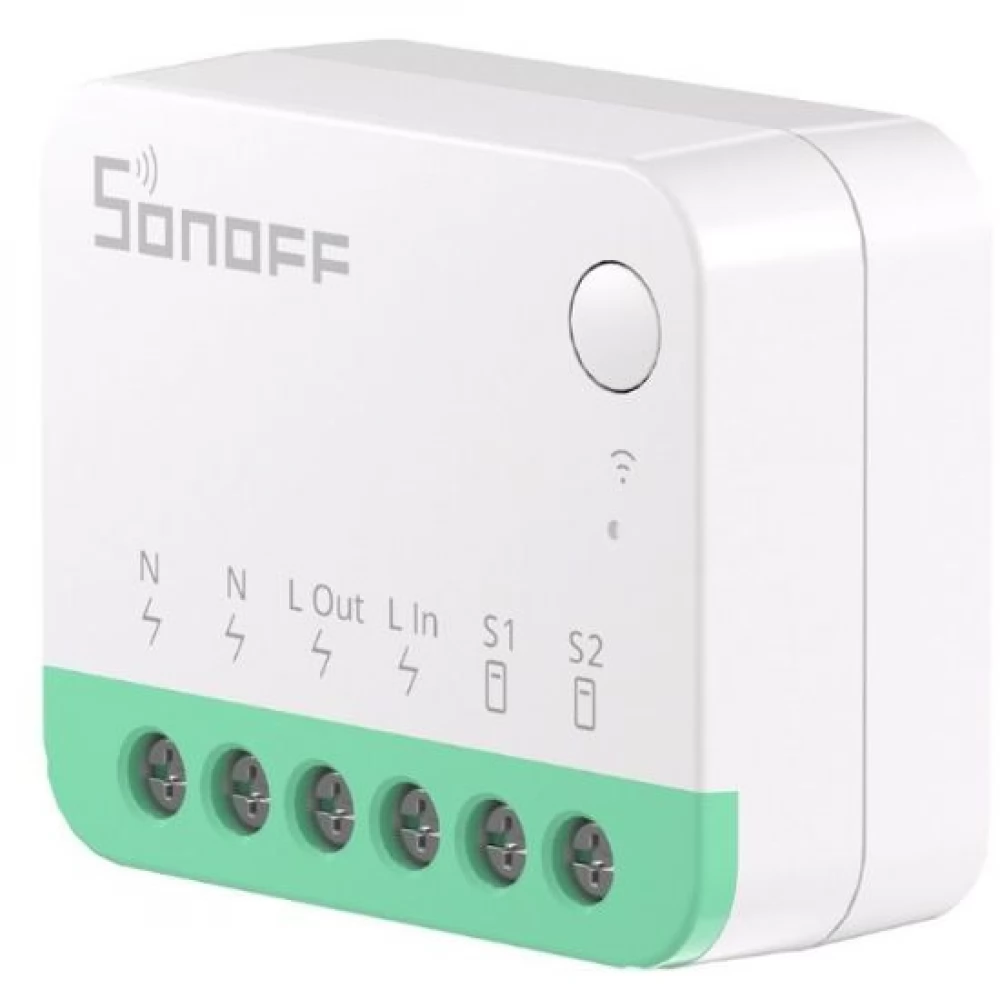

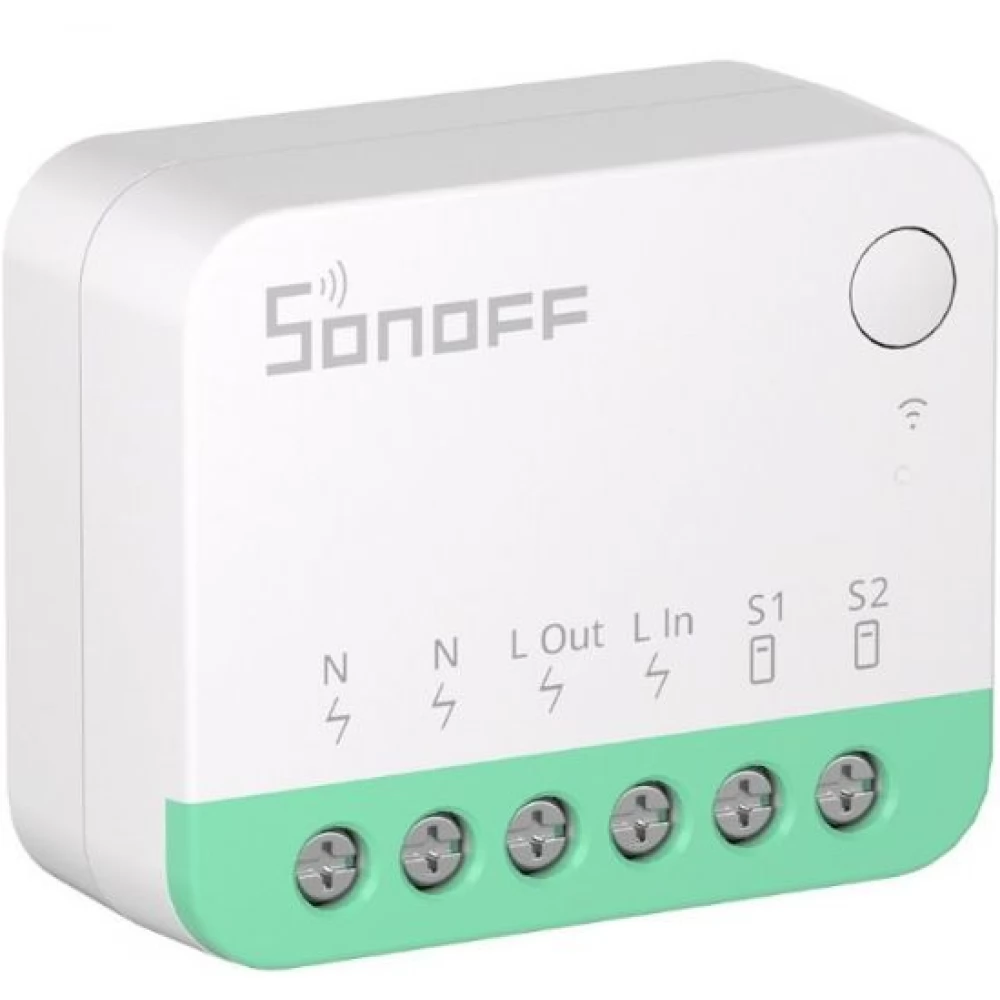

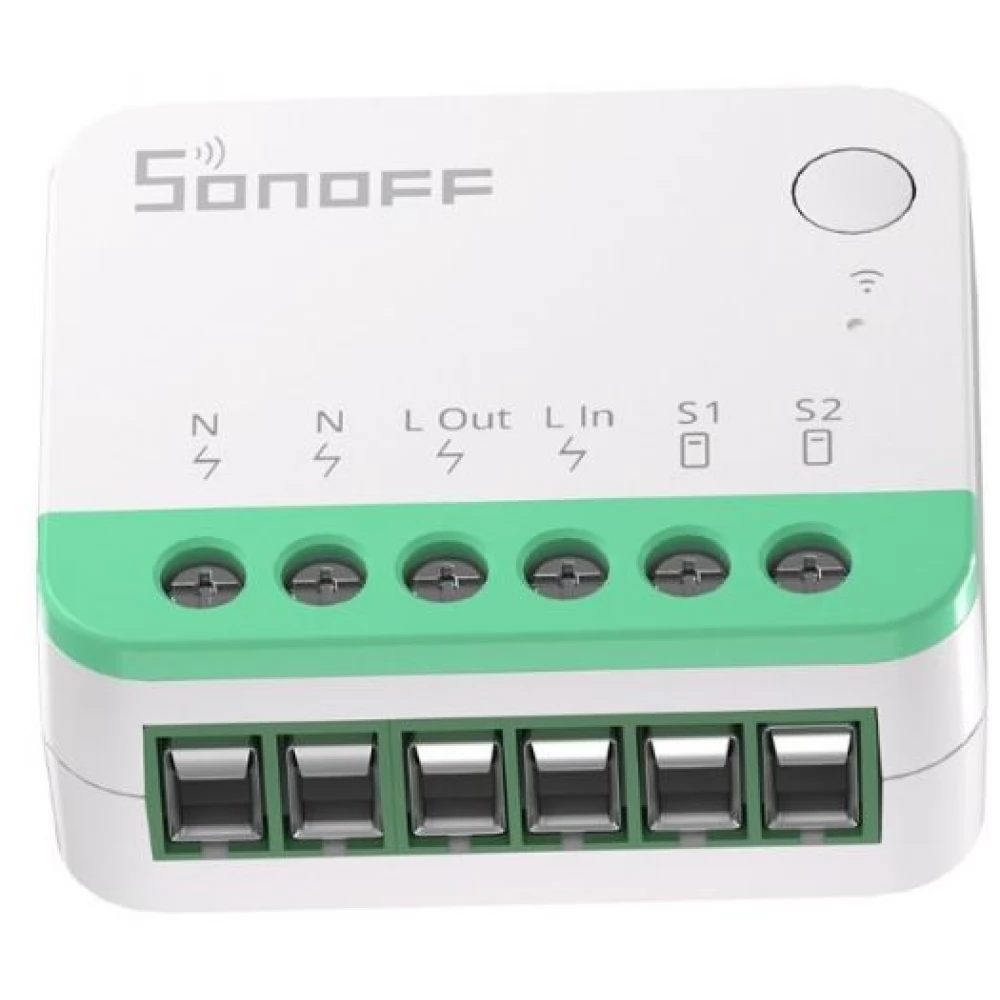

The Sonoff Mini R4M, also known as the Sonoff Mini Extreme R4 Matter version, is Sonoff's first Matter standard compatible device, which is of course still compatible with the eWeLink cloud and the Sonoff iHOST local hub, but can be connected via a Wi-Fi router to any Matter is also compatible with hubs, even in local use without an Internet connection. Thus, the device is compatible with Apple Home, Alexa and Google Home.

Like the Sonoff Mini R4, the small Mini R4M Wi-Fi module also has a potential-free switch input, so it is suitable for retrofitting after traditional wall switches. It can work with push switches and two-position switches and can be connected with alternative switching. (A potential-free motion sensor or other sensor can also be connected to its switch input.) The switch input - the first of the Sonoff relays - can be disconnected from the output by software, so the use of the wired wall switch connected to the module can also be disabled. However, you can set a smart control / scene on the switch disconnected from the output, so you can control other smart devices with it.

The Sonoff Mini R4M Matter version does not support the eWeLink-Remote protocol, i.e. it cannot be used together with wireless Sonoff Bluetooth switches and modules.

The module is significantly smaller than its predecessors: its size has been reduced by 40% compared to the Mini R2 and 60% compared to the Mini R3.

As usual from Sonoff, the high quality of the device is confirmed not only by the usual CE certification, but also by a test certificate from the German TÜV Rheinland laboratory.

Compatible with Home Assistant, SmartThings, IFTTT and Apple Home.

Smart features:

The Sonoff Mini R4M - like other Sonoff relays - is connected to the Sonoff / eWeLink cloud and can be accessed and controlled via the Internet via the eWeLink smartphone app for Android and iOS. Like other Sonoff smart relays, this one can be set for timed on/off, supports cycle control, and automatic switching off (inching), with which it can also be set to pulse switching mode, or it can be switched off after a specified time after switching on as a time relay. The possibility of remote access can also be shared with family members.

It supports automatic software (firmware) updates via the eWeLink app, as well as setting the status after a power failure, or setting a time delay.

Wiring methods:

When installed behind a traditional switch with phase + neutral wiring, the Sonoff Mini R4M supplements the traditional switch with Wi-Fi smart functions: e.g. App controllability, timing, time relay functions, possibility of automations.

Product features:

- Mini-sized smart relay can be placed even in the smallest wall sockets behind the light switch or socket assembly, the only 33x40mm module;
- 10A maximum power despite its small size, 10A max. can handle performance.
- Quick and easy Bluetooth pairing Thanks to the built-in Bluetooth chip, the Sonoff Mini R4 can be paired with the eWeLink app running on the phone in seconds.
- Wi-Fi module The relay has a WiFi module and is connected to the network via the home/office WiFi network, or to the factory eWeLink Cloud in the default cloud mode.
- Matter standard Sonoff Mini R4M is the manufacturer's first Matter standard device, it can be paired with any Matter hub, not only the eWeLink platform.
- It can also be controlled with a traditional switch: wall switches or sensors with potential-free switching (e.g. motion detector) can also be connected to its potential-free input;
- Switching ON/OFF from the APP Wherever you are, you can turn the Mini R4M and connected electrical devices, sockets or lighting on or off remotely from the APP.
- Mobile App Free iOS and Android mobile app: eWeLink, and also compatible with other Matter devices: e.g. Alexa app, Apple Home app, Google Home app.
- Status inquiry The mobile App shows the current status of the smart relay (on or off)
- Timing Several timing functions are available: setting a specific time, setting repeated times, countdown / timer, cycle.
- Can be shared with others You can give access, e.g. your family members for remote control
- Device groups You can organize your devices into groups and turn several devices on or off with one click.

Description:

- Manufacturer: Sonoff
- Factory article number: MINIR4M
- Product type: Smart WiFi switch relay that can be built into a wall socket
- Color: White

Installation / operation

- Operating power supply: 100V-240V AC
- Connection: AC (phase and zero)
- Fixing / installation: Can be installed in a wall socket
- Can be mounted on a DIN rail: No

Controlled (/measured) circuit

- Switch / switch relay: Yes
- Dimming / Brightness control: No
- Consumption measurement: No
- Number of circuits: 1
- Number of switched poles: 1P
- NO/NC switching: No
- Rated voltage: 110V-240V AC
- Rated current: 10A
- Rated power: 2400W

Electrical properties

- Local / manual
