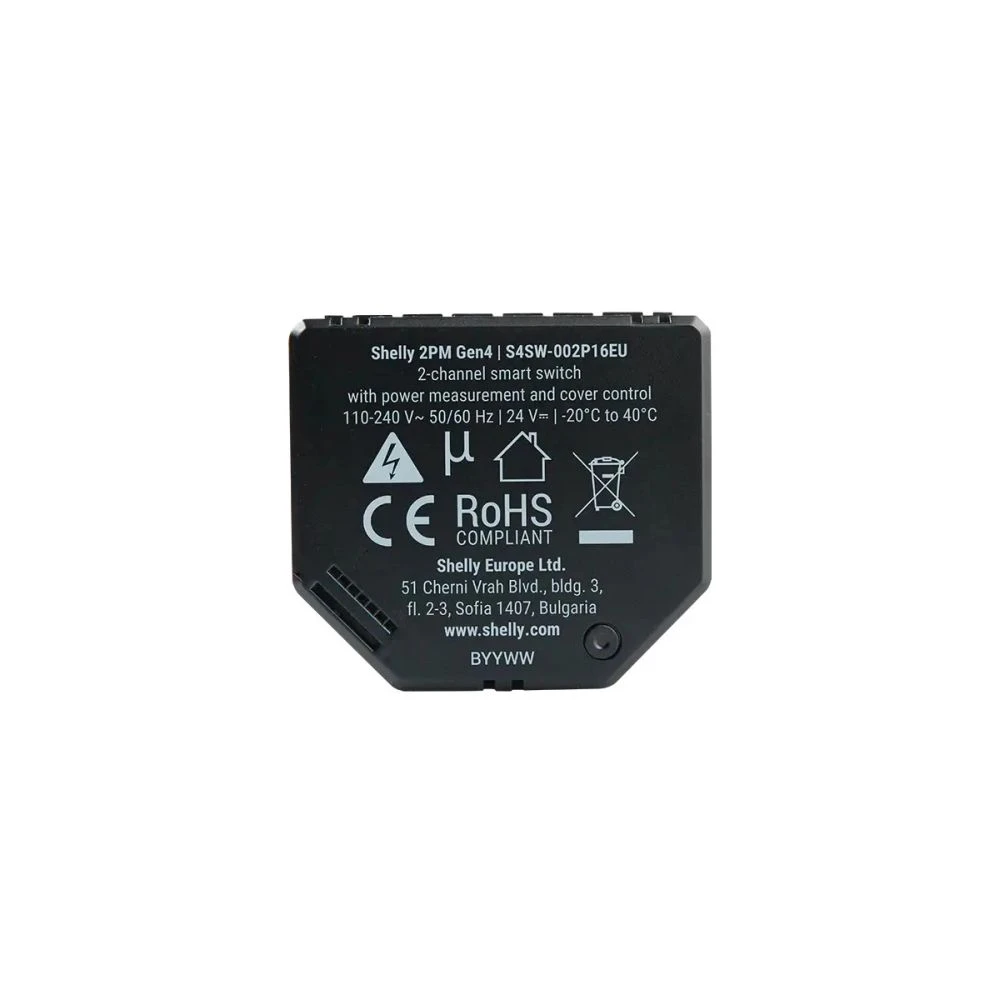

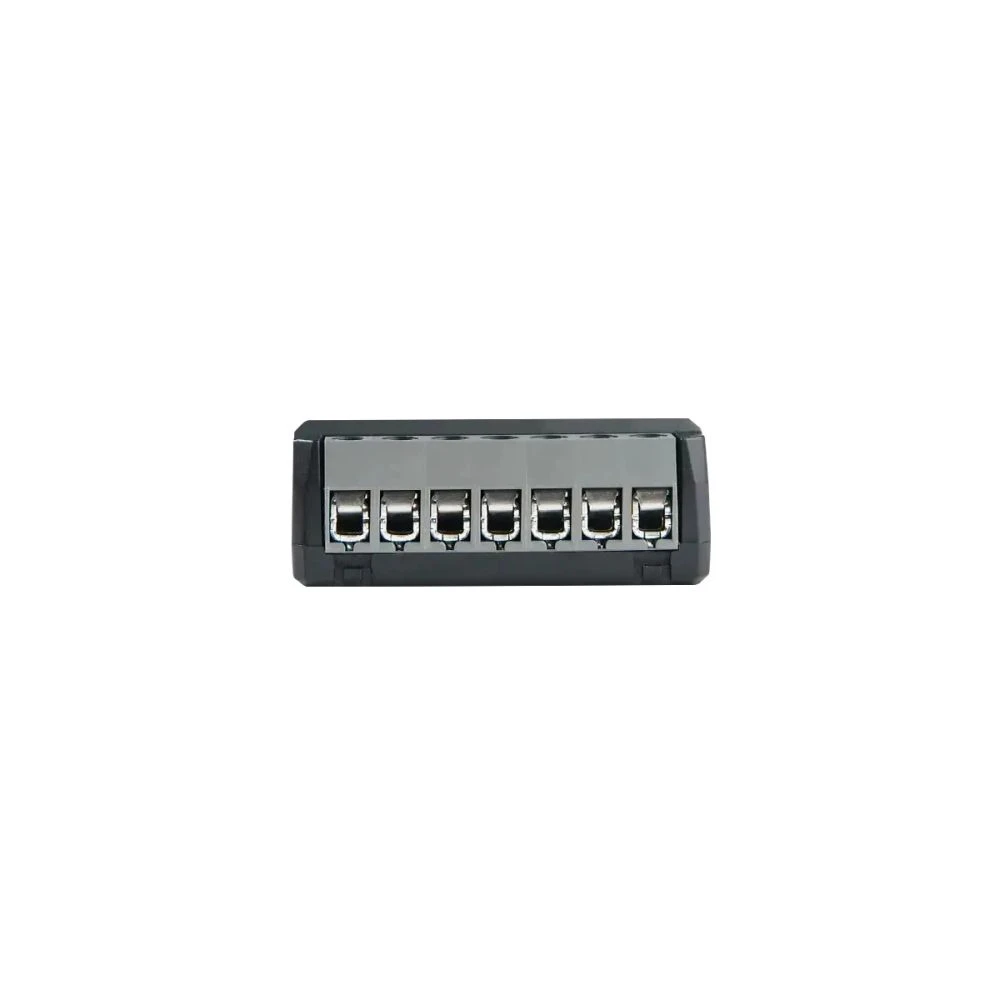

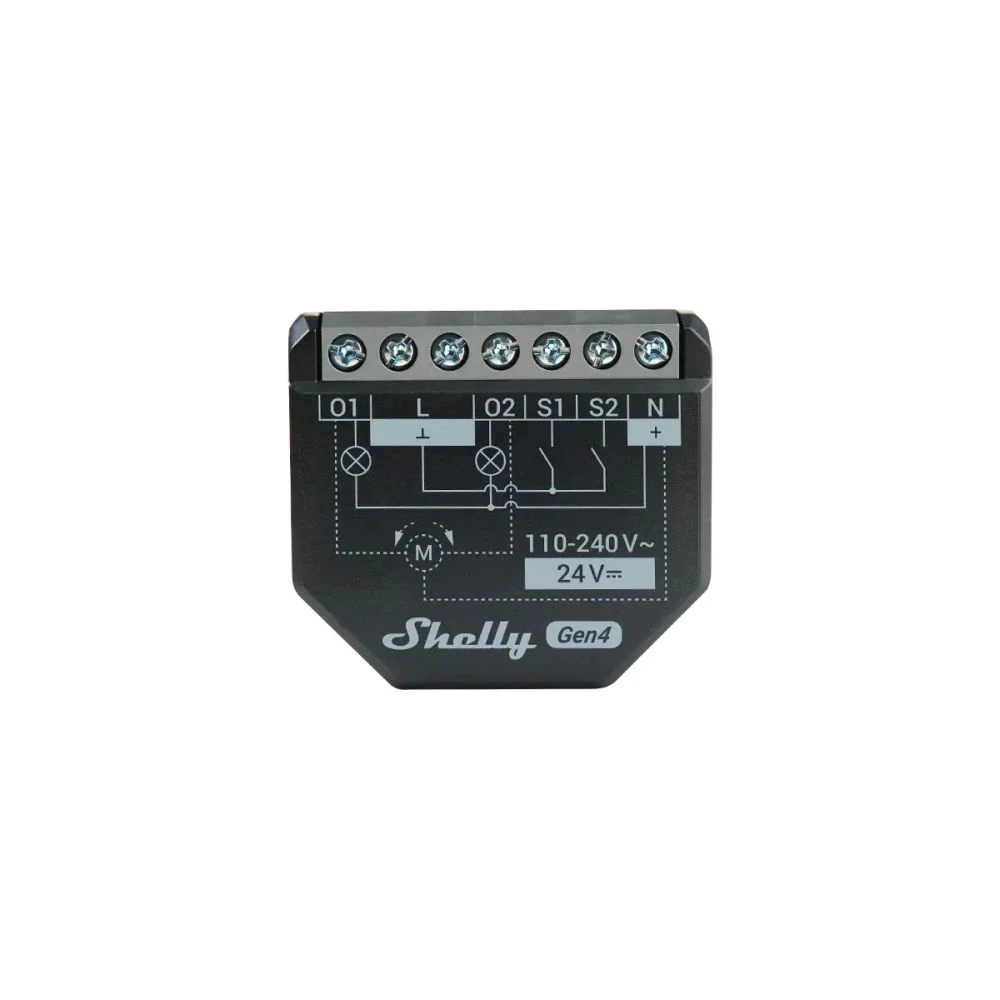

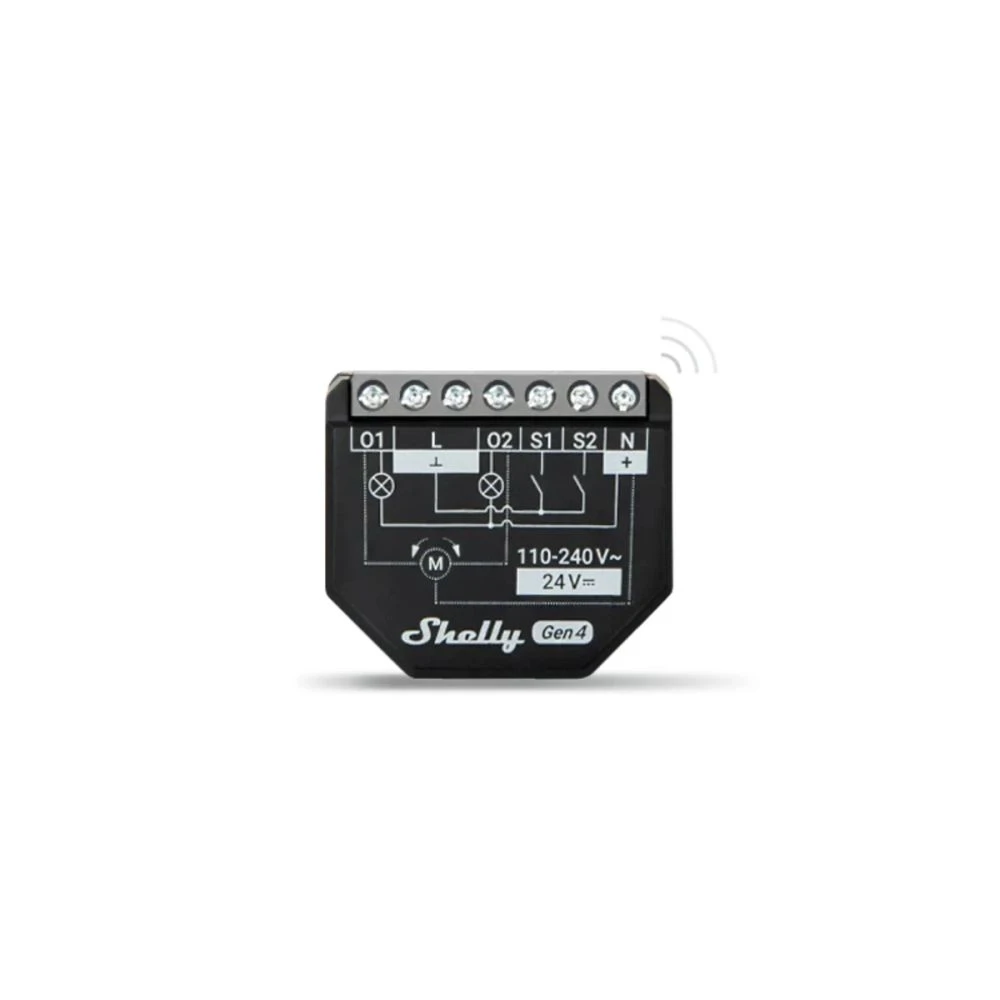

Two devices, one smart switch: Zero compromise

Unleash the true intelligence of your home with this small but powerful wall-mounted smart relay! The fourth generation technology brings the most modern automation. Forget about separate relays: with this compact device you can control two independent circuits, be it two different lights or a shutter motor. In addition, the built-in precision energy monitoring (Power Monitoring) shows the consumption of each channel in real time and accurately. In this way, you can make running your home not only more comfortable, but also more budget-friendly. Plan your consumption, set automated rules and enjoy control.

Future compatibility: Matter, Zigbee and instant speed

The modern smart home is all about compatibility, and this device is at the forefront of that. Thanks to the chip-based solution, it works smoothly with the most important protocols: in addition to stable Wi-Fi, it also supports the widely integrable Zigbee and the smart home standard of the future, Matter. This guarantees that whatever system you are thinking of (Google Home, Apple HomeKit, Amazon Alexa, Home Assistant), you can easily integrate it. The relay also has a Roller Shutter mode optimized for motor-controlled devices, such as blinds, and protects the safety of your home with built-in overheating protection.

Description:

- Physical size (H x W x D) and weight: 37x42x16 mm, 30 g
- Maximum torque of screw connections: 0.4 Nm / 3.5 lbin
- Wire cross-section: 0.2 - 2.5 mm² / 24 - 14 AWG (solid, twisted and connectors)
- Stripped wire length: 6 - 7 mm / 0.24 - 0.28 inch
- Installation: recessed / in an electrical junction box
- Housing material and color: plastic, black
- Operating ambient temperature: -20 °C - 40 °C / -5 °F - 105 °F
- Humidity: 30% - 70% relative humidity
- Max altitude: 2000 m / 6562 ft
- Electrical power supply: 110-240V~, 24 VDC ±10%
- Power consumption: < 1.4 W
- Max. switching voltage: 240V~, 30V DC
- Max. switching current: 16A (240V~), 10A (30V DC)
- Internal temperature sensor: Yes
- Voltmeter (AC), ammeter (AC): Yes
- Protection against overheating and overvoltage: Yes (AC)
- Overcurrent protection: Yes (AC)
- Obstacle detection: Yes (shutter mode)
- Safety switch: Yes (shutter mode)
- Wi-Fi radio protocol: 802.11 b/g/n, Bluetooth protocol: 4.2, Zigbee protocol: IEEE 802.15 4
- Range: up to 50m / 164ft outdoors, up to 30m / 98ft indoors (depending on local conditions)
- Range: up to 30m / 98ft outdoors, up to 10m / 33ft indoors (depending on local conditions)
- Schedules: 20
- Webhooks (URL actions): 20, with 5 URLs per hook
- Wi-Fi range extender: Yes
- BLE gateway: Yes
- Scripting, MQTT and encryption: Yes
