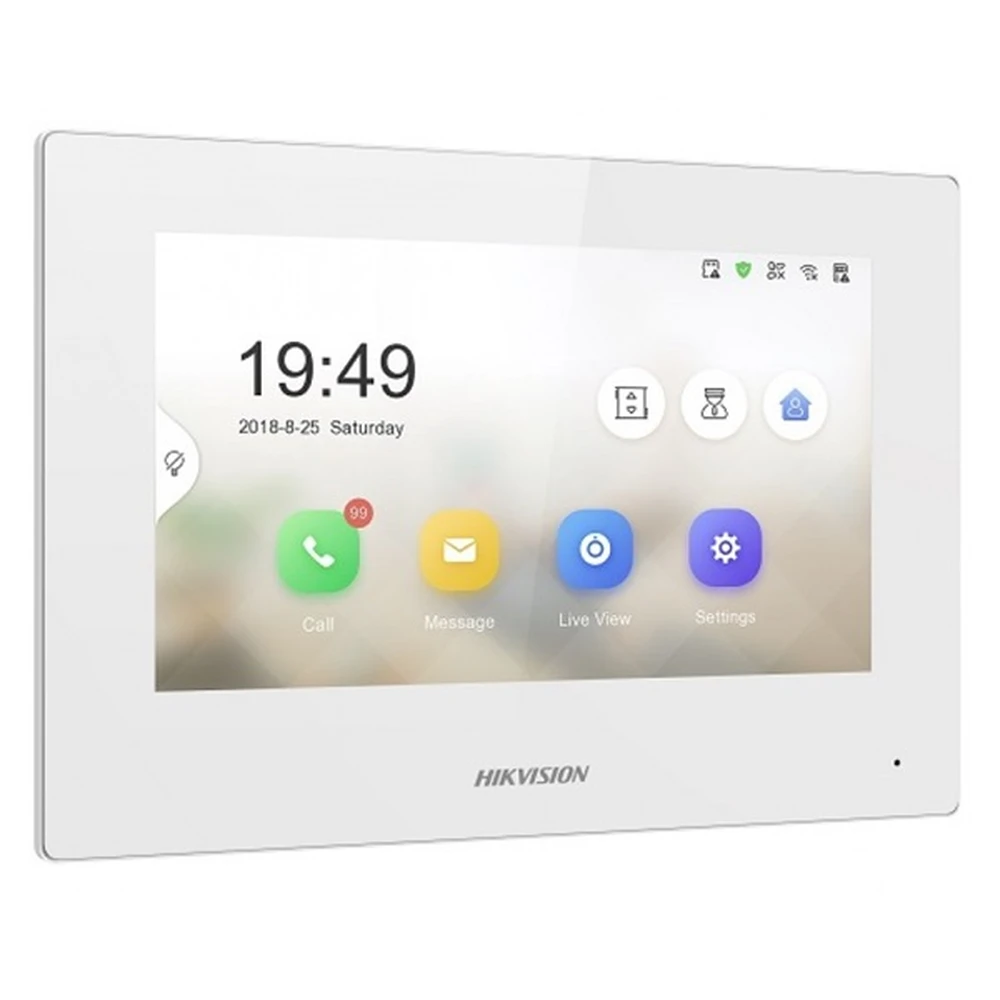

HIKVISION DS-KH6320-WTE1-W white

Video intercom indoor station with 7-inch touch screen

- V2.0 user interface: User-friendly design
- 7-inch color touch screen with 1024x600 resolution
- Standard PoE
- Storing messages and recorded images on the TF card
- Remote unlock via client software or mobile client
- View live videos from door stations and associated cameras
- Supports wireless network

Specifications
- RAM: 128 MB
- Flash: 32 MB
- Operating system: Embedded Linux operating system
- Display: 7-inch color TFT LCD
- Display resolution: 1024x600
- Mode of operation: Capacitive touch screen
- Sound input: Built-in microphone
- Sound output: Built-in speaker
- Audio compression standard: G.711 U
- Audio compression ratio: 64 kbps
- Sound quality: Noise reduction and echo filtering
- Wireless network: Wi-Fi 802.11b/g/n
- Network protocol: TCP/IP, SIP, RTSP
- Network interface: 1 10/100 Mbps RJ-45 port
- Alarm input: 8 channels
- Relay output: 2 pieces
- TF card: Maximum 32GB, SD 2.0 or lower version
- RS-485: 1 piece
- Power supply: IEEE 802.3af, standard PoE; 12V DC, 1A
- Energy consumption: 6 W
- Operating temperature: -10°C ~ +55°C
- Operating humidity: 10% ~ 90%
- Size: 200 mm x 140 mm x 15.1 mm
