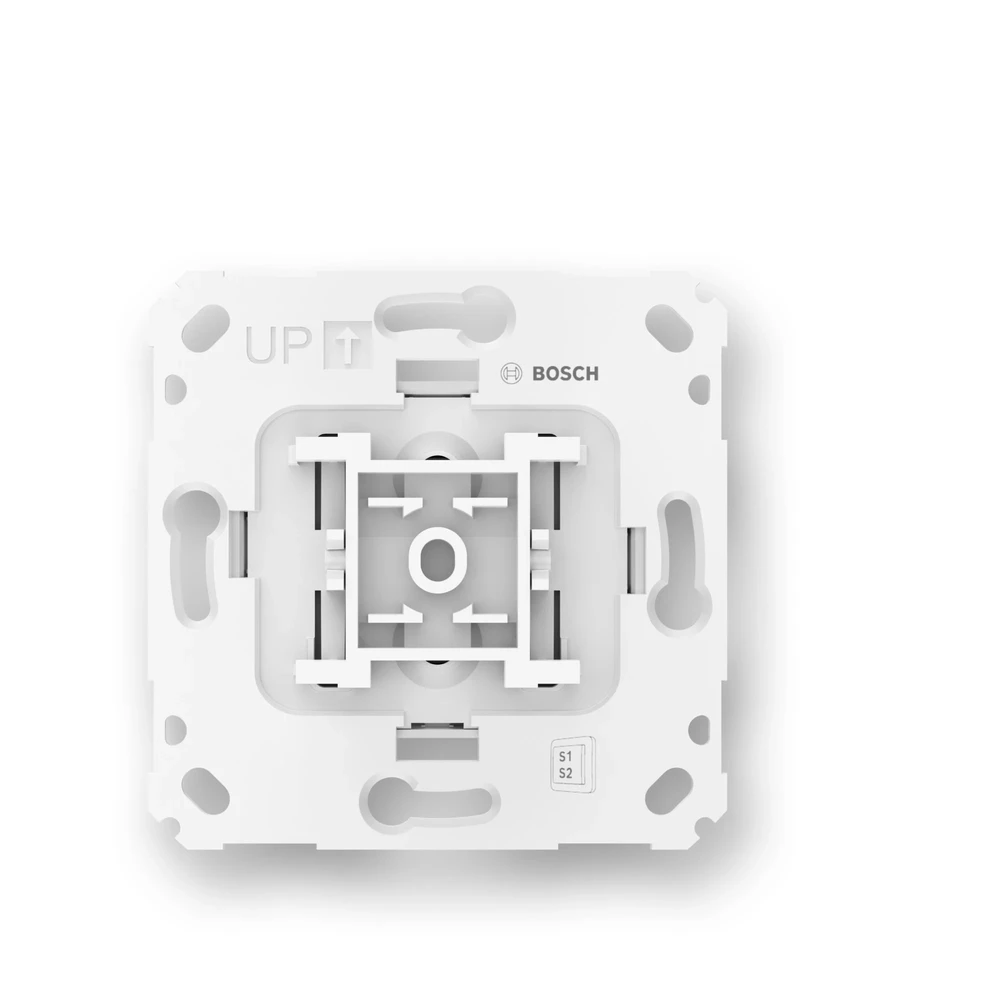

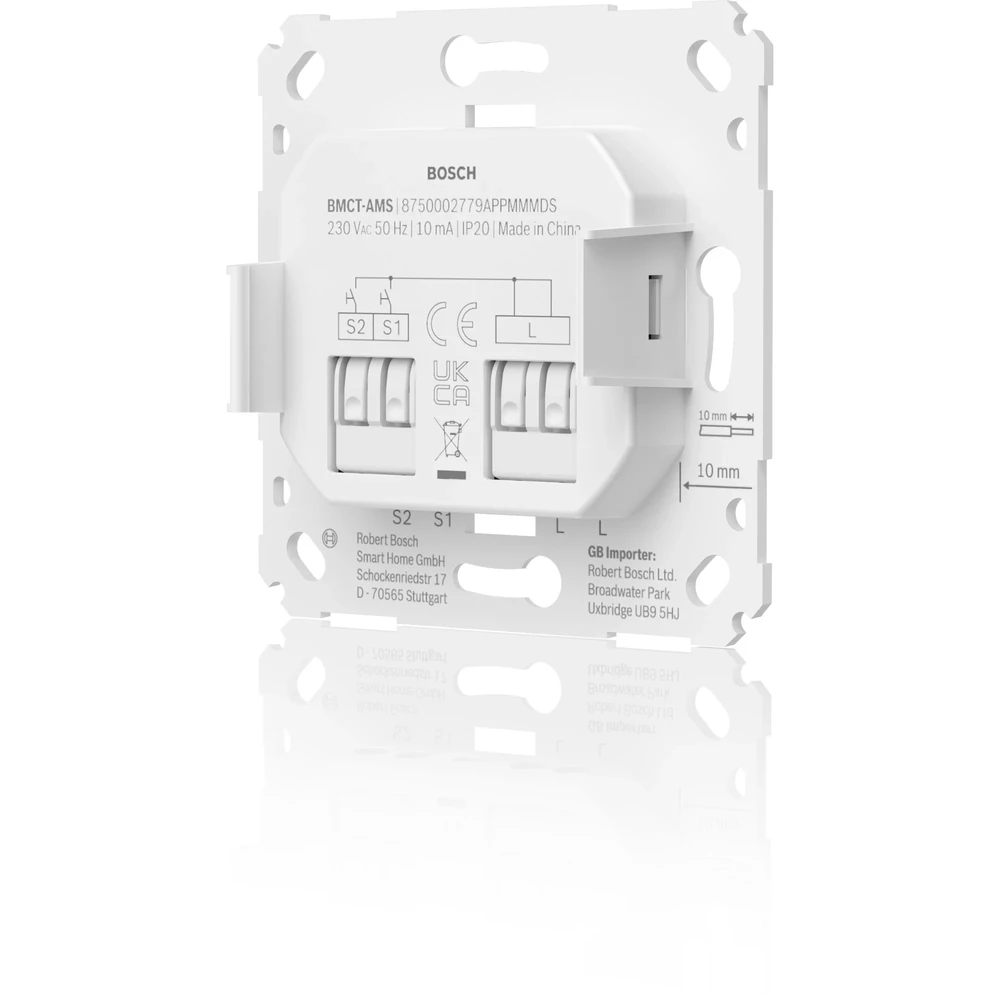

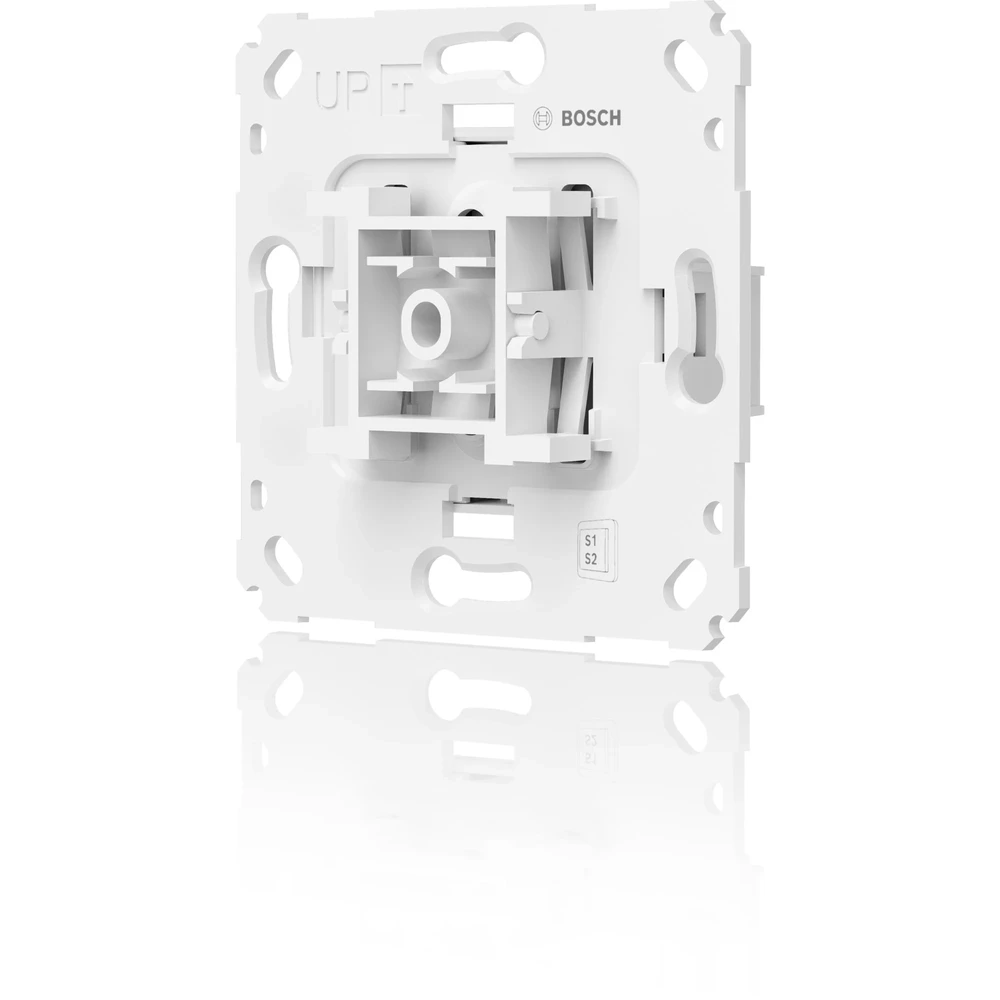

The Bosch 8750002834 wall switch kit contains four wall switches for smart actuators, allowing the space-saving installation of Bosch Smart Home actuators with one or two switch outputs (lighting/shutter control II, dimmer and relay). The two-way button supports both short and long presses. Its extra-flat design enables the smart actuators to have a minimum installation depth of 35 mm, which saves 15 mm compared to other standard solutions. The 8750002778 wall switch is versatile and can be integrated with the included frame and rocker switch or into existing compatible switch families. This allows for hidden installation behind the frame of the existing rocker switch and standard switch families. No additional adapter is required; the integrated adapter supports most common switch families (Jung, Gira, Busch-Jaeger).

Description:

- Type: Switch
- Color: white
- EAN: 4062321887667
- Manufacturer number: 8750002834
- Intended use: Enables space-saving installation in the device box
- Area of application: Interior spaces
- Assembly: Recessed installation
- Quantity: set of 4 pieces
- Switch type: rocker switch
- Switching functions: manual on/off
- Operating temperature: between 0 °C and 50 °C
- Material: plastic
- Assembly: Flexible fixing thanks to the 8 fixing points
- Installation depth: 35 mm
- Contents: 4x frame, 4x frame holder, 4x switch, 4x rocker switch
- Features: Mounting frame for the smart actuator and clamps for different cable diameters
- Additional information: Frame 80 x 80 x 12 mm, frame holder 51 x 51 x 9.8 mm, switch 70.1 x 70.1 x 11 mm, rocker switch 55 x 55 x 18.5 mm, total (with actuator) 80 x 80 x 50.5 mm (30.3 mm internal size)
- Note: Prerequisite: The installation depth of the device box is at least 35 mm (40 mm recommended)
- Available accessories: 12 installation cables
- Required: device box with screw holes 60 mm apart
- Weight: 63 grams
