2 megapixel Bullet network camera

- H.265 compression technology
- 30 fps @ 1920x1080 (WDR Pro on)
- 2.8mm ~ 12mm, far focus
- SNV (Supreme Night Visibility) in low light conditions
- WDR Pro for unparalleled visibility in extremely bright and dark environments
- Smart Stream III to optimize bandwidth efficiency
- Built-in IR illuminators, efficiency up to 30 meters
- Trend Micro IoT Security
- Weather-resistant IP66 and Vandal-proof IK10 rated enclosure
- Built-in micro SD/SDHC/SDXC card slot for onboard storage

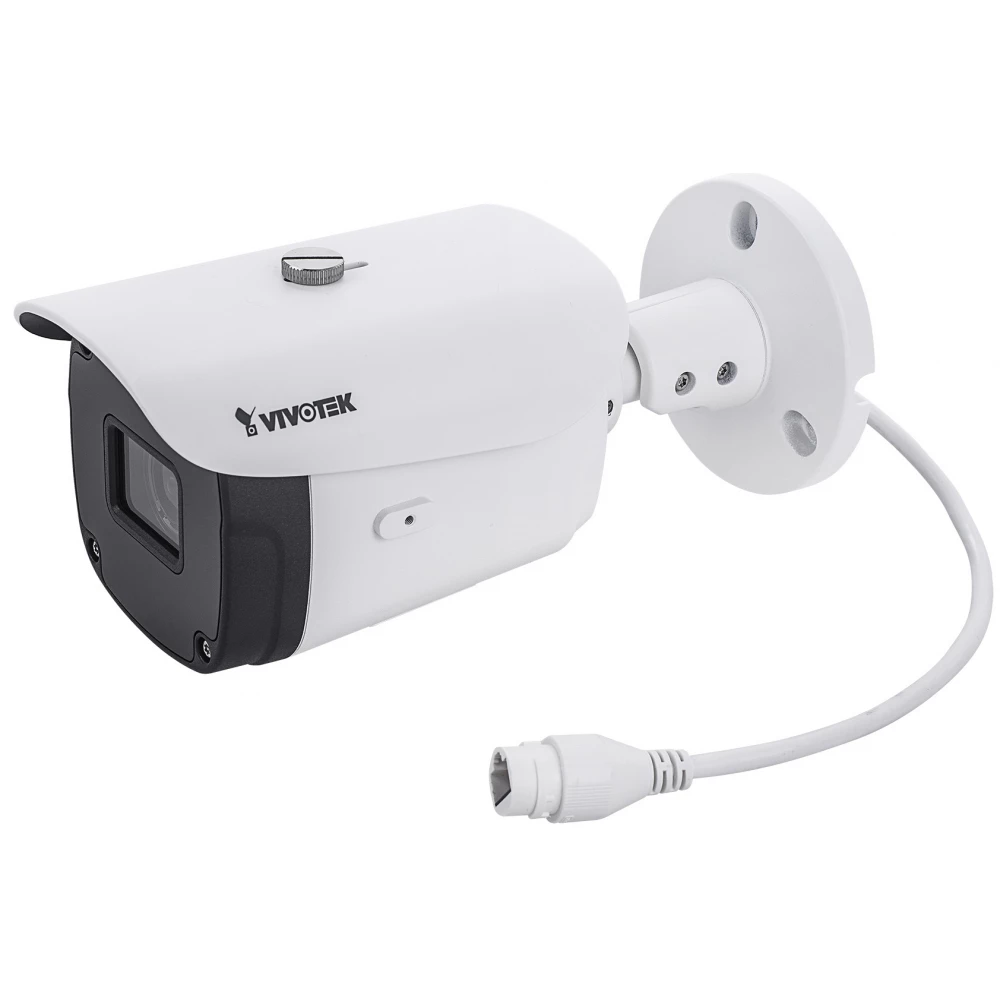

VIVOTEK IB9368-HT is an H.265 outdoor bullet network camera equipped with a 2 megapixel sensor that enables 1920x1080 resolution at 30 fps. Equipped with VIVOTEK SNV and WDR Pro technology, the IB9368-HT can produce high-quality images with high contrast and low light conditions.

The IB9368-HT deploys a long-focus lens for a variety of user scenarios. The infrared illuminators are equipped with an effective distance of 30 meters for better visibility at night. In addition, to ensure reliable coverage even in harsh outdoor environments, the IB9368-HT is housed in a robust IP66 and IK10 housing.

Using VIVOTEK's Smart Stream III technology and support for H.265 codes, the IB9368-HT can reduce bandwidth by up to 90% while maintaining the highest image quality. In addition, VADP (VIVOTEK Application Development Platform) enables users to customize applications for the ever-increasing number of user scenarios in the diverse surveillance market.

Specifications
- CPU: Multimedia SoC (System-on-Chip)
- RAM: 256 MB
- Flash: 128 MB
- Image sensor: 1/2.9" progressive CMOS
- Maximum resolution: 1920x1080, 2 megapixels
- Lens type: Motorized, Vari-focal, Long focus
- Focus distance: 2.8 mm ~ 12 mm
- Aperture: F1.4 ~ F2.8
- Automatic iris: Fixed iris
- Viewing angle: 32° ~ 93° (horizontal), 18° ~ 50° (vertical), 37° ~ 110° (diagonal)
- Shutter speed: 1/5 s ~ 1/32000 s
- Wide dynamic range technology: WDR Pro
- Day and night
- Removable IR cut filter
- IR illuminators: Built-in IR illuminators, efficiency up to 30 meters with intelligent IR, 2 IR LEDs
- Minimum illumination: 0.055 lux @ F1.4 (color), 0.005 lux @ F1.4 (black and white), 0 Lux with IR illumination on
- Tilt range: 90°
- Rotation range: 180°
- Pan/tilt/zoom function: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board storage: micro SD/SDHC/SDXC card slot, smooth recording
- Video compression: H.265, H.264, MJPEG
- Maximum frame rate: 30 fps @ 1920x1080
- Maximum stream: 3 simultaneous streams
- Signal/noise ratio: 68 dB
- Dynamic range: 120 dB
- Video streaming: Adjustable resolution, quality and bit rate, Smart Stream III
- Image settings: Time stamp, text overlay, flip and mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, strong backlight compensation, defogging, 3D noise reduction, video recording
- Network users: Live view for up to 10 clients
- Network protocols: 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP , SSL, TCP/IP, TLS, UDP, UPnP
- Network interface: 10/100 Mbps RJ-45 Ethernet port
- ONVIF supported
- Video motion detection: Five windows
- VADP package: Trend Micro IoT security, Stratocast
- Alarm trigger: Motion detection, periodic trigger, system startup, recording notification, camera tamper detection, manual startup, SD card life expectancy, cyber security events (brute force attack event, computer attack event, quarantine event)
- Alarm events: Event notification via e-mail, HTTP, FTP, NAS server, SD card; File upload via e-mail, HTTP, FTP, NAS server, SD card
- RJ-45 connector for 10/100 Mpbs network/PoE connection
- Power input: IEEE 802.3af PoE class 0
- Power consumption: Max 12.95 W (IR on), max 12 W (IR off)
- Size: 85mm x 85mm x 214.5mm
- Weight: 738 g
- Cover: IP66, IK10
- Starting temperature: -10°C ~ +60°C
- Operating temperature: -30°C ~ +60°C
- Humidity: 90%
- Operating system: Microsoft Windows 8/7, macOS 10.12 (Chrome only)
- Browser: Chrome 58.0 or later, Internet Explorer 10/11
- Other players: VLC 1.1.11 or later, QuickTime 7 or later
