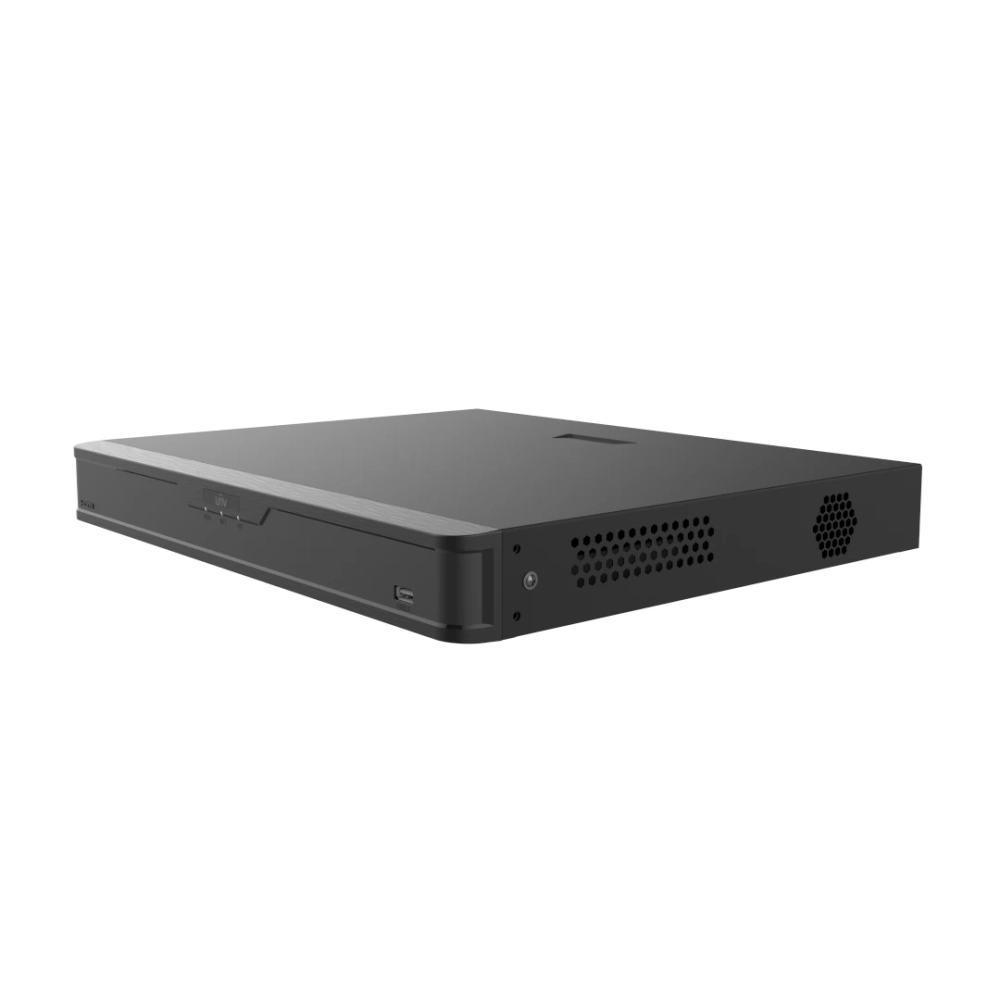

UNIVIEW XVR302-16U3 16 channel analog XVR

16-channel analog XVR with 2 HDD slots (U3 series).

- Analog channel: 16
- Max. IP channel: 16
- Total channels (analogue+IP): 32
- Mobile recorder: no
- Max. analog resolution: 8MP
- 2MP recording/channel: 25fps
- 4MP recording/channel: 15fps
- 5MP recording/channel: 12fps
- 8MP recording/channel: 8fps
- Number of PoC ports: none
- AoC: yes
- Hard disk slots: 2
- Max. hard disk size/space: 8TB
- Redundant storage: none
- U.265/H265+/H.265 coding: yes
- Alarm input: 8
- Alarm output: 4
- Audio input: 4
- Sound output: 1
- USB 2.0: 1
- USB 3.0: 1
- RS232/RS485 port: RS485
- HDMI: 1
- VGA: 1
- BNC (CVBS) output: 1
- Number of LAN ports: 1
- LAN speed: 10/100/1000 Mbps
- UMD / AcuSense / WizSense: yes
- Max. consumption without HDD: 30W-39W
- Power supply: 12VDC
- Operating temperature: -10C° ~ +55C°
- Weight: 3,141 kg
