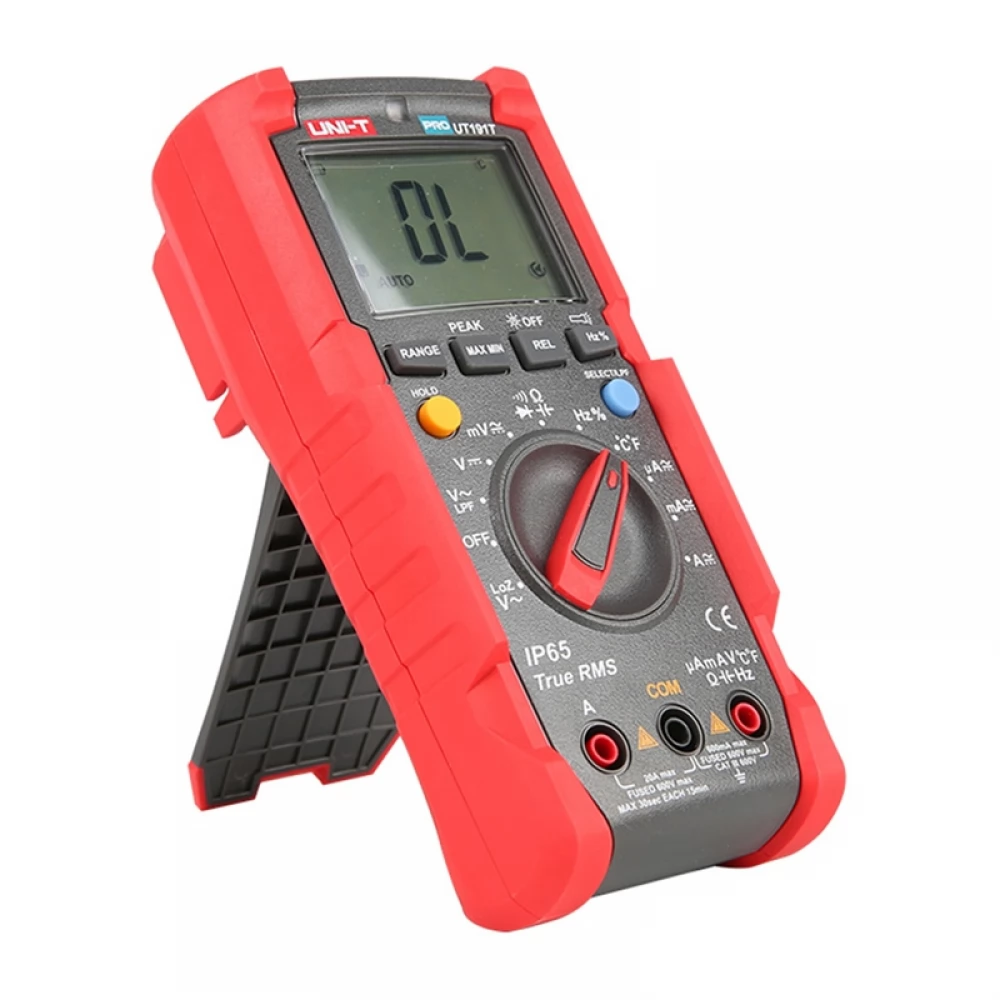

UNI-T UT191T Professional Multimeter

The UNI-T UT191T is a professional digital multimeter designed for use in harsh industrial environments. Equipped with True RMS function, the meter provides accurate voltage, current, resistance, capacitance, frequency and temperature measurements. The UT191T offers 6000 resolution and automatic or manual range selection. The housing of the meter complies with the IP65 standard and can withstand drops from a height of up to 2 meters, making it an ideal tool for use in harsh and changing conditions.
The UT191T multimeter is capable of measuring DC and AC voltages up to 600 V and DC and AC currents up to 20 A, making it suitable for a wide range of applications in industry, service or installation. The measurement accuracy is ±(0.5% + 3) for direct voltage, ±(0.7% + 3) for alternating voltage. In addition, the meter can measure resistance up to 60 MΩ, capacitance up to 60 mF and frequency up to 1 MHz. The operating time measurement covers the range between 0.1% and 99.9%, so the analysis of pulse signals becomes simple.
Thanks to True RMS technology, the multimeter accurately measures the value of signals with irregular waveforms, which is essential for inverters, UPS, etc. for measurements of systems powered by The LoZ (low input impedance) mode increases the reliability of measurements in industrial facilities.
The housing of the measuring instrument complies with the IP65 standard, which means complete resistance to dust and water. In addition, the device also passed a drop test from a height of 2 meters, making it extremely durable even in construction and industrial conditions.

- Model UT191T
- DC voltage measurement range 600 V ±(0.5%＋3)
- AC voltage measurement range 600 V ±(0.7%＋3)
- LoZ ACV 600 V ±(2%＋5)
- ACV LPF 600 V ±(2%＋5)
- Direct current 20 A ±(0.8%+3)
- Alternating current 20 A ±(1%+3)
- Resistance 60MΩ ±(0.8%+2)
- Capacity 60mF ±(3%+5)
- Frequency 10Hz ~ 1MHz ±(0.1% + 4)
- Duty cycle 0.1%~99.9% ±(2%＋5)
- Temperature measurement range -40℃~400℃ (0.1°C resolution) ±(1%+20); -40℉~752℉ (0.2°F resolution) ±(1%+40)
- ACV peak value support ±(2%+100)
- Peak current detection ±(3%+100)
- Sampling frequency 3 times/second
- Analog bar chart 31 sections
- True RMS Yes
- Alternating voltage frequency response 45Hz~400Hz
- AC frequency response 45Hz~400Hz
- Diode/breakdown test Yes
- Auto/manual range Yes
- Automatic shutdown Yes
- Low battery indicator Yes
- Data storage/MAX/MIN Yes
- Function selection (SELECT) Yes
- Flashlight/automatic backlight Yes
- Drop test from a height of 2 m/IP65 Yes
- Power supply 9V battery
- LCD display size 58 x 42 mm
- Weight 428 g
- Dimensions 180 x 87 x 59 mm
