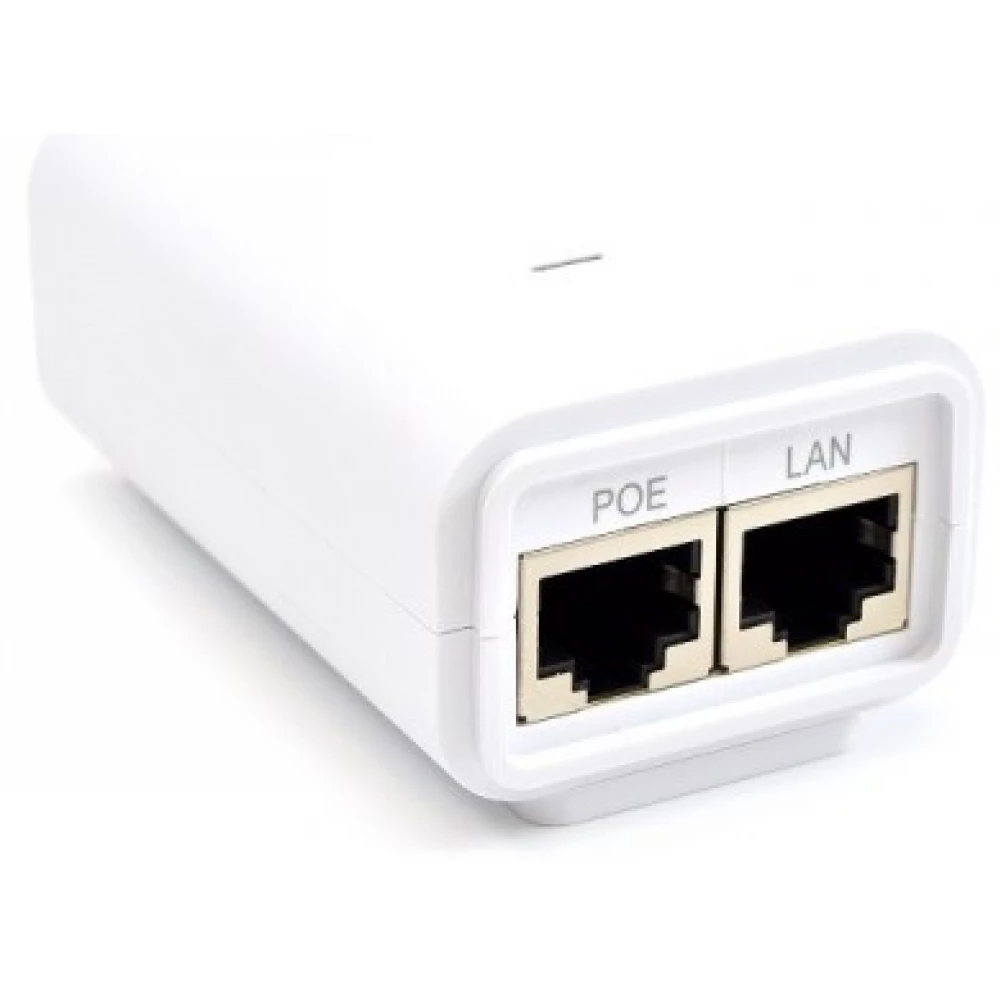

Gigabit POE Injector 802.3af

- Size: 112 x 45 x 33 mm
- Weight: 120 g
- Output voltage: 48 V DC 802.3af
- Remote reset capability
- Input voltage: 100 V ~ 240 V AC @ 50/60 Hz
- Input current: 0.3 A @ 120 V AC, 0.2 A @ 240 V AC
- Efficiency: 80+%
- Output ripple: 1% max
- Switching frequency: 65 kHz
- Line adjustment: ±1%
- Load regulation: ±3%
- Operating temperature: 0°C ~ 40°C
- Operating humidity: 35% ~ 95%
- Storage temperature: -30°C ~ +70°C
- Data input/PoE: RJ45 shielded socket
- Surge protection: difference and common mode
- Clamping protection: 11 V data, 60 V power
- Max overvoltage relief: 1500 A (8/20 μs) Power
- Peak pulse current: 36 A (10/1000 μs) data
- Reversal capacity:
