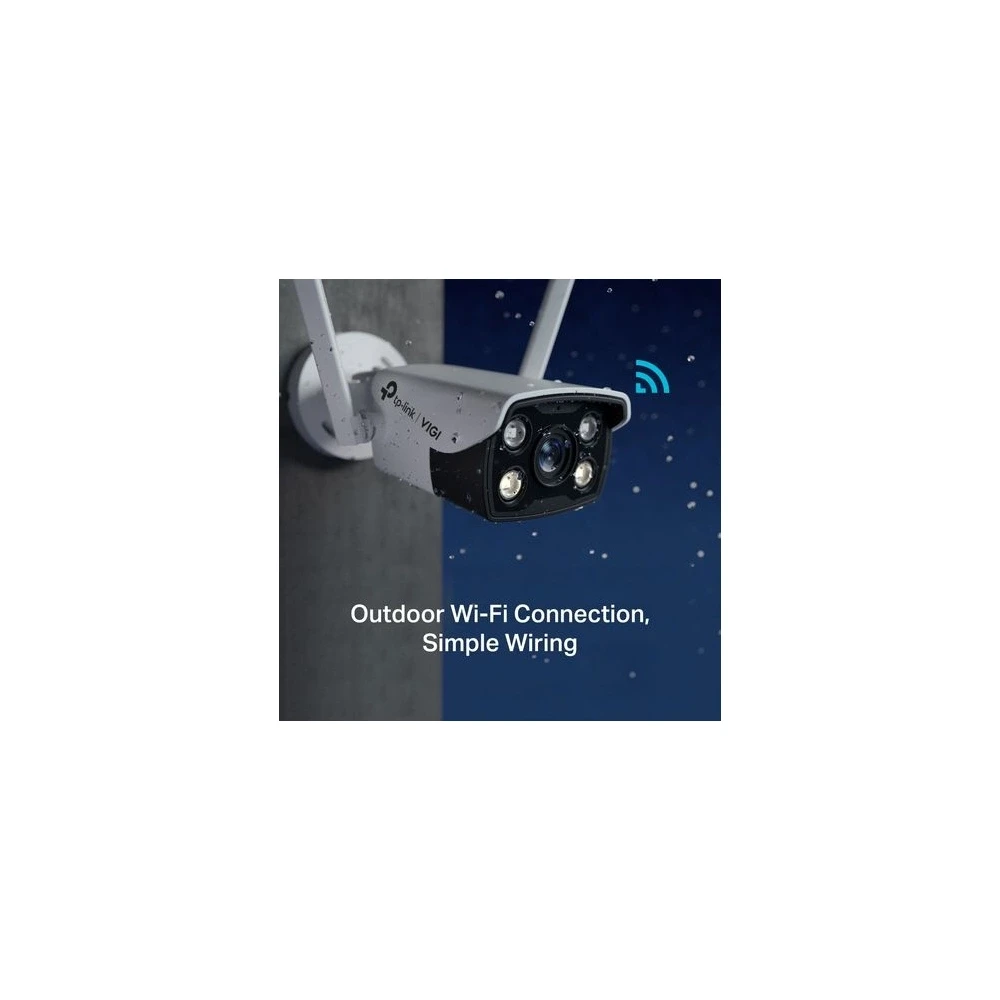

The TP-LINK VIGI C340-W outdoor color security camera will be your reliable companion in maintaining the security of your home or business premises. It is easy to install and install, and with the VIGI application it is easy to manage even remotely. It can be connected via cable or Wi-Fi connection. It has reliable IP66 protection for stable outdoor performance.

Thanks to the 4MP high resolution and the advanced night vision system, the camera can display the recorded area sharply and clearly, whether it is a day or night recording. Thanks to the high-sensitivity sensor and the included reflector LEDs, you get 24-hour color details, even in pitch black.

The camera handles security incidents extremely efficiently and quickly: the built-in motion sensor detects suspicious movement and then sends a notification to your smartphone, contributing to a faster response. Thanks to smart detection, you can receive notifications and check feeds when someone crosses the border, enters a set area or covers the camera.

Human and vehicle classification
It has the ability to separate people and vehicles from other objects, giving you more accurate event notifications.

Intelligent video enhancement technology
- DWDR: Improves video quality by improving dynamic range and detail rendering, so it performs well in varied lighting conditions.
- Smart IR: Smart IR dynamically adjusts infrared illumination to avoid overexposure and glare, improve visibility at different distances, and ensure clearer shots.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data frame by frame to selectively reduce noise while preserving important details.
- White balance: White balance ensures neutral white shades of the image, regardless of the lighting conditions.

It transmits compressed, crystal-clear video without using extra bandwidth, saving disk space, easing network load and reducing monitoring costs without sacrificing image quality.

Efficient H.265+ compression technology
H.265+ reduces bandwidth and storage requirements for videos while providing excellent image quality. It saves 57.5% and 15% more storage compared to H.264 and H.265, respectively.
(Calculations are based on laboratory testing with a 3MP VIGI camera, and actual performance may vary depending on the amount of activity captured, resolution, and other variables.)

The camera provides secure data storage on the local microSD card. This means that continuous video recording can take place even if the network is down. The data is automatically uploaded after the network is restored, so the recordings are not lost. (The micro SD card is not part of the package)

In addition to transmitting live video audio, it is capable of two-way communication through its built-in speaker and microphone. So you can communicate without having to open the door.

Specifications

Camera
- Image sensor: 1/3" progressive scan CMOS
- Shutter speed: 1/3–1/10000 sec
- Slow shutter speed: Yes
- Min. required illumination: 0.005 lux; 0 lux with infrared/white light
- Day/Night mechanism: IR cut filter
- Day/Night switching: Single/Scheduled/Automatic

Lens
- Type: Fixed focus lens
- Ignition distance: 4 mm
- Aperture: F1.6
- Viewing angle: Horizontal viewing angle: 76.3°, Vertical viewing angle: 40.6°, Diagonal viewing angle: 90.2°
- Lens mount: M12
- DORI distance:
• Detection: 80 m (262 ft)
• Observation: 33 m (109 ft)
• Detection: 16 m (52 ft)
• Identification: 8 m (26 ft)

Angle Adjustment (Manual)
Range:
• Scanning: 0° - 360°
• Tilt: 0° - 90°
• Rotation: 0° - 360°

Reflector
- Infrared LED:
• Quantity: 2
• Range: 30 m
• Wavelength: 850 nm
- White LED
• Quantity: 2
• Range: 30 m
- Lighting on/off: Automatic/Scheduled/Always on/Always off

Video
- Max. resolution: 2560 × 1440
- Main stream
• Frame rate：
50Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: When the image rotation is set to 90° or 270°, the frame rate only supports a maximum of 20 fps.
- Substream
• Frame rate：
50Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
60Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Resolution:
704x576, 640x480, 352x288, 320x240
Note: When the image rotation is set to 90° or 270°, the frame rate only supports a maximum of 20 fps.
- Bitrate control: CBR, VBR
- Video compression:
• Main stream: H.265+/H.265/H.264+/H.264
• Substream: H.265/H.264
- H.264 type: High profile
- H.264+ type: Mainstream supported
- H.265 type: Main profile
- H.265+ type: Mainstream supported
- Video Bitrate:
• Main stream: 256 Kbps - 3 Mbps
• Substream:
