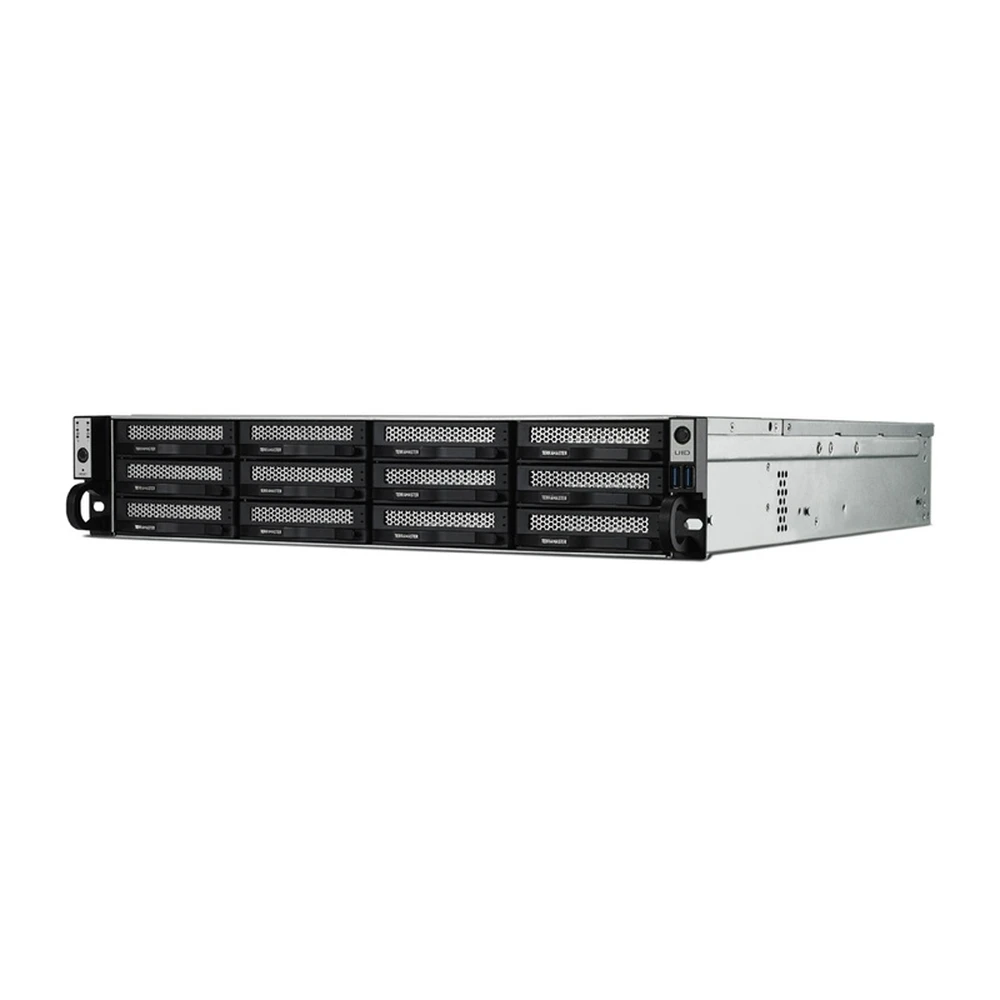

TERRAMASTER U12-500 Plus NAS file server, Intel Core i7-1255U, 16 GB RAM, 12 bays

The TerraMaster U12-500 Plus is a high-performance NAS file server designed for small and medium-sized businesses that need a reliable solution for data storage, sharing and security. The device includes a 10-core Intel Core i7-1255U processor with a clock speed of up to 4.7 GHz, 16 GB of DDR5 memory that can be expanded up to 64 GB, and 12 HDD and SSD drive slots. With two 10GbE ports, two M.2 NVMe PCIe 4.0 expansion slots and support for storage capacity up to 264 TB, this model is perfect for use as both a central data store and a professional backup server. The built-in Business Backup Suite further simplifies the creation and management of backups across your organization.

High performance for demanding applications

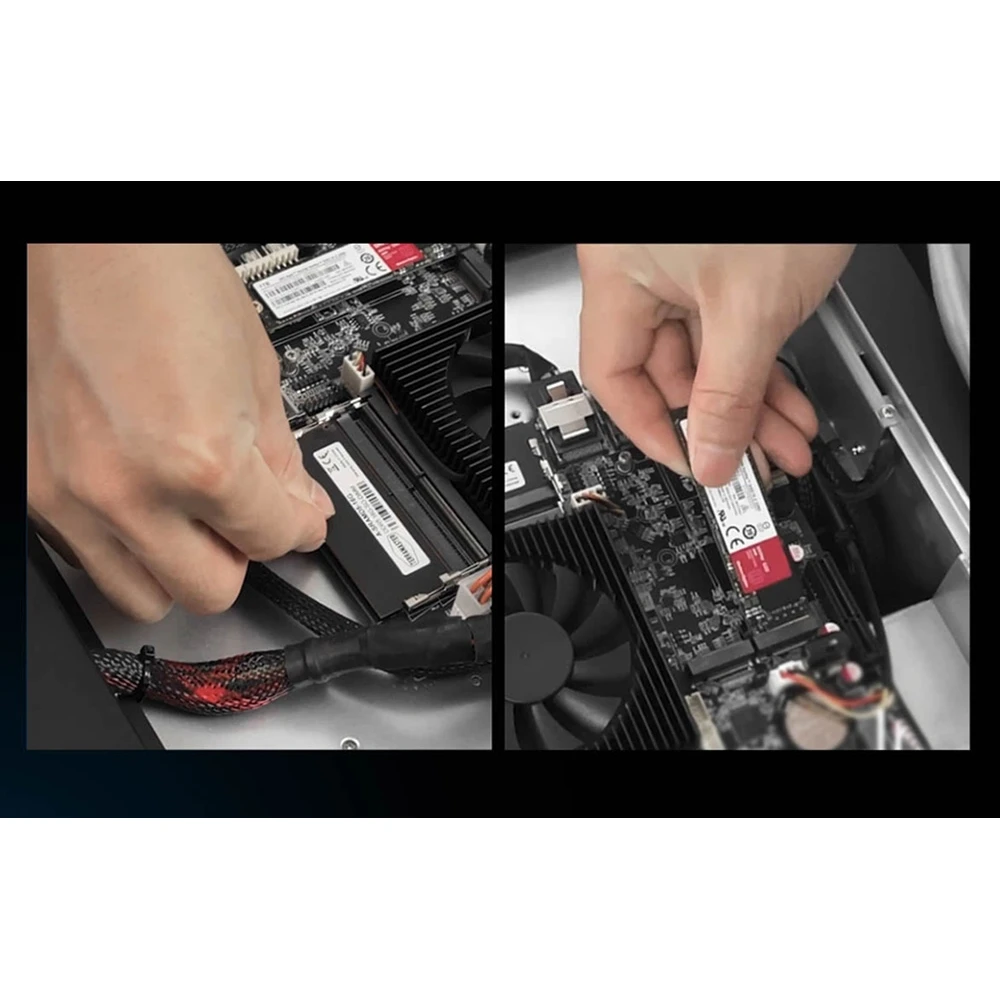

The 10-core and 12-thread Intel Core i7-1255U processor ensures the smooth operation of the system. This configuration allows the server to support multiple users at the same time and perform tasks related to backup, data synchronization, and running virtual machines. The server has 16 GB of DDR5 memory as standard, but thanks to the two SO-DIMM expansion slots, the memory can be expanded up to 64 GB. This means a smoother operation and allows the device to adapt to the growing needs of the company.

Ample storage space and easy expandability

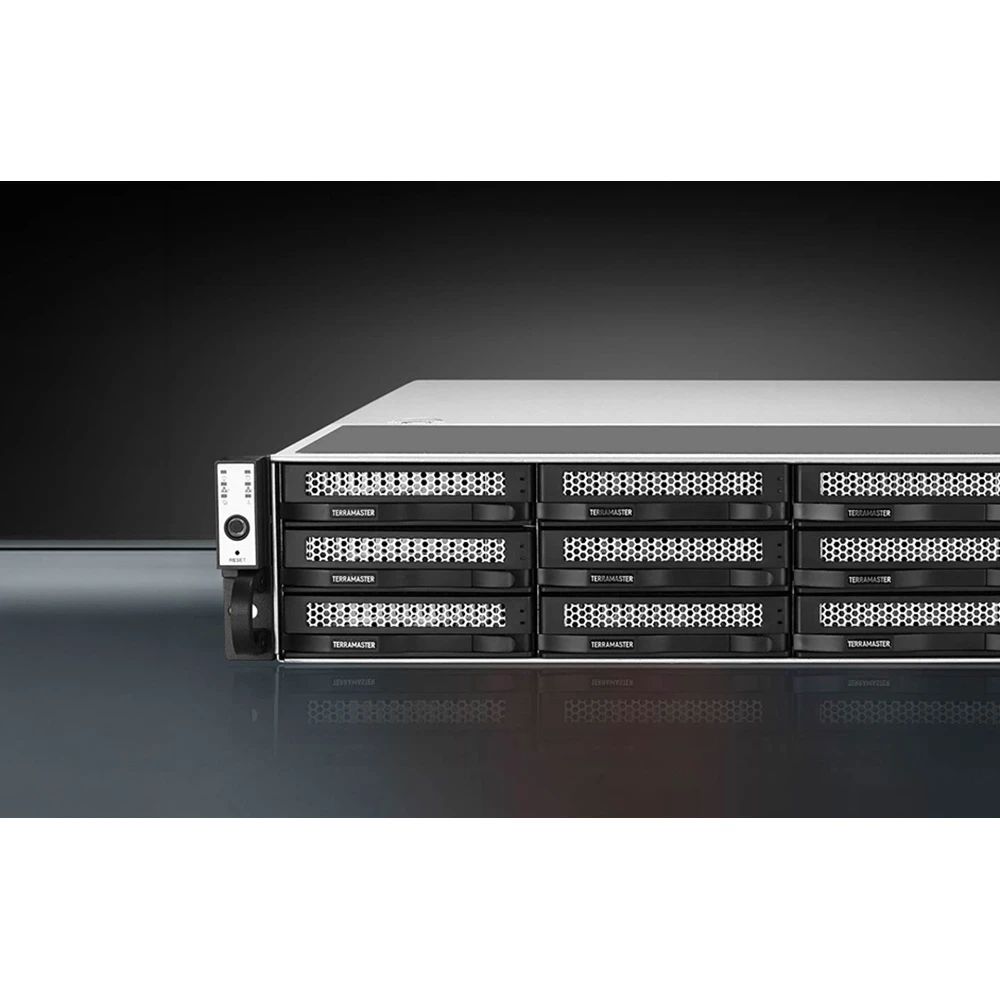

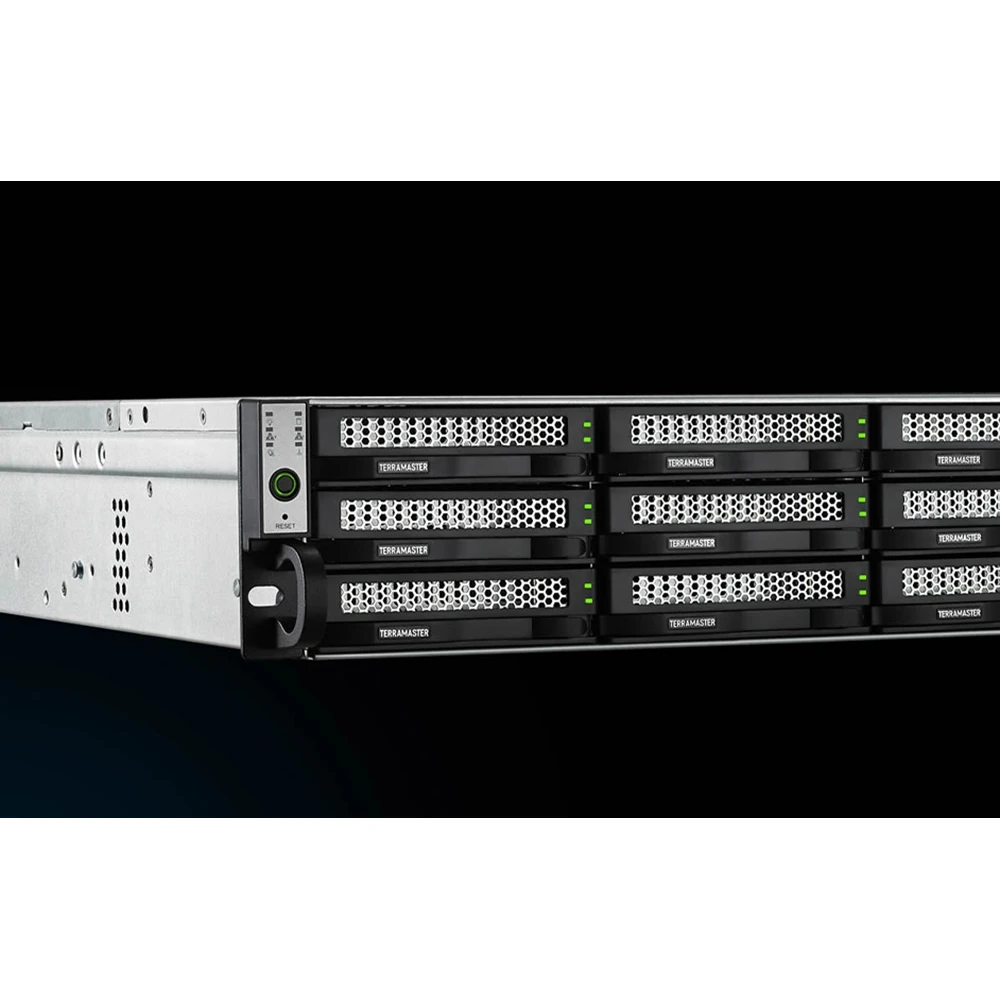

The U12-500 Plus model offers 12 bays that are compatible with 3.5-inch HDDs, 2.5-inch HDDs, and SSDs. The maximum supported capacity reaches 264 TB, so the server can store a huge amount of documents, archives, project materials and multimedia files. Hot-swap support allows you to replace drives without shutting down the device, which minimizes downtime and simplifies infrastructure management. In addition, a wide range of RAID configurations allows you to tailor performance and data protection levels to your company's unique needs.

Fast data transfer and modern connection options

Two 10 GbE ports provide high network bandwidth, guaranteeing that transferring large files, performing backups and sharing resources run smoothly even with many active users. The Link Aggregation function further improves the performance and reliability of the network connection. Users can also use three USB 3.1 Type-A ports and one USB-C port, each with a high bandwidth of 10 Gb/s, making it easy to connect external storage devices and peripherals. The device is completed by an HDMI port and a PCIe 3.0 x4 expansion slot for further system expansion.

Comprehensive tools for data backup and recovery

The TerraMaster U12-500 Plus is equipped with the Business Backup Suite, which includes Centralized Backup, Duple Backup, TerraSync, CloudSync and Snapshot functions. This enables centralized backup of employee computers, physical servers, virtual machines and data stored in the cloud. The snapshot function allows you to quickly restore files in case of accidental deletion or system failure. This solution makes it easy to create an effective data protection strategy without having to invest in additional software.

Advanced security for corporate data

In a business environment, information security is critical, so the server offers many features that protect against data loss and unauthorized access. The TOS system supports AES encryption, OTP two-factor authentication, SSL certificates, and protection against failed login attempts. Additional mechanisms such as Snapshot, HyperLock, and Firewall increase system resilience against threats, including ransomware attacks. This enables businesses to protect their resources more effectively and ensure business continuity.

Package contents

TerraMaster U12-500 Plus NAS Server
Power cord
RJ-45 network cable
Quick guide
Warranty letter
Fixing screws for drives and device mounting
