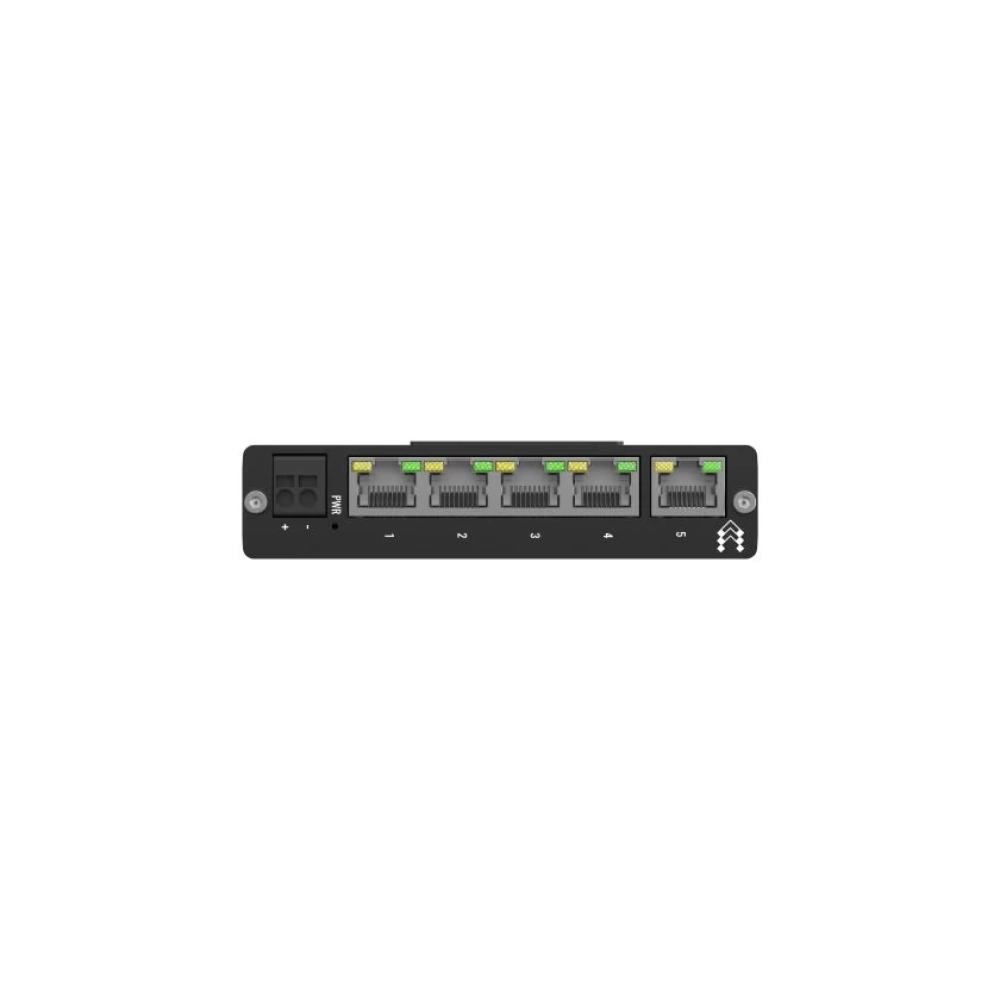

TELTONIKA TSW010

The Teltonika TSW010 is an industrial -quality, five -sport Ethernet Switch that provides a reliable and stable network connection to various industrial applications. The device has five 10/100 Mbps Ethernet ports that support Auto MDI/MDIX to simplify network cable and connection. ​

The TSW010 has a plug-and-play design, so no additional configuration is required before being used. The integrated DIN rail fastening console and wall mounting facilitate the installation in various environments. ​

The device is powered by a 2 -pin industrial DC power connector in a voltage range of 9-30 VDC. It also has passive POE (Power Over Ethernet) support, allowing power to power through the first Ethernet port, although this is not compatible with IEEE 802.3AF, 802.3at and 802.3BT standards. ​

The TSW010 has a massive, anodized aluminum house that provides durability and reliability in an industrial environment. The device has a size of 113.1 x 27.4 x 80.5 mm and a weight of 146.5 g. The IP30-rated protection and the operating temperature range from -40 ° C to 75 ° C also make it suitable for use under extreme environmental conditions. ​

Overall, the Teltonika TSW010 is an ideal choice for industrial applications that require a reliable, easy-to-install and low-power Ethernet Switch.
