This 1-port serial-to-IP converter is a powerful solution for remote connection and control of many RS232 serial devices over an IP-based network.
Configuration and management

The DB9-Ethernet Adapter family uses the same Windows Virtual COM Port software and web user interface (WebUI) for a unified experience. Users can use the Windows software to view and manage all device servers on the network and set up virtual COM ports. Alternatively, the WebUI provides a cross-platform method that allows users to access and configure these device servers from any operating system. This flexibility ensures that administrators can effectively manage their network of device servers regardless of the operating system they use.

Flexible installation and robust housing

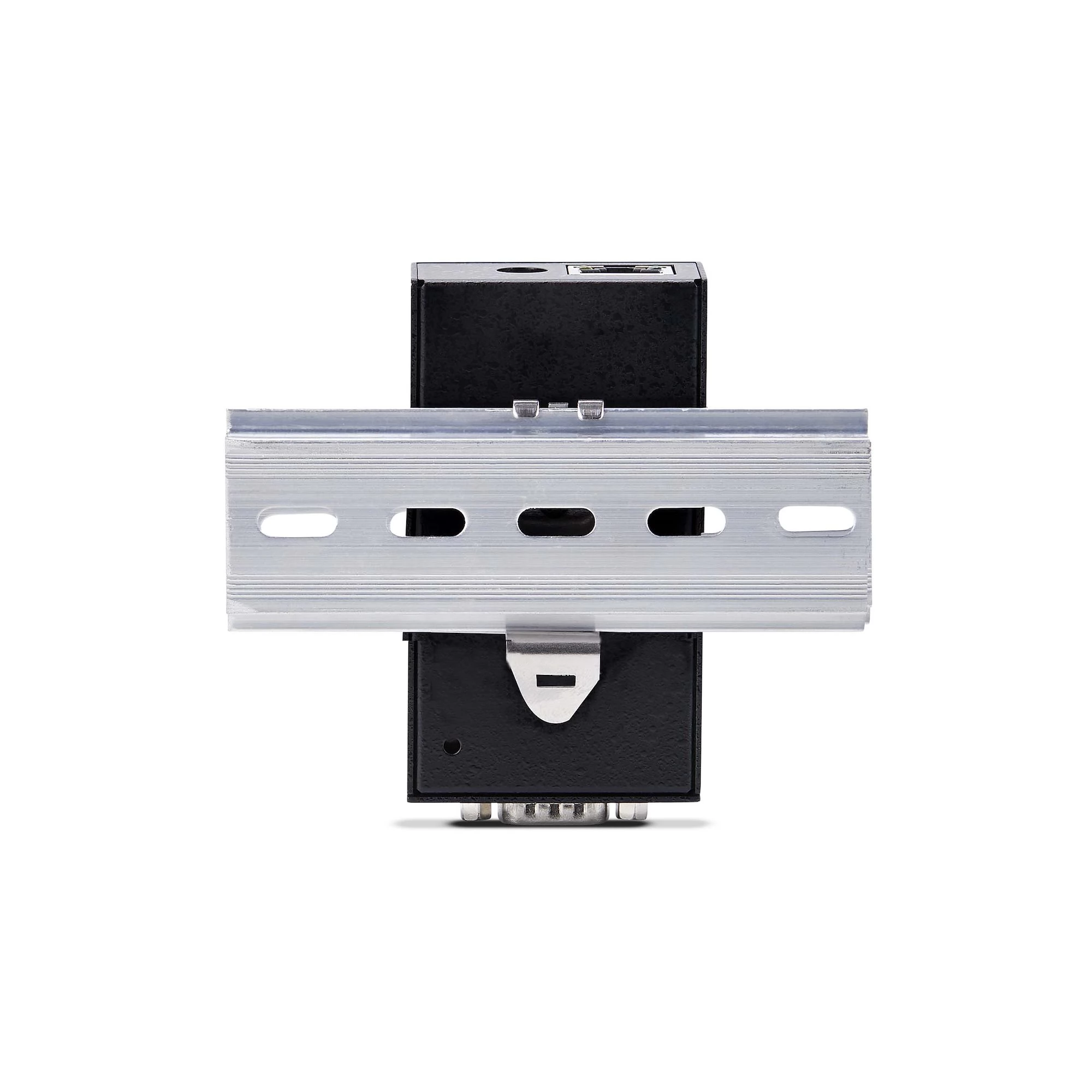

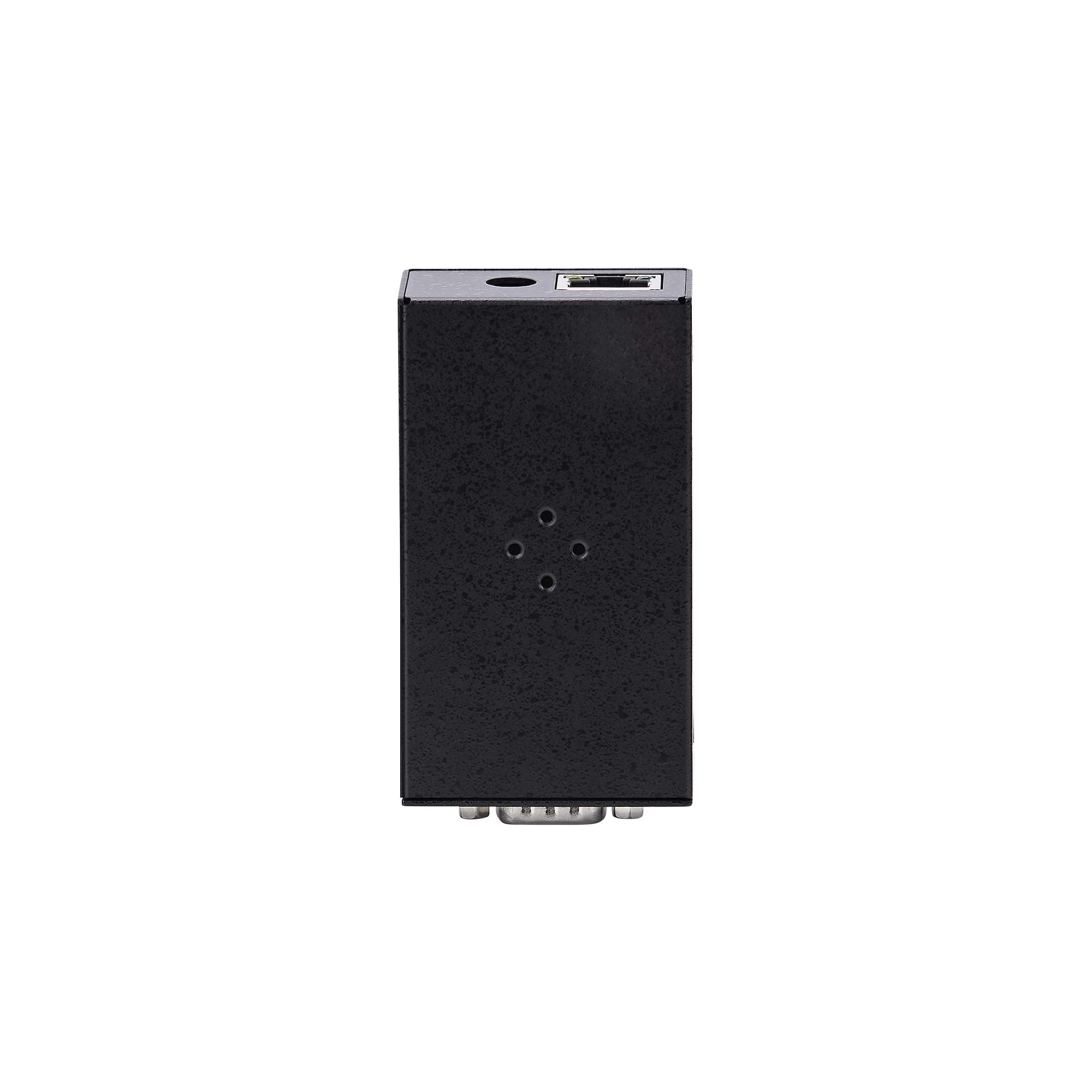

The converter is housed in a full metal housing for durability even in harsh conditions. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the frame allow it to be mounted in the most useful position for any application. The compact 1.8 x 1 x 3.2-inch (46.1 x 25 x 81.9 mm) design is ideal for environments where space is at a premium.

Ethernet and power options

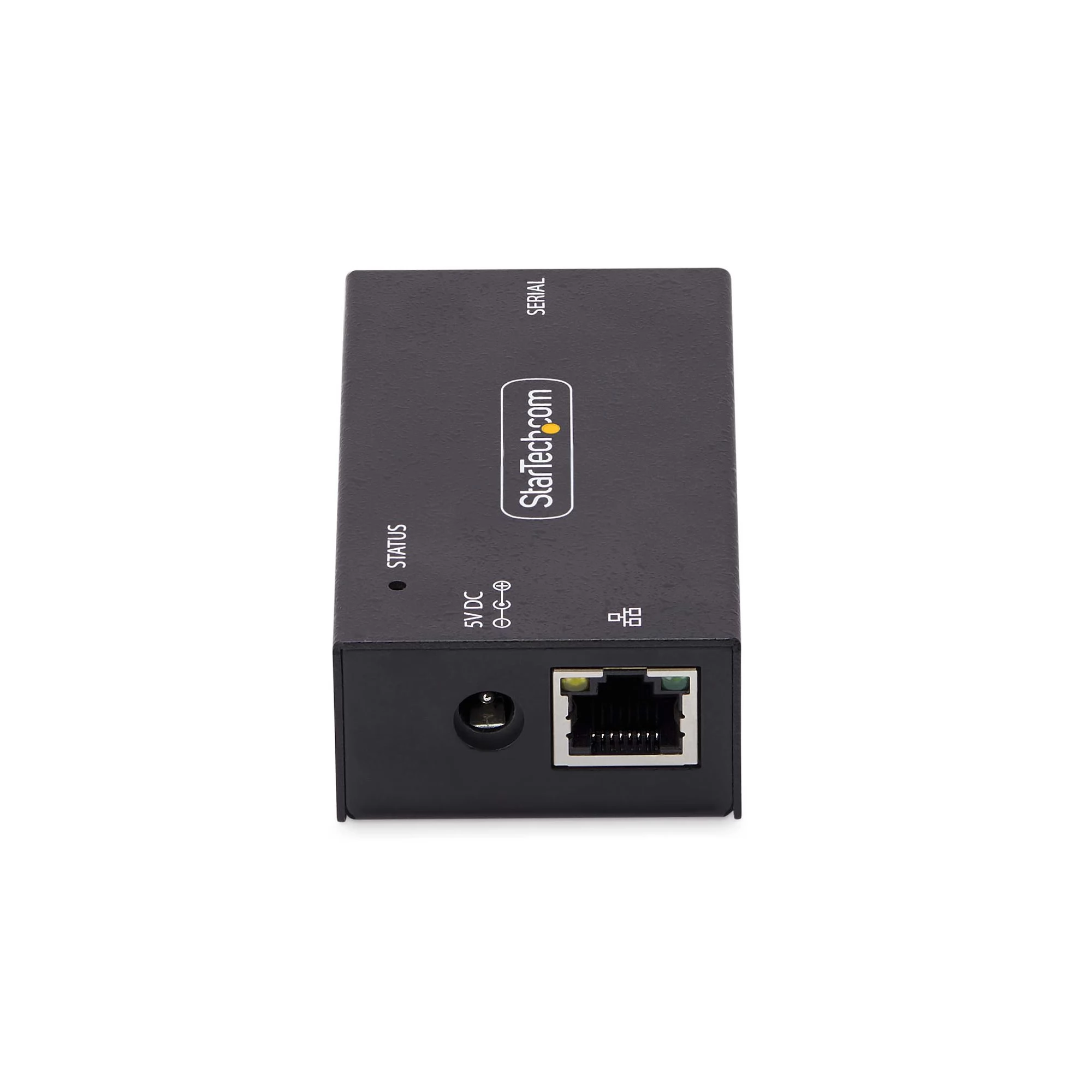

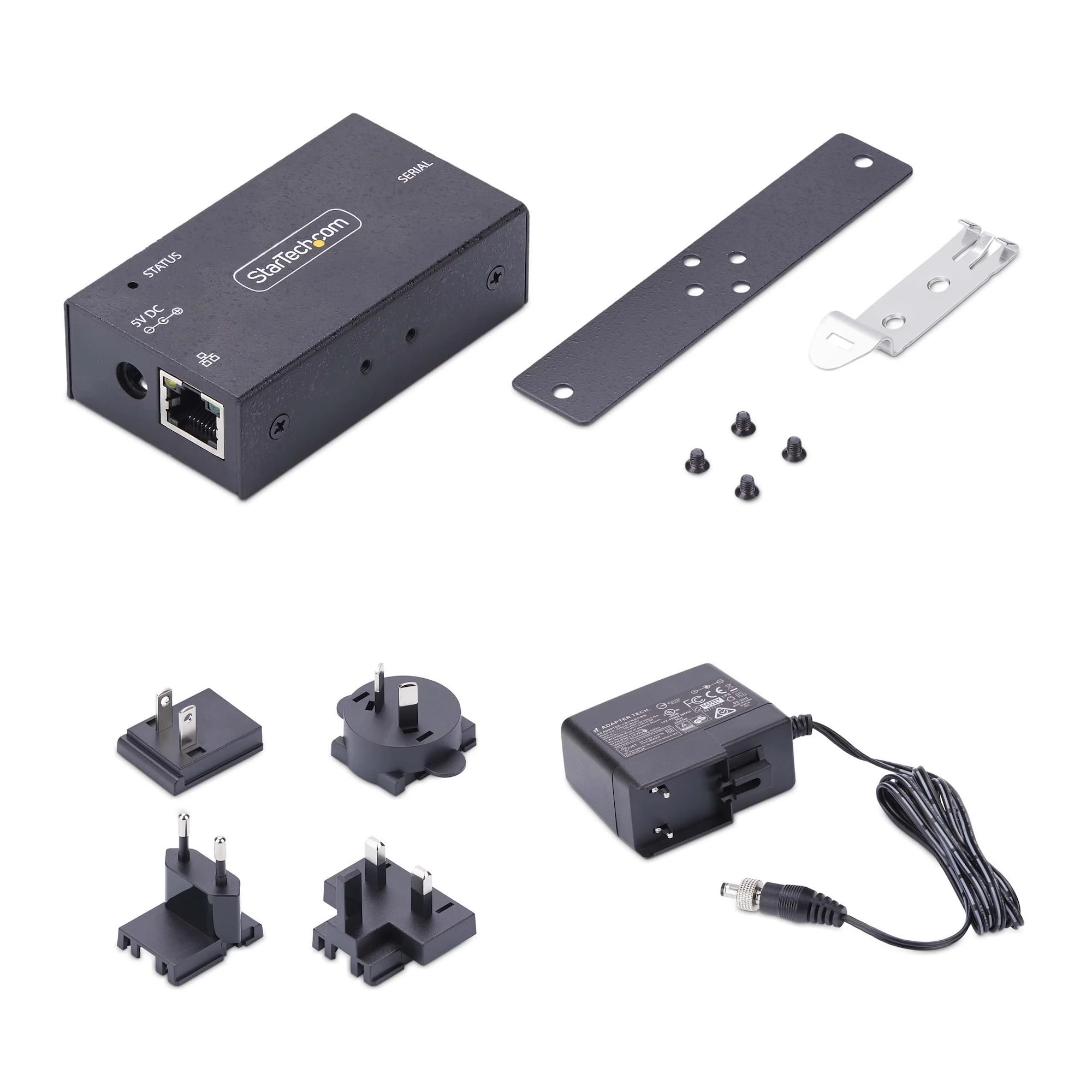

The TAA compliant IP serial converter has a single RJ45 10/100 Mbps Ethernet port and supports Telnet server (RFC2217), TCP server, TCP client and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports level 4 ESD protection (15kV air/8kV contact) and can supply 5V DC via pin 9 if required.
