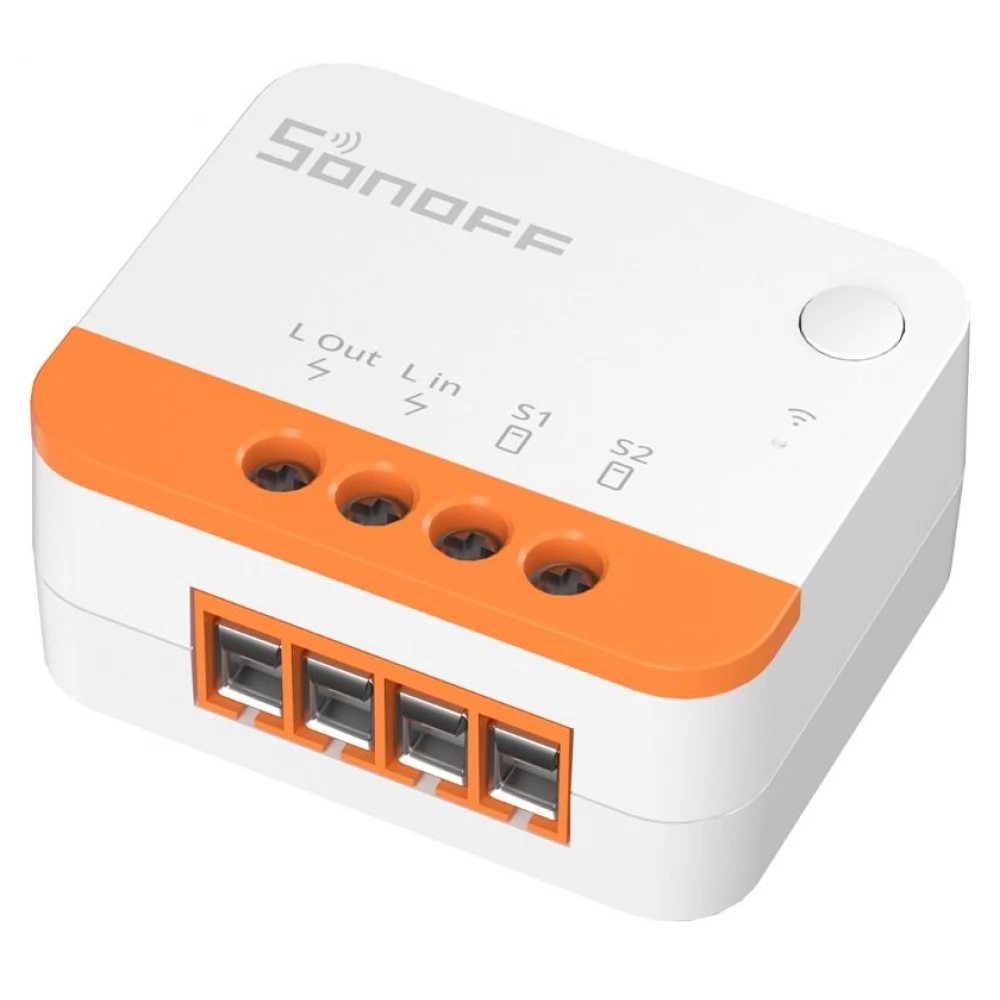

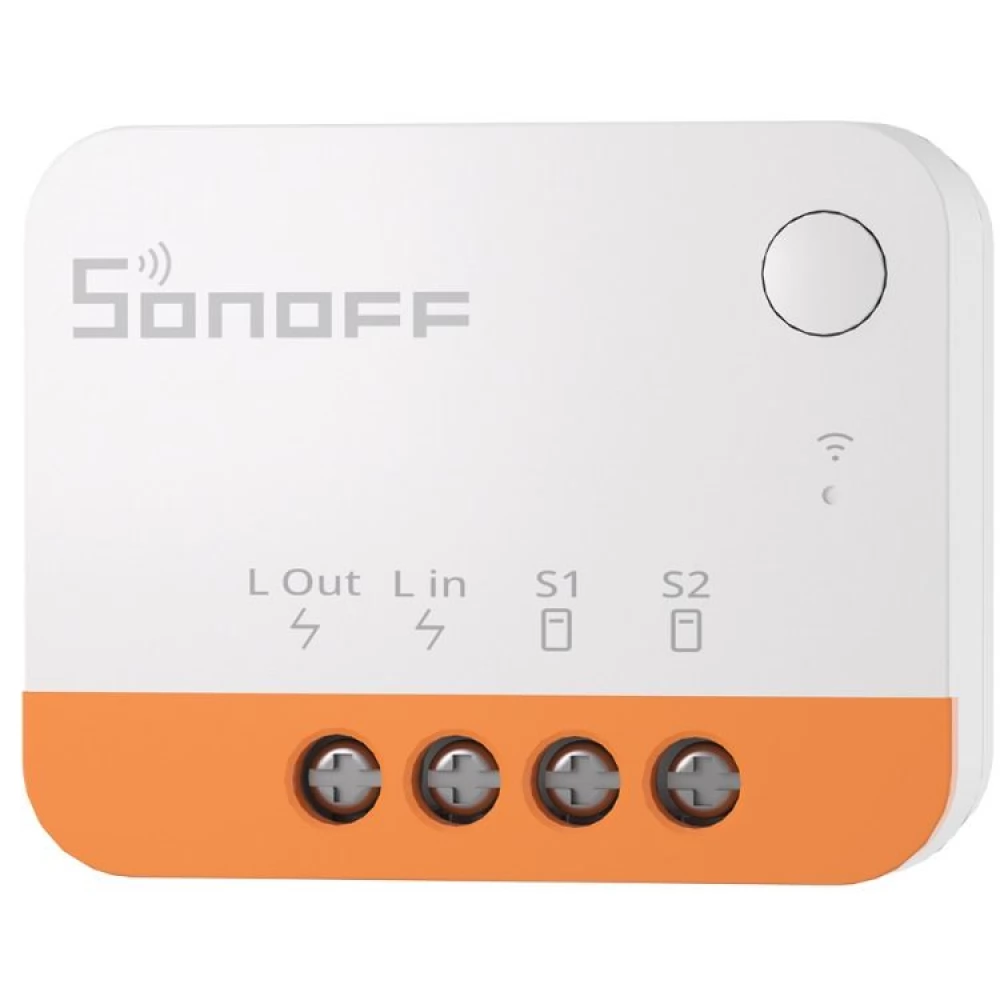

Sonoff ZBMini-L2, also known as ZBMINI Extreme, is a new version of the ZigBee smart relay that works only with a phase wire (i.e. without a neutral wire), which can be controlled remotely via the Internet when connected to a Zigbee Bridge. This is one of the smallest Zigbee smart switch modules, which can be easily inserted into the smallest 60 wall mounting box.

It also works with different types of external switches, such as two-position light switches, push-button wall switches, etc. Its main advantage is that no neutral wire is required, so it is easy to install and simple to use in most cases. It also supports alternative switching, so it can be used with two switches, for example, for stairwell lighting.

ZBMini-L2 is compatible with Sonoff Zigbee-WiFi gateways, Sonoff Zigbee Bridge and Sonoff Zigbee Bridge Pro, as well as the eWeLink app compatible SmartWise Zigbee Bridge Pro, which can also be connected to Ethernet. It is also supported by Sonoff's NSPanel Pro hub. If the module is connected to an eWeLink Zigbee gateway, the device can be controlled using the usual factory eWeLink platform and eWeLink app. Among the usual eWeLink functions, the current OFF/ON status, manual ON/OFF switching, and timings (timing, countdown timer, cycle control) are also available, but the pulse switching (inching) function is not available.

The small relay module is compatible with the Aeotec SmartThings hub, in which case it can be controlled using the SmartThing APP available for iOS and Android. Controlled on/off, timed off/on and many other functions are available in the SmartThings app.

It also works with some Zigbee gateways from Amazon Alexa and other standard Zigbee 3.0 hubs.

The ZBMINI-L2 version is the version of the relay that does not require the connection of a neutral wire, which only works with a phase wire.

The ZBMINI-L2 relay must be installed behind the wall switch, and the min. Suitable for switching a 3W lamp, max. power 6A. It does not require an anti-flicker module for its operation.

Product features:

- One of the smallest Zigbee relay modules available.
- ZigBee 3.0 protocol
- Compatible with SONOFF ZBBridge (Zigbee Bridge), ZBBridge-P (Zigbee Bridge Pro), SmartWise Zigbee Bridge Pro, Amazon Hub, Aeotec SmartThings Hub and other Zigbee 3.0 gateways
- To be installed behind a wall switch in the wall socket.
- A minimum 3W consumer is required for its operation. Max. power 6A.
- With inductive consumers, such as fan, not usable.
- Can be operated with alternative and crossover switches
- Unlike its WiFi counterpart, it cannot be set to pulse switching or automatic switching off (inching) in the eWeLink app.
- The eWeLink app is now available in Hungarian!

Description:

- Weight: 0.031 kg
- Dimensions: 3.2 x 3.95 x 1.84 cm
- Alternative switching / crossover switching: Yes
- Can be mounted on a DIN rail: No
- Can be switched by voice control: depending on the Zigbee Bridge
- Local network mode (with factory firmware): depending on Zigbee Bridge
- Timed: Depending on the Zigbee Bridge
- Impulse/ toggle switch: No
- Connection: 230V AC phase only
- Input for external switch: Yes, it waits for a phase on the switch input
- Cloud mode (with factory firmware): depending on Zigbee Bridge
- Device operating supply: 100V-240V AC
- History: Yes: on/off history in the app
- Notification functions: depending on Zigbee Bridge
- Controllable on the Internet: Yes
- Number of circuits: 1
- Physical on/off button: Yes, but with a recessed button
- Consumption meter: No
- Manufacturer: Sonoff
- Manufacturer smartphone app: EWeLink app (for Sonoff Zigbee Bridge), SmartThings app (for SmartThing hub)
- Dimmable / Brightness adjustable: No
- NO/NC switching: No
- Maximum power: 6A
- Overheating protection: No
- Controlled circuit: 100V-240V AC
- Web (browser) admin interface: depending on Zigbee Bridge
- WiFi connection: No
- MCRPDC code: RDC15
- MQTT support (with factory firmware): No
- Operating power supply: AC (110V-) 230V (phase only)
- REST API support (with factory firmware): No
- Operating temperature range: 10ºC to 40ºC
- RF / radio control (433.92MHz): No
- Remote control methods: ZigBee
- Switch / switch relay: Yes
- Supported integrations: depending on Zigbee Bridge
- Product type: Smart Zigbee switch relay that can be built into a wall socket
- Product type: Switch relay
- Surge protection: No
- Zigbee connection: Yes
