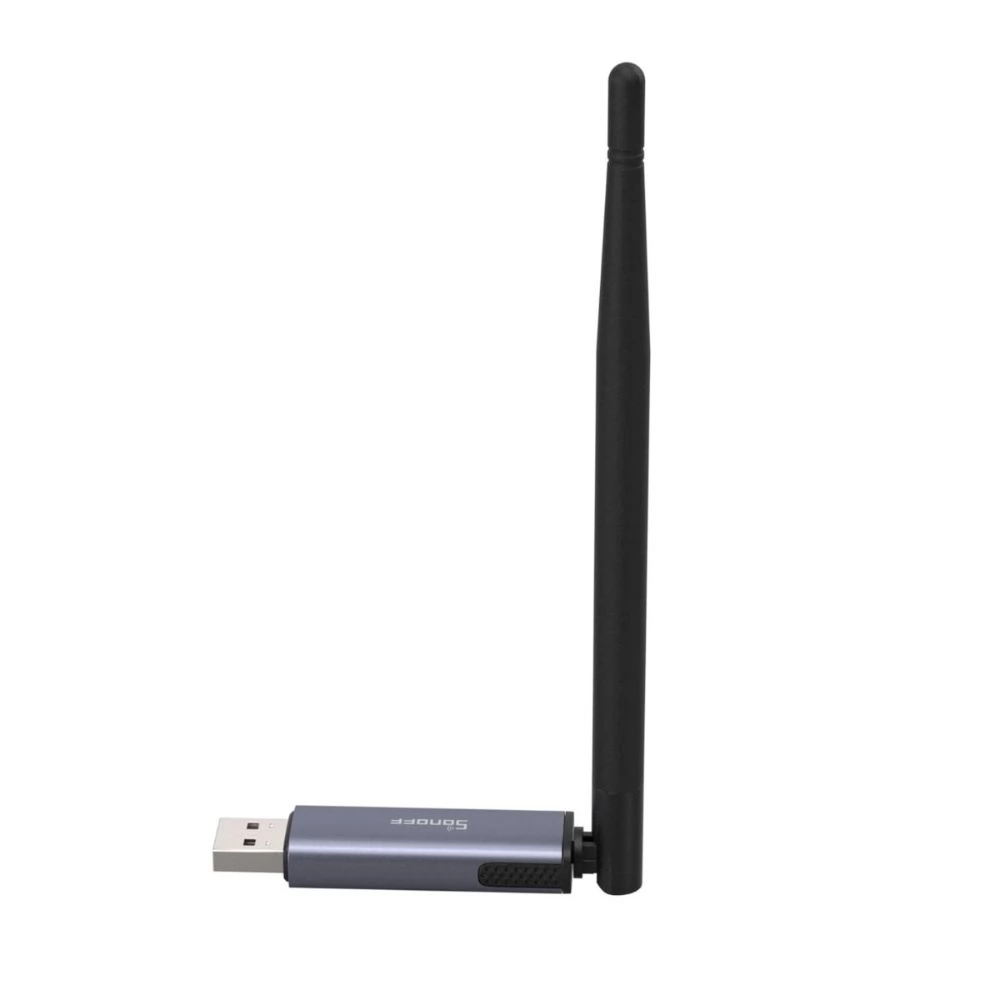

SONOFF Dongle Plus MG24 USB adapter

The Sonoff Dongle‑PMG24 - fully named "Zigbee/Thread USB DonglePlus MG24" - is one of Sonoff's most complex USB dongle solutions, offering unparalleled performance and versatility. The built-in high-performance EFR32MG24 chip (SoC) has a capacity of 1536KB Flash and 256KB RAM, thus providing much more resources than previous models. This allows for faster automation response time and more stable sub-tool handling.

The device is equipped with Zigbee coordinator firmware from the factory, but with the SONOFF Dongle Flasher web tool, it can be easily flashed to other roles - for example, Zigbee router, OpenThread RCP or even MultiPAN device - all in just 1 minute. The package also includes a 1m long USB extension cable, which enables convenient placement and minimizes interference.

The device's aluminum alloy housing is durable, corrosion- and pressure-resistant, and offers a modern tech appearance. The built-in antenna works with 3dBi amplification, with optimal settings up to 4.5dBi, which means that a range of up to 200 meters can be achieved in open space. The device is an excellent choice for both advanced DIY smart home developers and advanced users looking for a reliable, high-performance multi-protocol controller.

Main product features

- Chip and memory EFR32MG24 SoC 1536KB Flash and 256KB RAM
- Antenna and range Built-in 3dBi antenna, optimized up to 4.5dBi, up to 200m range in open field
- Firmware update in different ways (Zigbee router, OpenThread RCP, MultiPAN) within 1 minute with the Dongle Flasher web tool
- USB extension cable 1m long included in the package, to reduce interference
- Solid casing aluminum alloy housing, pressure and corrosion resistant, modern design
- Smart home protocols and platform compatibility
- Protocol support Zigbee 3.0; It can also be expanded with OpenThread (RCP) and MultiPAN firmwares
- Remote control / data transmission based on Zigbee; can also be used as a layer changer
- Factory platforms Home Assistant, Zigbee2MQTT, openHAB, Domoticz, ioBroker, jeedom, etc. support
- Cloud service, no factory support, optimized for local systems
- Alexa, Google, Siri support is available via voice control platforms (e.g. Home Assistant).

Smart functions

- Firmware role switching can work simultaneously as Zigbee coordinator, router, Thread Border Router or MultiPAN device
- Local control, independent operation, no cloud is required for operation
- Scalability A high-resource SoC enables convenient management of multiple devices
- Stable network connection, strong antenna, extension cable and solid housing ensure reliability

Other features

- Plug & Play and DIY oriented pre-flashed with coordinator function, but with easily customizable firmware
- Compact size USB format, aluminum housing; the package comes with a USB extension for practical placement
- Excellent community support with many platforms and forums available for developers and users (e.g. Sonoff Academy)
- State-of-the-art new generation chip and strong antenna design ensure high stability and performance
- Power supply USB 5V, max. 500mA
- Power consumption (standby) only 40mW
- Output power max. 20dBi antenna gain, built-in 3dBi, optimized up to 4.5dBi

Description:

- Manufacturer: Sonoff
- Article number: SON-KIE-PMG24-ZB
- Factory item number: Dongle-PMG24
- Bar code: 6920075743364
- Communication protocols: Thread, Zigbee
- Color: Grey

Installation / operation

- Plug&Play installation: Yes
- Operating power supply: 5V DC USB-A
- Operating ambient temperature: 10°C-40°C
- Operating ambient humidity: 5%-95% RH
- IP protection: Indoor device

Supported protocols

- Ethernet / wired network (RJ-45): No
- Wi-Fi: No
- Zigbee: Yes: Zigbee gateway
- Z-Wave: No
- Thread: Yes
- RF / radio control: No
- Bluetooth: No

Remote control, smart control

- Cloud mode: No
- Local network mode: Yes
- Matter standard compatible: Yes
- MQTT: Zigbee2MQTT

Smart functions

- Notification functions: Yes
- History / Event log: Yes

Other

- Dimensions: 6.5 × 1.7 × 15.0 cm
