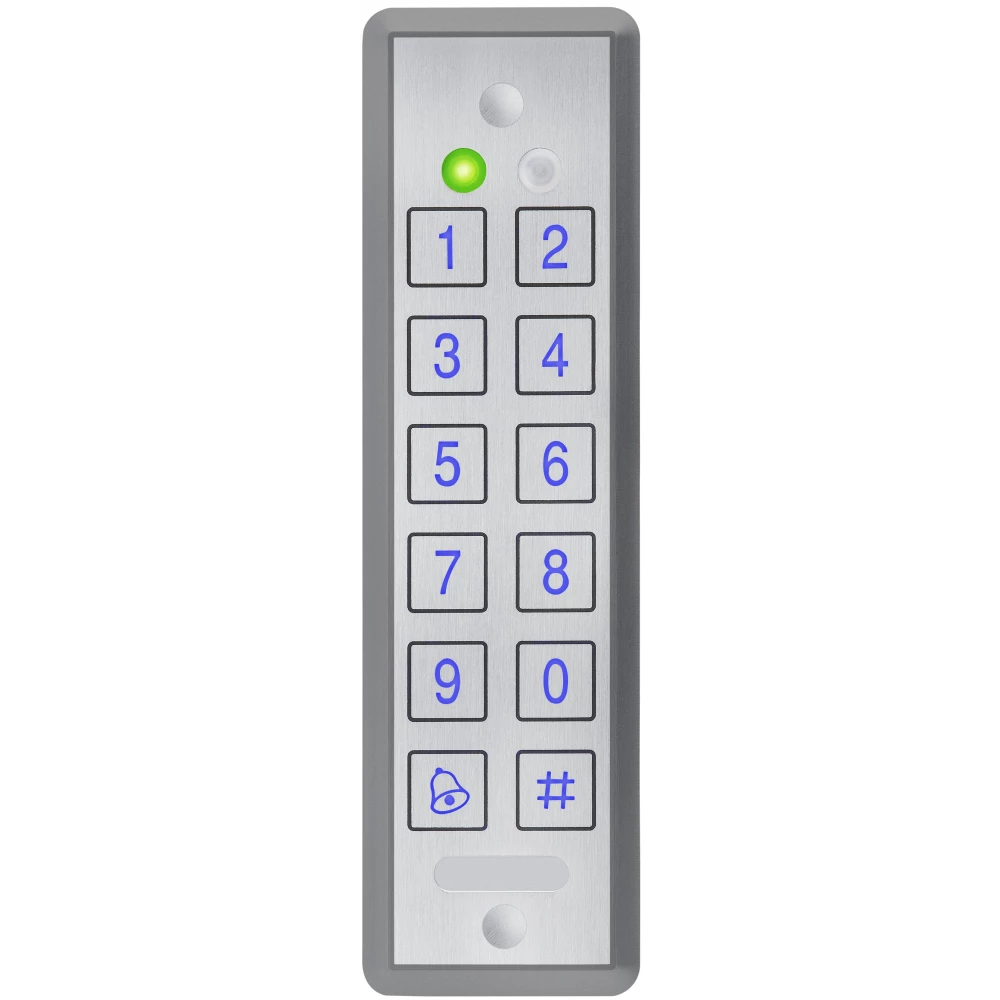

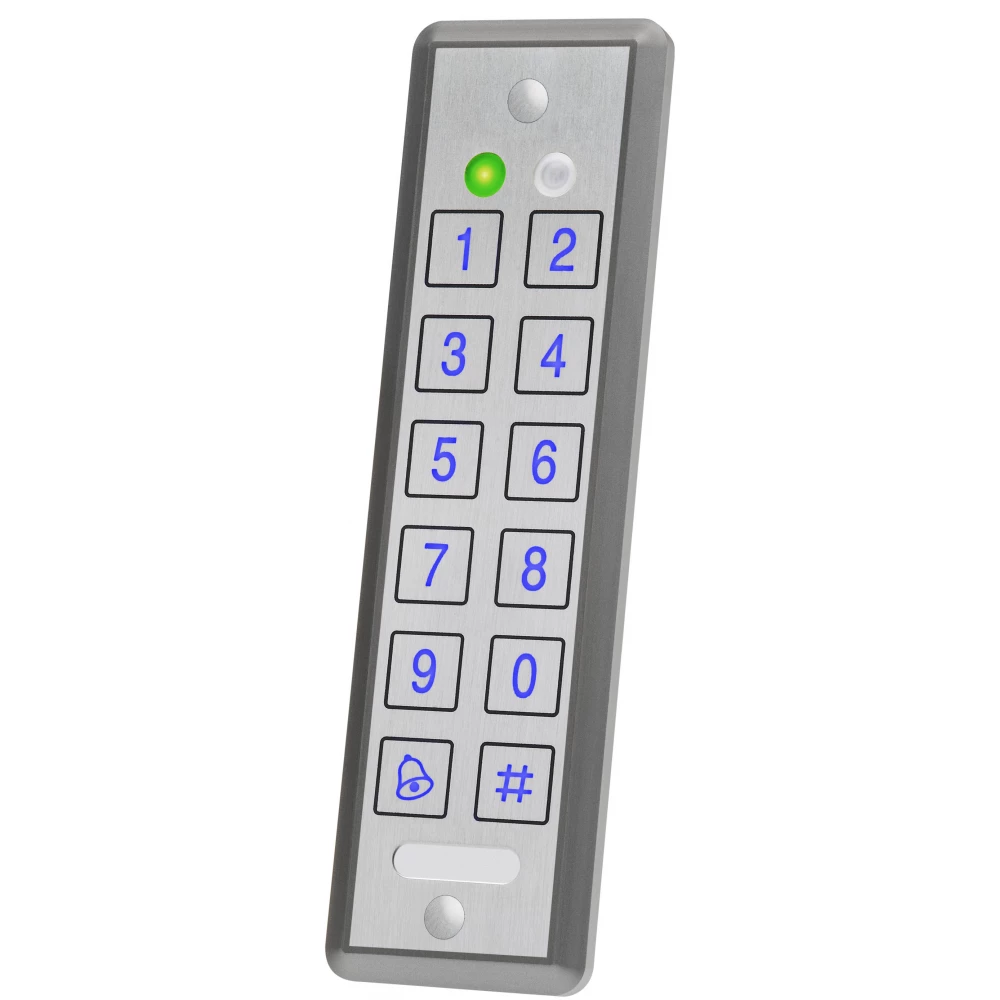

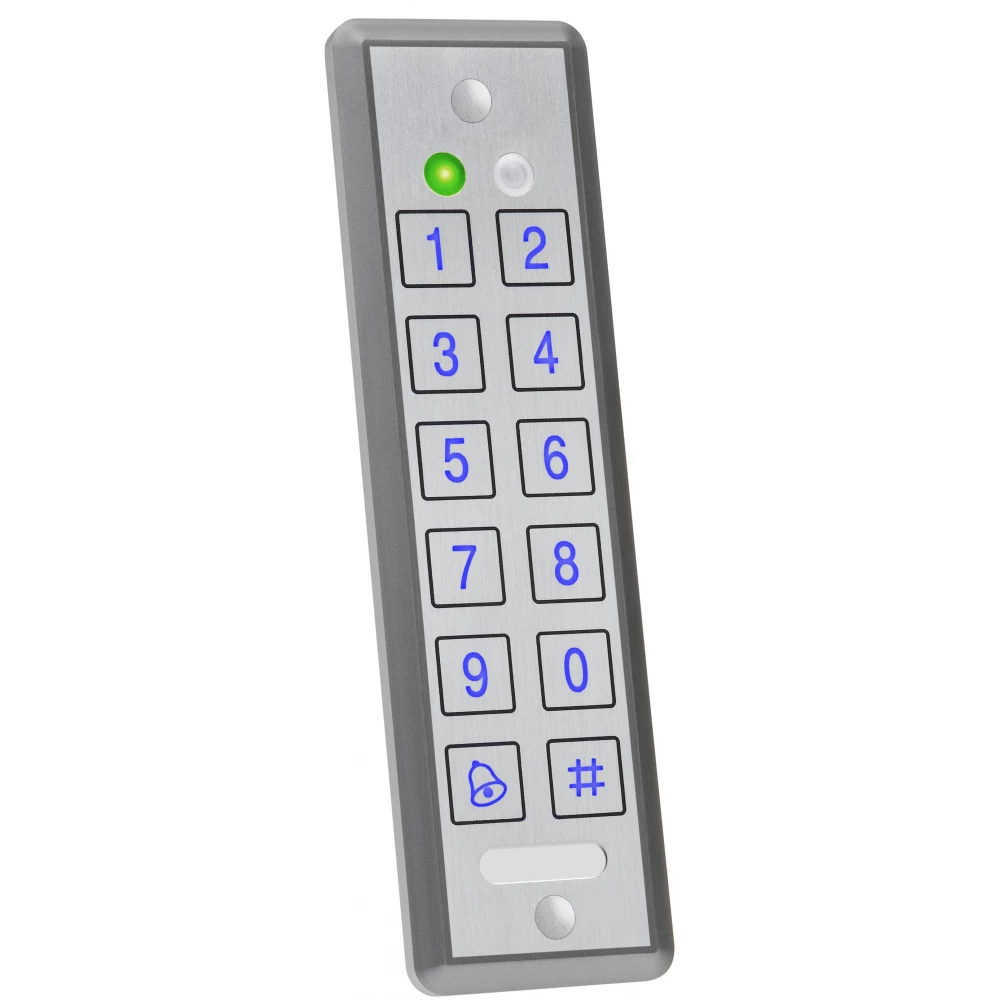

Function-switching ultra-narrow piezo PIN & Prox reader/controller with backlight

The unique, ultra-slim profile, smooth metal finish and high-sensitivity piezoelectric buttons, combined with bright and luminous digits and a proximity card reader, make this device highly attractive for all-weather PIN and prox access control applications. Designed with an all-metal casing, the AYC-E65B/B/W/G offers an extremely attractive yet durable solution for all needs. As part of the reader/controller switcher family, it works as a PIN pad reader when connected to a conventional controller, however it becomes a 500-user stand-alone controller when connected to a PS-x5T smart power supply.

Supports 4-8 digit PIN codes and 125 kHz EM type RFID cards and tags
Sleek, attractive design, weatherproof design with indoor and outdoor operation
Large, clearly visible, illuminated piezoelectric keyboard
2 three-color LEDs and built-in buzzer for programming and operation
User-friendly menu system based on keyboard, LED and buzzer
Optical rear tamper sensor output
Automatically detects connection to PS-X5T smart power supplies and transforms into a 500-user stand-alone controller with relay outputs

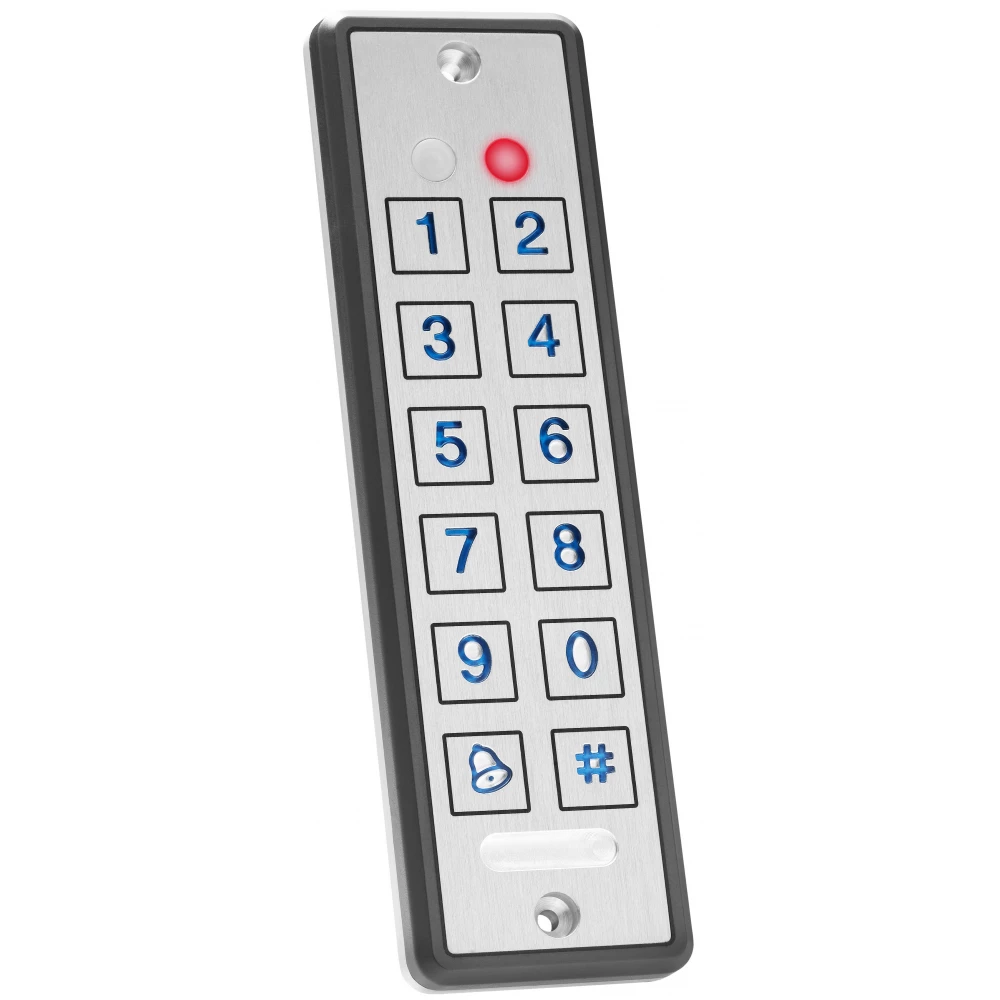

Available in three versions: AYC-E65BG with gray antenna, AYC-E65BW with white antenna and AYC-E65BB in black

Professional level features:
8 selectable PIN transmission modes including key stream, binary, parity and 2×6 matrix options
It supports Wiegand or Clock&Data transmission formats
3 security levels (control mode): bypass (free access), normal (card or PIN) or secure (card + PIN)
With a template to help with installation
60 cm shielded interface cable

Specifications
- Operating voltage range: Read mode: 5V ~ 16V DC from a standard controller; Control mode: PS-x25T series intelligent power supplies
- Input current: 92 mA @ 12 V DC, maximum: 105 mA @ 16 V DC
- Proximity card reader: Maximum reading range: 40 mm, Modulation: at 125 kHz, Compatible cards: All 26-bit EM cards
- Tamper: Open collector, active low, 30 mA maximum sinking current
- Keypad: Twice 6 blue illuminated buttons (Always On, Always Off and Auto Dim options) for local programming and 4-8 digit PIN code entry
- Design: Epoxy potted, fully sealed, in a solid, thin metal housing, very strong structure and high sensitivity piezoelectric keys. It can be used in extremely harsh environments
- Sound/visual: Two three-color LEDs, built-in buzzer
- Operating environment: All weather, indoor and outdoor use meets IP68
- Operating temperature: -30°C ~ +65°C
- Operating humidity: 0% ~ 95%
- Size: 155 x 44 x 9 mm
- Weight: 143 g

Reading mode
- LED control: dry contact, N.O.
- Equipment code: programmable
- Card reading format: Selectable Wiegand 26 bit or clock and data
- PIN code format: 8 selectable formats, 1-8 digit PIN codes

Control mode Only available with PS-x25T series smart power supplies
- Capacity: 500 users, one/two PIN codes
- User levels: normal, secure and master
- Security modes: normal, bypass and secure
- Outputs: Closing stop output, Additional output (PS-x25T series)
- Inputs: REX (Exit request), auxiliary/door monitor with 10 programmable modes

AYC-E65B (read mode) is compatible with standard access controllers. Rosslare's PS-x25T smart power supply series automatically turns 500 users into a secure controller.
