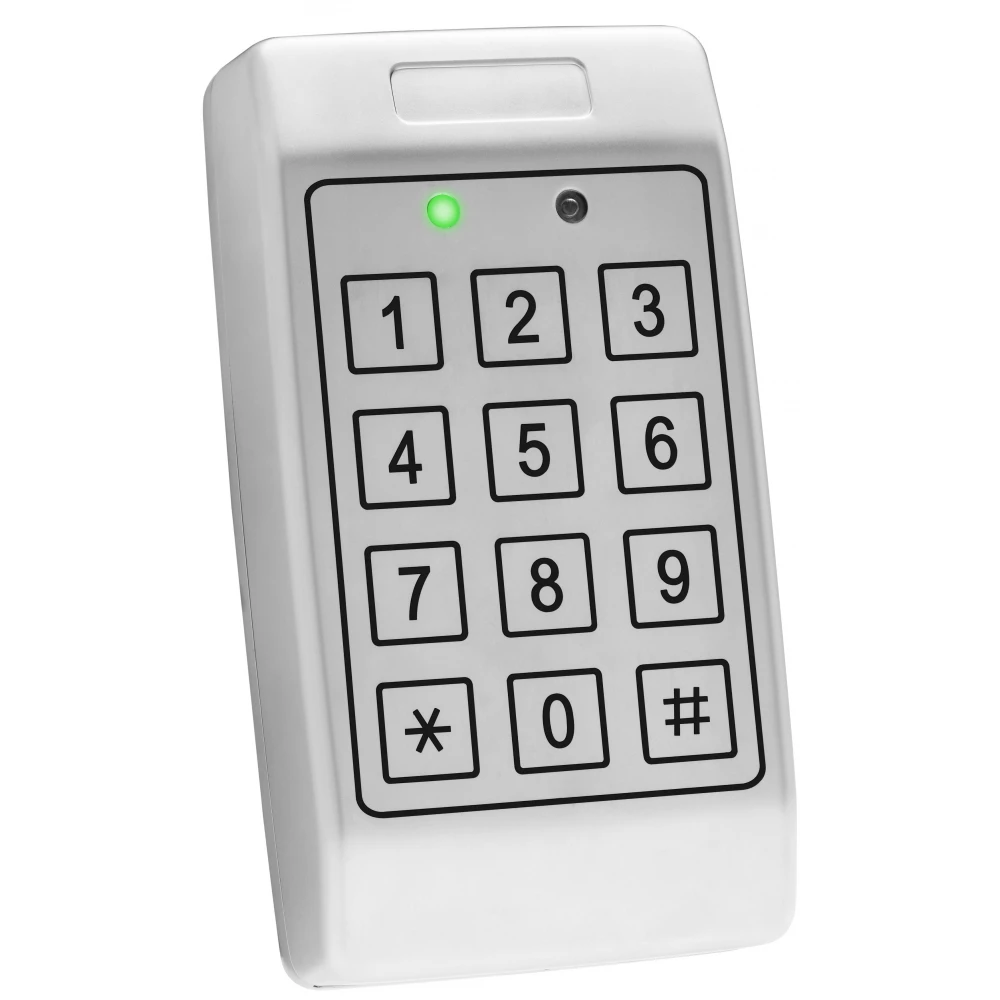

ROSSLARE AC-T43 Anti-Vandal Piezoelectric PIN Standalone Controller

The ROSSLARE AC-T43 self-contained, robust design with piezoelectric technology is recommended for applications where card and/or PIN code-based access is required.
Thanks to its durable design, it can be used both indoors and outdoors and can handle up to 500 users.

- Management of a maximum of 500 users
- Solid metal body, without moving parts
- Three user levels:
- Requires a Standard Card or PIN code
- Requires a Secure Card and PIN code
- Master user
- Three access levels: Normal, Bypass, Secure
- Built-in keyboard for PIN code-based access
- Max 8-digit programmable PIN code
- Integrated proximity card reader
- Programmable background lighting
- Built-in speaker
- Tamper-resistant screws (special tool required)
- DC and AC power supply
- IP65 weatherproof and UV resistant design
- Built-in speaker
- Two inputs: 1 REX (Request to exit) and 1 accessory
- Two three-color status indicators/programming LEDs
- Ten programmable additional operating modes
- Programmable siren time (with BL-D40 device)
- Locking in case of incorrect login attempts (keyboard/card tampering)

Specifications
- Operating voltage range: 12 V ~ 24 V DC from regulated power supply; from a 16 V AC transformer
- Input current: Standby: 15 mA, Maximum: 75 mA, 12 V DC
- Tamper: Optical rear tamper sensor, O.C. active low 32mA maximum sinking current
- Relay outputs: closing stroke: 3A, N.O. and N.C.; Supplement: 3A, N.O. and N.C.
- Inputs: REX: N.O. Dry contact; Accessory (on/monitor): N.O. Dry contact. 10 programmable modes
- Keypad: 3x4 keys for local programming and entering 4-8 digit PIN codes
- Design: Epoxy pot, completely sealed in a solid metal thin housing, high strength construction, high sensitivity piezo metal keys. Excellent for extreme conditions.
- Audio/visual: Interface for BL-D40 (bell and siren); Two three-color LED displays, built-in buzzer
- Capacity: 500 users, single/double code
- User levels: Normal/Safe, Master
- Security modes: normal, bypass and safe
- Operating environment: Waterproof, suitable for outdoor use, complies with the IP65 standard
- Operating temperature: -32°C ~ +63°C
- Operating humidity: 0% ~ 95%
- RFI protection: >20 V/m, up to 1000 MHz
- Size: 120mm x 65mm x 27mm
- Weight: 400 g
