Immediately in the new era of mobile 3D scanning, Revopoint Miraco Pro with an ultra -light and completely wireless scanner, which operates continuously with a single charge for up to two hours. The four -camera depth gauge system allows for a smooth switch between fine details (0.02 mm) and high -speed scanning (0.2 mm), which is available in Single Shot and Continuous Shot mode. The high-performance 2.8GHz October Core processor, 32GB RAM and 256GB internal memory allows up to 10,000 frames without color and up to 8,000 frames, while the 6-inch AMOLED 2K screen can work with 180 ° and advanced post-processing features without a computer. Photo-realistic colors are provided by a 48MP RGB camera, while the 9-axis IMU, IP45 rating and Wi-Fi 6 guarantee reliability in all circumstances. Discover how easy it is to transfer reality into the digital world!

Wireless freedom and compact design
Revopoint Miraco revolutionizes 3D scanning approach as it combines unique mobility and a light body weighing only 750 g. With the built-in 5000mAH battery and 50W quick charging technology, the device works continuously for about two hours and only needs a moment to renew energy. This means that you can completely forget about cables and standing workstations - scan where you want without compromise.

Infinite opportunities for details and scales

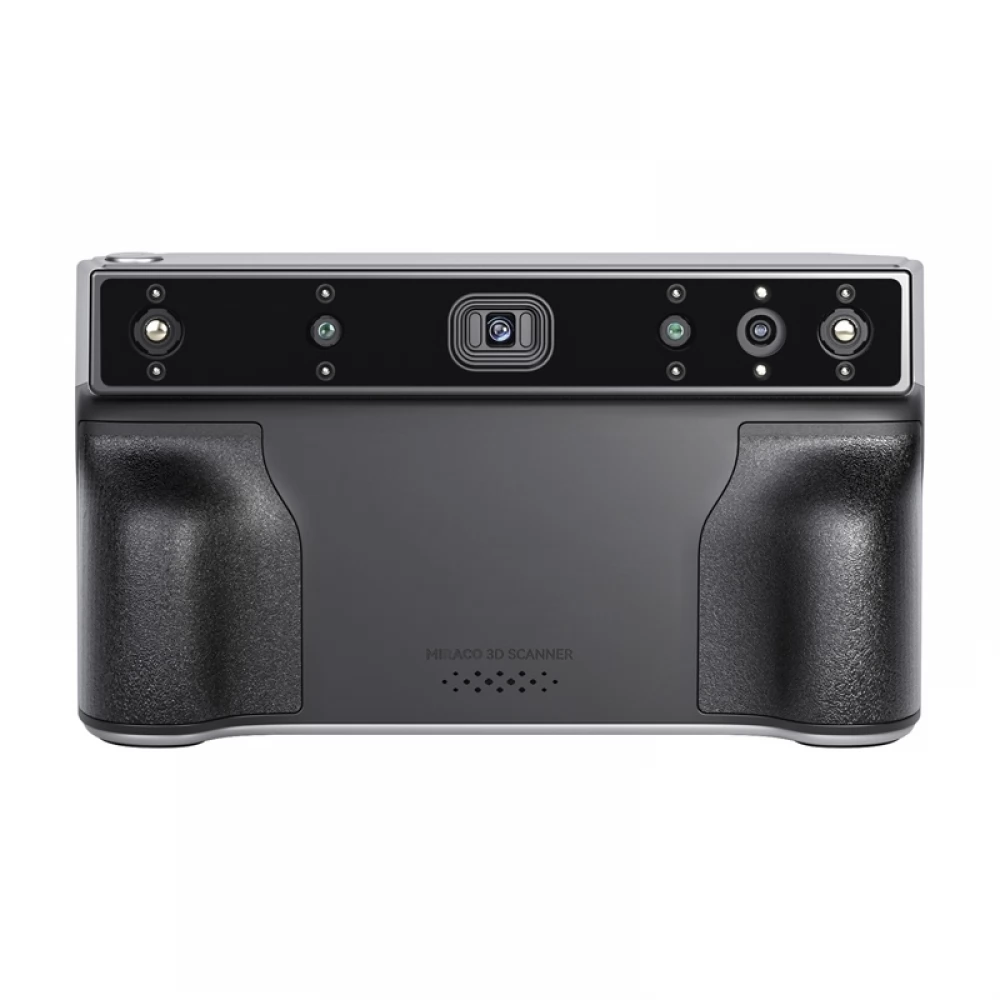

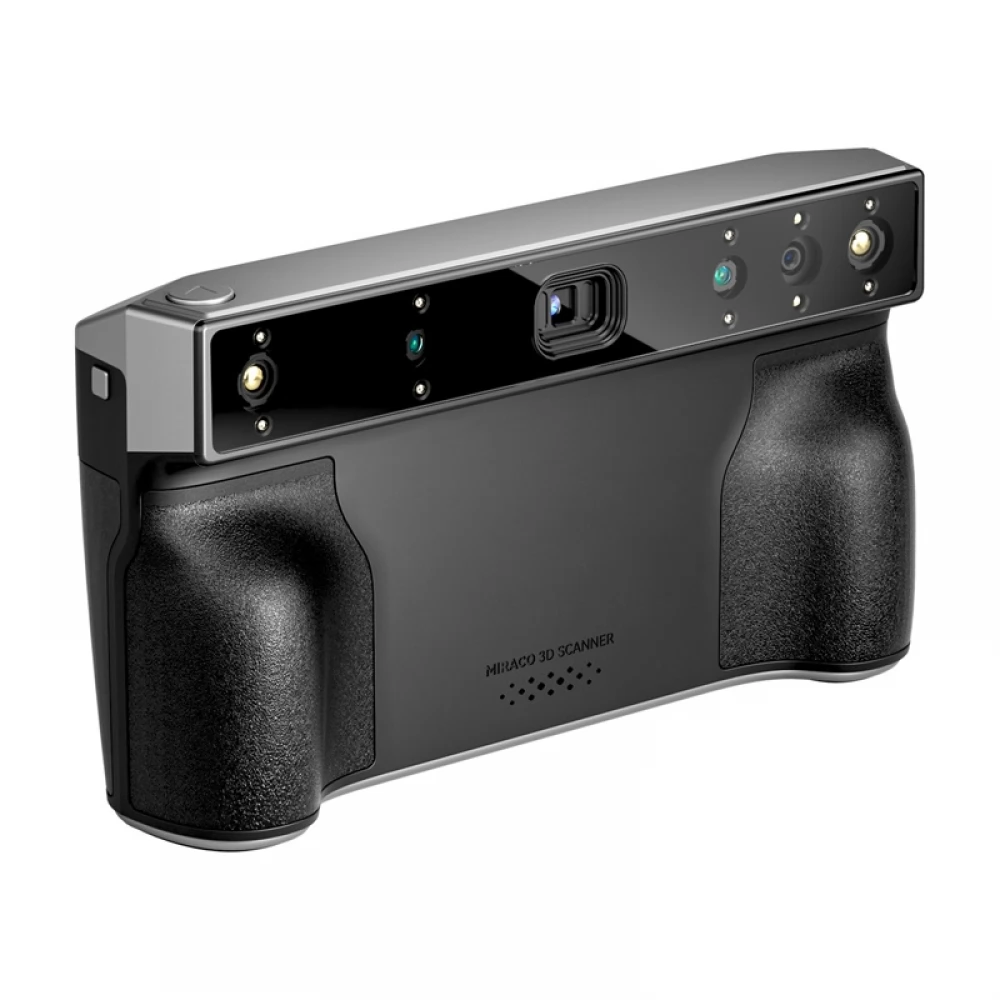

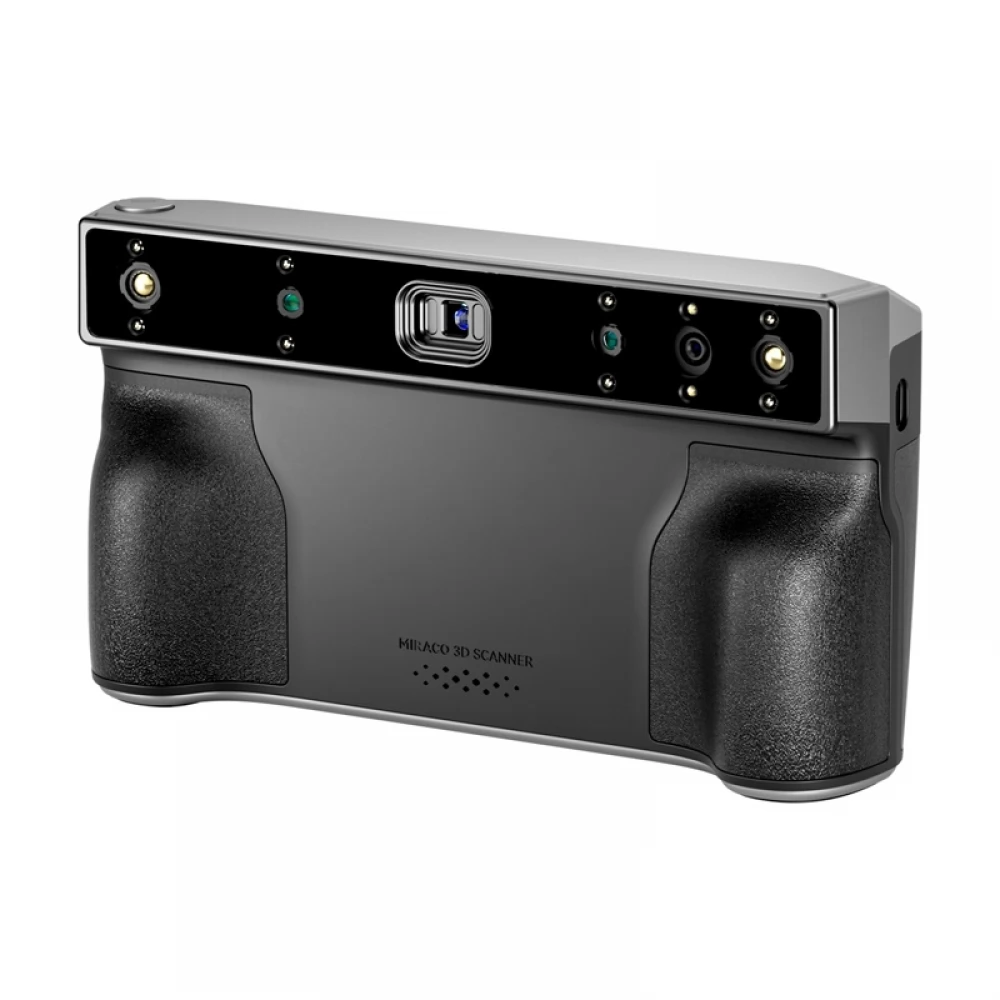

Thanks to the Quad Depth Camera system, Miraco has smoothly become the smallest characteristics (such as a 33 × 10 × 10 mm screw) and a large object (such as a 600 × 138 × 220 mm exhaust). This dynamic combination allows the scanner to maintain up to 0.02 mm surgical accuracy within a single record, while scanning larger shapes with a precision of 0.2 mm without having to switch or prepare different modes.

Two -speed image recording
In situations requiring detailed imaging of complex surfaces, one -up mode eliminates problems with tracking losses and difficulties with contrast textures. However, when speed is the primary consideration, continuous recording mode allows you to work with 20 frames per second, significantly accelerating 3D models of small and large objects.

Independence without compromises

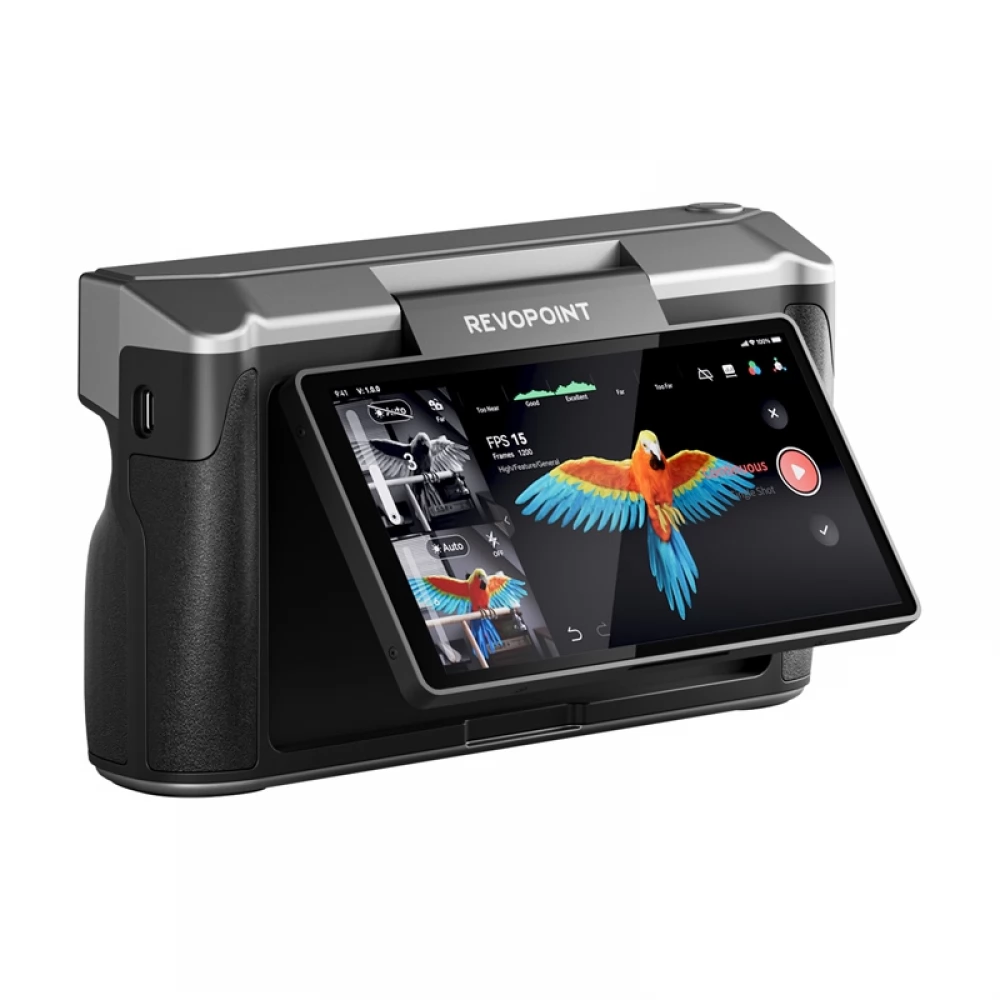

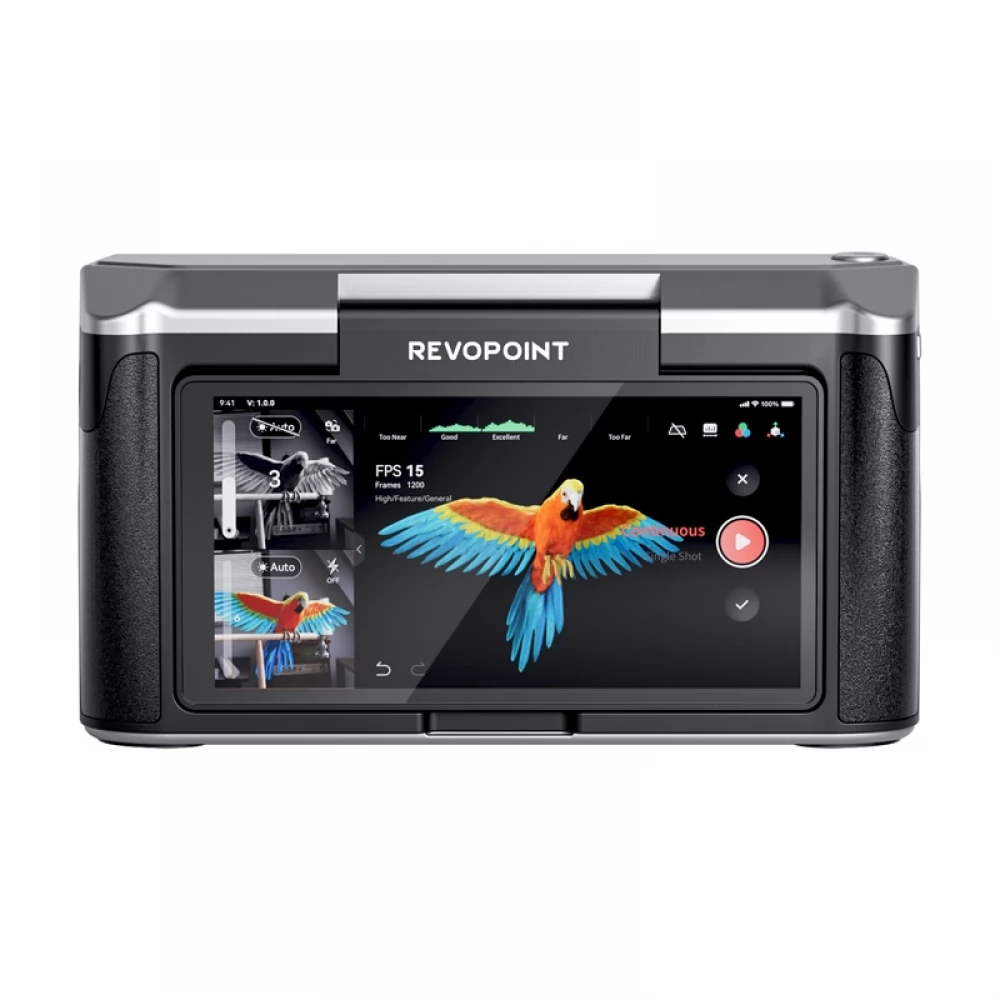

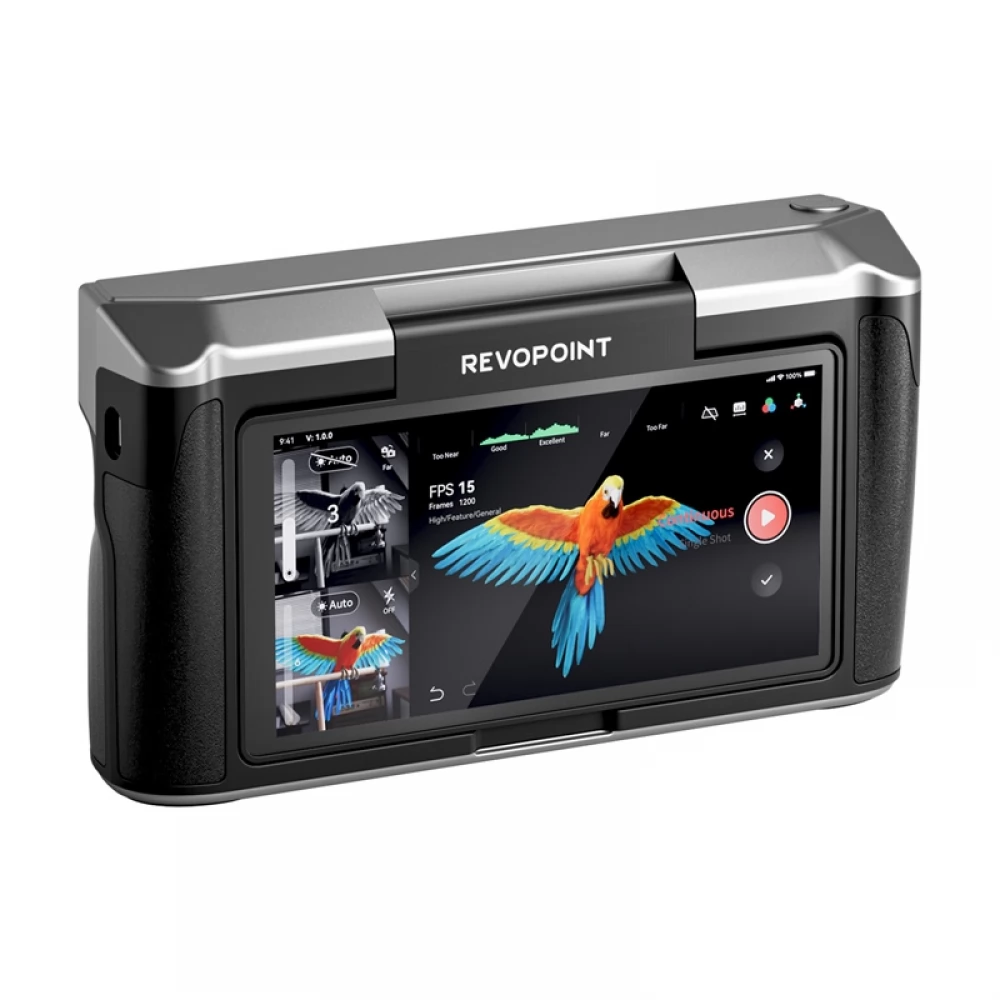

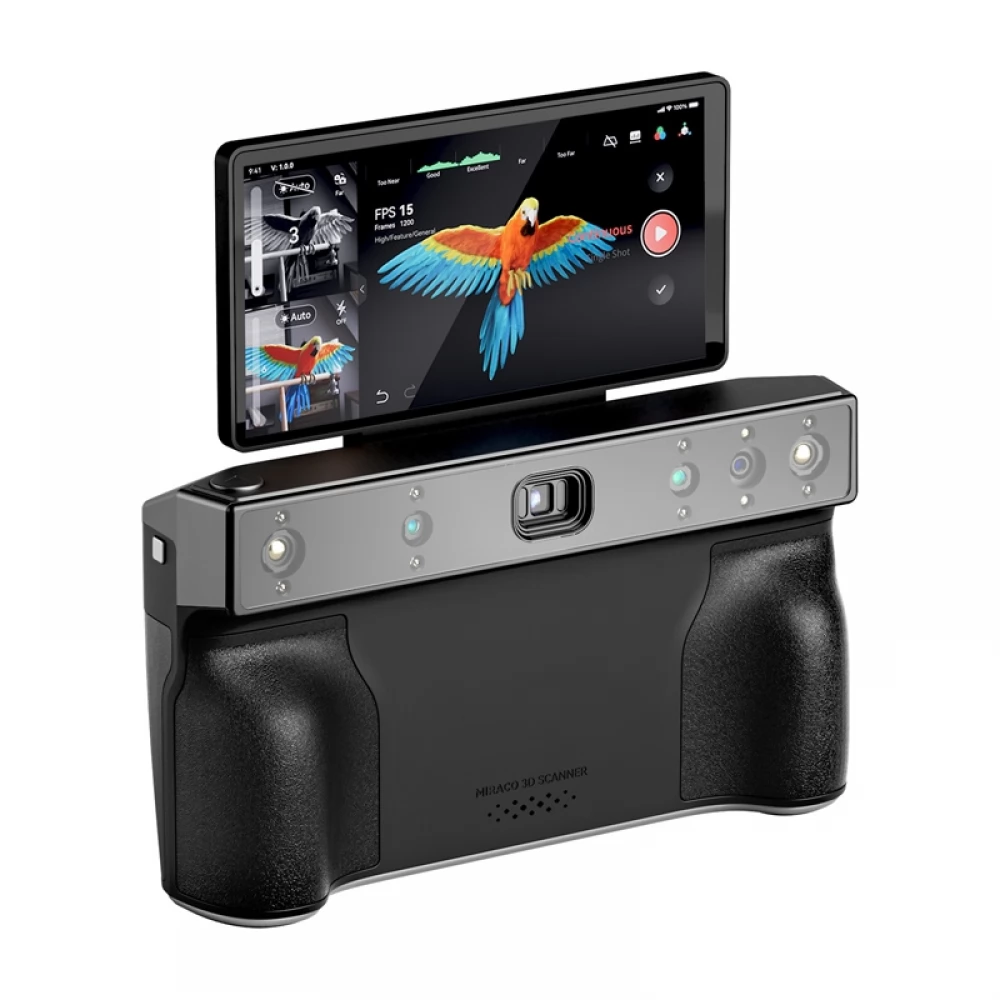

Miraco has a 2.8GHz Octic-Core processor, 32GB RAM (random-access memory, main memory) and 256GB, which allows you to scan up to 10,000 frames without color and up to 8,000 frames. The device has advanced point cloud processing and model editing features - no computer is required to view scanning results. Everything appears on a 6-inch AMOLED 2K screen (Active-Matrix Organic Light-Emitting Diode, an advanced, organic emission display technology) that can be adjusted at 180 ° so that the frame can be adjusted to any measurement position.

Photorealistic colors and security features
The 48MP RGB-quality camera used in the Miraco device guarantees a vibrant, accurate color rendition in one-time recording and continuous mode. In addition, a nine -axis IMU (an inertial measurement unit, a module that measures acceleration and angular speed in space with accelerators and gyroscopes) ensures stable and accurate movement, and the IP45 rating allows for operation at -10 ° C and 40 ° C, so the scanner is ready for extreme conditions. The Wi-Fi 6 support and the facial scanning function needed to make selfies expand the use of the device, making it an invaluable tool for engineers, designers and content makers.

Technical data
- Technology used: Four infrared structured light camera with optical zoom and ultra-high resolution for photogrammetric metrology
- a single frame accuracy: up to 0.02 mm
- a single frame accuracy: up to 0.04 mm
- Photogrammetric Length: 0.02 mm + 0.05 mm x l (m)
- Fusion point distance: up to 0.05 mm
- Workout: 100 x 1000 mm
- A single mounting area at the nearest distance: 28 x 53 mm @ 100 mm
- A single mounting area at the farthest distance: 975 x 775 mm @ 1000 mm
- Minimum scan volume: 10 x 10 x 10 mm
- Maximum scan volume: 4 x 4 x 4 x 4 m
- Scan speed: up to 20 frames per second
- Camera resolution: Camera depth: 2mp, RBG camera: 48mp
- CPU: 8-core ARM A76, 2.4 GHz, Mali G52 GPU
- 3D light source: Class 1 infrared light
- RAM and internal memory: 32 GB + 256 GB
- Filling Lights: Camera depth: 8, RGB Camera: 2
- Sensors: 9 axis IMU
