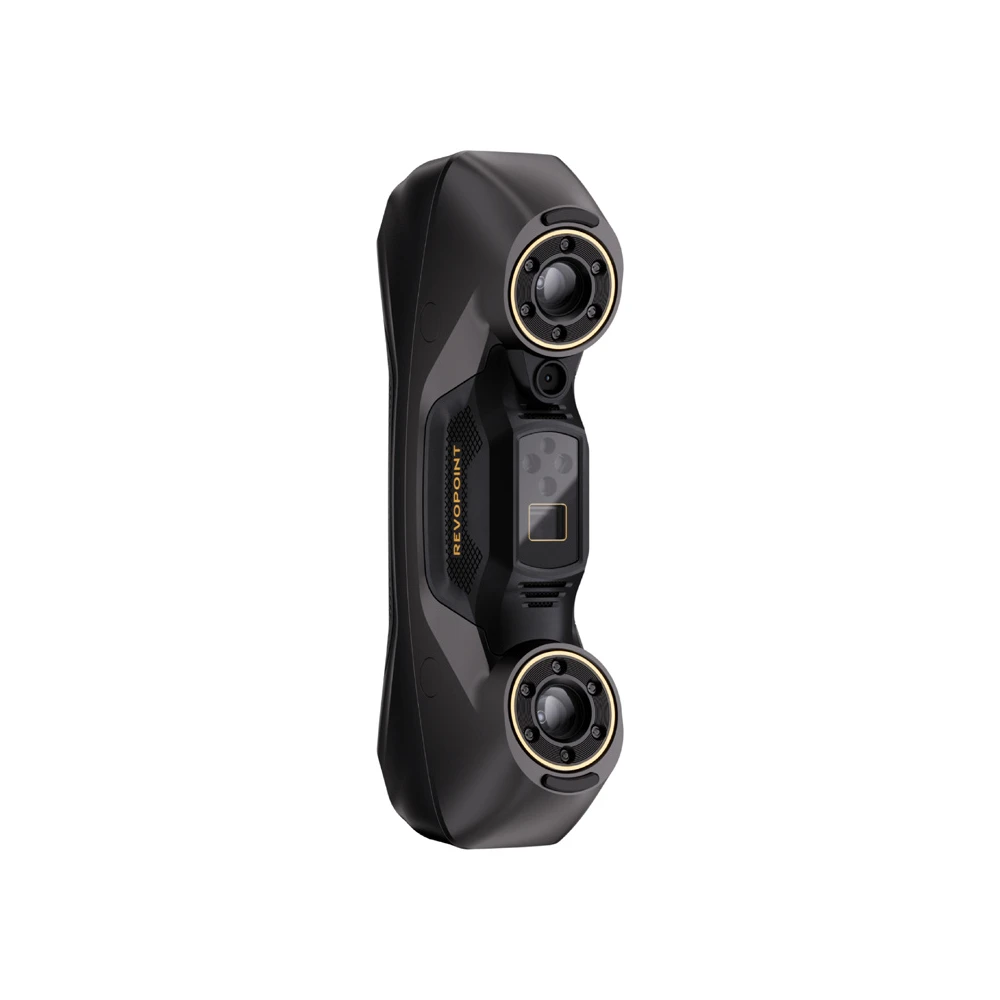

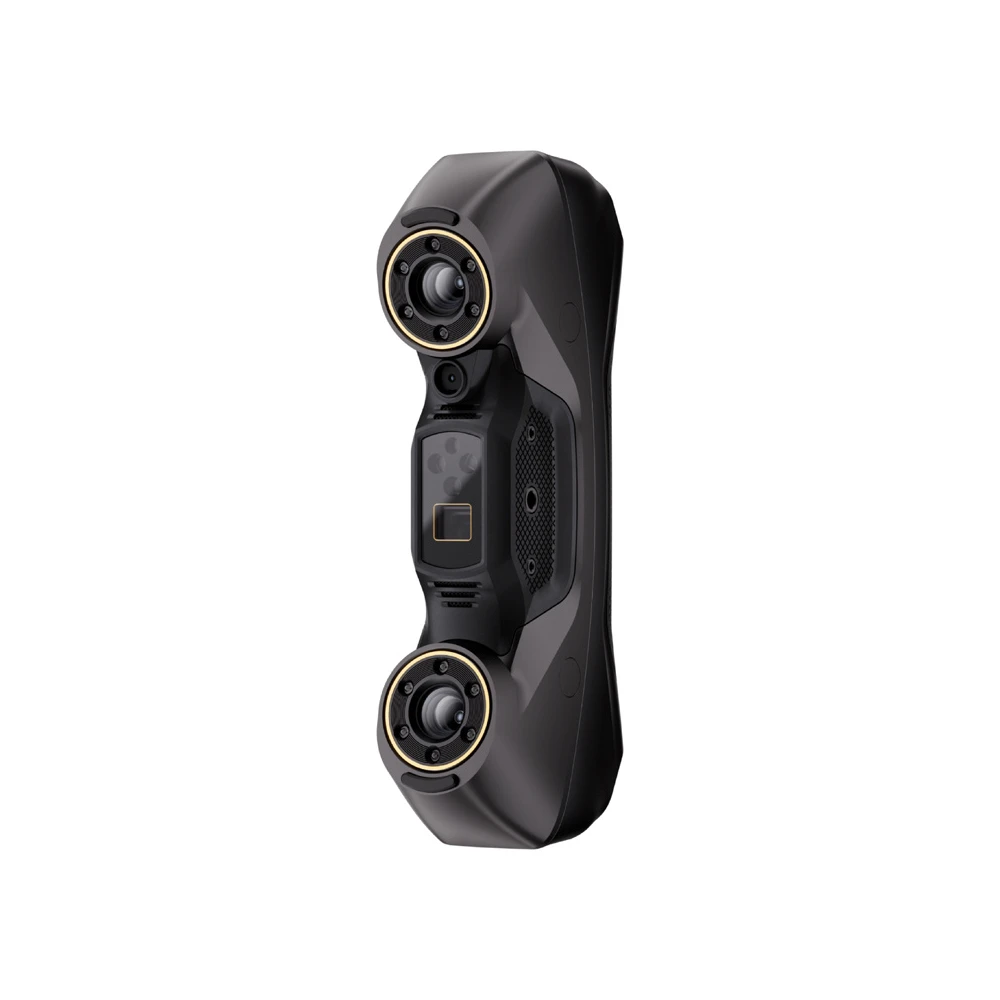

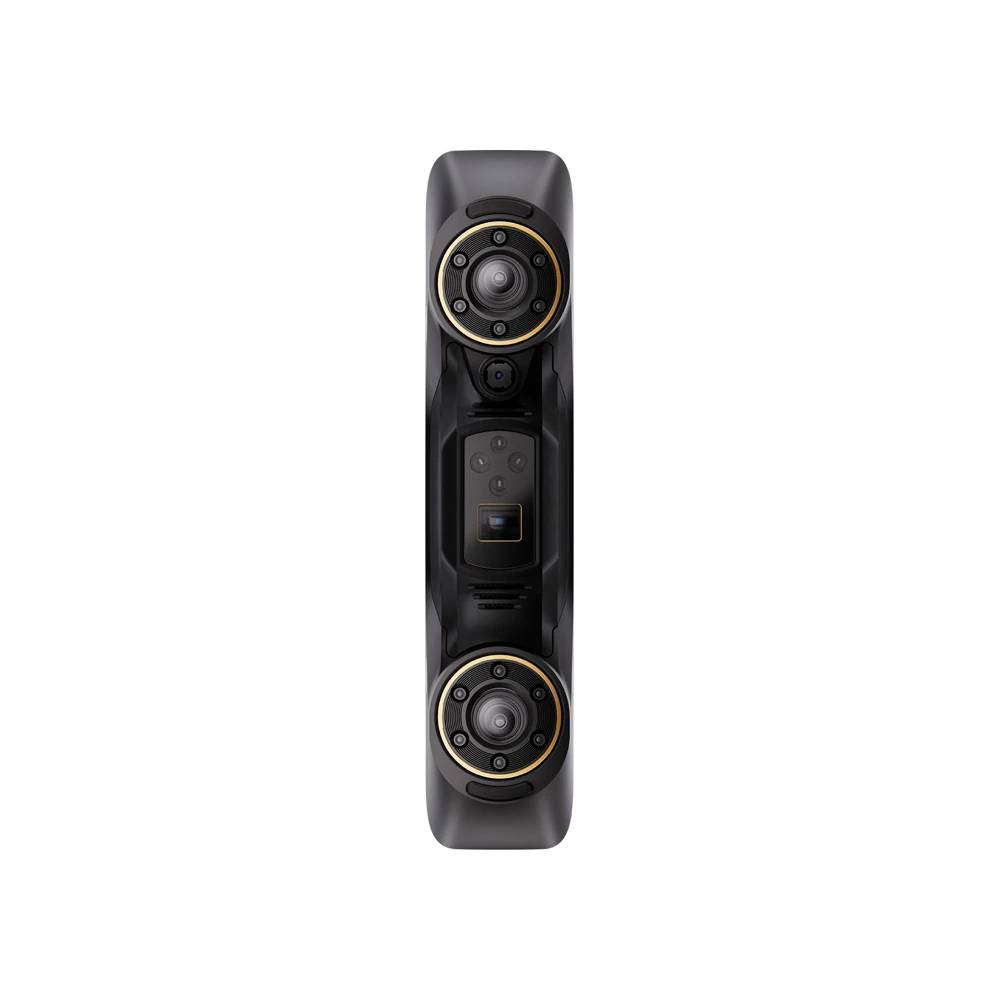

Revopoint MetroY Pro is a professional 3D scanner designed for engineers, designers, developers and professionals involved in quality control and reverse engineering. The device can scan objects between 10 × 10 × 10 mm and 1 × 1 × 1 m in size, combining accuracy and high detail. It offers five modes and a volumetric accuracy of 0.02 mm + 0.03 mm × L (m) and enables scanning in handheld and standing configurations. As a result, it provides fast data collection, flexible operation and repeatable results.

Wide range of scanned objects
MetroY Pro enables the scanning of both very small technical parts (from 10 mm) and larger objects up to 1 m. This allows you to digitize small details, complex mechanical parts, equipment parts and complex structures with a single device. All this makes the scanner suitable for a wide variety of industrial, prototyping and manufacturing projects.

Advanced blue light scanning modes

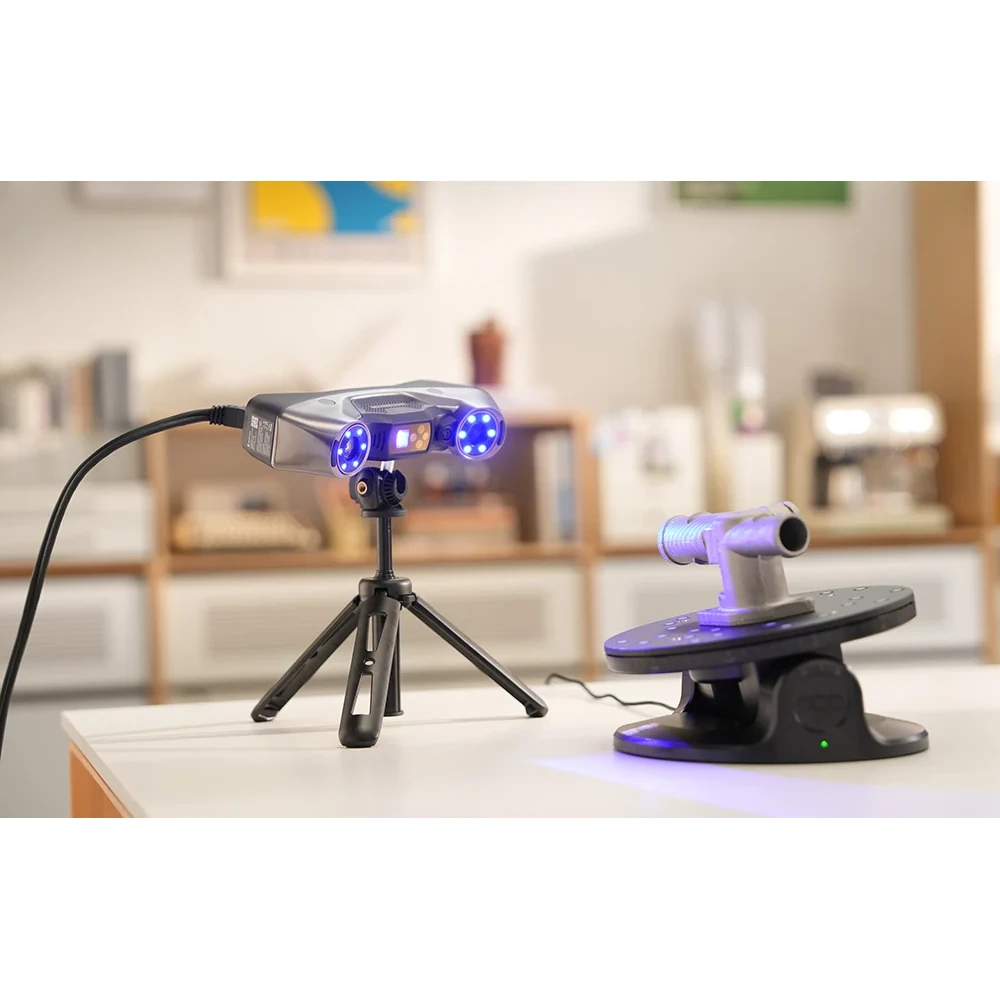

MetroY Pro uses 34 laser blue cross lines, 15 parallel lines, single lines and a 62 line full field pattern. It also supports multiple scanning modes. Cross-Lines work well for bright and dark materials, Parallel-Lines are good for scanning fine details, and Single-Line precisely captures the geometry of deep holes and hard-to-reach areas with markers. There is also a Full-field mode, with which you can quickly digitize complex objects. You can also use the device together with the included rotating stand for automatic, repeatable, smooth scanning of models.

Increased accuracy and measurement stability
MetroY Pro provides a volumetric accuracy of 0.02 mm + 0.03 mm × L (m), which enables stable and consistent data across the entire surface of the scanned object. These features are particularly important in dimensional inspection, part design and geometry restoration processes, as well as in applications that require maximum accuracy of spatial mapping.

High speed data collection
MetroY Pro offers two speeds depending on the operating mode - in multi-line scanning the speed is up to 1,700,000 points/second and in full field mode it reaches 7,000,000 points/second. This also enables the rapid digitization of complex objects!

Spray-free scanning on selected surfaces
MetroY Pro allows you to scan selected dark and bright surfaces without spray. As a result, many objects can be digitized without additional preparatory steps. Such a solution noticeably reduces working time and is well suited for professional applications. For more challenging surfaces, such as metallic, highly reflective or transparent surfaces, it is possible to apply the spray according to the instructions, improving the quality of the reproduction.

Convenient Wi-Fi 6 and USB-C connectivity
The scanner offers two modes: wired and wireless. Wi-Fi 6 provides fast data transfer and freedom when scanning, while the USB-C port enables a stable connection to a computer or mobile device. This makes MetroY Pro suitable for many tasks.

Ergonomic and lightweight design
MetroY Pro weighs only 450 grams, so you won't get tired even during longer scanning sessions. The ergonomic handle and intuitive button arrangement allow for comfortable handling and full control over the entire process. In addition, thanks to the compact design, the scanner can be precisely maneuvered around complex surfaces and details.

A complete set for professional tasks
MetroY Pro comes with a full set of accessories to get you up and running almost right out of the box. The box contains not only the scanner, but also a USB-C to USB-C cable, a network adapter, a carrying case and a calibration board. The package also includes 200 markers to help you keep track of your theme. In addition, you get a Mobile Kit (3rd generation), a stand, a rotating stand and a test model. With the help of all this, you can expand your job opportunities!

Many possible applications
The MetroY Pro model can prove itself in many technical processes where fast and accurate spatial data collection is important. It can be used, for example, in reverse engineering, where it allows the geometry of mechanical parts and device components to be reproduced. In prototyping, it supports the creation of test models and the introduction of design corrections, and in quality control, it facilitates the comparison of scans with technical documentation. In additive manufacturing, on the other hand, the scanner provides the data necessary to create accurate 3D models.

Revo Metro software
The MetroY Pro scanner works with Revo Metro software, which allows you to conveniently edit 3D models and prepare them for further processing. The program allows
