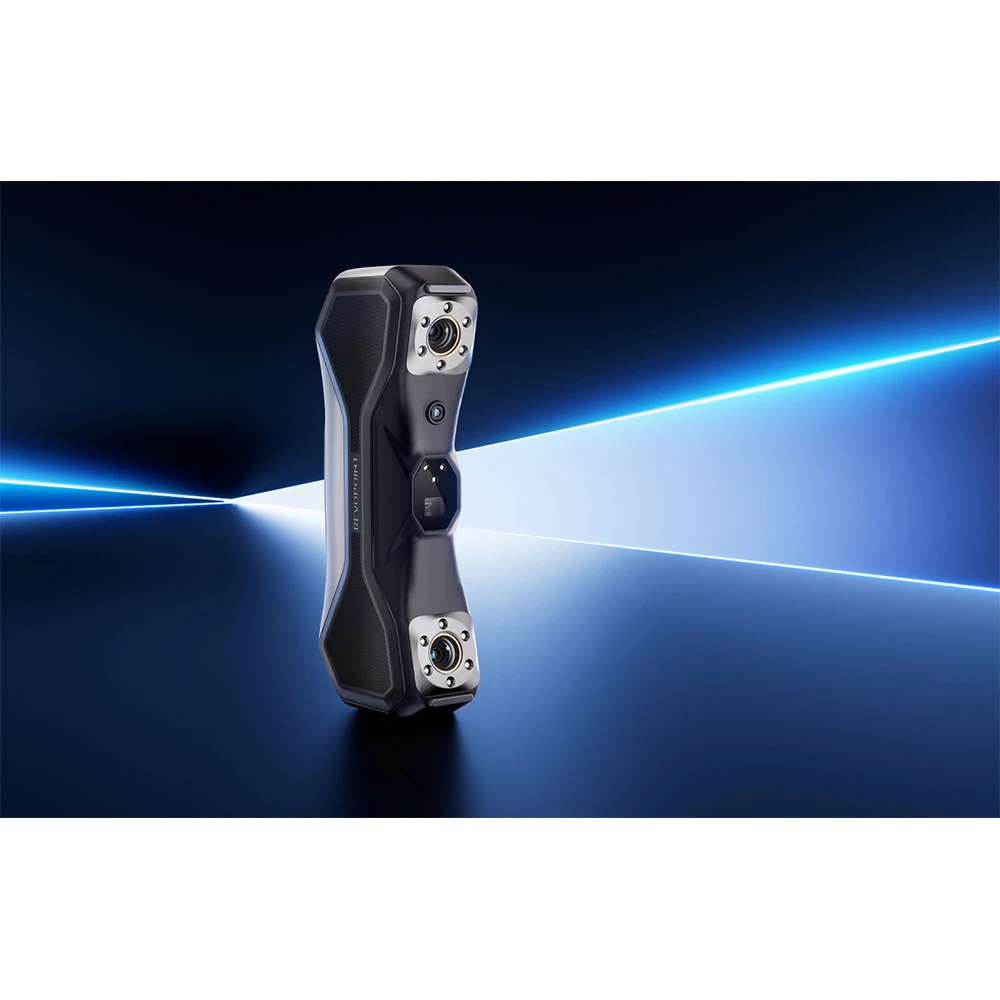

REVOPOINT MetroX Pro standard 3D scanner

The Revopoint MetroX Pro Standard is a 3D scanner that combines multi-line laser and structured light technology, capturing objects with an accuracy of up to 0.01 mm. The device supports four scanning modes, reaching up to 7,000,000 points per second in full-field mode and up to 2,000,000 points per second in laser mode. It can capture objects from 10 × 10 × 10 mm up to 1 × 1 × 1 m quickly and precisely, making it suitable for engineering and design work.

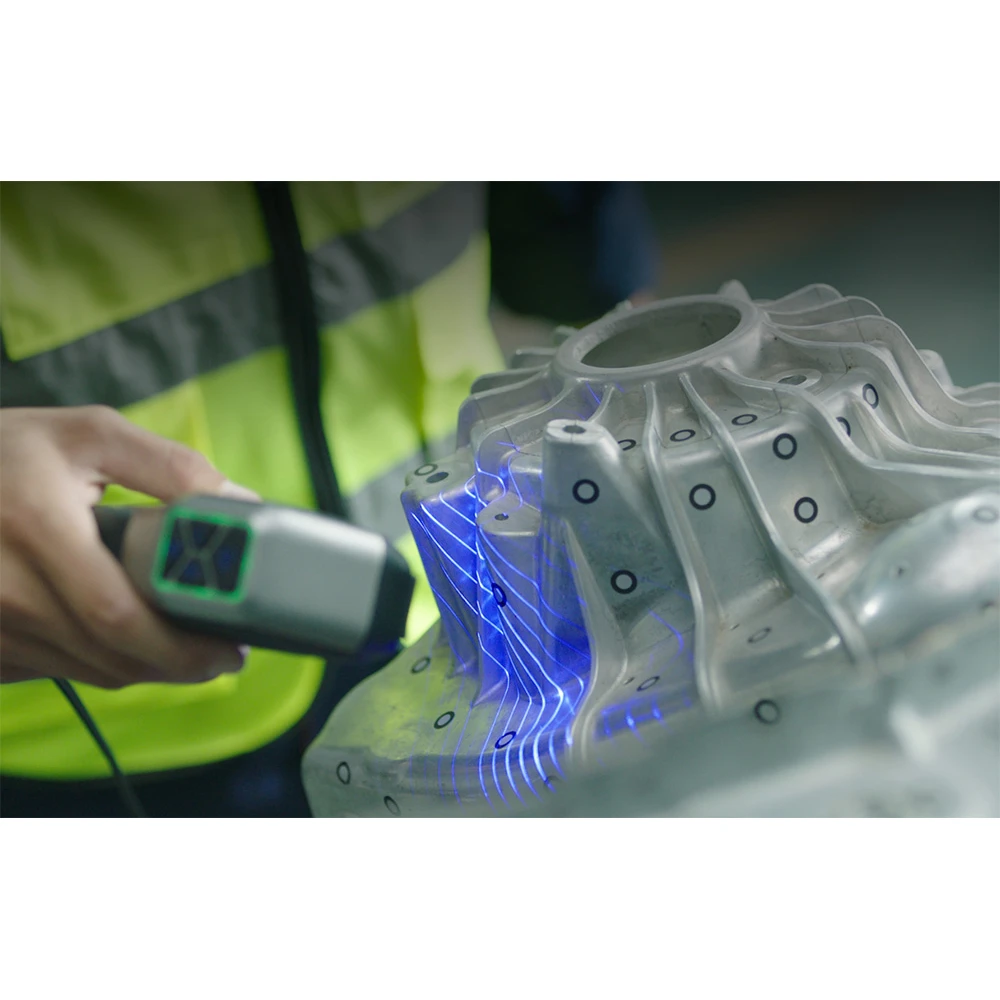

The scanner uses a combination of multi-line laser and full-field structured light scanning, so the mode can be matched to the task and surface type. It offers 30 blue cross-line lasers, 15 parallel lasers and 62 structured light lines for highly detailed capture. GPU-accelerated scanning and a refresh rate of up to 60 FPS support fast data acquisition. Handheld and fixed operation are both available, and the Feature, Marker and Global Marker tracking methods improve stability.

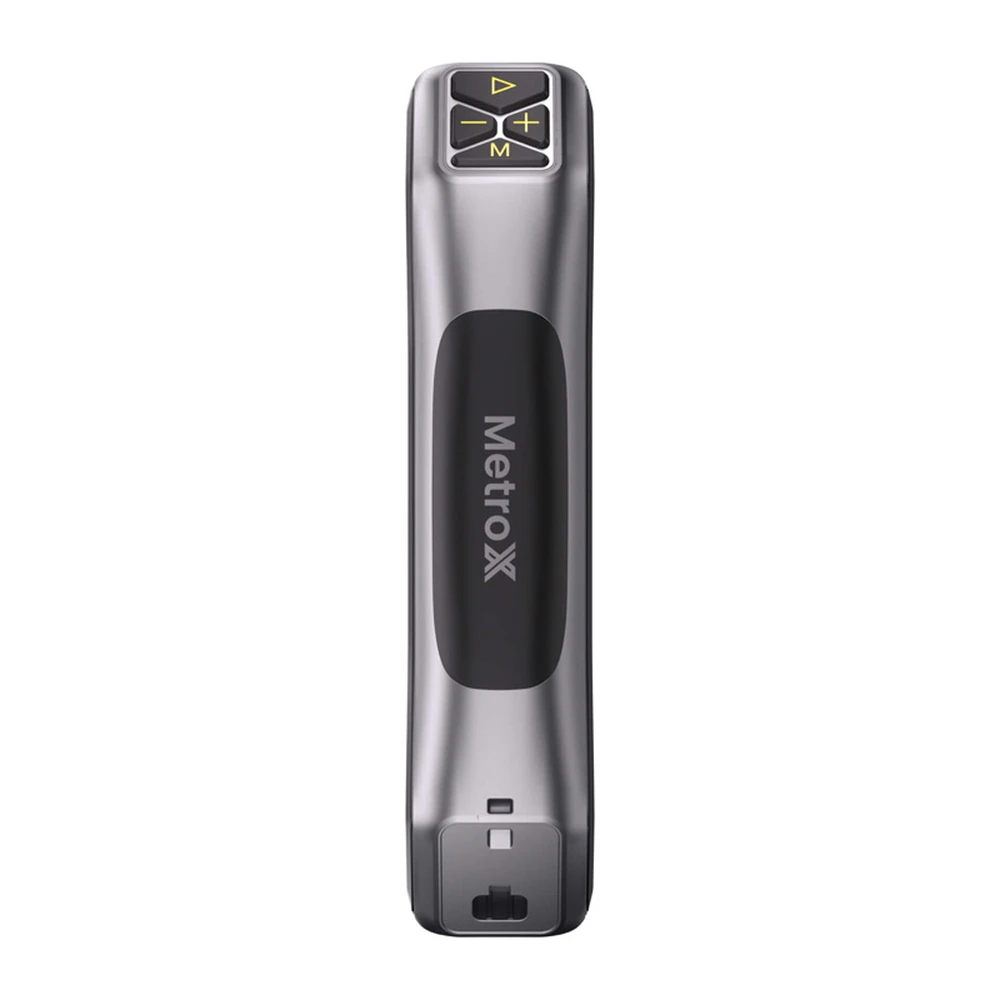

The scanner works at a distance of 200 to 400 mm with a 43 × 33° field of view. At 209 × 88 × 44 mm and 508 g, it is compact and easy to carry. The Revo Metro software supports Windows 10/11 (64-bit) and macOS 11.0 or later, and exports to PLY, OBJ, STL, ASC, 3MF, GLTF and FBX.
