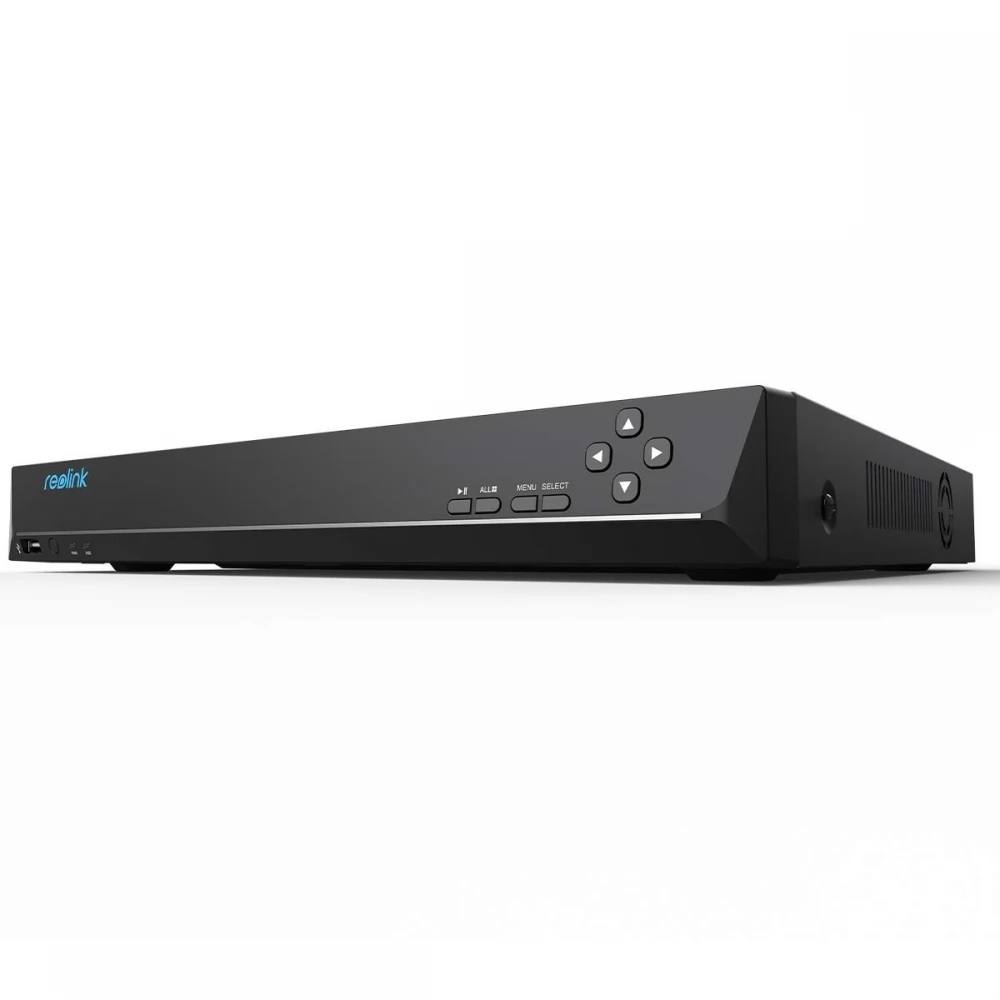

High-quality 16-channel network recording unit.

- HDMI output: 40962512, 38402160, 19201080, 1440900, 12801024, 1280800, 1280720, 1024768
- VGA output: 19201080, 1440900, 12801024, 1280800, 1280720, 1024768
- Audio output: 1-channel RCA
- Video format: H.265/H.264
- Live/playback resolution: 38402160, 2560x1920, 25601440, 20481536, 23041296, 1080P, 720P
- Synchronous playback: Up to 4 channels
- SATA devices: 1 x SATA (4 TB built-in HDD)
- External hard drive: 1x eSATA
- Maximum capacity: 12 TB (Maximum support up to 6 TB hard disk per port)
- USB port: 2x USB 2.0

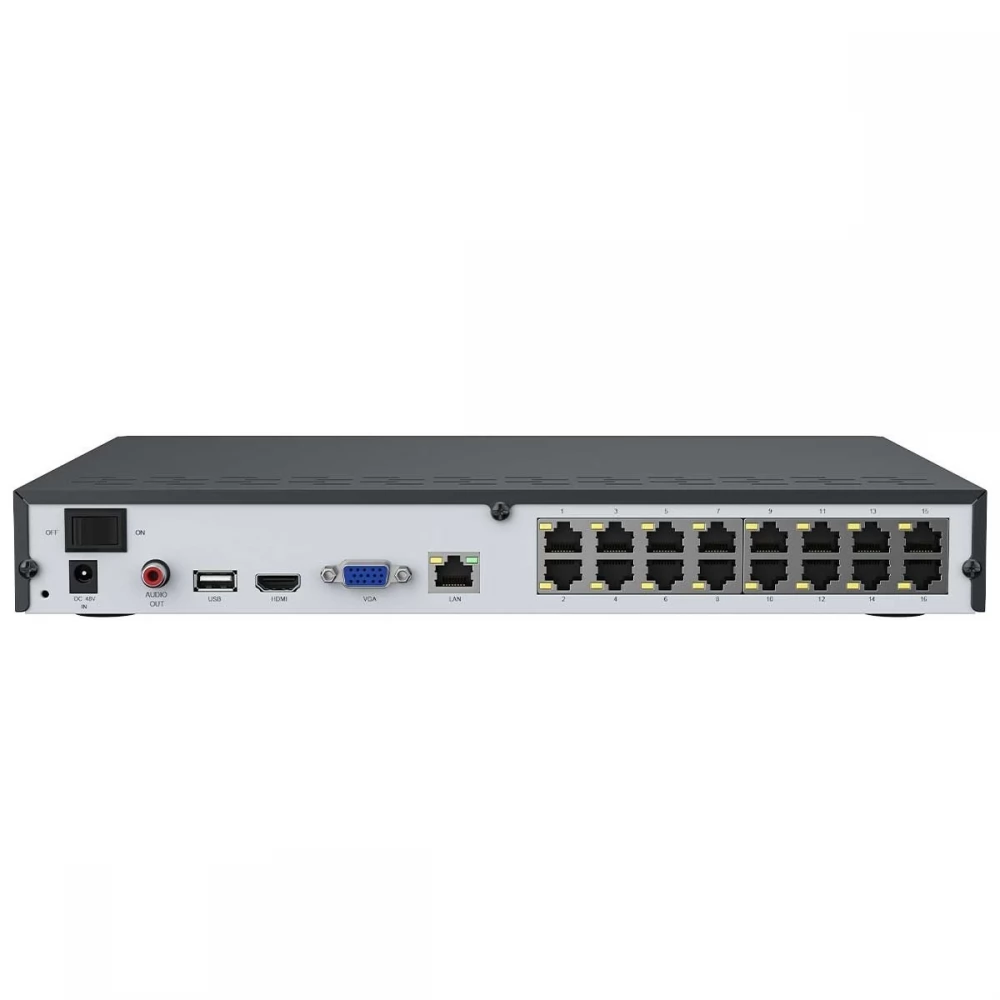

- Network interface: RJ 45, 10M/100M Ethernet, 16 network ports for IP camera, 1 Giga network port for LAN/WAN
- Interface: 8 independent 100Mbps PoE network interfaces
- Max. power consumption: 25 W
- Standard: IEEE 802.3at
- Power supply: 48 V=, 2 A
- Energy consumption: 10 W (without HDD and PoE)
- Weight (without hard disk): 1.2 kg
