RAINPOINT ITV205 2 zone timer

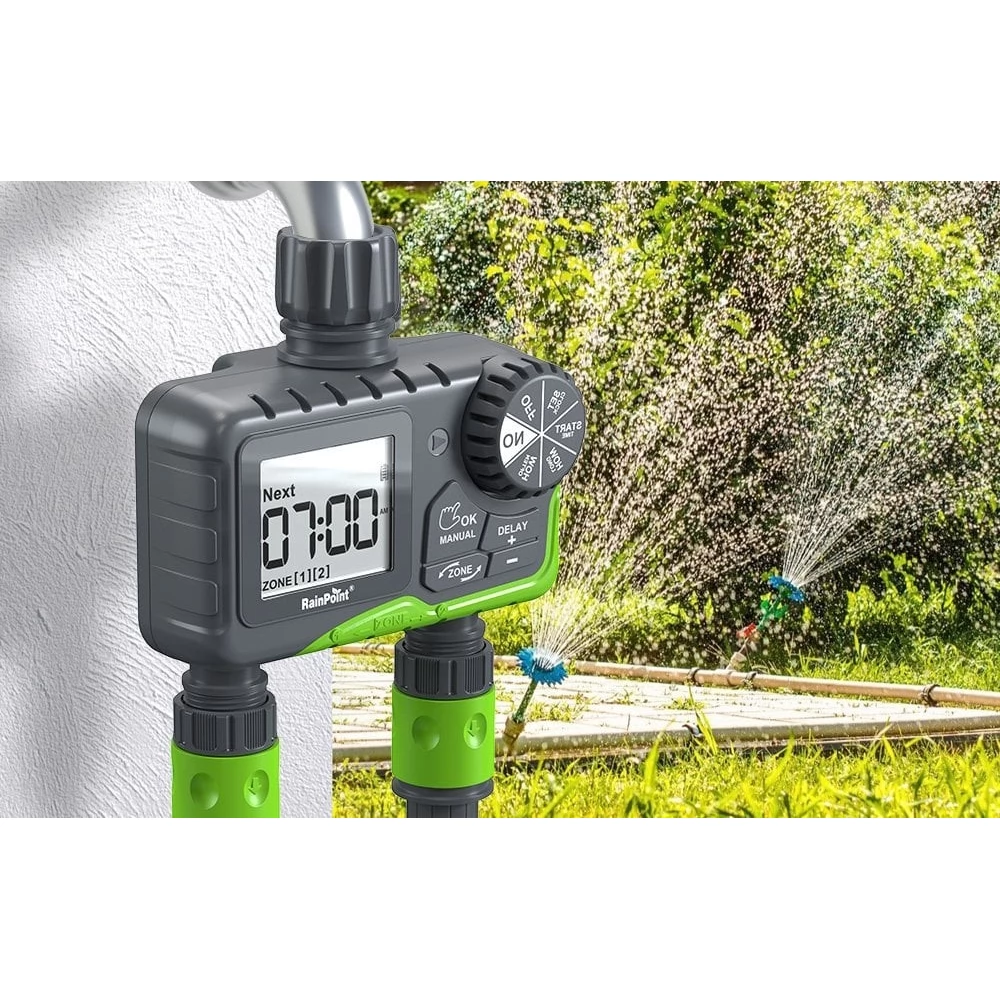

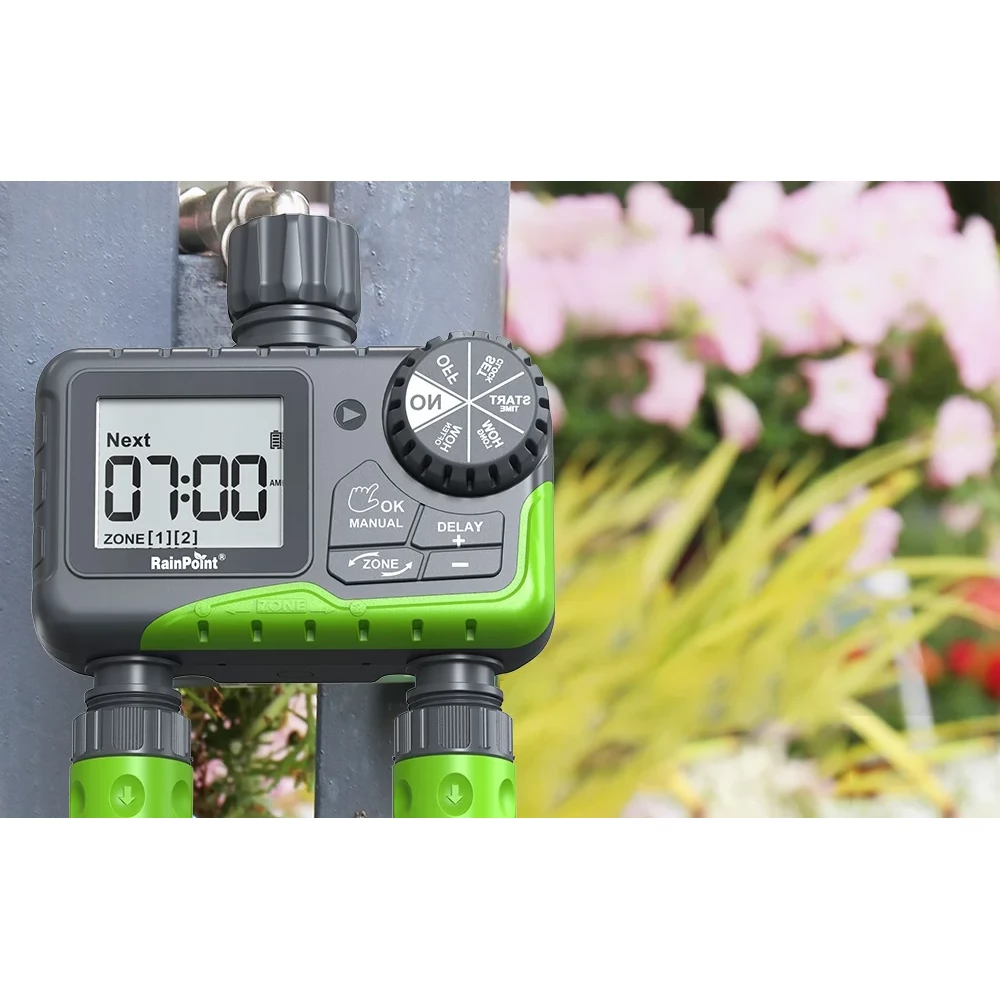

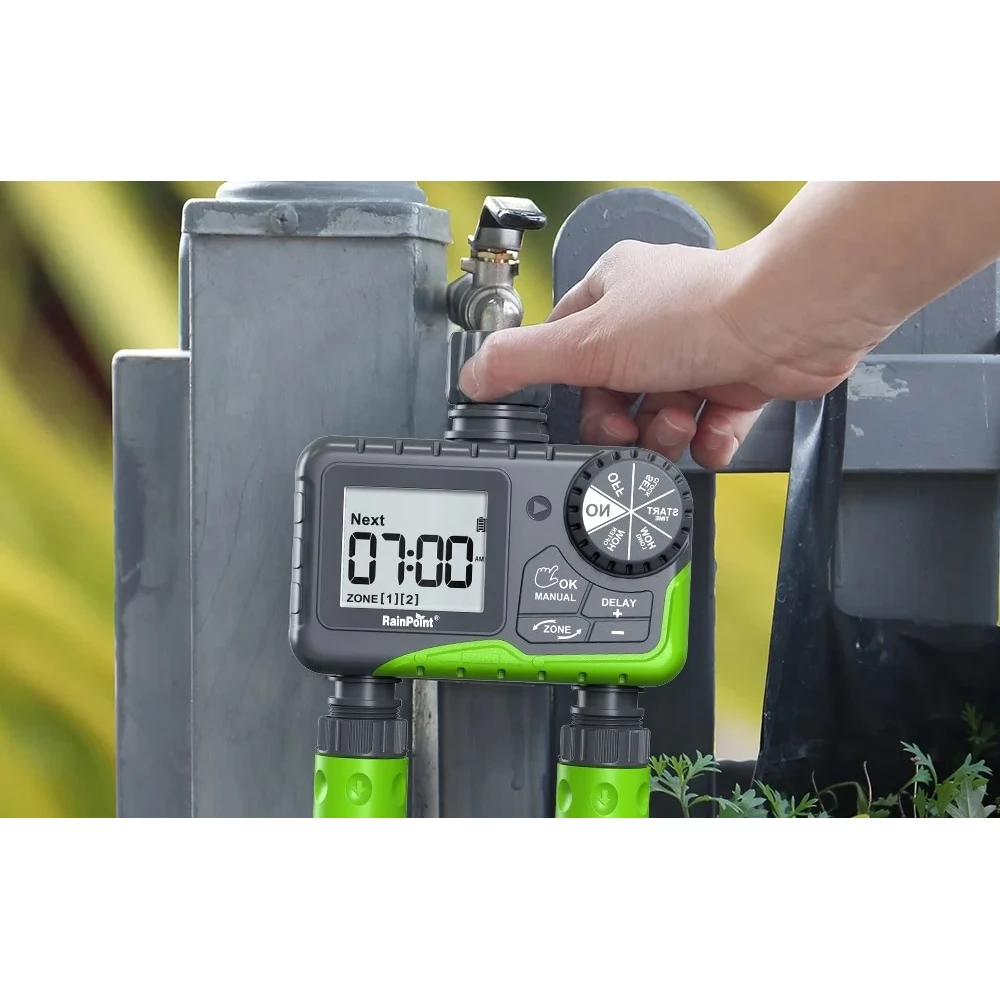

The Rainpoint ITV205-DLS 2 Zone Irrigation Controller allows you to program two areas of your garden separately. The large LCD screen screen and the intuitive dial facilitate the setting setting with the zone selection function. Each zone can be set separately for the starting time, length and frequency of irrigation. Manual mode and raincoat irrigation function make it more elastic. The IP65 (International Defense Classification - Dust and Water Ray Protection) Water Resistance Classification and the built -in filter provides secure and lasting outdoor use.

Programming for two zones
Both zones can be set separately-both the start time and the duration (1 minute to 3 hours to 59 minutes) and the frequency of the cycle (every 1-12 hours or 1-7 days). This allows you to fine -tune irrigation to different types of plants or different areas of the garden.

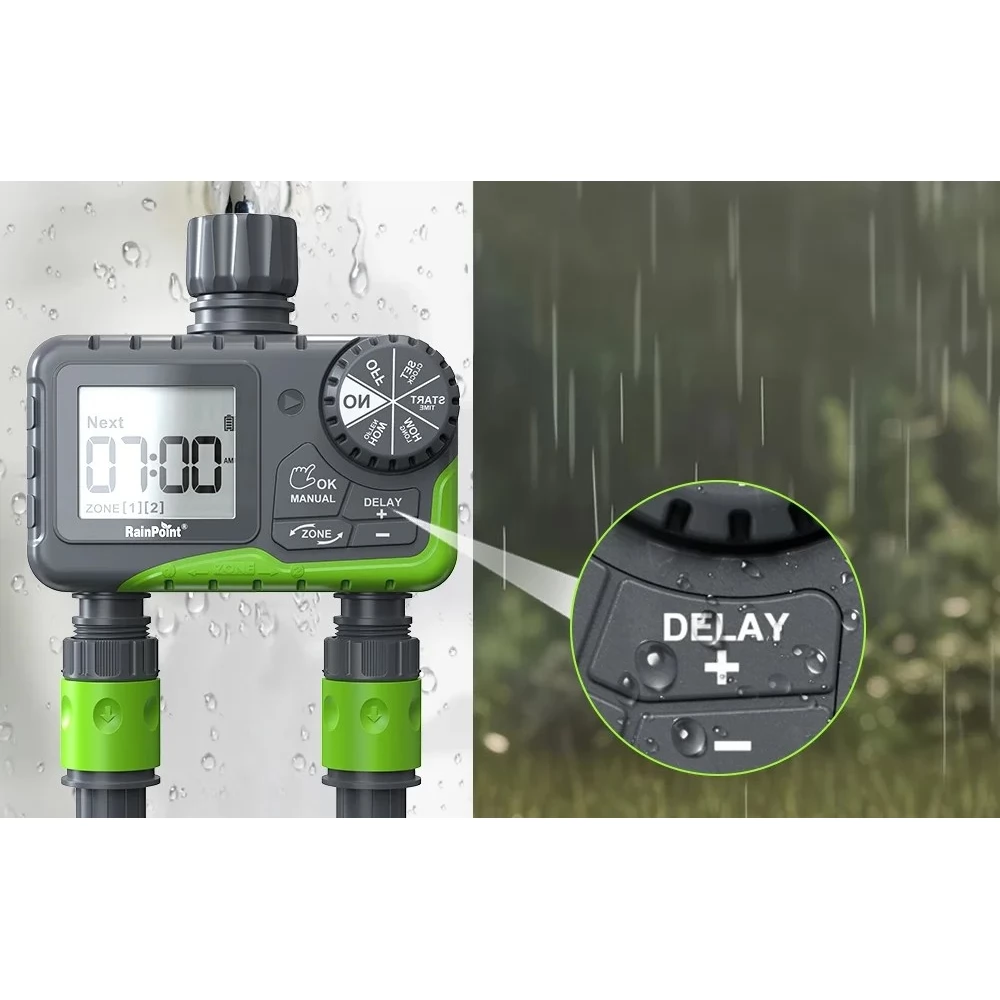

Irrigation delay
The rainfall function allows the irrigation cycle to delay 24, 48 or 72 hours. This solution comes in handy when there is a view of rains and can be avoided.

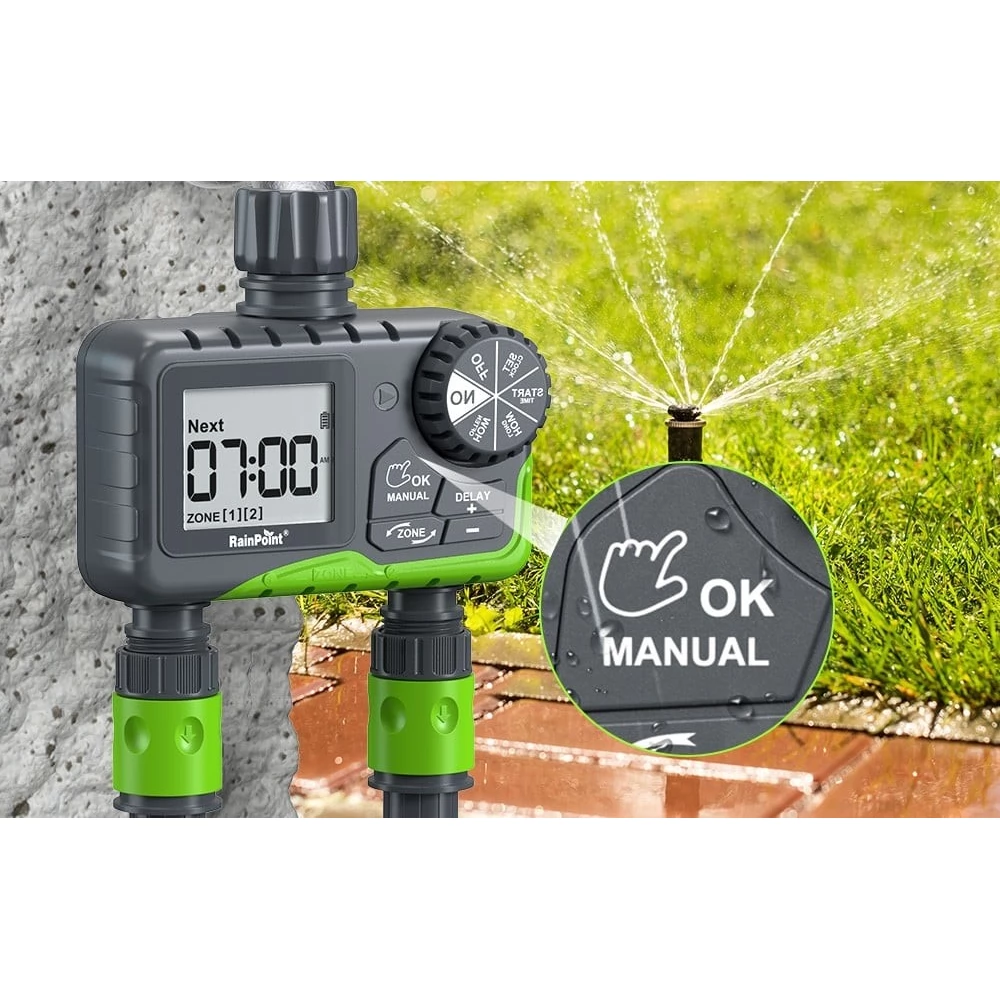

Manual mode
Irrigation can be started manually at any time without disturbing the programmed scheduling. The OK Manual button allows quick access to this feature, which is useful, for example, for garden work or temporary irrigation needs.

Simple configuration
The settings are modified with the disc and the function buttons. The easy-to-read LCD screen has the current mode, the schedule of each zone and the operating state. It is possible to select a 12 -hour or 24 -hour time format.

Durability and robustness
The controller supports 0.5-8 bar operating pressure range and a flow rate of up to 35 l/min. BSP (British Standard Pipe) threads fit into standard 3/4 "and 1" faucets, and the built -in filter protects the system from contamination. The house corresponds to the IP65 standard, which is a resistance to powder and water jet.

Technical data
- Operating pressure: 0.5 - 8 bar
- Maximum flow: 35 l/min
- Water Resistance Class: IP65
- Work temperature range: 3 ° C - 50 ° C
- Operating voltage: DC 2.3V 3.3V
-Irrigation frequency: 1-12 hours or 1-7 days
- Duration of irrigation: 1 minute to 3 hours 59 minutes
- Water Input: BSP 3/4 "or 1" for faucet
- Water output: 3/4 "for garden hose
- Power supply: 2 × AA element (1.5 v, not accessory)

The contents of the package
- 2 zones irrigation controller
- sealing tape
- spare sealing x2
- Mother of a mechanic
- a quick start guidance
- instructions for use
