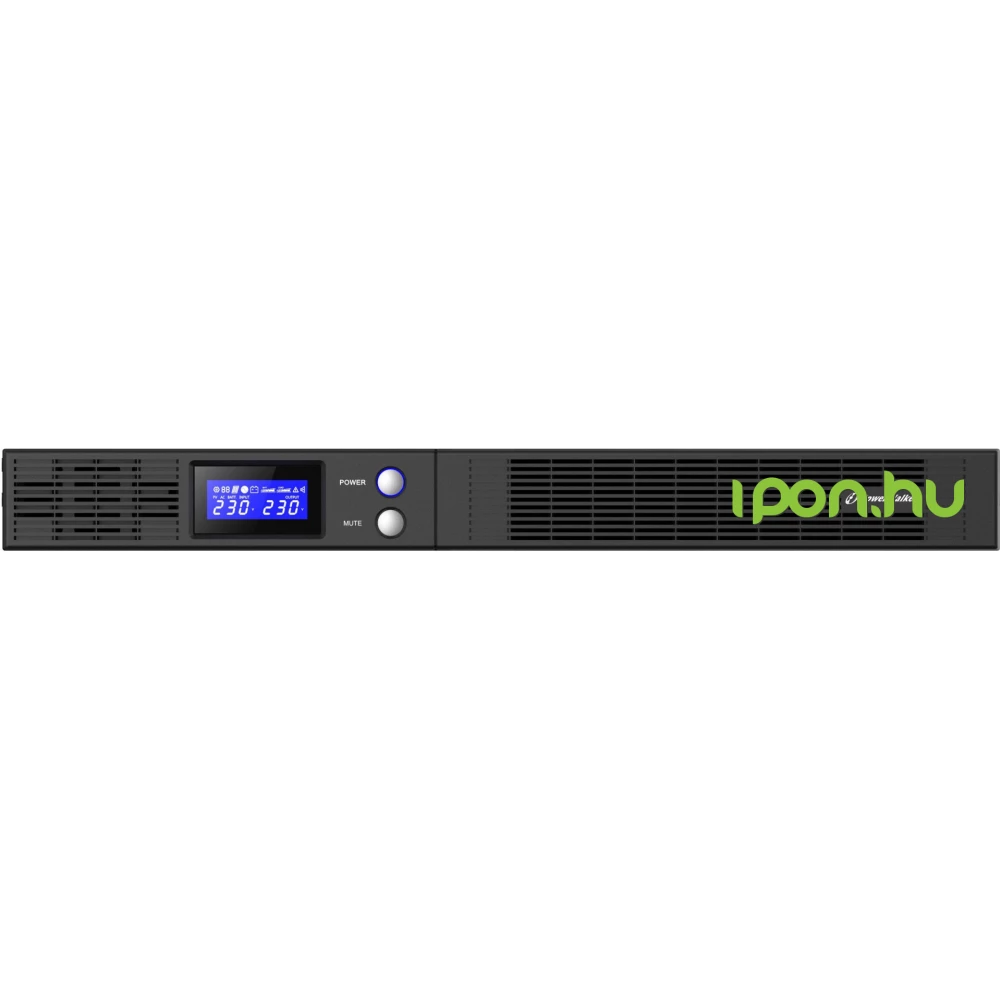

POWERWALKER VI 500 R1U

- Slim 1U design
- USB with human interface device (HID) support and intelligent slot for communication cards
- Pure sine wave for many applications and harsh environments
- Auto mute screen (UPS is woken by mute button)

The PowerWalker VI R1U is a linear interactive 1U rack UPS solution. Thanks to its 1U design, the uninterruptible power supply fits almost any setup. It is equipped with a pure sine wave output and an optional card slot for network cards so that even sensitive and critical loads can be kept safe.
The PowerWalker VI R1U is flexible and versatile for home and semi-professional environments.

Specifications
- Type: Line interactive
- Capacity: 500 VA/300 W
- Output power factor: 0.60
- Input voltage range: 165 V ~ 290 V AC
- Input frequency range: 45 Hz ~ 55 Hz
- Input frequency (synchronized range): 50 Hz
- Nominal output voltage: 230 V AC
- Pure sine wave
- THDv: ≤ 3% full linear load, ≤ 5% non-linear load
- Output voltage control (battery mode): ± 10%
- Output frequency (battery mode): ± 0.5 Hz
- Transition time (from AC to battery): 4 ms typical
- Charger: 1A
- Protection: Overload protection in the utility: fuse, on the battery: internal current limitation
- Battery: 2 pieces 6 V/7 Ah
- Charging time: 8 hours to 90%
- Bridging time: Full load: 0.8 minutes, Half load: 10.3 minutes

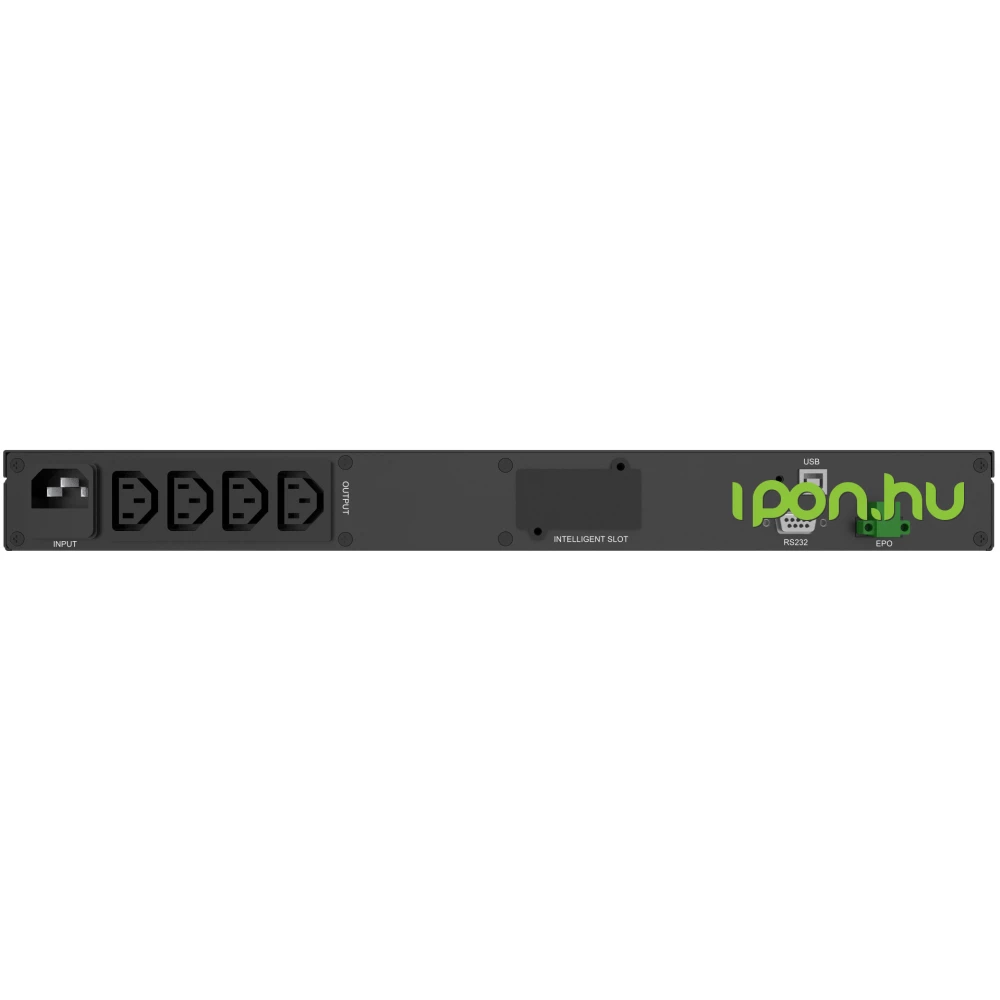

- IEC C13 output: 4 units
- Input: C14
- Software: PowerMaster
- USB connector
- HID support
- RS-232 port
- Expansion slot: 1 piece
- EPO powder
- Noise level: Fanless design
- Temperature: 0°C ~ 40°C
- Humidity: 0% ~ 90%
- Size: 433mm x 44mm x 216mm
- Weight: 7.6 kg
