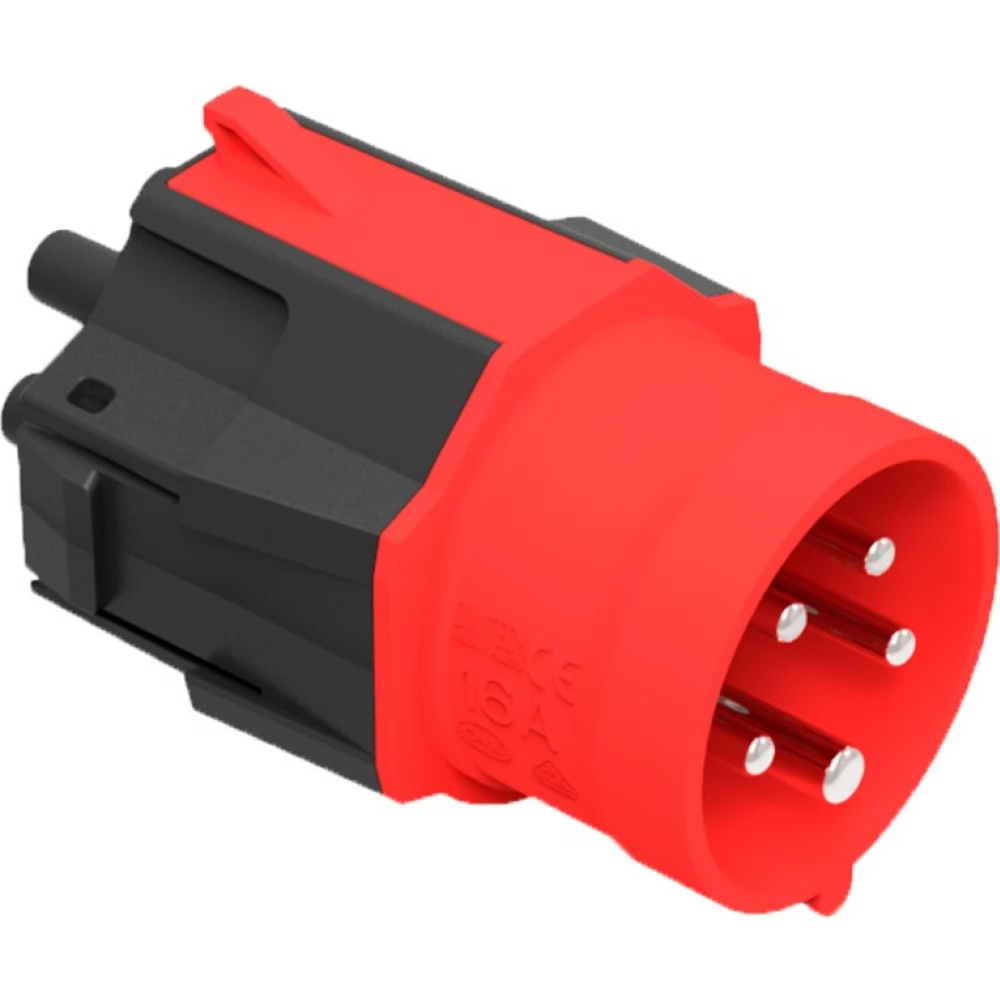

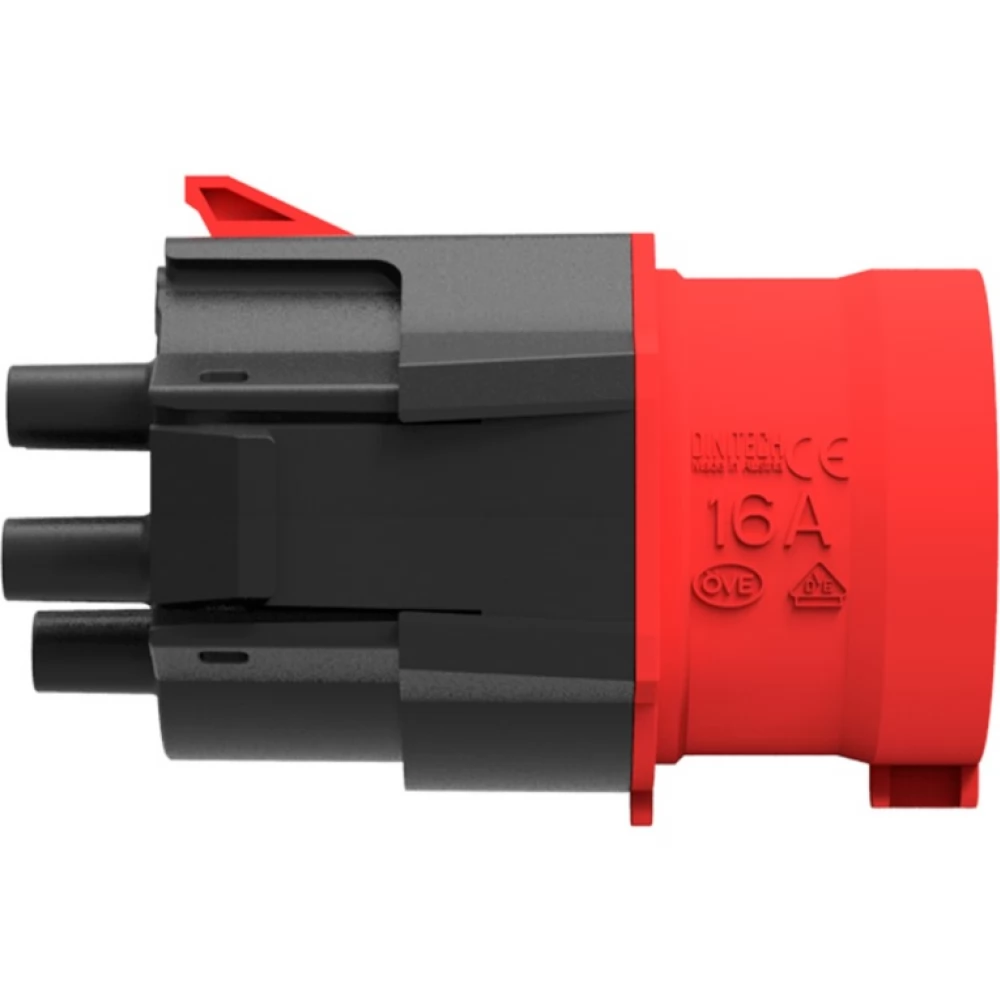

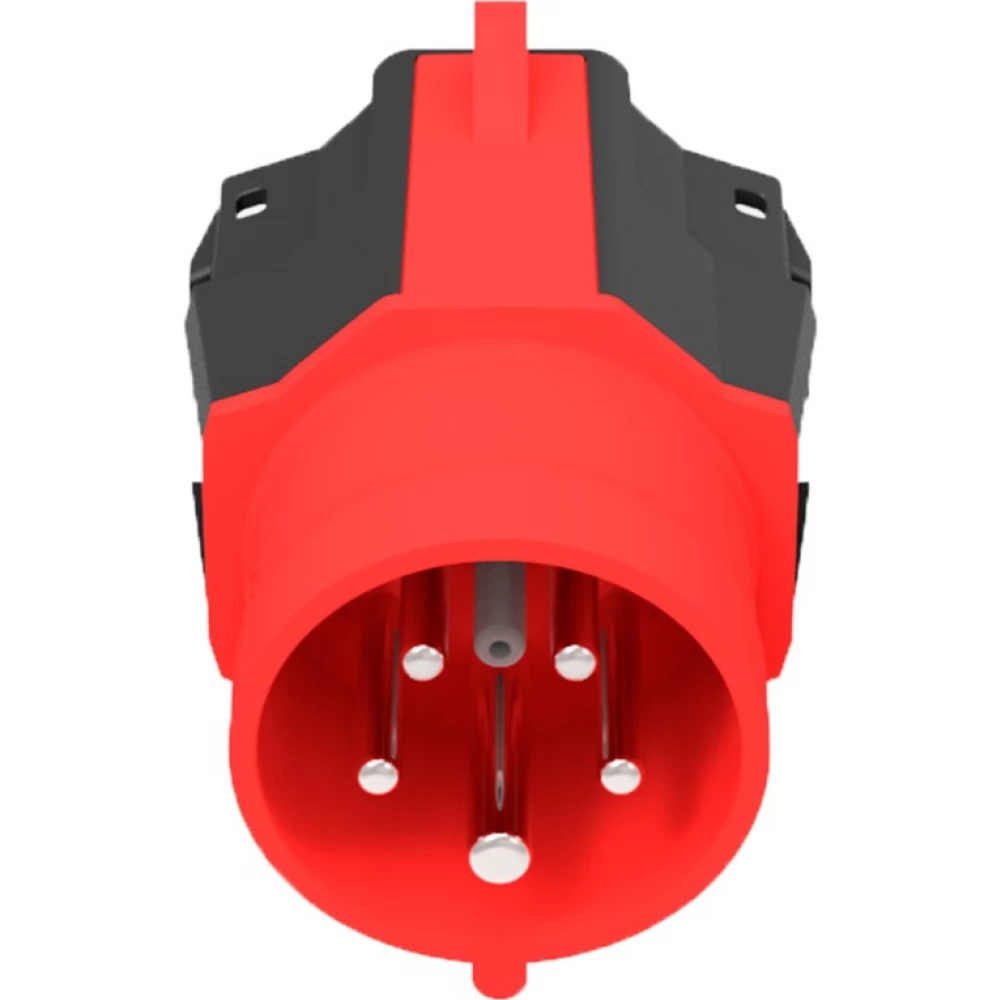

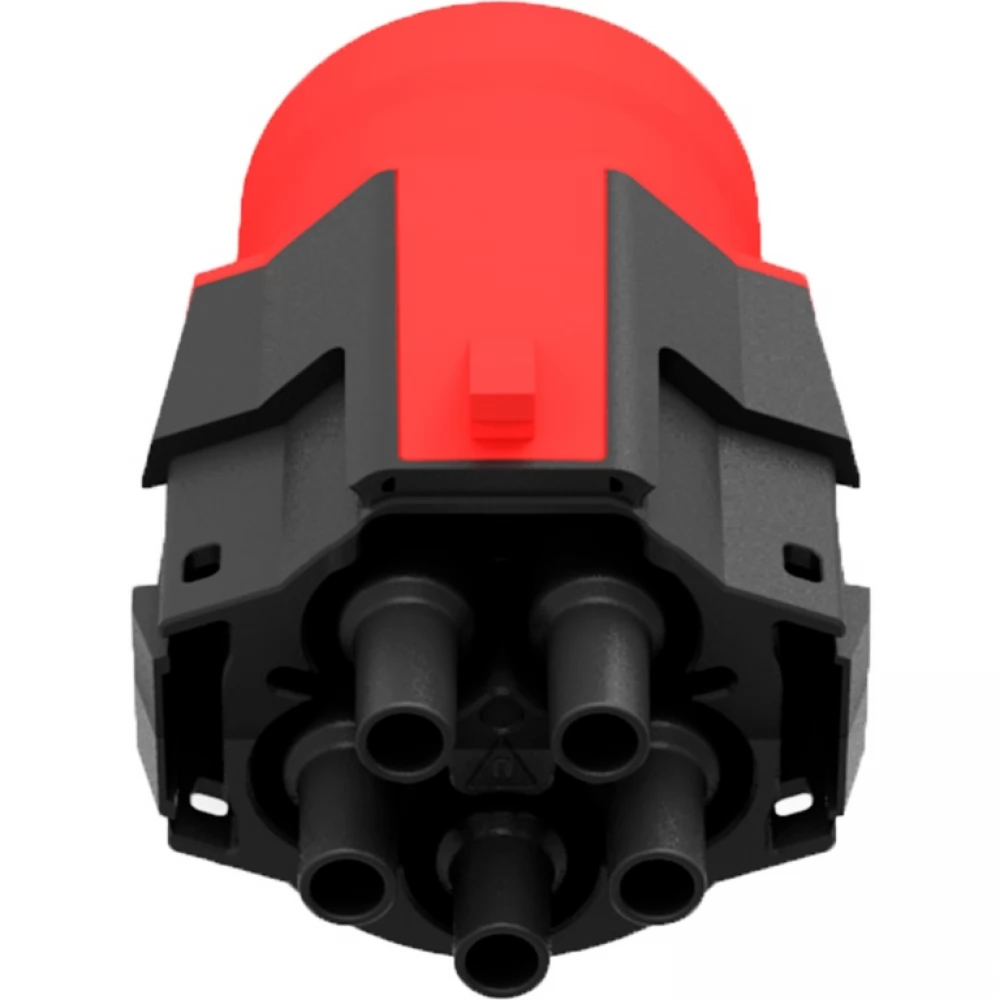

NRGKICK Plug attachment 16A - 5 pin
not available
Product description
The NRGkick 16A - 5-pin smart plug is used to connect the charging unit to a three-phase high-voltage socket. The maximum charging power is up to 11 kW. The NRGkick charging unit's patented safety plug system offers temperature monitoring and protection against socket overheating. The 16A - 5-pin plug has temperature monitoring on all contacts. This means that the NRGkick knows exactly if excessive heat is generated due to an improperly installed socket. If the socket overheats, the NRGkick regulates the charging current completely independently. Automatic removal detection completely eliminates arcing when the plug is removed from the connector unit during charging; the flow of current is interrupted before the contacts leave each other. NRGkick also detects if the outlet is incorrectly connected or installed, for example if a second phase is connected to a three-phase outlet instead of neutral. This means that it can use an LED signal on the charging unit and the plug unit to notify the user that there is a problem with the outlet and prevent charging. The NRGkick's plug-in accessories connect to the NRGkick's connector unit, where there is an additional LED display that keeps you informed of the charging unit's status. NRGkick plug accessories click noticeably and securely into place; accidental removal is impossible. At the same time, the non-slip surface of the connection system with soft parts ensures that the connection fixings can be removed and replaced quickly and easily if necessary. NRGkick fully automatically recognizes and identifies the plug. This ensures that the charging current does not exceed the maximum value at which the plug is allowed to be connected.
