The network sentinel

- True double conversion technology
- Microprocessor control optimizes reliability
- Software management
- Up to 90% efficiency rate
- Transform mode is available
- Input power factor correction
- Output power factor 0.9

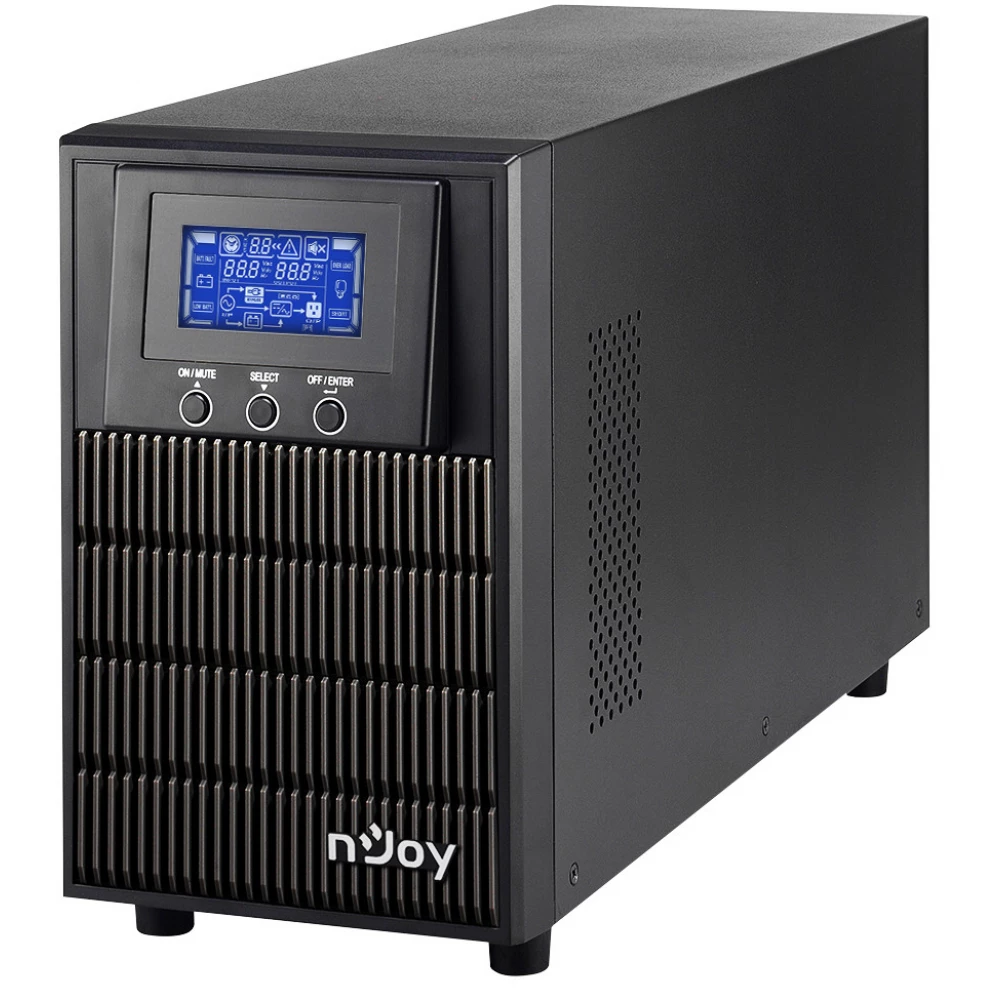

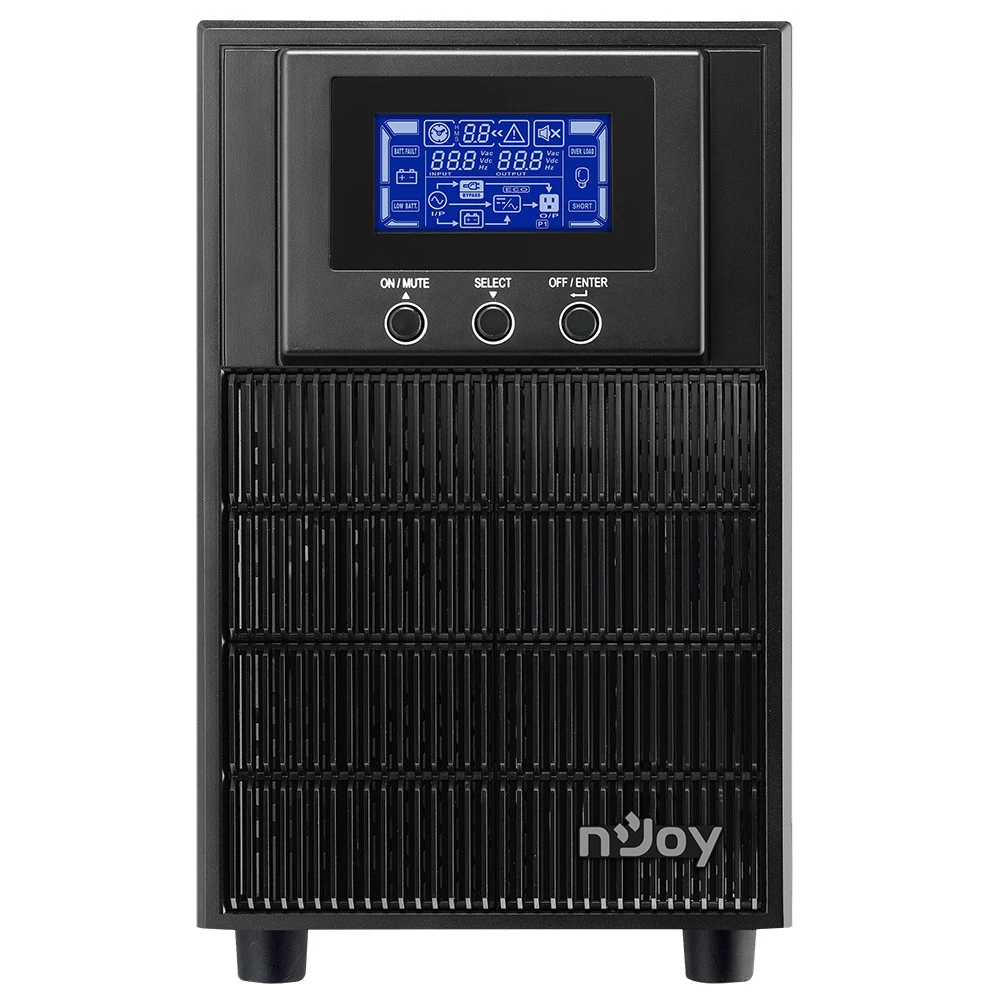

- LCD monitor
- USB and RS232 port communication
- Smart SNMP card supported
- Generator compatible

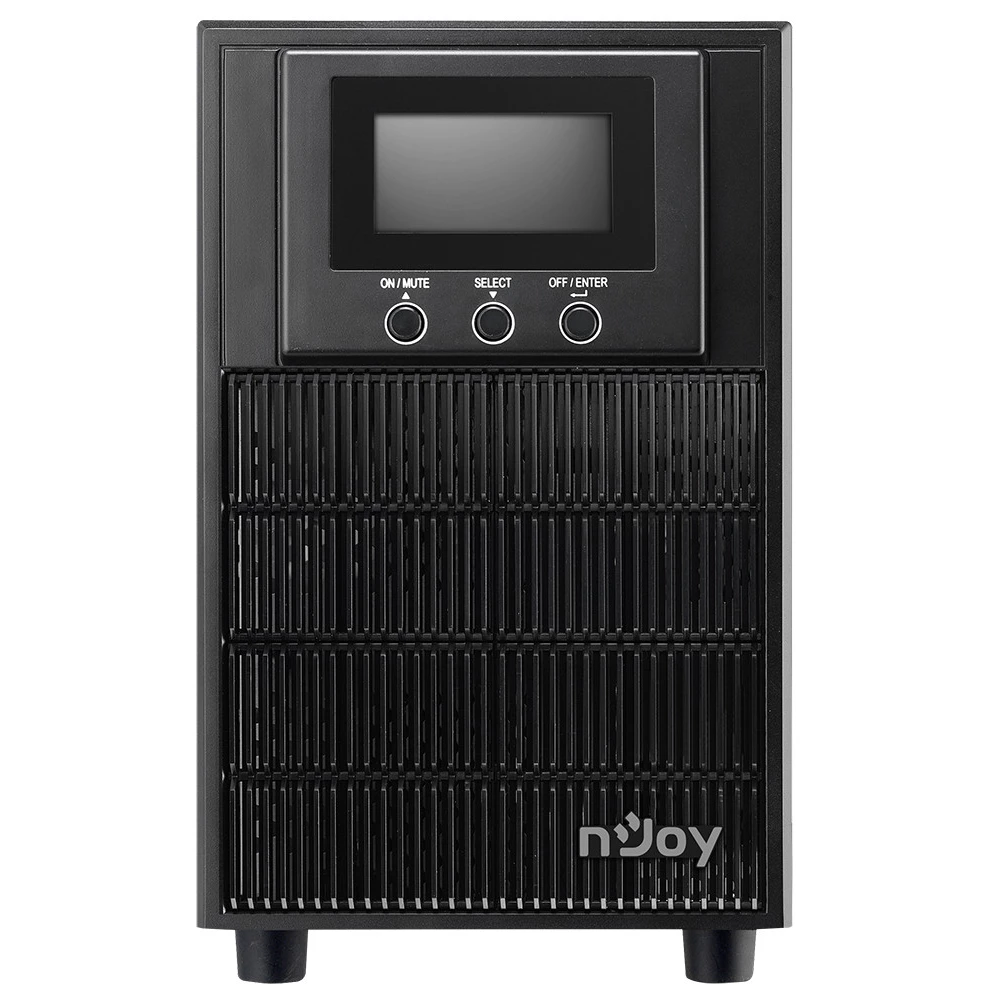

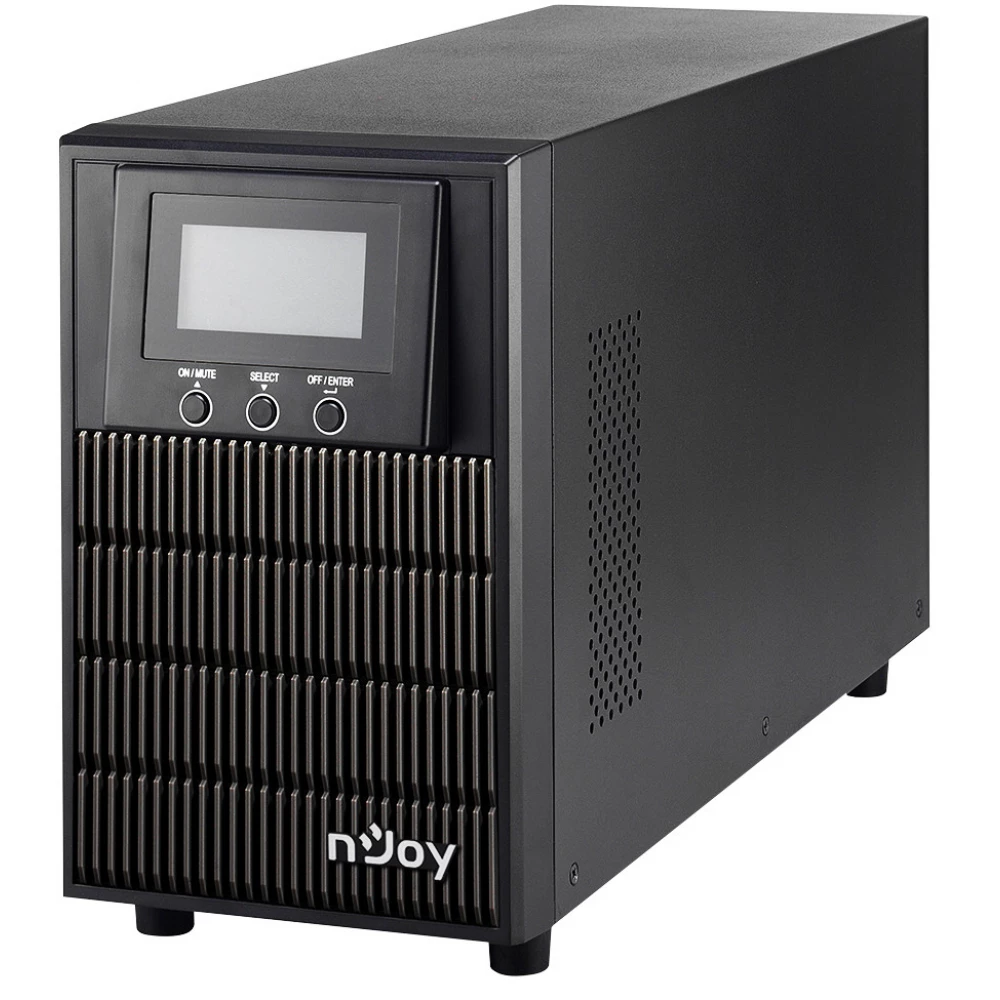

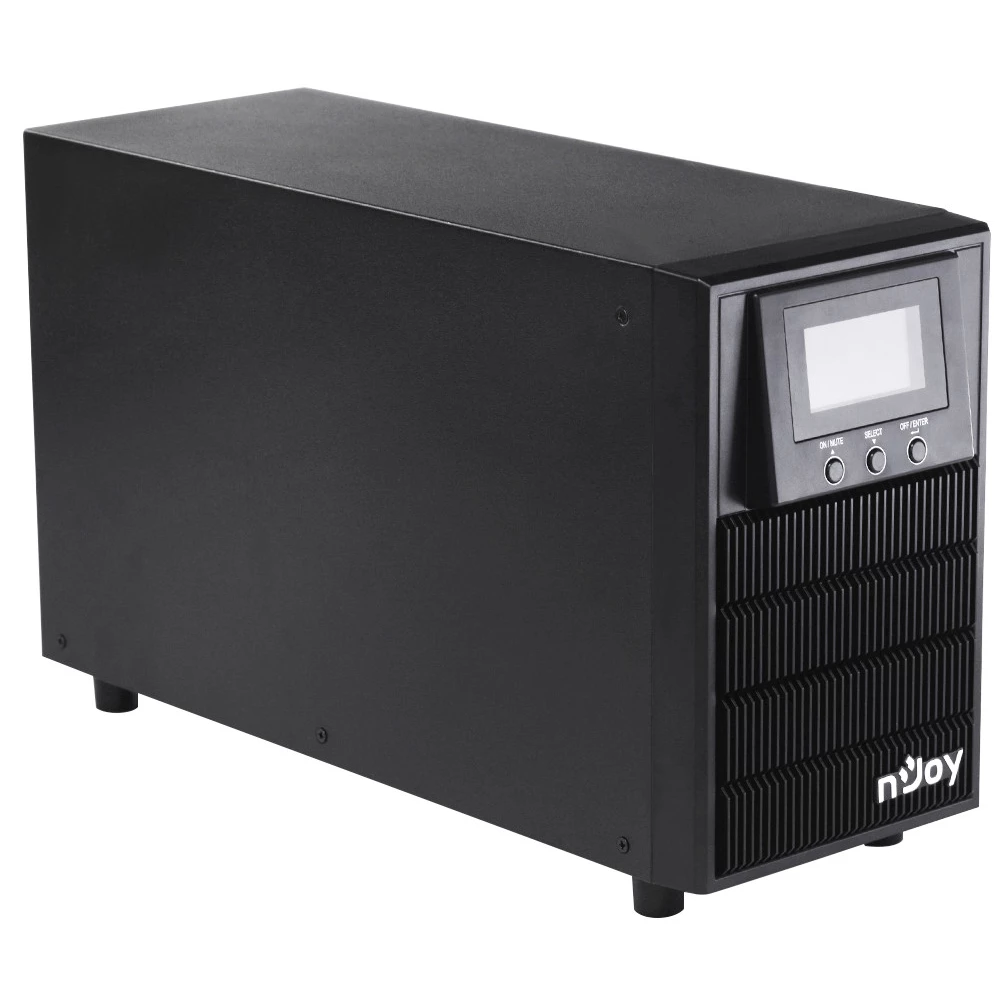

The Aten PRO series is designed to provide a solution for equipment that is very sensitive to voltage fluctuations and must always be protected. Because we know how important your work is, we offer a product with double conversion for servers and data and voice networks.

The Aten PRO 2000 ensures continuous operation with zero transfer time through power outages, voltage fluctuations and surges. This is a product that gives you confidence and self-confidence when you need it.

The quality of the power supply is critical for this type of equipment. It must always be supplied with a constant voltage within the nominal parameters.

Pure sine wave output
In battery operation, the Aten series has a clean sine wave that is cleaner than the power of the utility provider's network. The advantages of using a pure sine wave for equipment and devices include optimal line clarity, no harmonic distortion and no electrical noise, correct operation and longer equipment life.

Zero transition time
An important feature of the product is the zero transition time. Switching from the mains supply voltage to the frequency converter takes place immediately without interruption, so there is no impact on the work and the equipment.

Eco mode
Eco mode is a great way to reduce costs and optimize energy use. When the input voltage is within the voltage regulation range, the Aten UPS bypasses the voltage to save energy. This energy-saving UPS configuration is a viable solution to increase energy efficiency throughout the operation.

Specifications
- Capacity: 2000 VA/1800 W
- Type: Online
- Nominal input voltage: 230 V AC
- Accepted input voltage range: 120 V ~ 300 VAC (at 50% load), 180 V ~ 280 V AC (at 100% load)
- Input frequency range: 40 Hz ~ 70 Hz
- Input power factor: ≥ 0.90 @ rated voltage (100% load)
- Output voltage: 200/208/220/230/240 V AC
- Output voltage regulation: ± 1%
- Output frequency range: 57 Hz ~ 63 Hz (synchronous range), 50 Hz or 60 Hz ± 0.5% (battery mode)
- Waveform (battery mode): Pure sine wave
- Harmonic distortion: 3% THD (linear load), 6% THD (non-linear load)
- Current crest ratio: 3:1

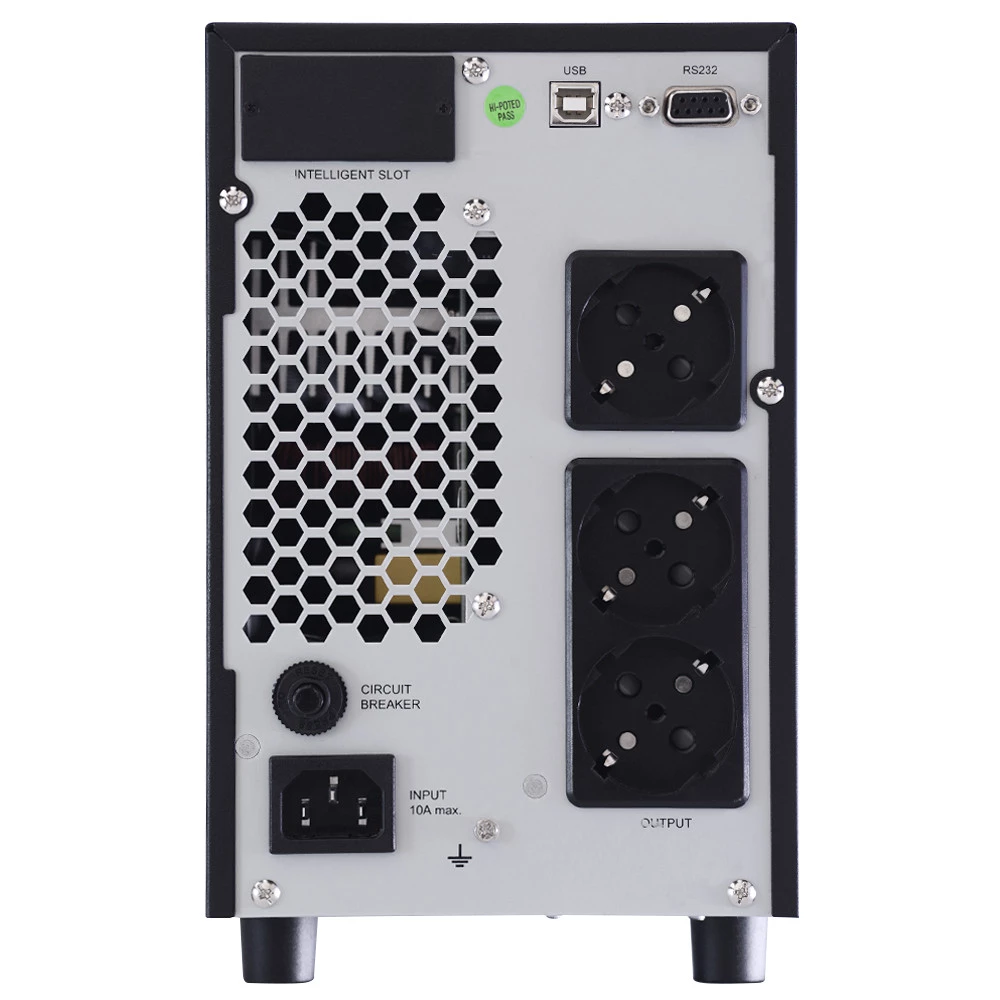

- 3 Schuko output connectors with battery backup and overvoltage protection
- Full protection: Overload, discharge and overcharge protection, input spike protection
- Transfer time: AC-battery mode: zero, Inverter-Bypass: 4 ms
- Communication port: USB and RS232, Optional: Smart SNMP card supported
- Software: Includes software management, monitoring and control via USB, LAN and Internet
- Operating temperature: 0°C ~ 40°C
- Operating humidity: 20% ~ 90%
- Noise level: Less than 50 dB
- Efficiency: AC mode: 89%, Battery mode: 85%
- Battery: 4 pieces 12 V/9 Ah, Sealed and leak-free
- Typical charging time: 4 hours for 90% capacity
- Charging voltage: 54.7 V DC ± 1%
- Running time: 25% load: 25 minutes, 50% load: 10 minutes, 75% load: 6 minutes, 100% load: 3 minutes
- Battery compatibility: ACPW-09120PW-AZ01B
- Size: 397 x 145 x 220 mm
- Weight: 17 kg

Due to the natural wear and tear of the battery, it is covered by a 1-year warranty.
