MINIS FORUM MS-02 Ultra Intel Core Ultra 5 235HX MS-02U-235HX

The MINISFORUM MS-02 Ultra is a compact mini PC built around the Intel Core Ultra 5 235HX, with 14 cores (6 performance and 8 efficiency cores) and Intel AI Boost for AI-driven applications. It is sold as a barebone model without memory or storage, so you can choose the RAM and SSDs that suit your needs. The chassis measures 221.5 × 97 × 225 mm and weighs 3.25 kg.

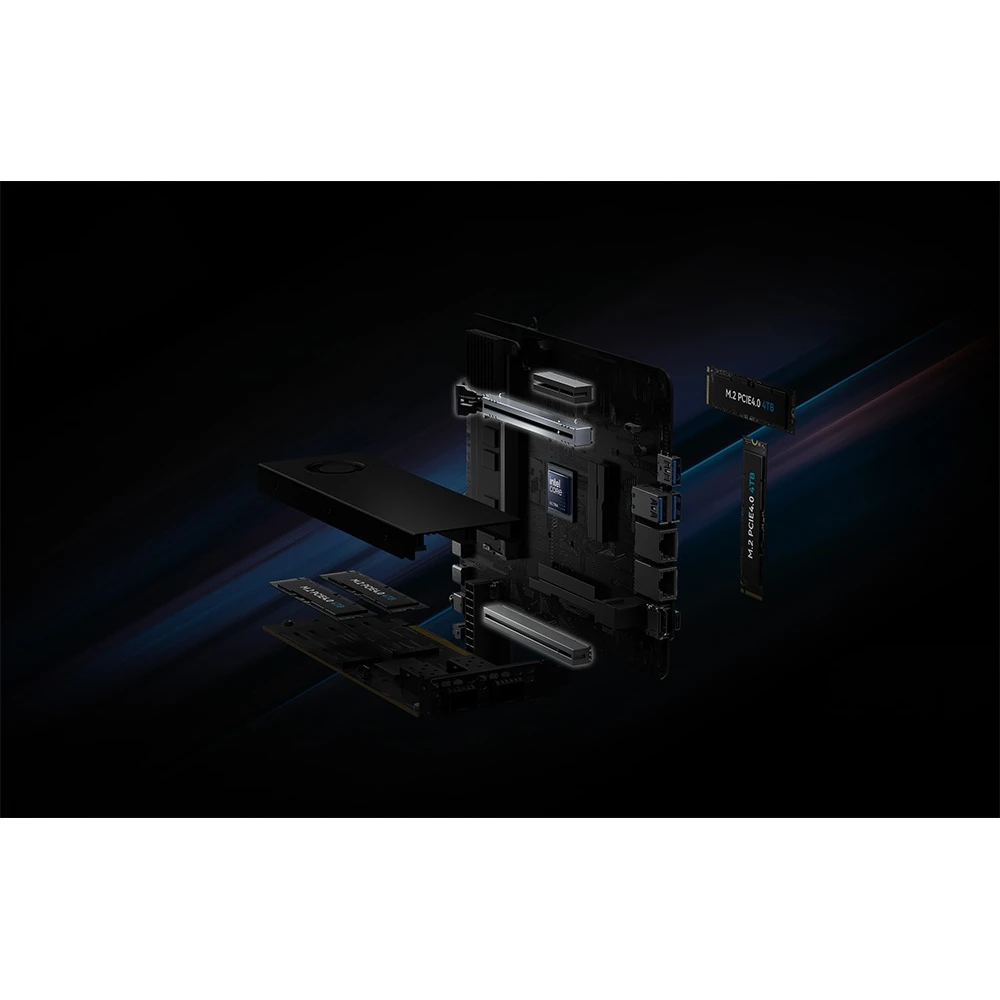

Storage expansion includes four DDR5 SO-DIMM slots supporting up to 256 GB of memory, plus two M.2 2280 PCIe 4.0 x4 NVMe slots. Networking combines a 10-gigabit RJ45 port with a 2.5-gigabit port, while the Intel BE200 module provides Wi-Fi 7 and Bluetooth.

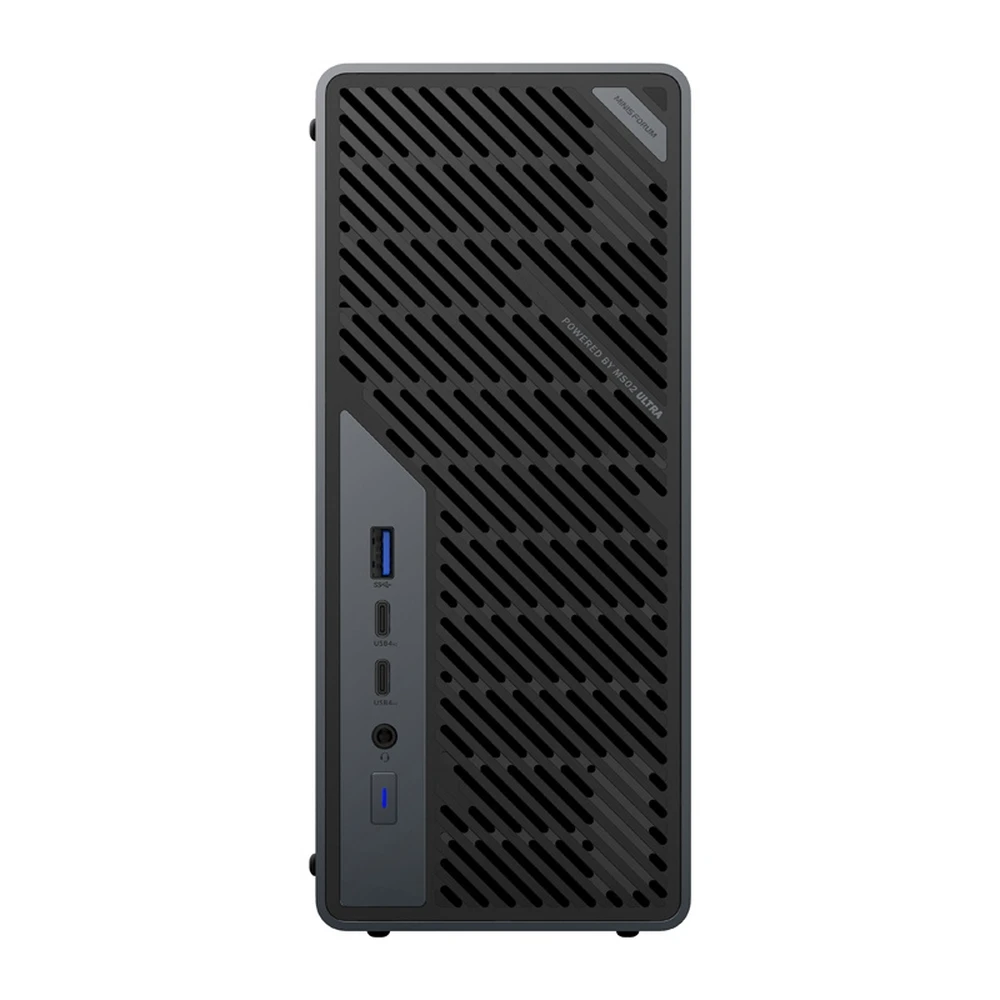

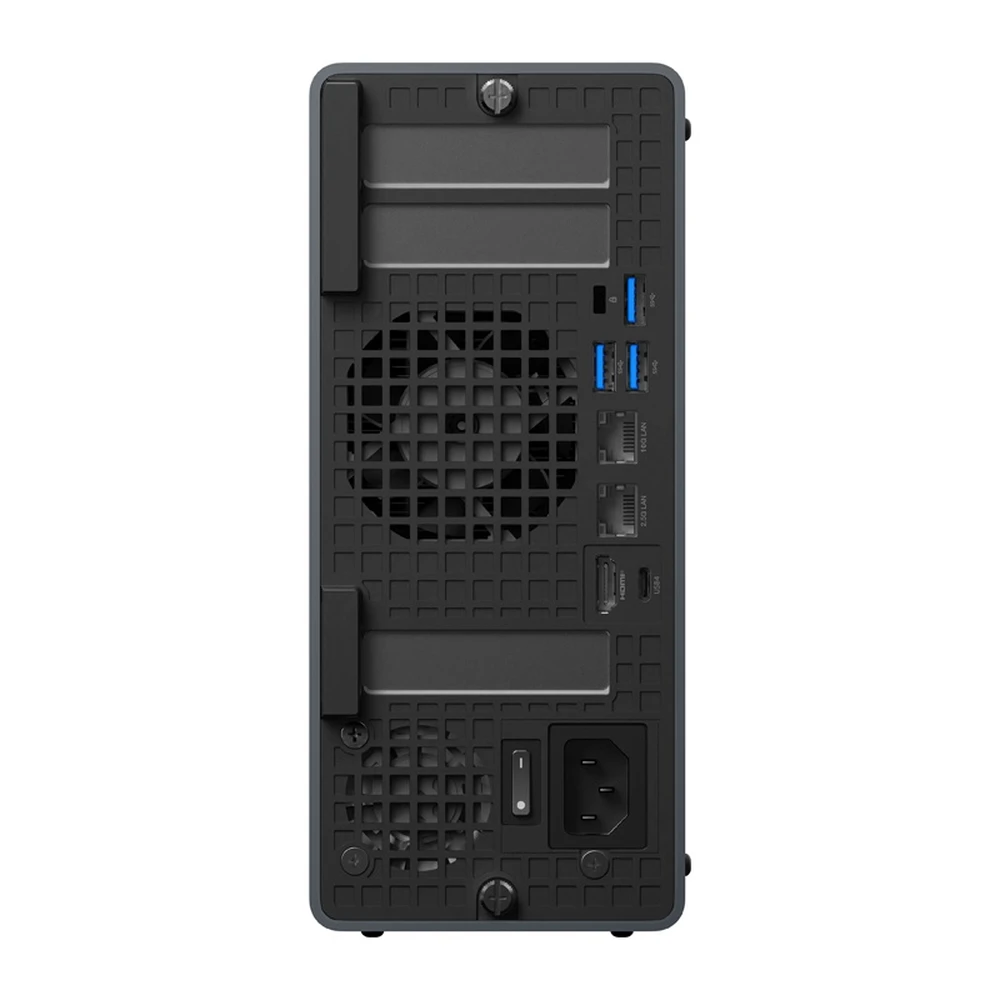

Connectivity ranges from two USB4 Type-C ports on the front to HDMI 2.1 FRL, three USB 3.2 Gen 2 Type-A ports and an OCuLink connector on the rear. A cooling system with six heat pipes and two fans, along with a 350 W power supply, supports sustained workloads.
