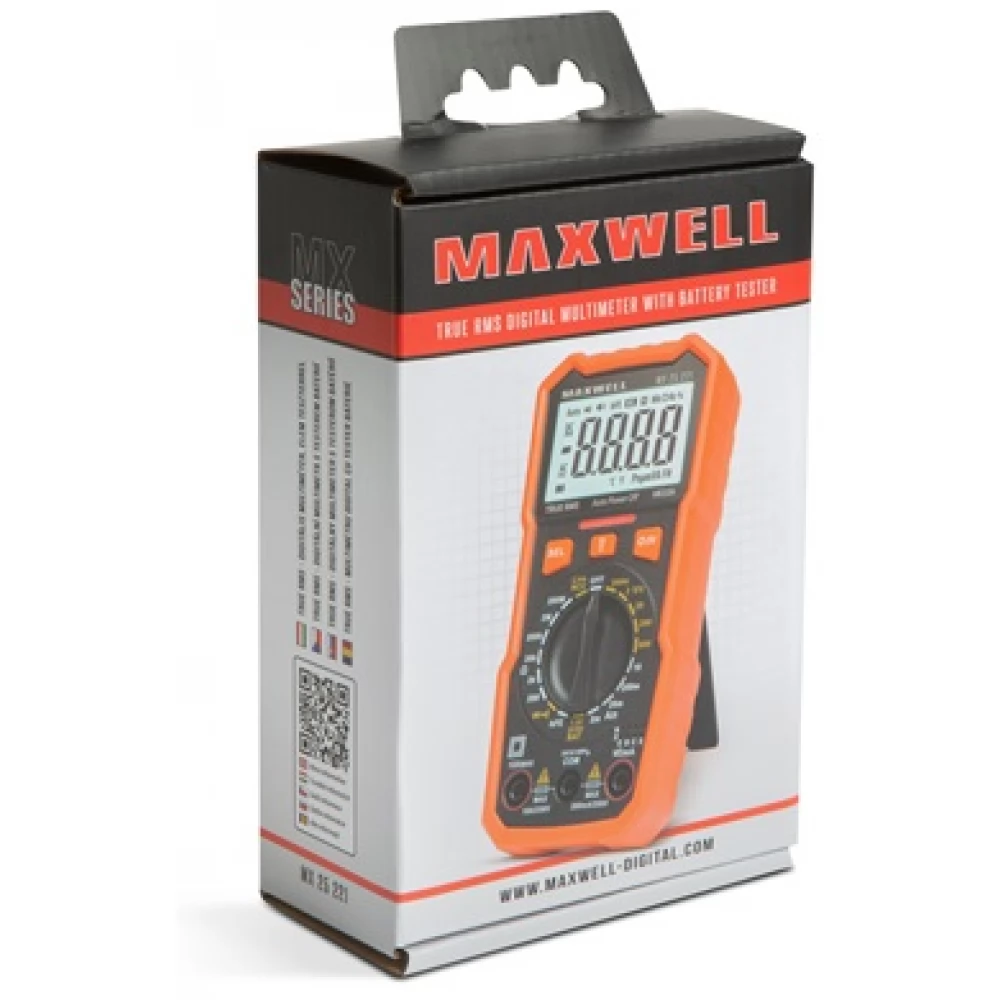

MAXWELL 25221 digital multimeter

The new MX series of Maxwell instruments strengthens the category of compact instruments. In addition to its basic functions, it is equipped with a work light function, backlight and non-contact voltage detection. With the help of the sensor on the top of the device, you can detect voltage without breaking the wiring. Its durable device housing ensures problem-free use in all conditions.

- Non-contact voltage detection
- Diode test
- Transistor test
- Battery testing
- Phase search with light and sound signal
- Tear test
- Square signal output
- Data protection
- Backlight and work light function
- Automatic shutdown (15 minutes)
- Sound signal
- Accessories: test cable, battery (2 x AAA 1.5V)
- Display: 4 digits / 31.5 mm character height
- DC V: 0.1 mV 600 V
- AC V: 0.1 mV 600 V
- DC A: 1 uA 10 A
- Resistance: 0.1 Ω 200 MΩ
- Fuse: F200 mA/250V, F10A/250V
- Accuracy: +-0.5 +-3%+-5 (see user manual)
- Power source: 2 x AAA 1.5V batteries (accessory)
- Operating temperature: 0 (+40)°C
- Storage temperature: -10 (+50)°C
- Size: 150 x 75 x 47 mm
- Weight: ~300 g
