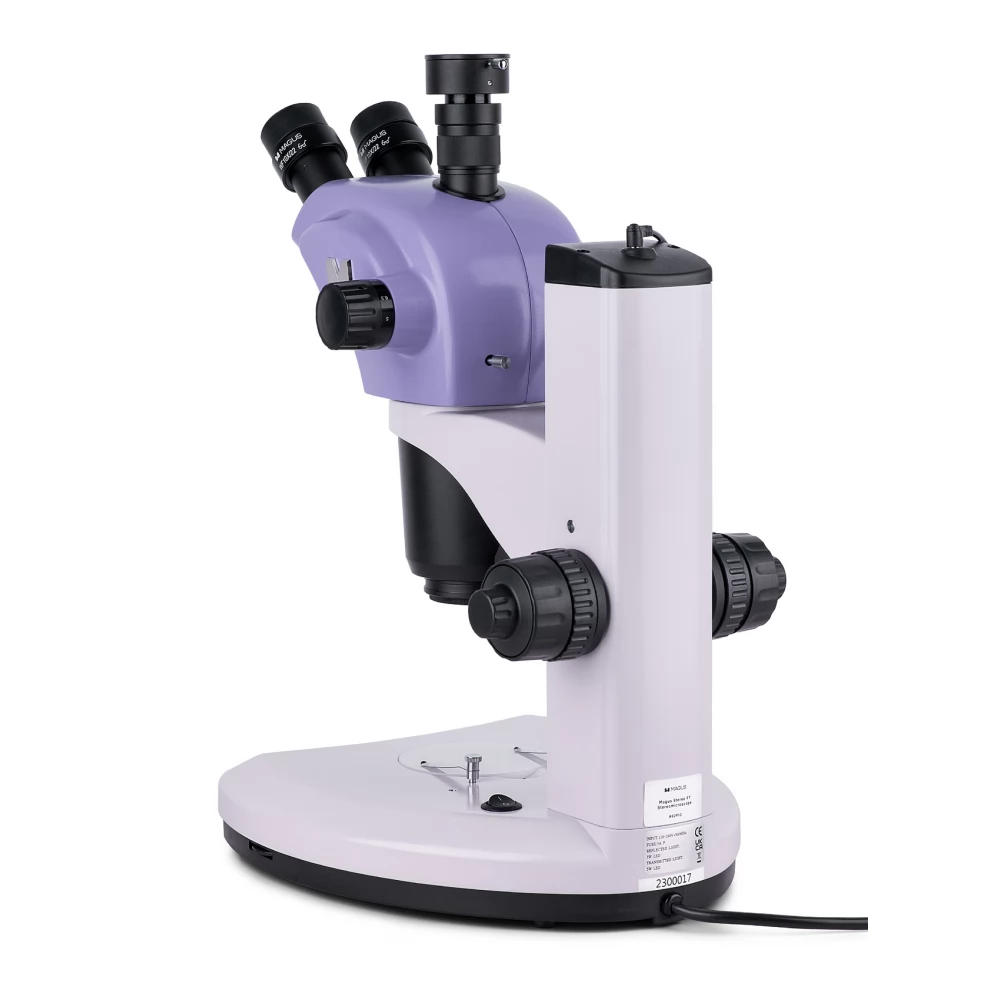

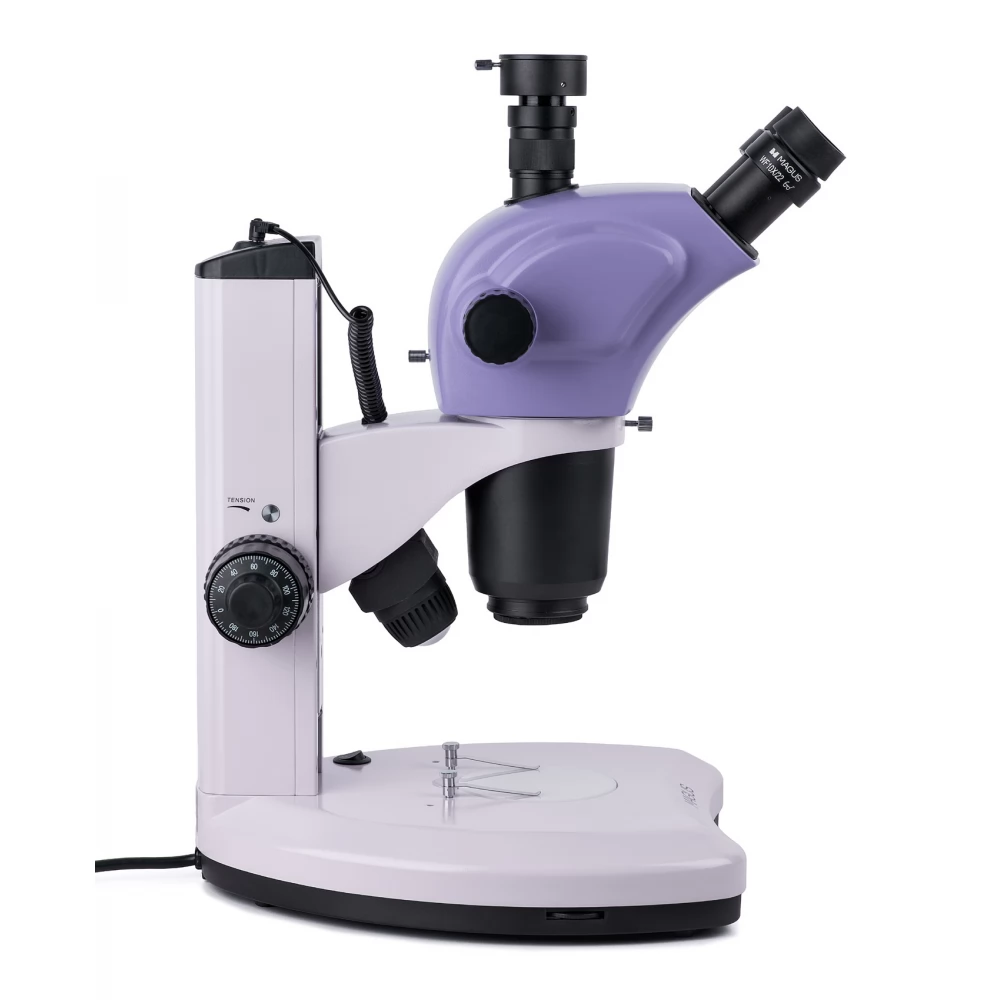

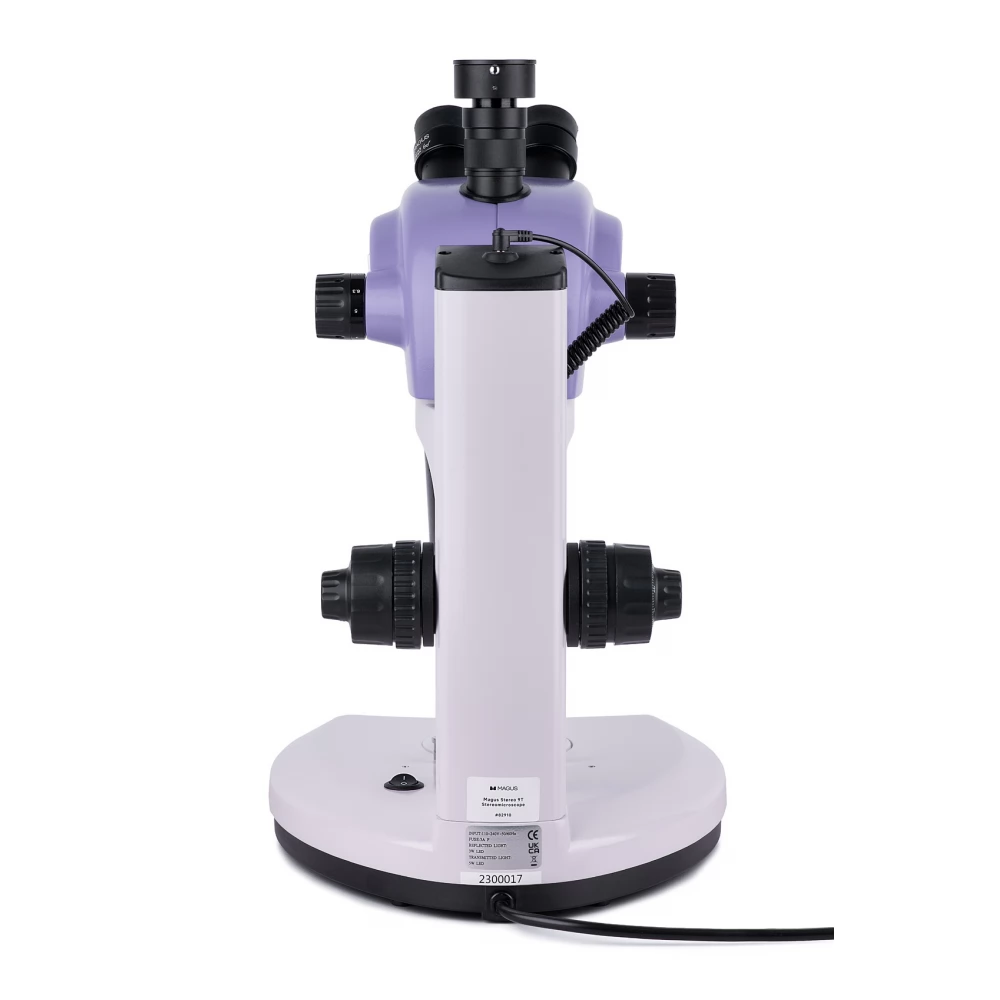

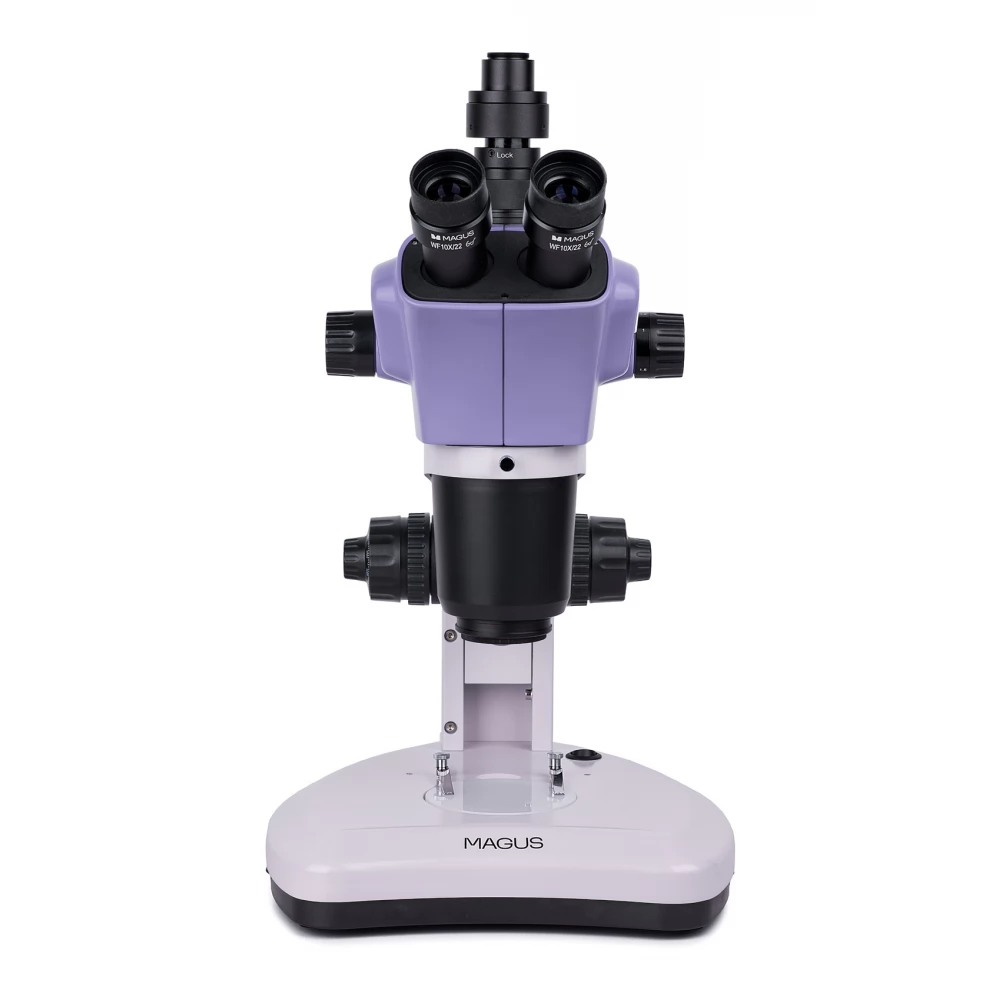

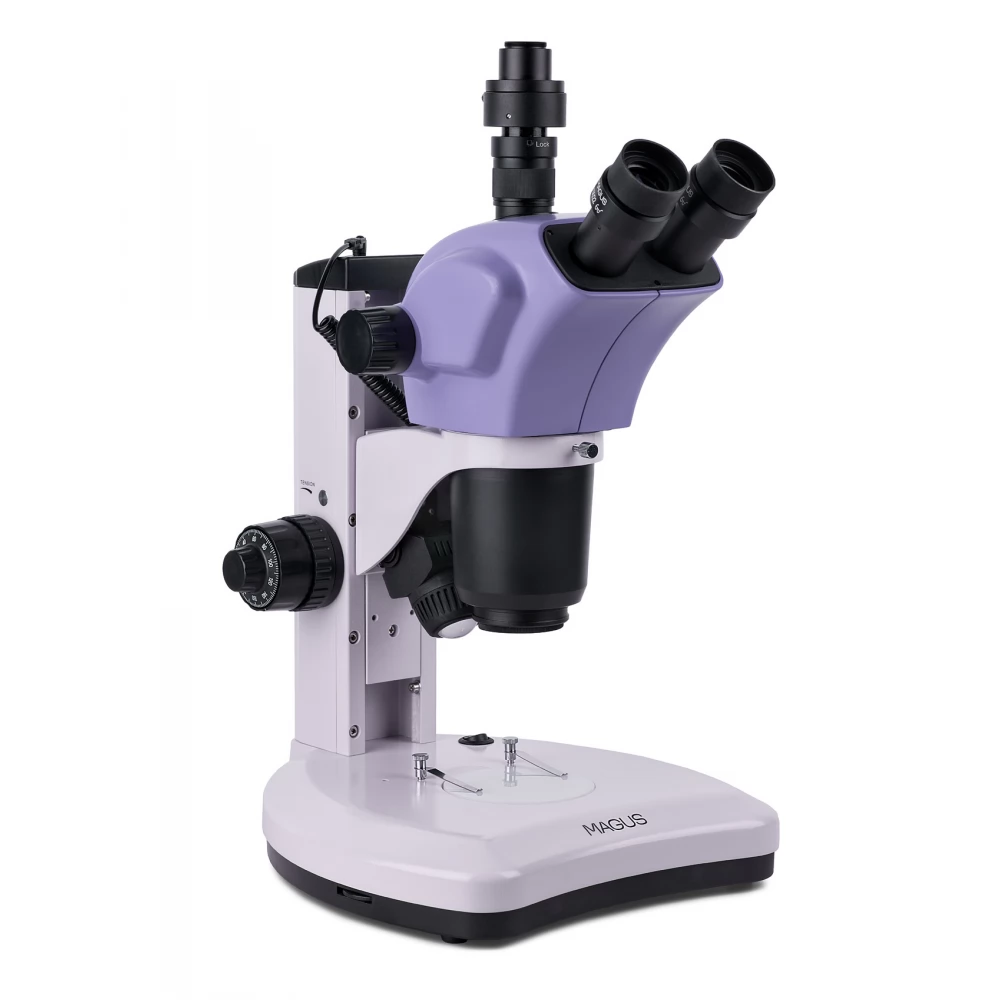

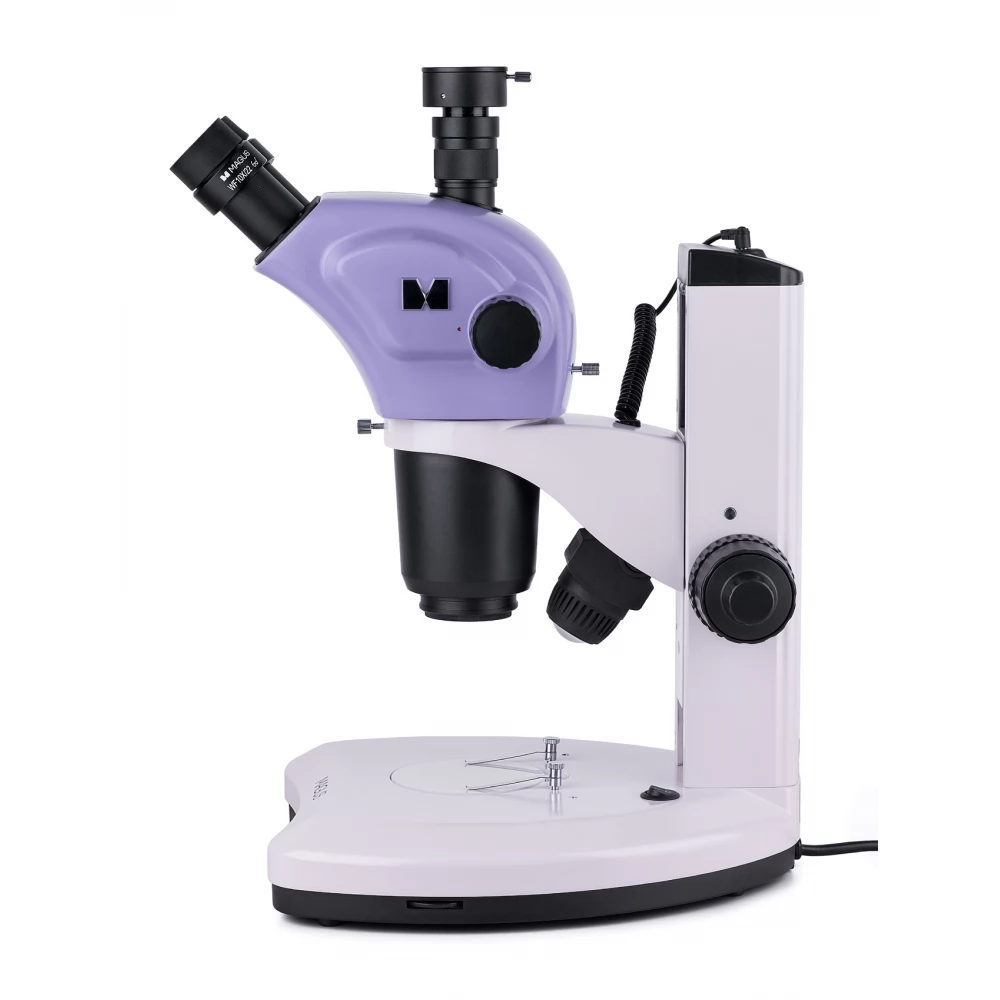

The MAGUS Stereo 9T stereoscopic microscope offers a long working distance and creates a non-inverted, three-dimensional image. You can not only study samples, but also conduct experiments with them. The Greenough optical system produces sharp, three-dimensional images, which is essential for high-precision observations. The microscope is equipped with two zoom lenses and two illuminators (transmitted light and reflected light) and can optionally be expanded with additional accessories. An excellent choice for restoration, soldering, modelling, machine servicing and quality control.

Optical elements

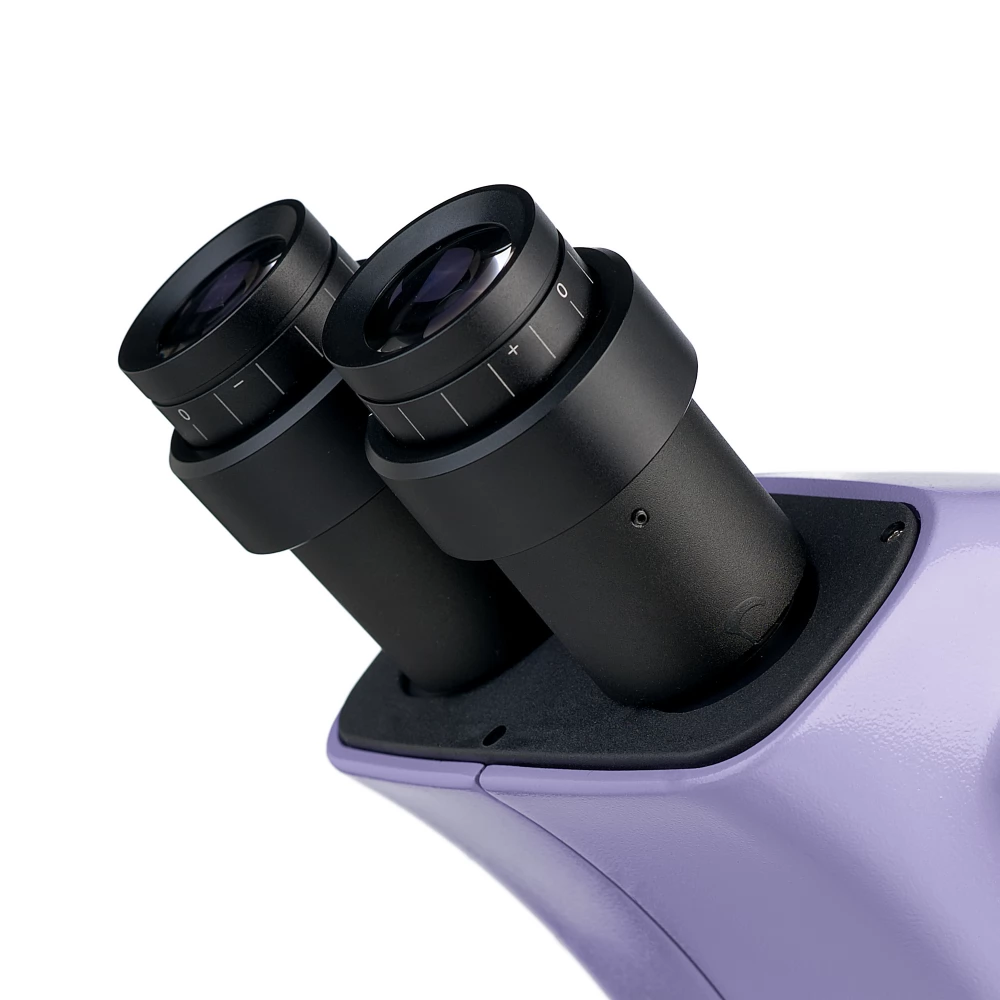

The trifocal head on the microscope has a trifocal tube into which a digital camera can be attached. The C-socket adapter is included with the product, but the digital camera must be purchased separately. The three-lens head can be rotated 360°. The zoom lens together with the 10x eyepiece provides 7-63x magnification. Thanks to its zoom lens, the magnification can be changed without reducing the focus. If you use additional objectives (not included), you can change the magnification range, working distance and field of view of the microscope. With optional accessories, the magnification of the microscope can be increased up to 315x.

Illumination
The work area is illuminated by two LEDs: a 5 W transmitted light and a 3 W reflected (angled) light. Both luminaires are powered by alternating current (AC) and have a lifespan of 50,000 hours. They are bright and do not change the color temperature when changing the brightness.

Stage and focusing mechanism
One of the plates included with the product (double-sided black and white, white, transparent) must be mounted on the specimen table. The first disc contrasts the images - it helps to observe non-transparent objects. Dark-colored samples can be studied on the white side, and light-colored samples can be studied on the black side. White and clear plates can be used to observe translucent and transparent samples when maximum brightness and uniform illumination of the work area are important considerations.

The microscope has both a coarse and fine focusing mechanism. Fine focusing should be used for magnification above 40x. Coarse focusing is done by tension adjustment.

Accessories
Additional accessories such as eyepieces, accessory lenses, calibration slides, and digital cameras can be used to extend the capabilities of the microscope. A device for polarized light observations can also be installed.

- Zoom lens with a zoom ratio of 9:1
- The three-eye lens head part can be rotated 360°, and thanks to the three-eye lens tube, photos and videos can also be taken
- Greenough optical system with high depth of field, three-dimensional image
- Transmitted and reflected (oblique) lighting, two durable LED light fixtures
- Optional accessories to increase the performance of the microscope

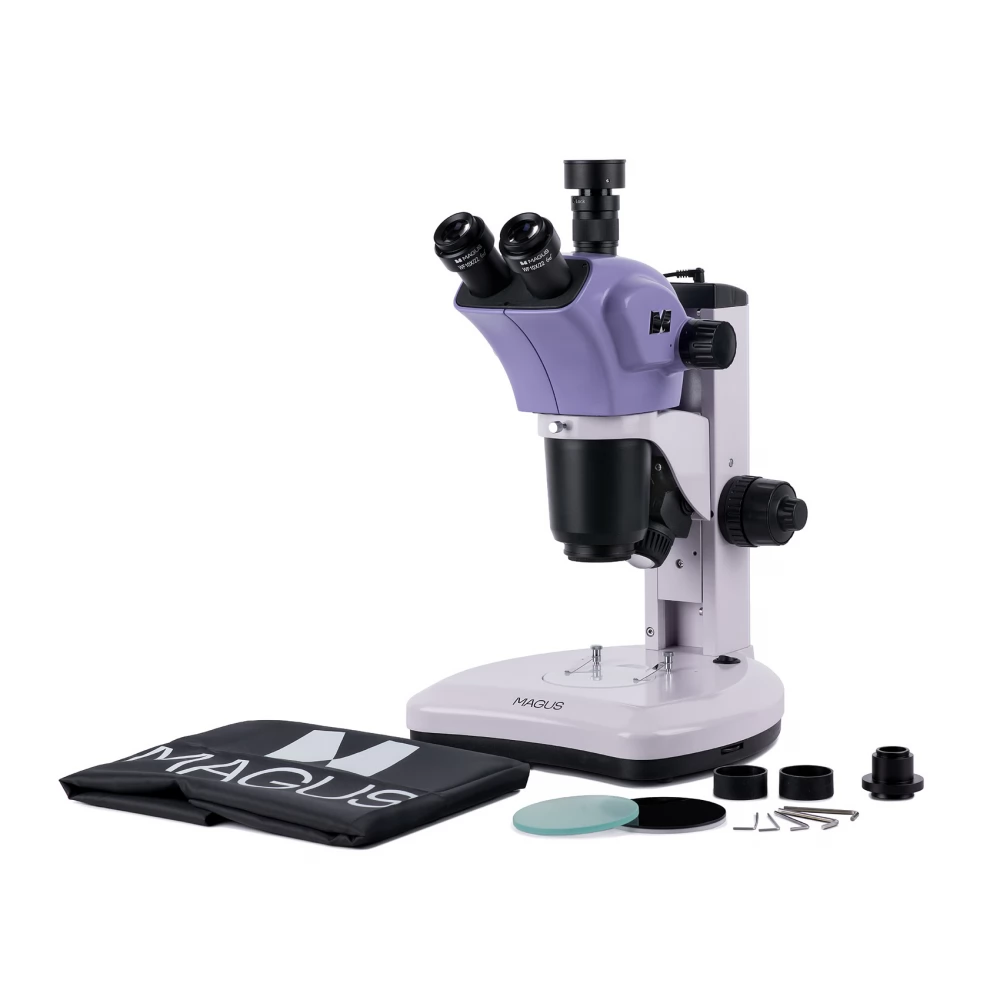

Contents of the set
- Base with integrated transmitted light light source and power supply
- Tripod with focusing mechanism
- Head piece with three eye lenses
- 10x/22 mm eyepiece (2 pcs)
- Black and white table top
- White disc
- Transparent plate
- Beveled light with reflected light
- C-socket adapter
- Alternating current (AC) power cable
- Dust cover
- User manual and warranty card
