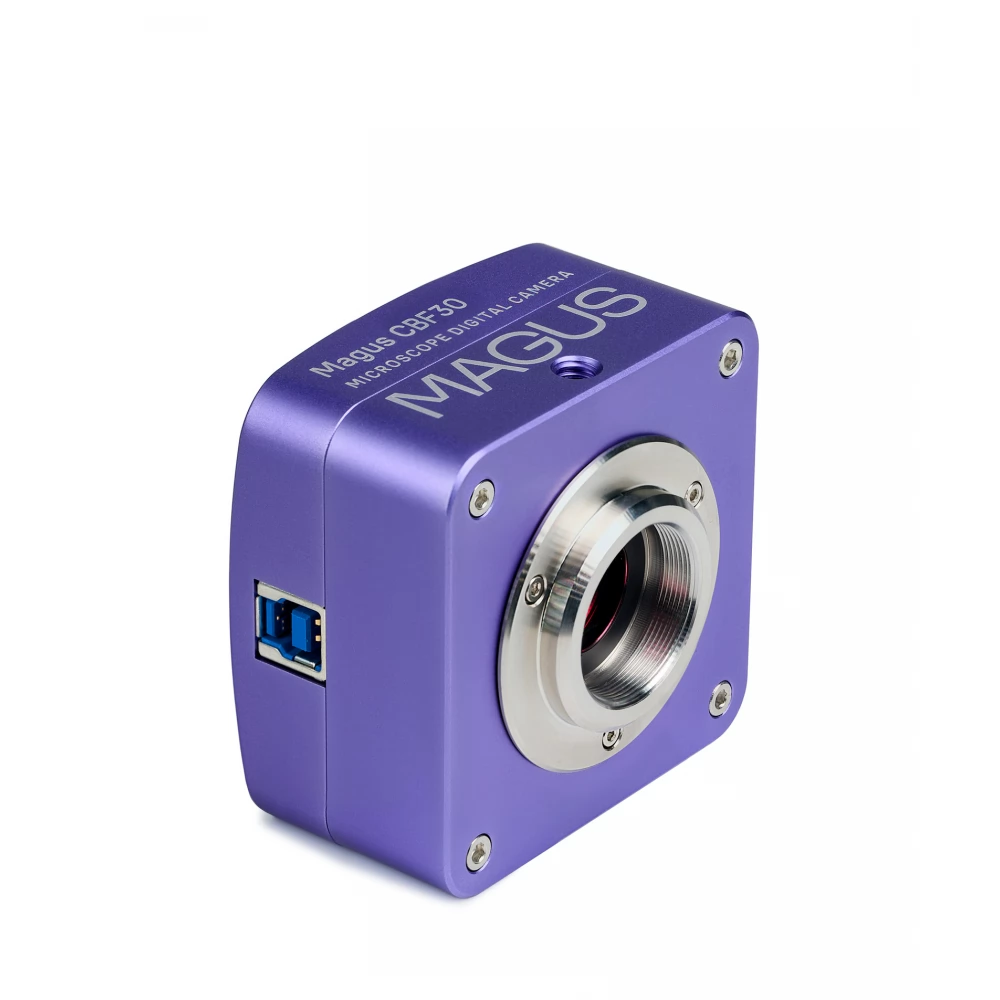

With the MAGUS CBF30 digital camera, you can take photos and videos through a microscope, edit the resulting files, organize presentations, and (after proper calibration) perform linear and angular measurements on objects.
The device can be used on bright-field microscopes with 4x, 10x, 20x and 40x objectives.

Graphical features
The 6.3 megapixel sensor allows you to take sharp, detailed photos and videos with a resolution of up to 3072x2048 px. If necessary, the resolution can be reduced to 1536x1024 px. However, the frame rate is not affected by this, it remains at 59 fps, which ensures smooth frame transitions without stuttering or delay.

Sensor

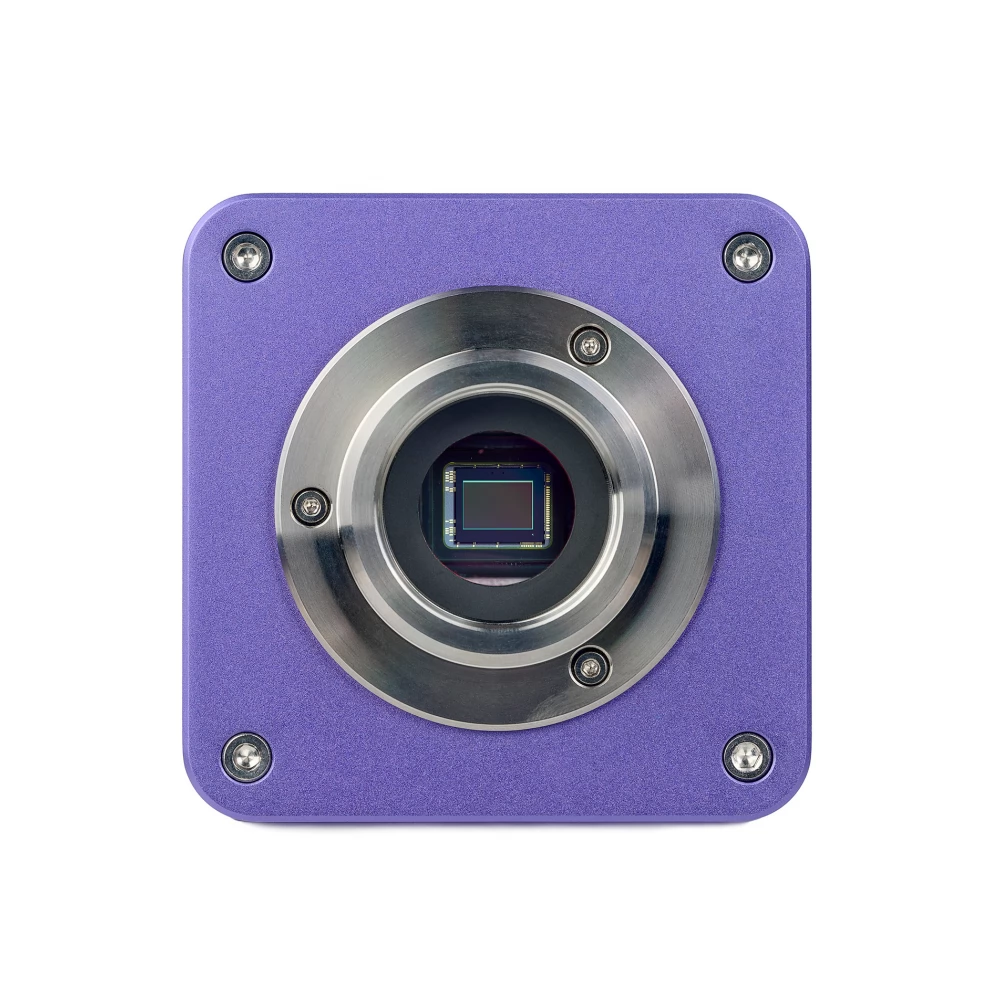

The backlit SONY Exmor color CMOS sensor enables the camera to be used even in low light conditions. The image remains legible and bright. The clearest possible, distortion-free image is ensured by the use of a 0.5x-0.75x magnification adapter.

Additional features

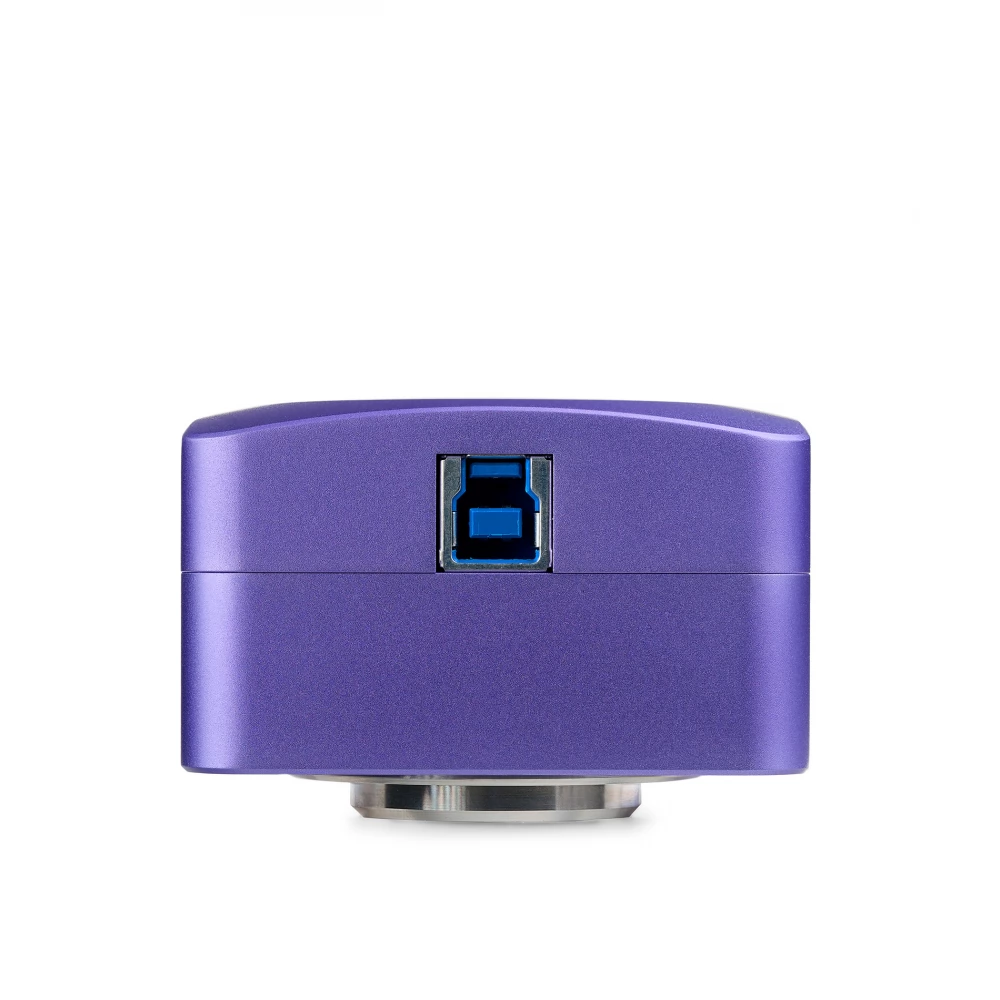

The MAGUS CBF30 camera uses a USB 3.0 interface, which means the fastest possible data transfer without losses or delays.
The camera also comes with special software for taking photos and videos, editing recordings, displaying them on an external screen, and organizing classroom presentations.

Installation
The camera can be mounted in the three-eyepiece tube of the microscope with a C-mount adapter. Installation in the eyepiece tube is also possible, which requires a C-socket adapter and an adapter ring corresponding to the diameter of the tube.

- Recommended for use with low magnification lenses
- Color photosensitive sensor that provides a clear image even in low light conditions
- Up to 59 fps frame rate, which is sufficient for observing moving objects or fast-moving processes
- The kit includes the software that ensures the operation of all camera functions, therefore a "quick start" is possible
- Reliable USB 3.0 interface providing high data transfer speed
- Adjustable resolution, which can be used to select the most suitable resolution at any moment

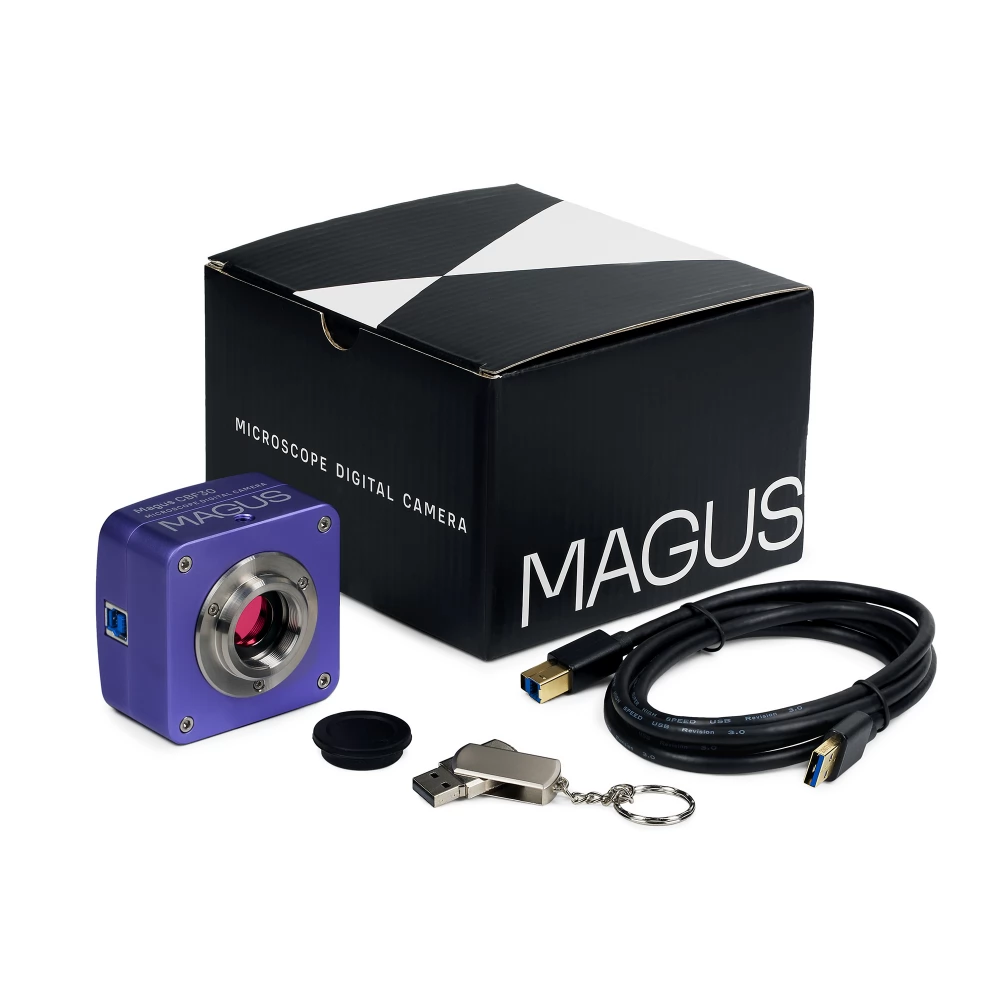

Contents of the set
- Digital camera
- USB cable
- Installation CD with drivers and software
- User manual and warranty card
