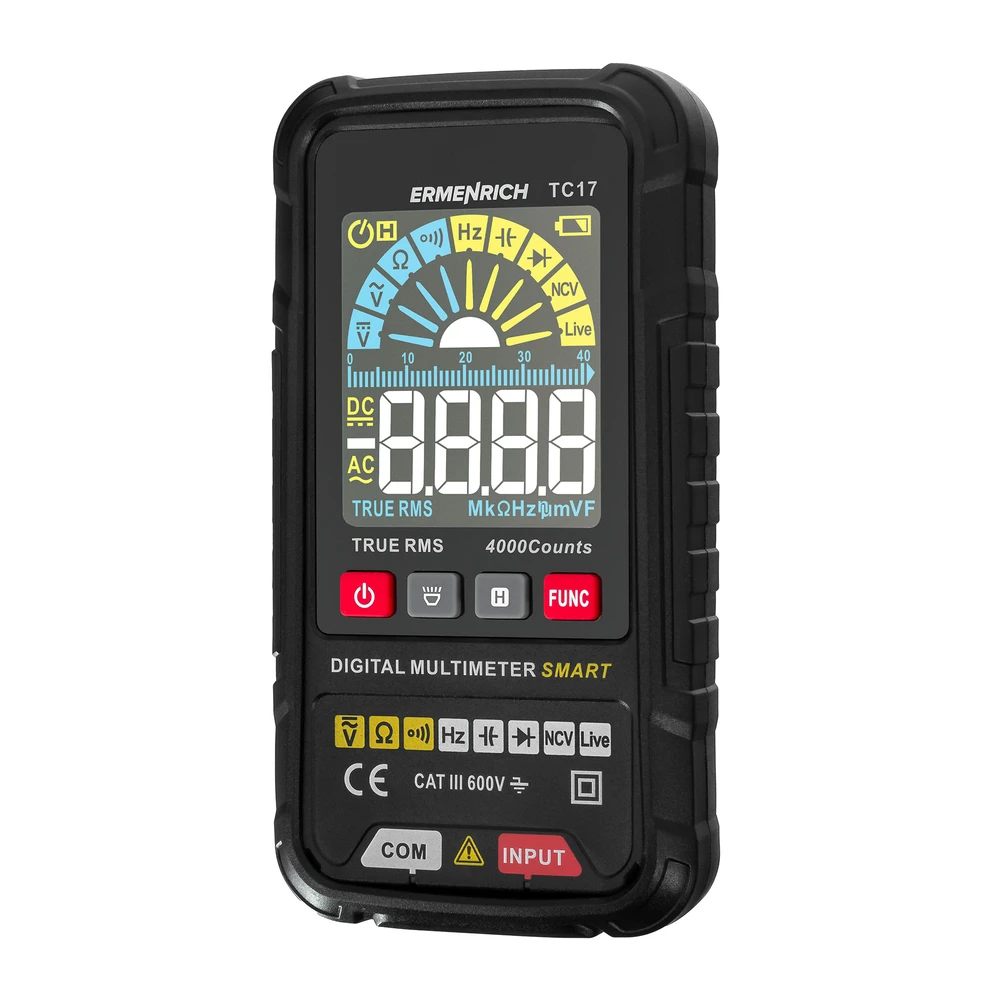

The Ermenrich Zing TC17 digital multimeter is an accurate (True RMS) and compact measuring device for professionals and handymen. It is suitable for diagnostics of electrical networks of apartments, country houses, industrial facilities, offices and cars, as well as for troubleshooting electrical devices. The multimeter fits in your pocket, so you can comfortably take it with you when working in a larger area.

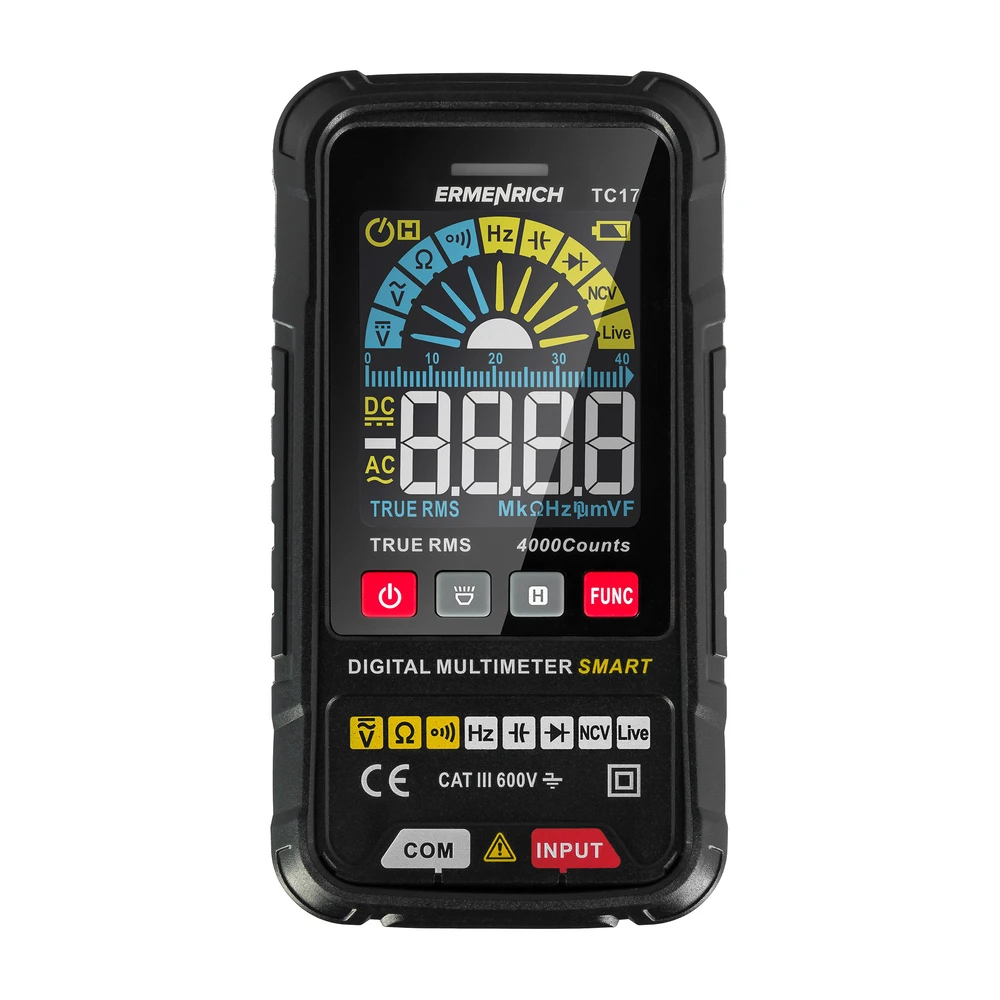

The color screen displays the measured values ​​and also contains a graphic scale. It displays both the entire measurement range and the value of the currently measured parameter. When you turn on the device, you activate the Smart function at the same time. The device automatically starts detecting and measuring the incoming parameter (resistance, voltage and continuity). If necessary, you can switch to manual control to access all modes. In addition to resistance and voltage, the multimeter also measures capacitance and frequency. The device combines the tear test mode with the resistance measurement. The NCV function detects dangerous live points such as hidden wires. It is possible to test diodes to detect open and short circuits.

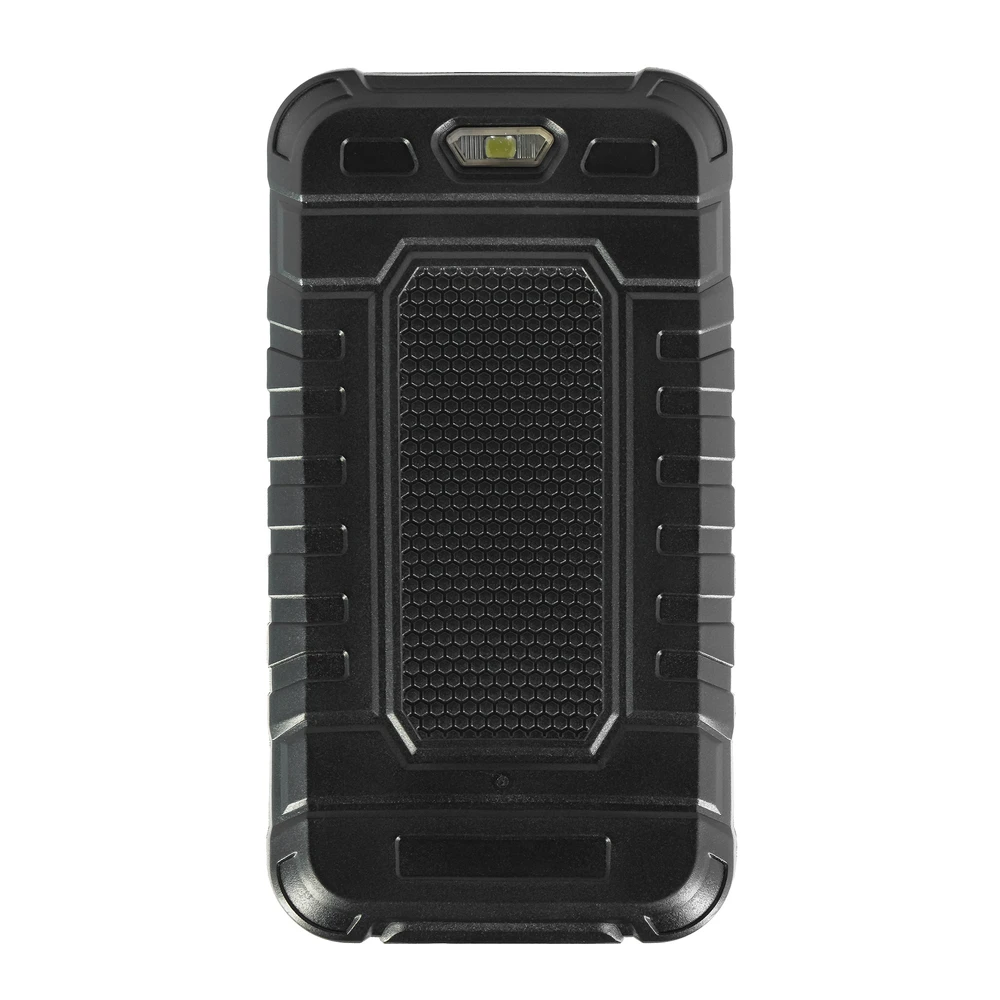

If the multimeter is in a place that is difficult to access to read the screen, you can press a button and use the hold function to "freeze" the readings. It has a backlit screen and a built-in flashlight. The device works with standard batteries.

Main characteristics:

- Color screen with digital display and graphic scale, True RMS calculations
- Voltage measurement, resistance measurement, capacity measurement and frequency measurement functions
- Automatically detects and measures certain parameters in Smart mode
- Diode test, phase detection, rupture test, NCV detection

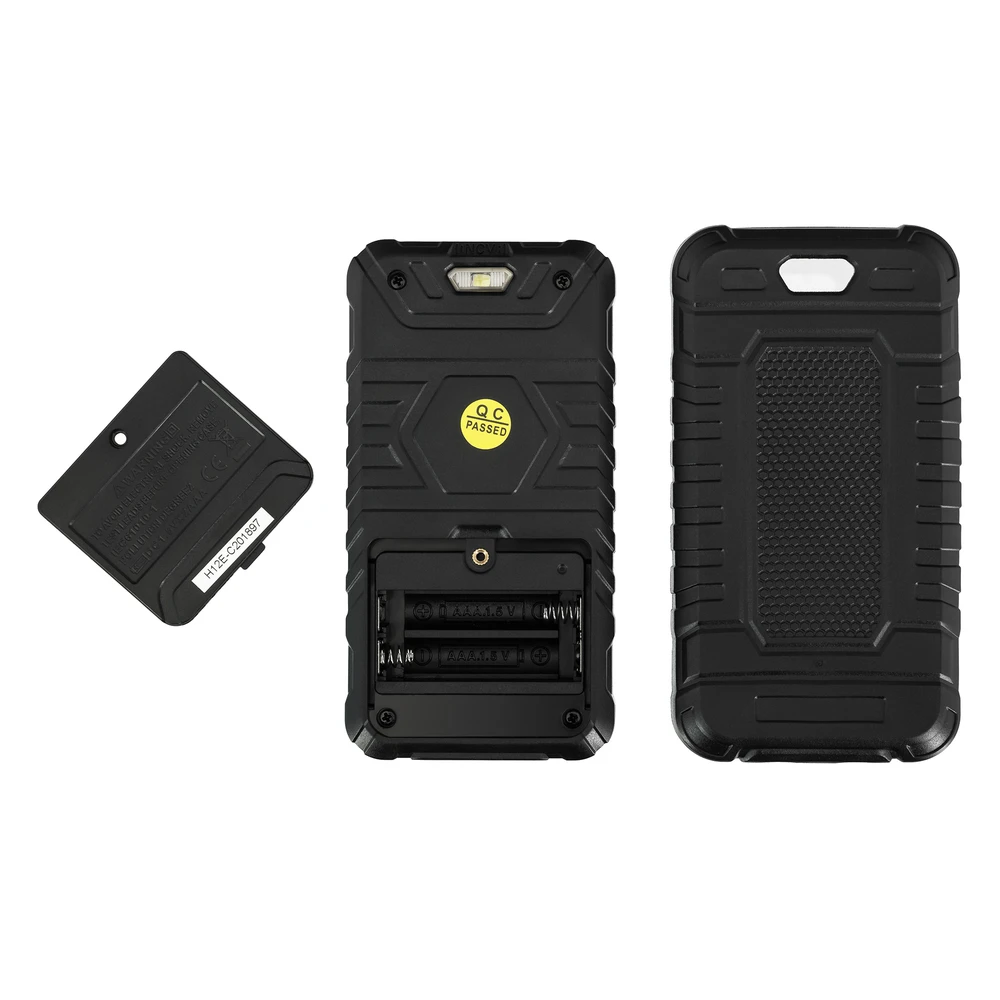

- Hold function, built-in flashlight, battery operation

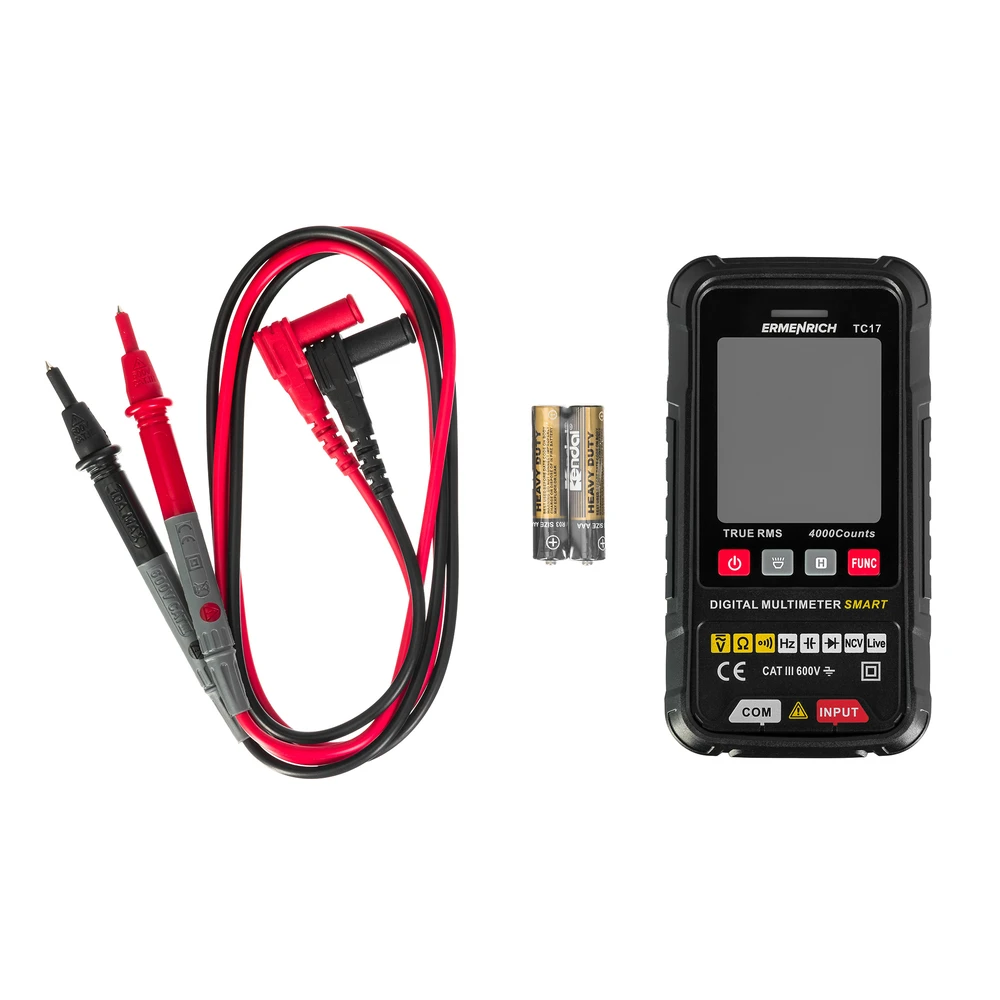

The set includes:

- Digital multimeter
- Measuring probes
- User manual and warranty card

- Selection of the measurement limit value is automatic
- DC (direct current) voltage measurement limit 400 mV/4 V/40 V/400 V/600 V: error ±(0.5%+3)
- AC (direct current) voltage measurement limit 4/40/400/600 V: error ±(0.8%+3)
- Resistance measurement limit 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ: error ±(1.0%+5)
- Capacitance measurement limit 4 nF/40 nF/400 nF/4 μF/40 μF/400 μF/4 mF: error ±(4.0%+5)
- Frequency measurement limits 4 Hz/40 Hz/400 Hz/4 kHz/40 kHz/200 kHz/400 kHz/4 MHz: error ±(1.0%+3)
- Non-contact voltage detection (NCV detection) ✓
- True RMS ✓
- Hold function ✓
- Automatic recognition function (Smart) + (only for DC and AC voltage, resistance and rupture testing)
- Phase detector (Live) ✓
- Overvoltage category CAT III 600 V
- Screen VA
- Display countdown 4000
- Display backlight ✓
- Graphic scale ✓
- Flashlight ✓
- Safety standards EN61010-1,-2-030; EN61010-2-033; EN61326-1
- Tear test +, with resistance measurement mode (
