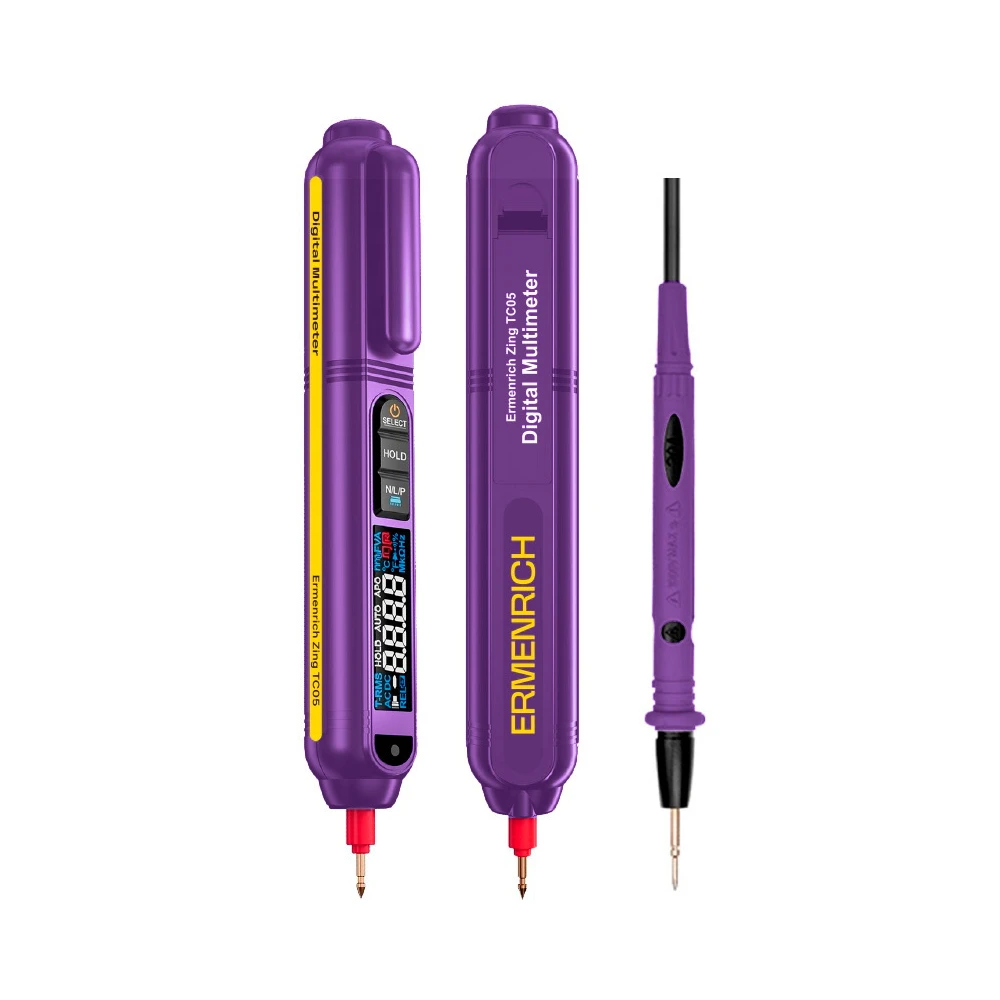

The Ermenrich Zing TC05 pocketable digital multimeter is designed to solve a wide range of tasks in the field of electricity and power networks. It helps check the voltage in sockets and switches, diagnose open and short circuits, and measure the resistance of wires and fuses. The tool is also valuable in car diagnostics, for testing sensors and wiring, checking battery voltage, and measuring ignition coil resistance. A multimeter is useful for electronic repairs, equipment adjustments and many more.

Despite the compact size of the Ermenrich Zing TC05 model, only 17 cm long, it boasts a rich set of functions. True RMS provides accurate AC voltage measurement even with non-linear loads by calculating the true root mean square value. NCV detects voltage in wires or circuits without contact. The capacitance measurement range is from 0 nF to 60 mF, so even large capacitors can be measured. The resolution of 0.001 V (DC) and 0.1 Ω enables the detection of even the smallest voltage and resistance changes, which is essential for critical tasks.

The Ermenrich Zing TC05 multimeter provides a high degree of safety when working in circuits (e.g. electrical panels or industrial equipment), as it meets the requirements of the following overvoltage categories: III. cat. (1000 V) and IV. cat. (600V). The device has a built-in flashlight for use in dimly lit areas, as well as a sound/light alarm (buzzer) for noisy conditions. In addition, it can measure the ambient temperature. The measurement result is displayed on the compact, easy-to-read LCD display.

The automatic shutdown function of the multimeter, which comes into operation after 5 minutes of inactivity, protects the battery. The device is powered by a single AAA battery that provides approximately 6-8 hours of operation. When the battery no longer provides enough energy, the multimeter automatically turns off.

Main features:

- Reliable measurement of variables with true RMS calculation
- Measurement of voltage (AC/DC), resistance, frequency and capacity
- Non-contact, safe detection of voltage in a wire or circuit using NCV
- Guaranteed to meet the strictest safety standards: EN61010-1 certification
- Small size, easy to fit in pocket or tool bag
- Diode test, rupture test and automatic range selection
- Built-in flashlight and light/sound signal for convenient use in dark and noisy environments

The set includes:

- Digital multimeter
- Probe
- Instruction manual and warranty card
