LANBERG FOP1-24SS-LDB Fiber patch panel

The 1U high extendable fiber optic switch with installation accessories is a product designed for installation in 19" wide data communication cabinets. It is made entirely of durable, powder-coated steel sheet.

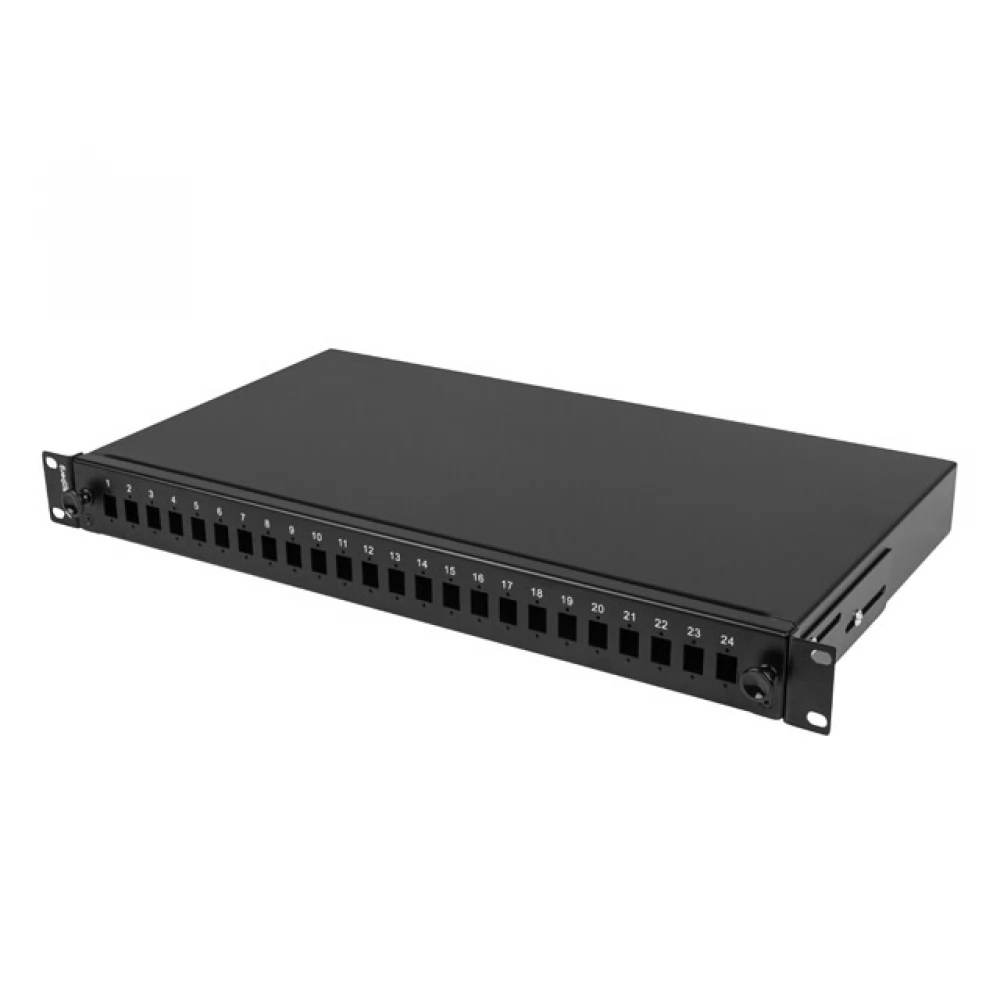

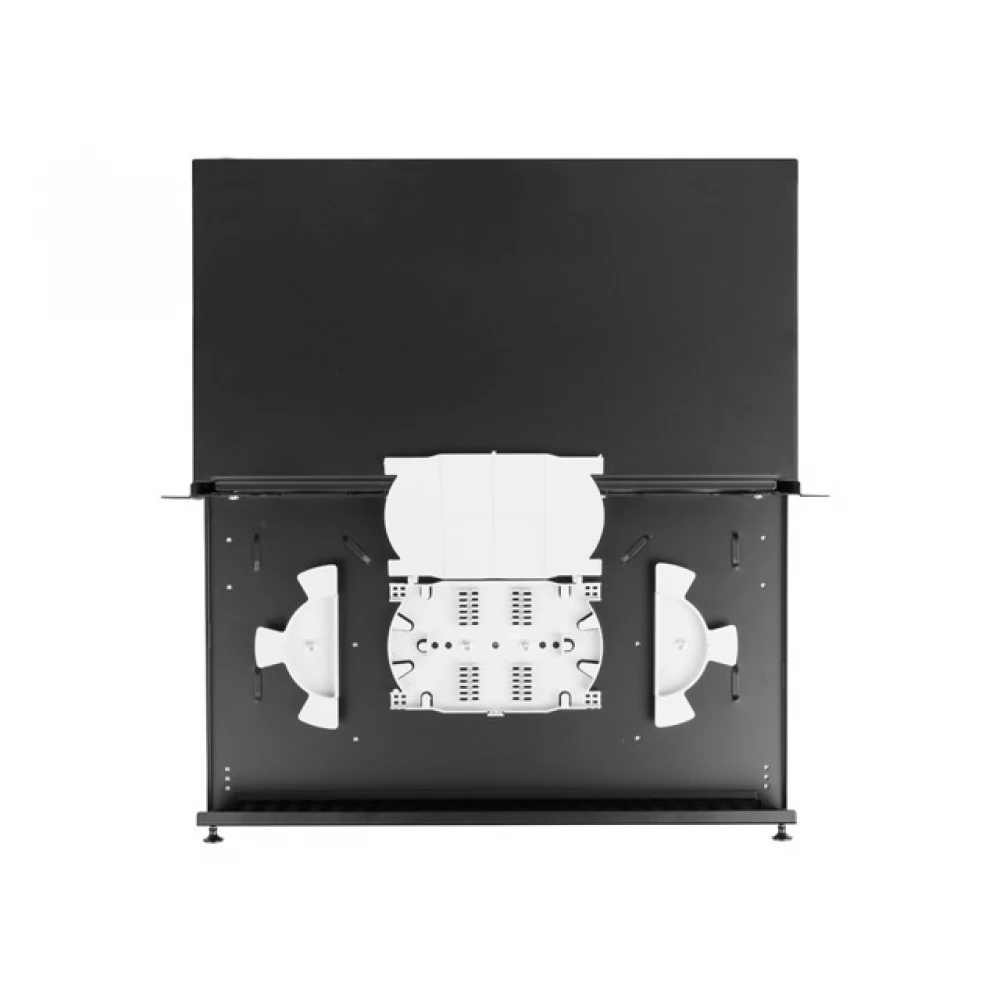

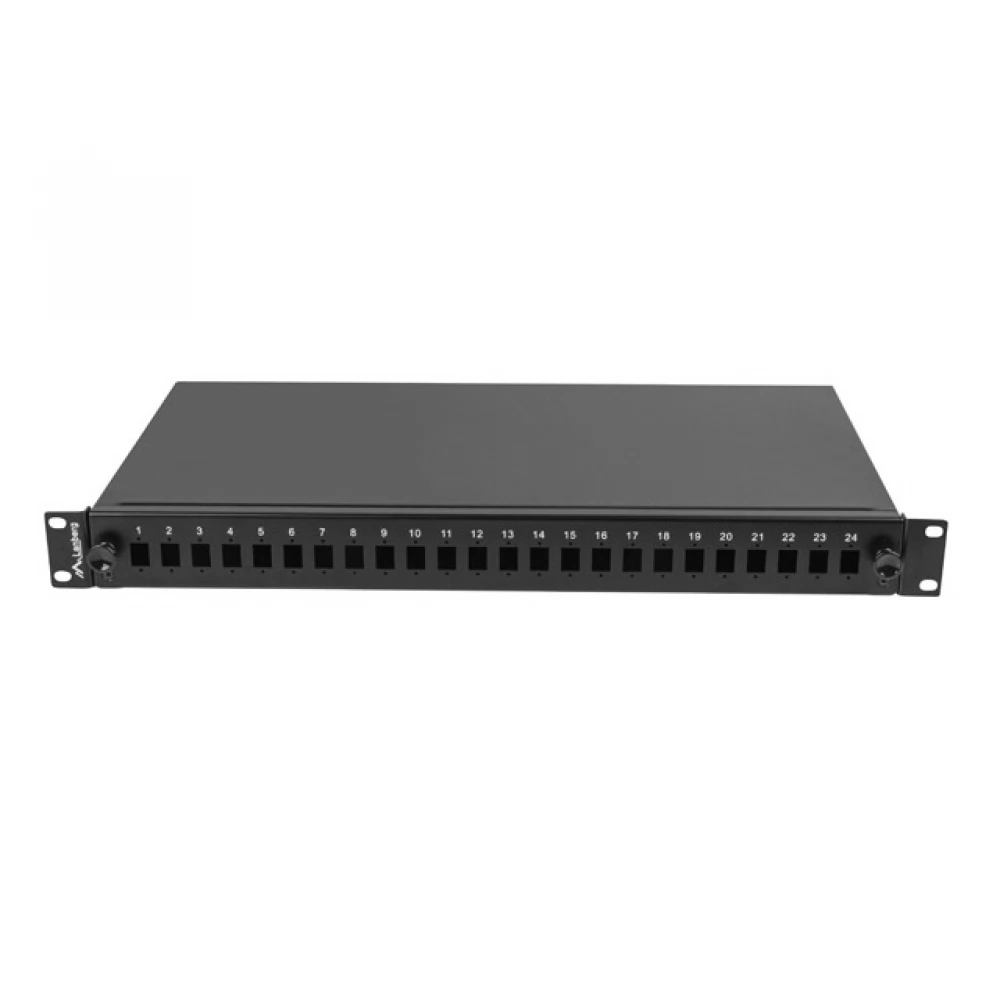

The front panel is equipped with port numbering and screw holes for better attachment of adapters. With the help of the front panel, the fiber optic patch panel drawer can be slid out or removed, which ensures good organization and installation of the optical cables, in addition, the back panel of the drawer is equipped with 5 cable inputs.

The handles of the so-called rack "ears" are adjustable, which allows the optical patch panel to be smoothly adjusted to the needs of the particular user in the data communication cabinet.

- Front panel capacity: 24xSC Simplex or 24xLC Duplex,
- Plate thickness: 1.2 mm,
- Thickness of mounting brackets: 1.5 mm,
- Material of the welding tray and spindles: plastic (ABS),
- Rear panel with 4 holes of 22 mm diameter and 1 hole for DROP cables,
- Drawer equipped with welding trays and cable holders.

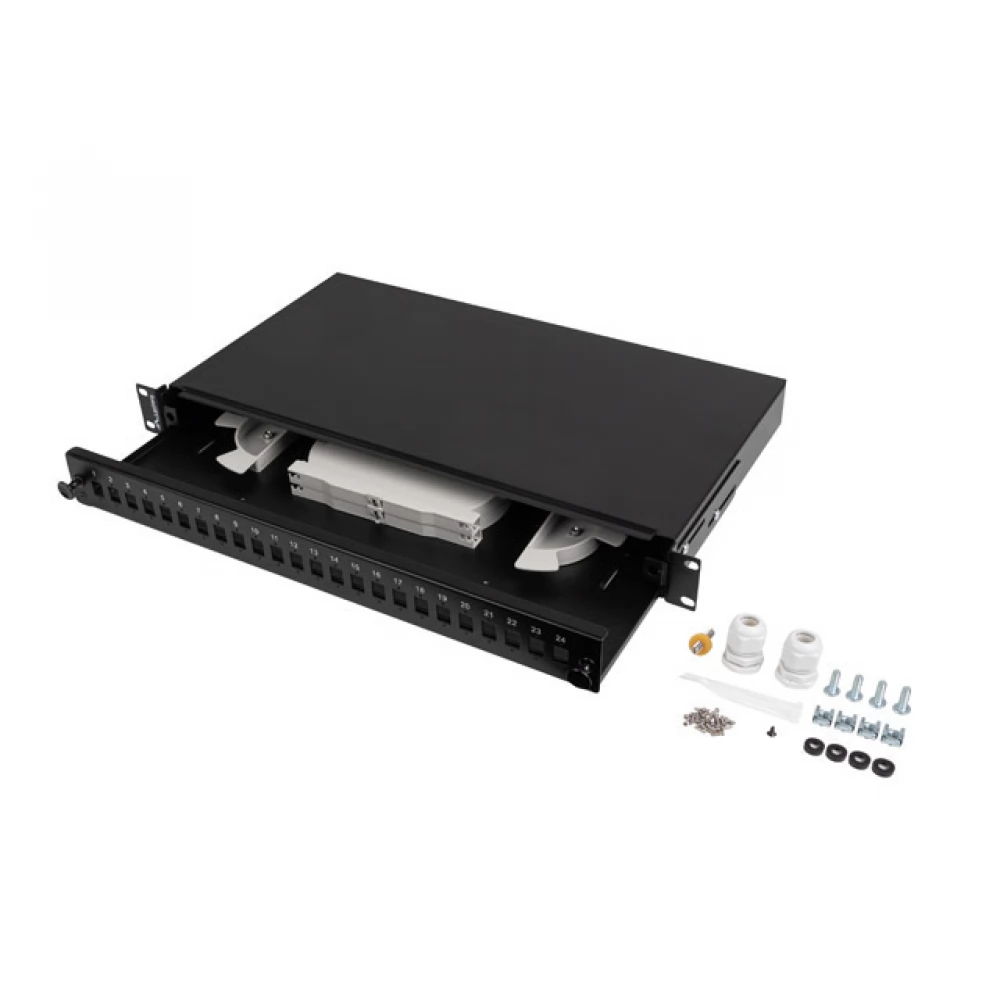

Accessories: 2x PG13.5 cable glands, splice trays, cable ties, M6x16mm screws with fasteners, M2x8mm screws for fixing the fiber optic adapters, in addition - a screw with a knurled nut for alternative fixing of your own welding tray.
