Record information at the point of entry

The Alaris S2060w / S2080w scanners enable your team to capture the information they need to progress work. Custom user profiles show personalized destinations so multiple people can share a device.

Explore the interactive view of the scanner.

- Dual-core embedded image processing and Perfect Page display great, high-quality images without depending on your computer.
- Active Feed technology perfectly aligns pages to avoid jams and multiple servings.
- Web API integrates the business application or application directly into the scanner without the need for a driver.

Specifications
- Recommended daily load: Up to 8000 pages
- Throughput speed: Black and white / grayscale / color: up to 80 pages / 160 images per minute between 200 and 300 dpi
- Scanning technique: Dual CIS; The grayscale output bit depth is 256 levels (8-bit); the color recording bit depth is 30 bits (10 x 3); the color output bit depth is 24 bits (8 x 3)
- CPU: Embedded dual-core Cortex A15 processor (1.5 GHz) with Dual DSP (750 MHz) image processors, multiple Cortex M4 sub-processors
- Operator control panel: 3.5 inch / 89 mm color touch screen LCD
- Optical resolution: 600 dpi
- Lighting: two RGB LEDs
- Output resolution: 75/100/150/200/240/250/300/400/500/600/1200 dpi
- Max/min document size: 216 mm x 356 mm / 52 mm x 52 mm
- Long document mode: 216 mm x 3000 mm
- Paper thickness and weight: 27-413 g/m²; ID card thickness: maximum 1.4 mm
- Feeder: 80 sheets, 80 g/m², captures smaller documents such as A8, ID cards, embossed cards and insurance cards (portrait and landscape orientation)
- Paper feeding detection: Multi feeder with ultrasonic technology, Intelligent document protection

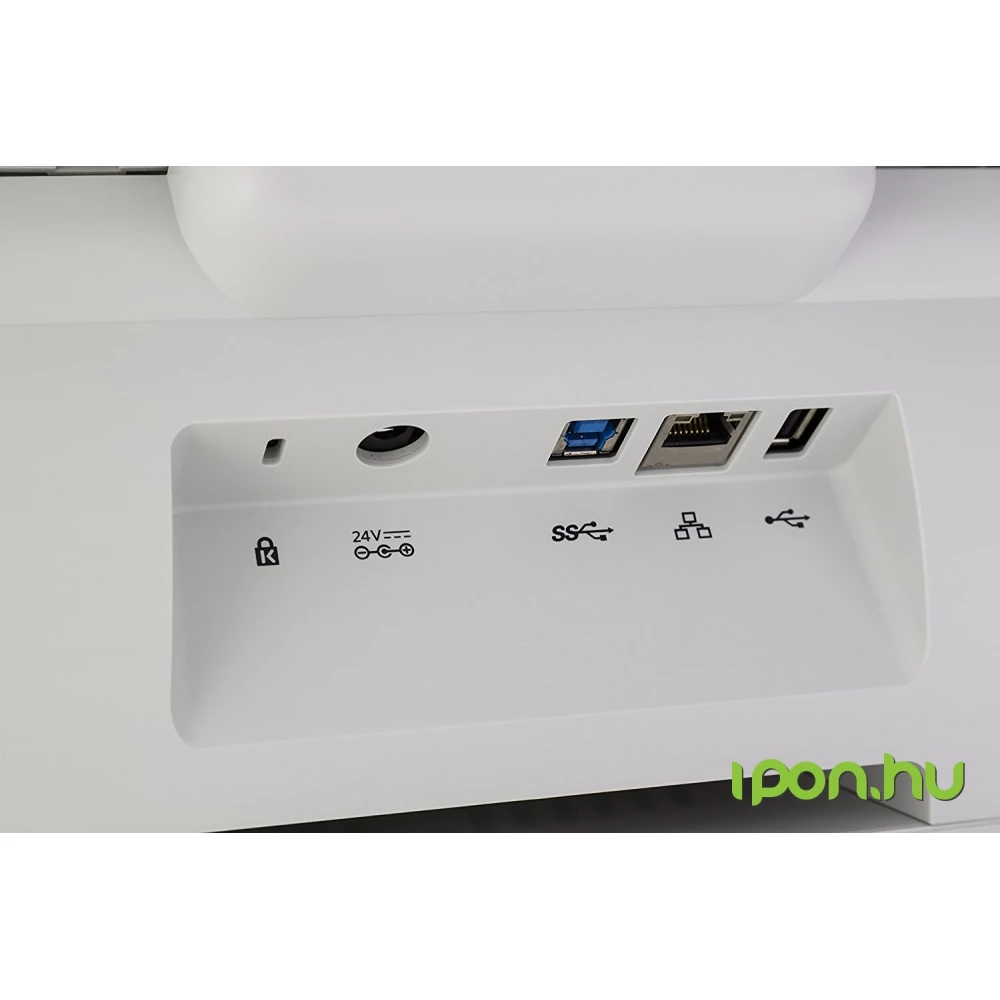

- Connector: USB 3.1 GEN1, 802.11b/g/n and 10/100 Mbps Ethernet
- Software support: Fully supported by Alaris Info Input Express, Alaris Info Input Solution, Alaris Capture Pro software and KODAK Asset Management Software. (Windows only); Windows Added Software: TWAIN, ISIS, WIA Drivers
Alaris Info Input Express Limited Edition; Linux (TWAIN and SANE) drivers (with web download)
- Image management features: Barcode reading (10 types, up to 6 per page); Perfect scanning; iThresholding; adaptive threshold processing; skew correction; achieve; relative cultivation; fixed crop; add / remove border; electronic color dropout; dual stream filtering; enhanced color management; enhanced color adjustment; adjust brightness and contrast; automatic orientation; automatic color detection; background color smoothing; intelligent image streaming; image merging; content-based blank page recognition; strip filtering; round / square hole; sharpness filter; automatic brightness; automatic white balance; color fallout; multicolored discharge; scanning of long documents (up to 3000 mm); fingerprint scanning (for scanning A3 documents); black and white image segmentation; automatic photo cropping; Multiple document outputs, image parts, digital stamping (Future availability)
- Output file format: Single and multi-page TIFF, JPEG, RTF, BMP, PDF, searchable PDF, TXT, PNG, CSV, Word and Excel
- Size: 204 mm x 312 mm x 182.5 mm (without tray), 269 mm x 312 mm x 231.6 mm (with tray)
- Weight: 3.3 kg
