ZEN Air DAC

With ZEN Air DAC, you can improve your everyday sound quality.
DAC stands for digital-to-analog converter.
Any device that is a source of digital audio has a built-in DAC. External DACs sound much better than the standard DACs used in these devices.

Flexible formats

ZEN Air DAC supports various file formats - PCM 32bit/384kHz, fully native DSD256 and MQA.
PCM - Pulse Code Modulation is a file format used in CD, DVD, Blu-ray and other digital audio applications. This is the next step after MP3.
DSD - Direct Stream Digital is a very high quality audio format, better than CD quality. The higher the number (sampling rate), the better the recording - DSD64, 128, 128, 256, 512 and 1024. Completely native means that it has not been altered in any way from the original recording.
MQA - Master Quality Authenticated is an award-winning audio technology that allows music lovers to stream the original master recording to their home, car or mobile phone. With the ZEN Air DAC, you can listen to MQA right out of the box. Simply connect to Tidal Masters and check the MQA streaming option.

Other features:

- Input voltage: DC 5V/2.5A

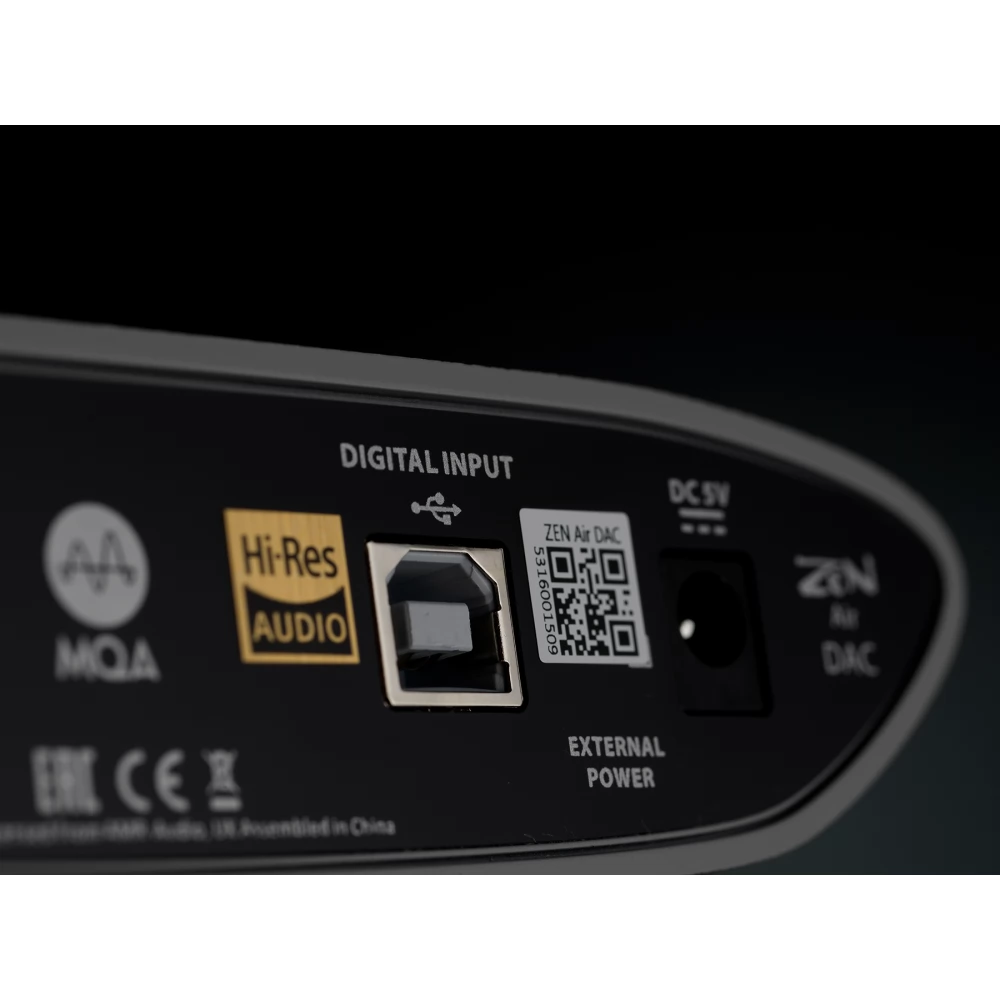

- Input: USB3.0 B socket (USB2.0 compatible)
- Formats: 44.1/48/88.2/96/176.4/192/352.8/384 kHz PCM, 2.8/3.1/5.6/6.2/11.2/12.4MHz DSD, 353/384KHz DXD, MQA
- DAC: Bit-Perfect DSD & DXD DAC from Burr Brown
- Energy consumption: No signal: ~0.5W / Max Signal: ~2.5W
- Dimensions 158 x 117 x 35 mm (6.2" x 4.6" x 1.4")
- Net weight 315g, 0.969 lbs

Line section

- Output: 1V / 3.3V max.
- Output impedance: ≤50Ω
- SNR 113dB(A) @ -60dBFS
- THD+N 280mW @ 32Ω; >36mW @ 300Ω
- Output impedance
