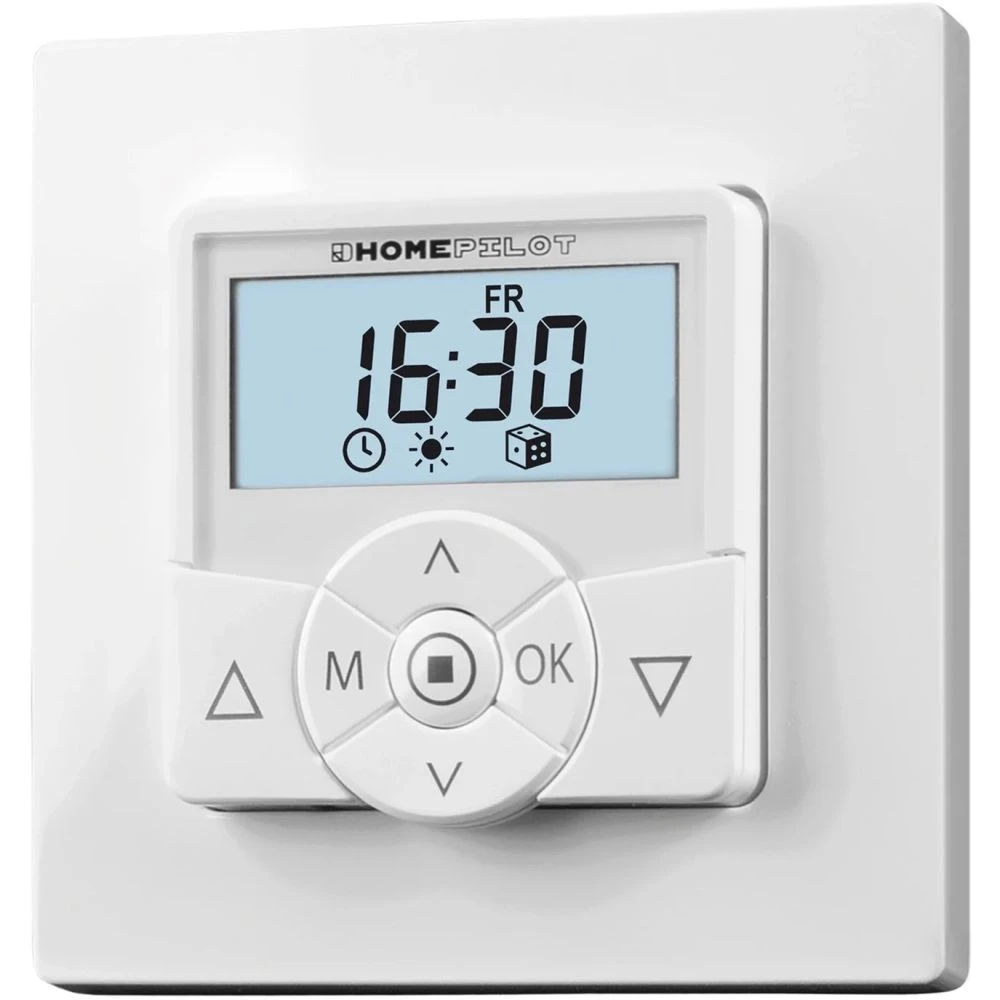

HOMEPILOT Premium programmable timer 10501001

The HOMEPILOT premium time switch is used to connect and control up to three tube motors of shutters, blinds or awnings that can be switched in parallel. Modern design with many practical functions. Connected to a tubular motor, this control unit is ideal for automating blinds and simplifying everyday life. Connected shutters can still be easily operated manually with the push of a button. In addition to a modern design with a large display, the premium timer also impresses with a number of practical automatic functions. For example, it offers individually adjustable daily and weekly programs. This allows the shutter control to easily adapt to individual preferences and daily routine. The premium time switch also has a random function that randomly delays set switching times when away, simulating an occupied home and deterring burglars. With its astro function, the premium time switch determines when dusk falls based on the zip code and controls the blinds accordingly. In combination with a sun sensor, it is also possible to control the blinds and shades depending on the brightness. The premium time switch is also capable of monitoring the torque of motors with mechanical limit switches. This allows the controller to stop the motor in case of overload or blockage. The premium time switch is available in ultra-white with a frame. The integrated installation wizard enables quick and easy commissioning. All settings are permanently saved, so data is preserved even after a longer power outage. The time switch, measuring only 50 x 50 mm, can be seamlessly integrated into standard switching systems. The perfect solution for upgrading existing, non-radio-controlled shutter motors.

Description:

- Type: timer
- Color: white
- EAN: 4031909025623
- Manufacturer number: 10501001
- Series: premium
- Intended use: For controlling blinds, blinds or awnings
- Area of application: Interior spaces
- Installation: Recessed installation
- Switch type: timer
- Switching functions: Random switching, automatic summer/winter time changeover, time automation, daily/weekly switching times, weekday and weekend switching times, astronomical program, blocking detection, rotation direction reversal
- Number of keys: 7 pieces
- Devices: A maximum of 3 devices can be controlled.
- Power supply: Switching power: Max. 1800 watts, 8 A, Switching power for resistive load: Max. 8 A, Switching power for inductive load: Max. 4 A
- Supply voltage: 230 volts, 50/60 Hz
- Output voltage: 230 volts
- Power consumption in standby mode: < 0.3 watts
- Protection class: IP30
- Protection class: II
- Operating temperature: between 0 °C and 40 °C
- Vehicle reserve in case of power failure: 8 hours
- Mounting: for frame sizes 50 x 50 mm and 55 x 55 mm
- Installation depth: 32 mm
- Features: On-site manual operation is possible
- Available accessories: Control unit (50 x 50 mm), cover frame, installation housing, spacers, user manual
- Optional: Sun sensor
- Dimensions: Width: 50 mm x Height: 50 mm x Depth: 12 mm
