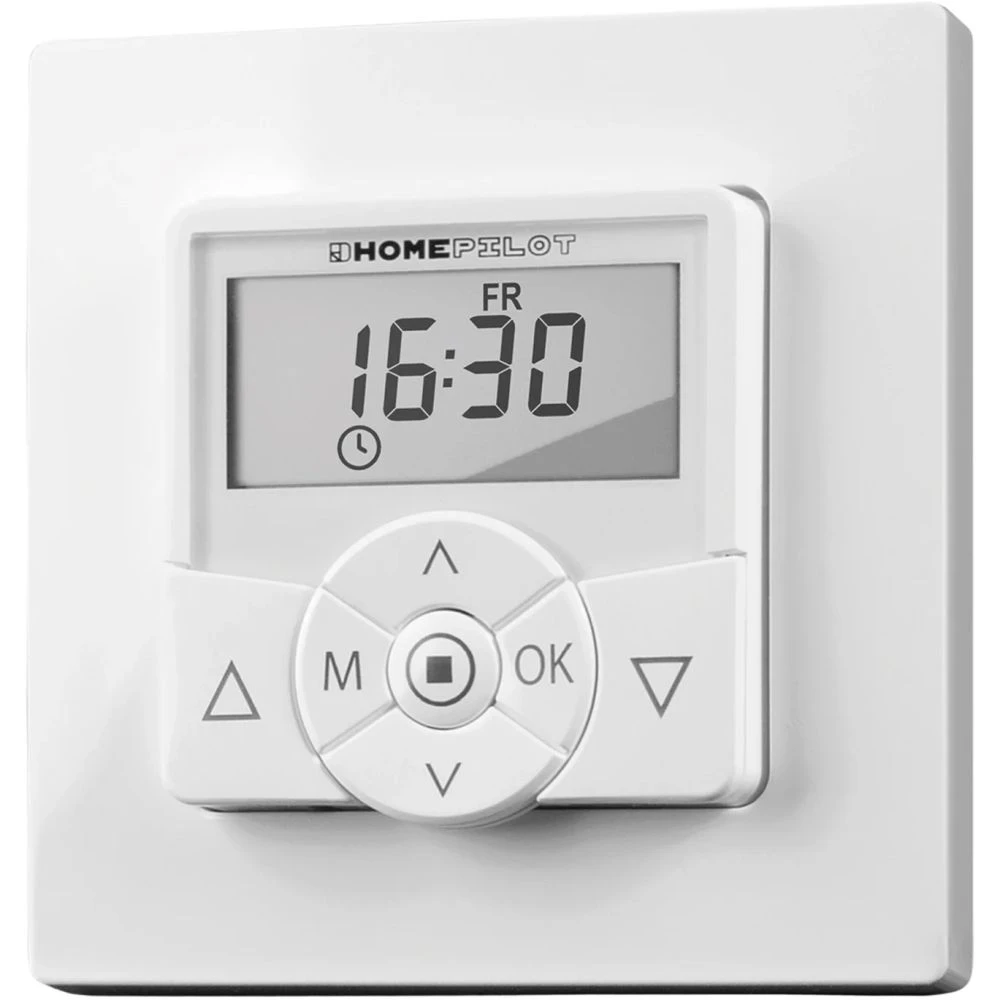

HOMEPILOT Premium Lite programmable timer 10501002

The HOMEPILOT premium lite time switch is used to connect and control up to three tubular motors of shutters, blinds or awnings that can be switched in parallel. Modern design with many practical functions. Connected to a tubular motor, this control unit is ideal for automating blinds and simplifying everyday life. Connected shutters can still be easily operated manually with the push of a button. In addition to the modern design with a large display, the premium lite timer also impresses with a number of practical automatic functions. For example, it offers individually adjustable daily and weekly programs. This allows the shutter control to easily adapt to individual preferences and daily routine. The premium lite time switch also has a random function that delays the set switching times in case of absence, thus simulating the atmosphere of an inhabited house and deterring burglars. In combination with a sun sensor, it is also possible to control the blinds and shades depending on the brightness. The premium lite time switch is available in ultra white with a frame and is quick and easy to install. All settings are permanently saved. Data is not lost even after a longer power outage. With the dimensions of 50 x 50 mm, the time switch can be integrated into standard switching systems. The perfect solution for upgrading existing, non-radio frequency shutter motors.

Description:

- Type: timer
- Color: white
- EAN: 4031909025913
- Manufacturer number: 10501002
- Series: premium
- Intended use: For controlling blinds, blinds or awnings
- Installation: Recessed installation
- Switch type: timer
- Switching functions: Random switching, manual on/off, automatic summer/winter time conversion, timer function, daily/weekly switching times, weekday and weekend switching times, blocking detection, memory function, rotation direction reversal
- Number of keys: 7 pieces
- Devices: A maximum of 3 devices can be controlled.
- Power supply: Switching power: Max. 8 A, Switching power for resistive load: Max. 8 A, Switching power for inductive load: Max. 4 A
- Supply voltage: 230 volts, 50 Hz
- Power consumption in standby mode: < 0.6 watts
- Protection class: IP30
- Protection class: II
- Operating temperature: between 0 °C and 40 °C
- Power reserve in case of power failure: 8 hours
- Mounting: for frame sizes 50 x 50 mm and 55 x 55 mm
- Installation depth: 32 mm
- Features: On-site manual operation is possible
- Available accessories: Control unit (50 x 50 mm), cover frame, installation housing, user manual
- Optional: Sun sensor
- Dimensions: Width: 50 mm x Height: 50 mm x Depth: 12 mm
