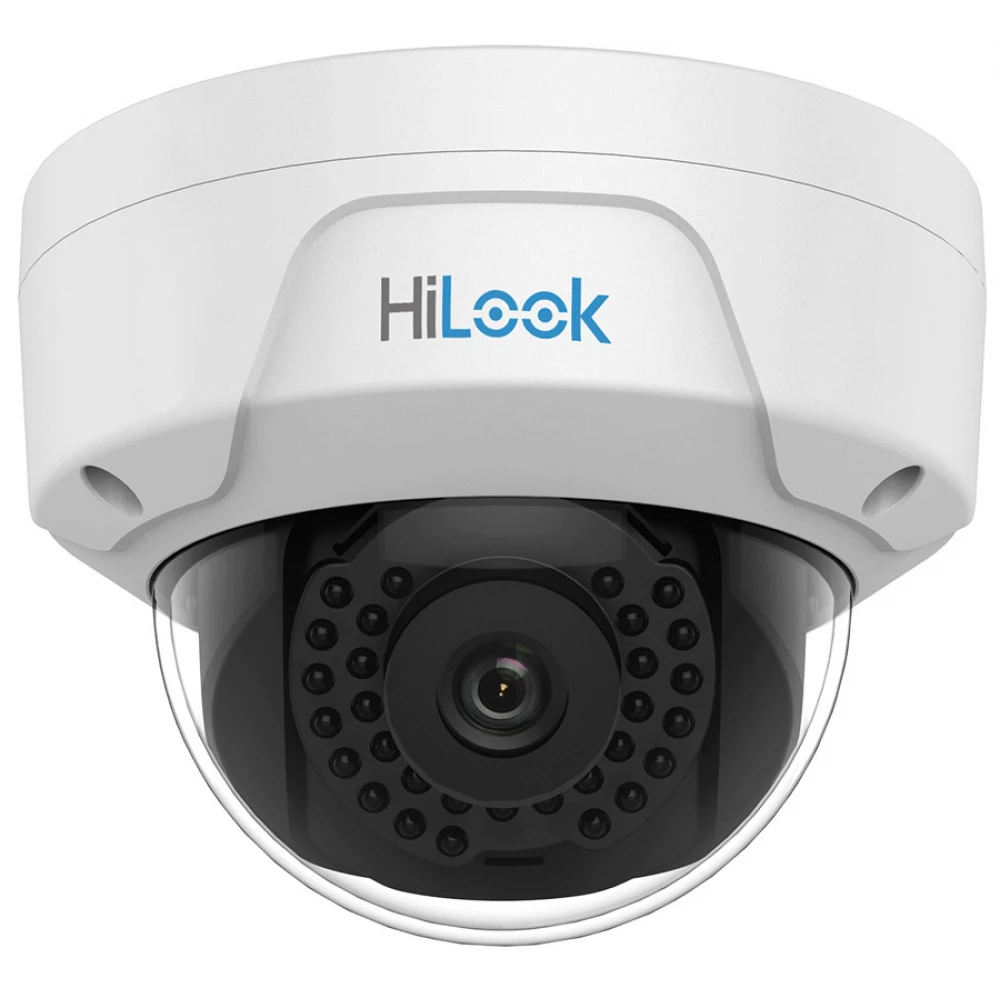

HILOOK IPC-D140H 2.8mm

4.0 megapixel IR network Dome camera

- 1/3" progressive scan CMOS
- 2560×1440 @ 20 fps
- 2.8 mm fixed lens
- H.265+, H.265, H.264+, H.264
- Dual stream
- 120 dB WDR (wide dynamic range)
- 3D DNR (digital noise reduction)
- Up to 30 m IR range
- PoE (Power over Ethernet)
- IP67, IK10

Technical data
- Image sensor: 1/3" progressive scan CMOS
- Minimum illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
- Shutter speed: 1/3 s ~ 1/100000 s
- Slow shutter speed
- Day and night: IR cut filter
- Digital noise reduction: 3D DNR
- WDR: 120dB
- Focus distance: 2.8 mm
- Aperture: F2.0
- Viewing angle: Horizontal: 100°, vertical: 55°, diagonal: 117°
- IR range: Up to 30 m, wavelength: 850 nm
- Video compression: Main stream: H.265/H.264; Substream: H.265/H.264/MJPEG
- Video bit rate: 32 kbps ~ 8 Mbps
- Maximum resolution: 2560×1440
- Main stream maximum frame rate: 50 Hz: 20 fps (2560×1440), 25 fps (2304×1296, 1920×1080, 1280×720); 60 Hz: 20 fps (2560×1440), 30 fps (2304×1296, 1920×1080, 1280×720)
- Substream maximum frame rate: 50 Hz: 25 fps (640×480, 640×360, 320×240); 60 Hz: 30 fps (640×480, 640×360, 320×240)
- Image enhancement: BLC, 3D DNR
- Network storage: NAS (NFS, SMB/CIFS)
- Alarm trigger: Motion detection, video tampering alarm, illegal login
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- API: ONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous live image: up to 6 channels
- User/host: Up to 32 users; 3 levels: administrator, operator and user
- Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Internet browser: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- 1 10/100 Mbps RJ45 Ethernet port
- Operating temperature: -30°C ~ +50°C
- Operating humidity: 95% or less
- Power supply: 12 V DC ±25%, 5.5 mm coaxial connector; PoE (802.3af, class 3)
- Power consumption and current: 12 V DC/0.4 A, max 5 W; PoE: (802.3af, 36V ~ 57V), 0.2A ~ 0.13A, max 7W
- Ingress protection: IP67, IK10
- Material: Bubble: plastic, Front cover: plastic, Bottom base: metal
- Size: 111mm × 82.4mm
- Weight: 410 g
