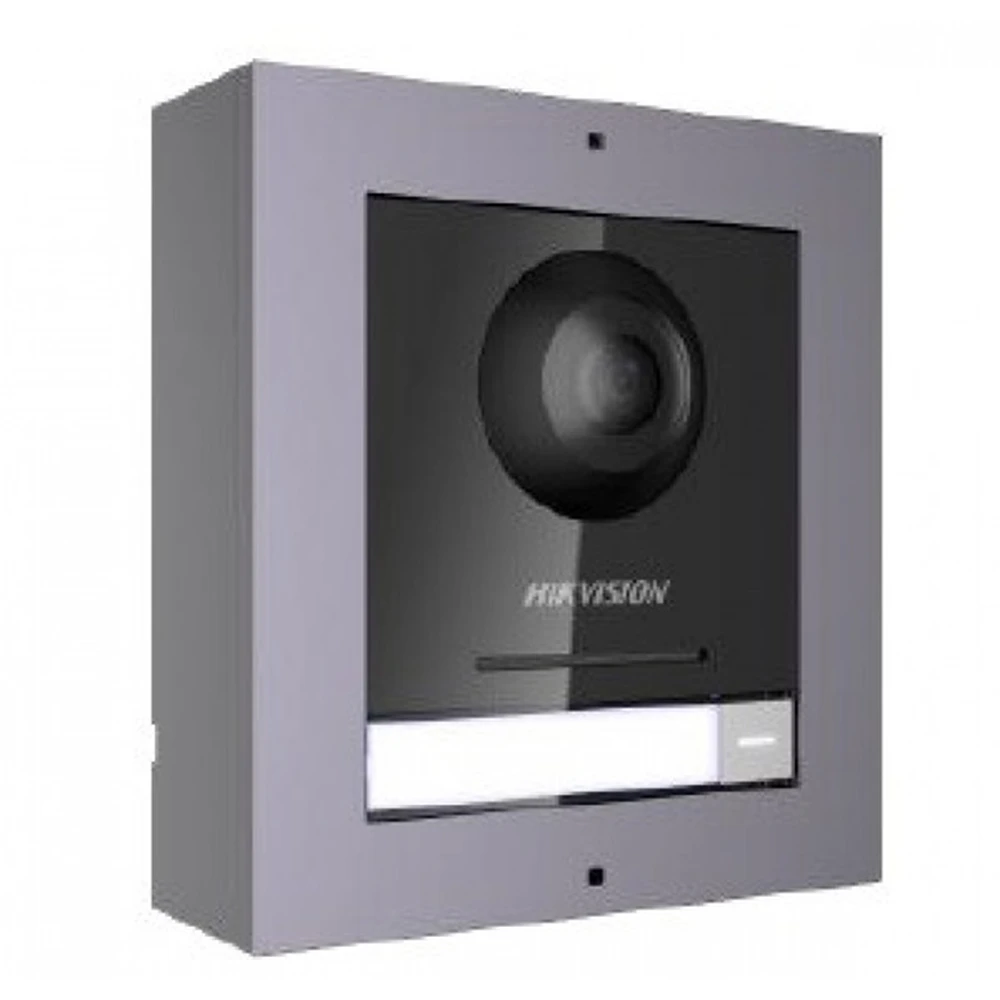

HIKVISION DS-KD8003-IME1/SURFACE

The Hikvision DS-KD8003-IME1/SURFACE is a video intercom module for door stations, built around a 2-megapixel HD camera with a wide 180° horizontal and 96° vertical viewing angle. It enables video communication with visitors and also provides access control functions. The camera uses IR supplementary lighting, so it delivers usable images in low light, with a main stream resolution of 1920x1080 pixels.

Built-in noise reduction and echo cancellation keep conversations clear. Video is compressed with H.264 and transmitted over 10/100 Mbps Ethernet, powered via IEEE 802.3af PoE. The module includes four inputs, two relay outputs, a tamper alarm and a physical call button.

Rated IP65 and designed for operation from -40 °C to +60 °C, the unit is surface-mounted. It supports up to eight sub-modules and offers a customisable name label.
