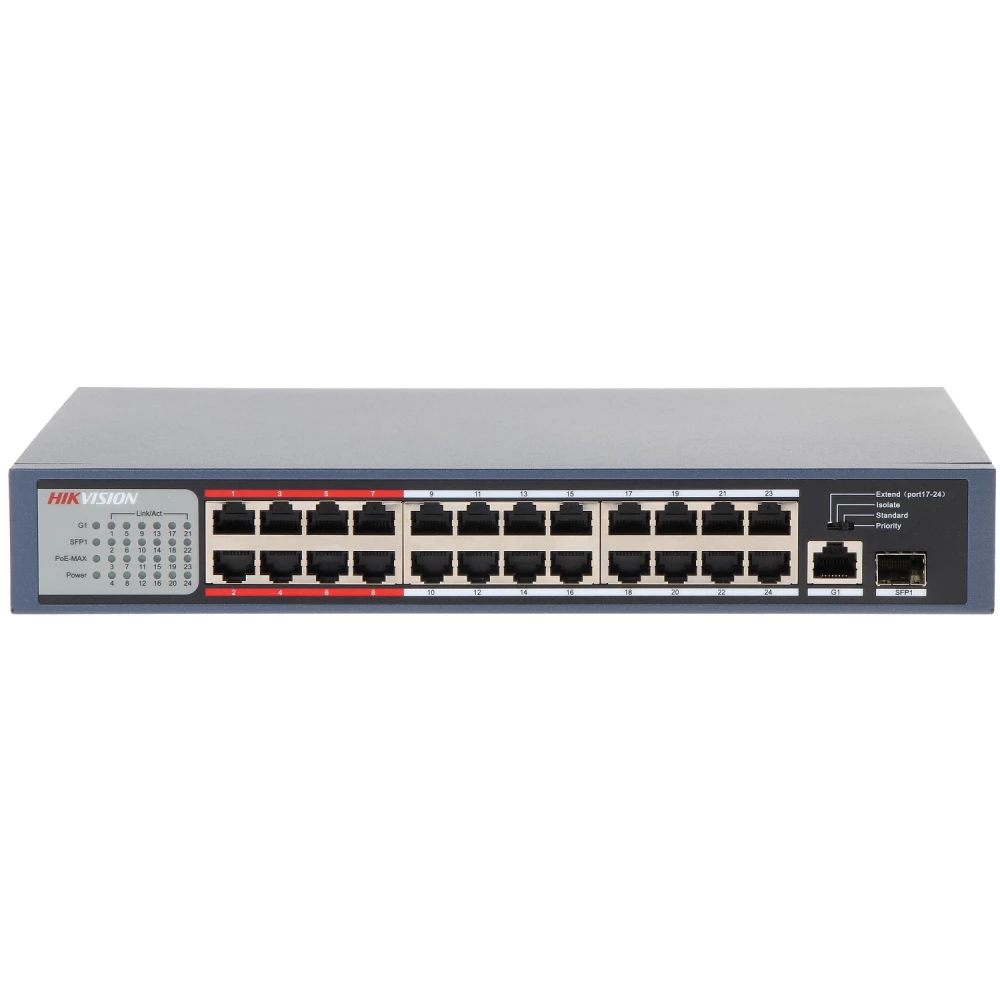

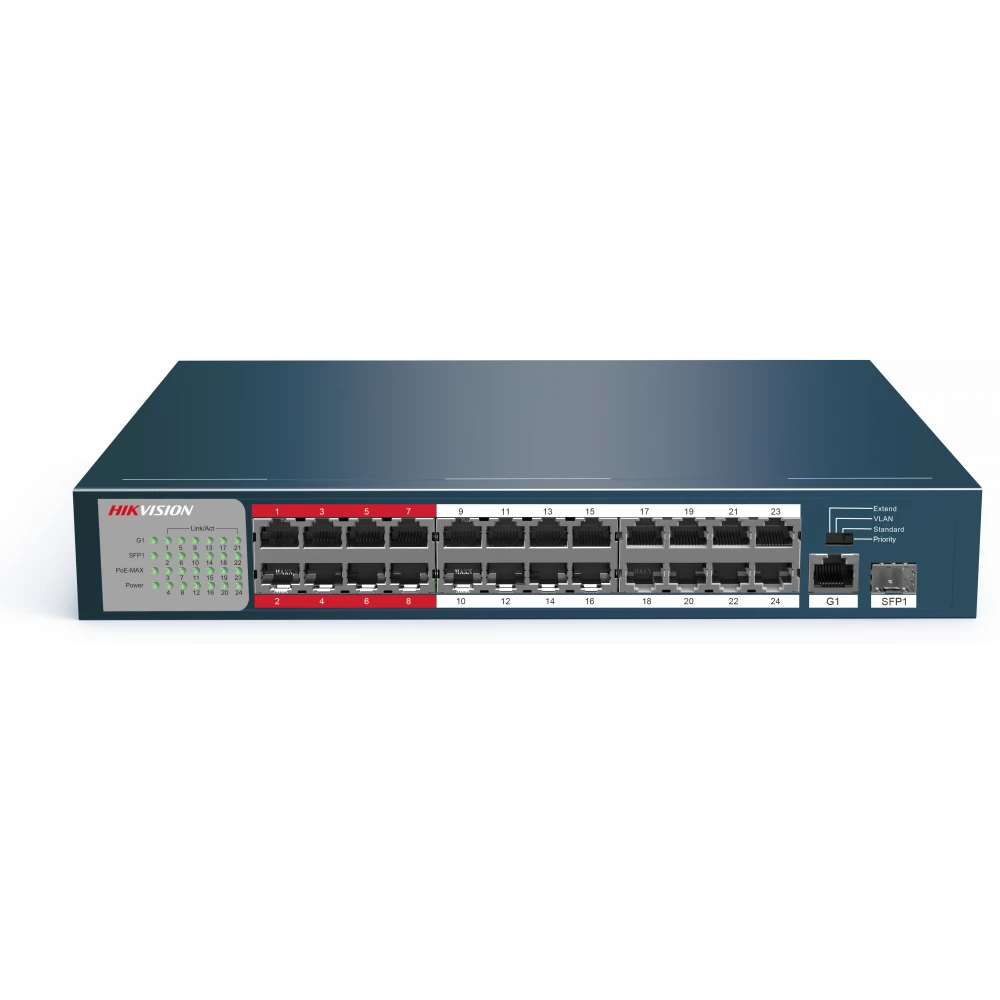

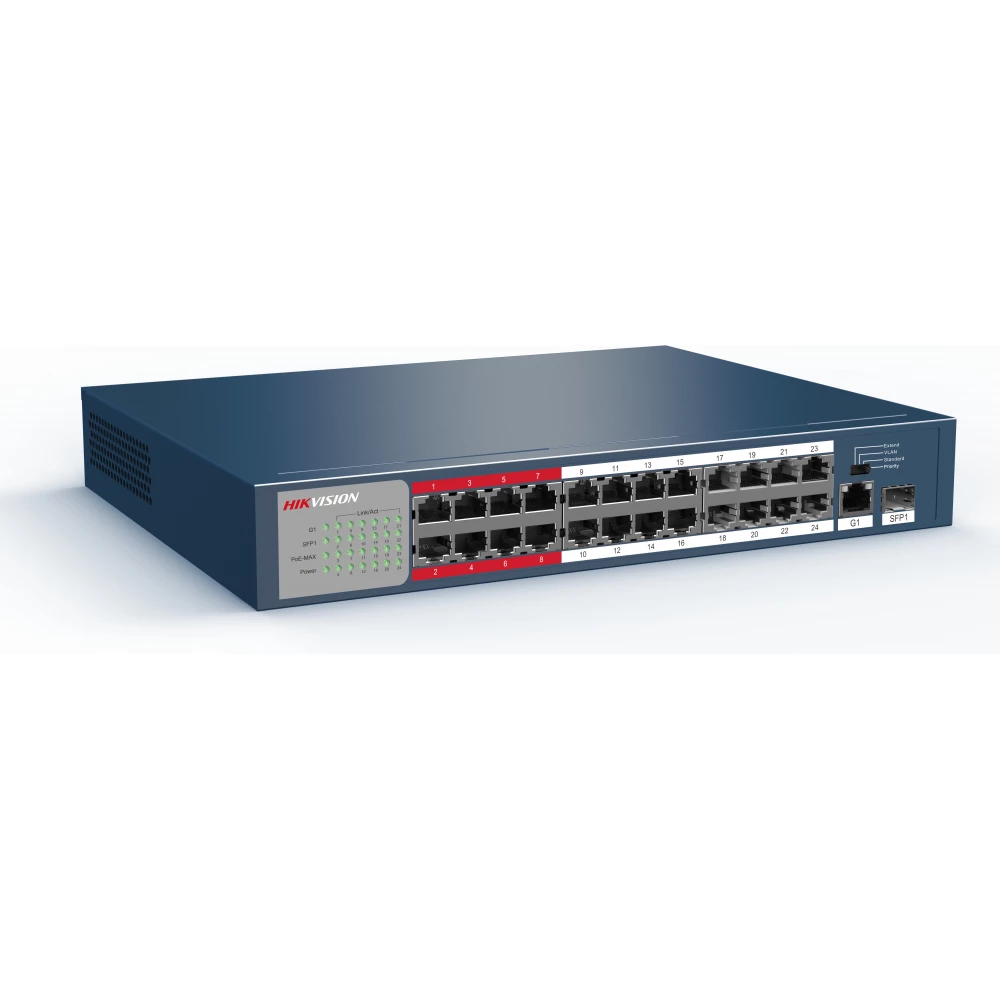

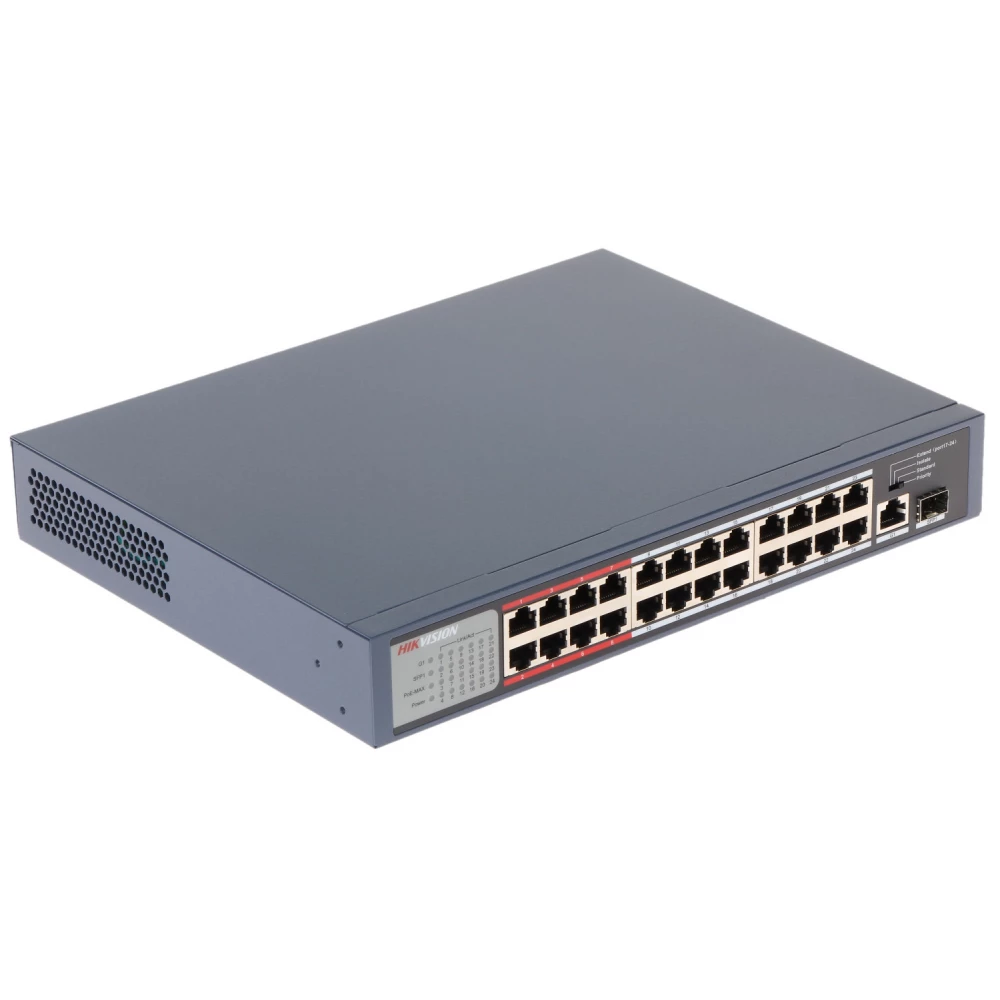

HIKVISION DS-3E0326P-E/M

26-port unmanaged switch

- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.1Q and IEEE802.3x Ethernet standards
- 24 10/100 Mbps Ethernet ports, one 10/100/1000 Mbps Ethernet port and one 10/100/1000 Mbps SFP optical module port
- Ports 1-24 are 10/100 Mbps downlink ports and comply with IEEE 802.3af and IEEE 802.3at standards.
- Maximum 30W port output PoE power and maximum 225W total output PoE power
- Supports four network modes: Priority, Standard, Selection and Extension
- 4K MAC address and MAC address learning
- 8.8 Gbps backplane bandwidth
- Store-and-Forward switching
- Omniscient structure
- Its 13-inch length and 1U standard height allow it to be mounted on the chassis

Specifications
- 24 10/100 Mbps RJ45 PoE Ethernet ports
- 1 Gigabit RJ45 Ethernet port
- 1 Gigabit SFP port
- High priority port: 1-8
- Lightning protection classification: 4 kV
- Mode: Priority, Standard, Isolation, Extension
- PoE standard: IEEE 802.3af, IEEE802.3at
- PoE Port: 1-24
- PoE maximum port output: 30 W
- PoE maximum total output: 225 W

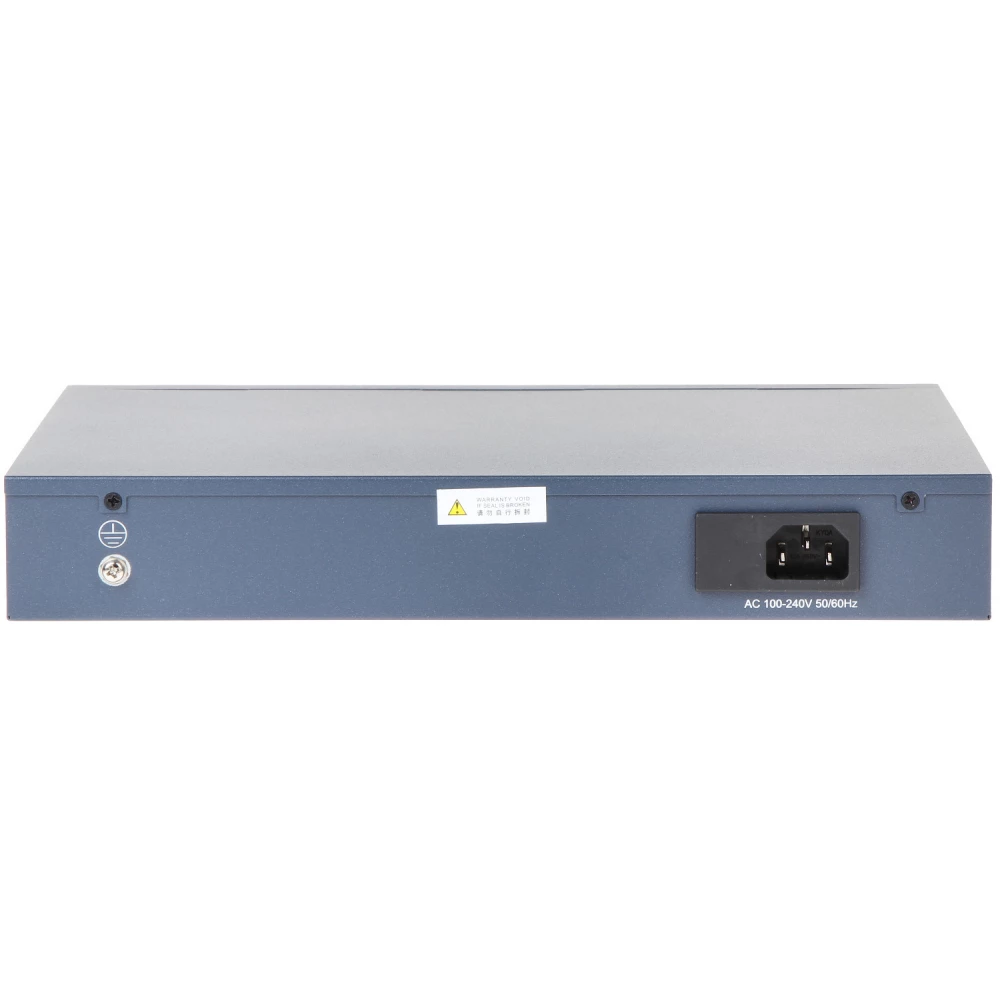

- Power input: 100 V ~ 240 V AC, 50/60 Hz
- Power consumption: 250 W
- Operating temperature: 0°C ~ 40°C
- Operating humidity: 10% ~ 90%
- Storage temperature: -40°C ~ +70°C
- Storage humidity: 5% ~ 90%
