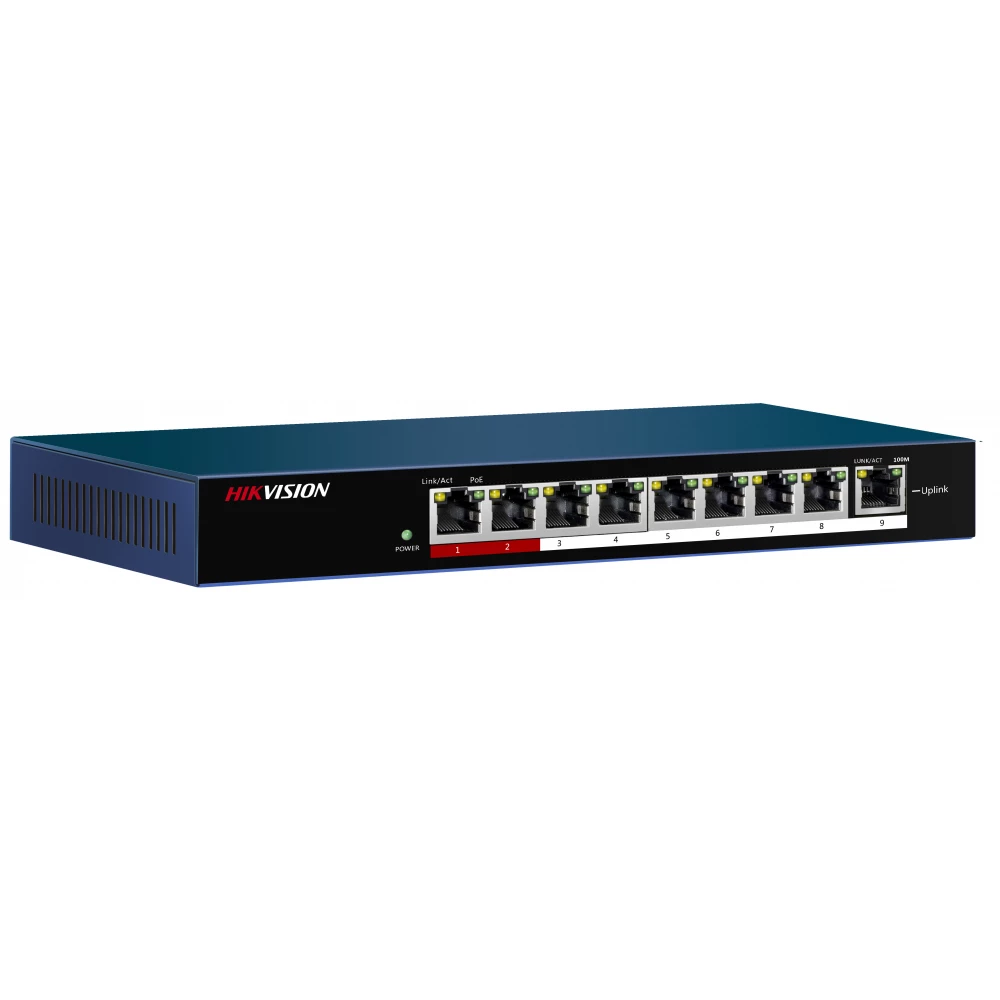

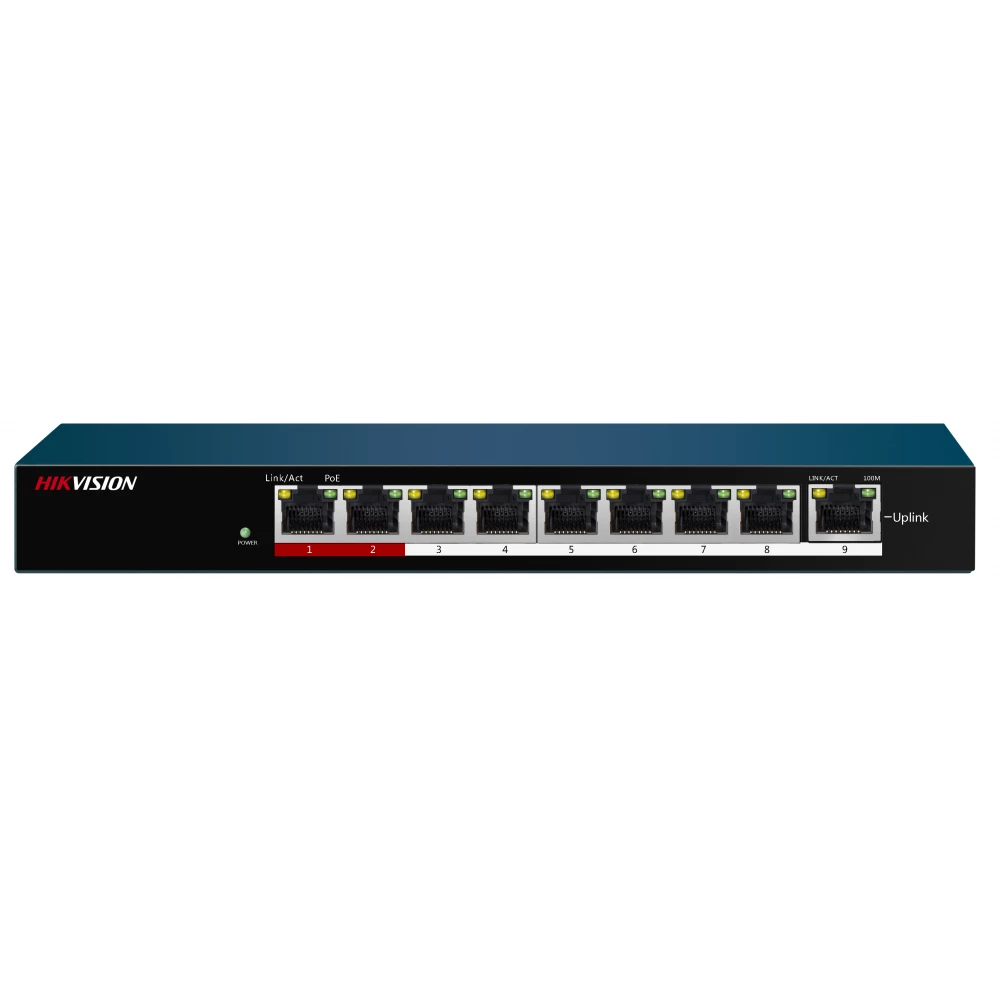

HIKVISION DS-3E0109P-E/M

9-port unmanaged switch

- 9 10/100 Mbps Ethernet ports
- Supports standard and extension network mode
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standards
- Storage and forwarding
- 4K MAC address table and MAC address learning
- 1.8 Gbps backplane bandwidth
- Omniscient structure
- Desktop and wall mountable

Specifications
- 9 10/100 Mbps RJ45 Ethernet ports
- High priority port: 1-2
- Lightning protection classification: 4 kV
- Operating mode: Extension on, Extension off
- PoE standard: IEEE 802.3af, IEEE802.3at
- PoE port: 1-8
- Maximum port output: 30 W
- Maximum total output: 58 W
- Power input: 51 V DC, 1.25 A
- Power consumption: ≤63 W
- Operating temperature: 0°C ~ 40°C
- Operating humidity: 10% ~ 90%
- Storage temperature: -40°C ~ +70°C
- Storage humidity: 5% ~ 90%
