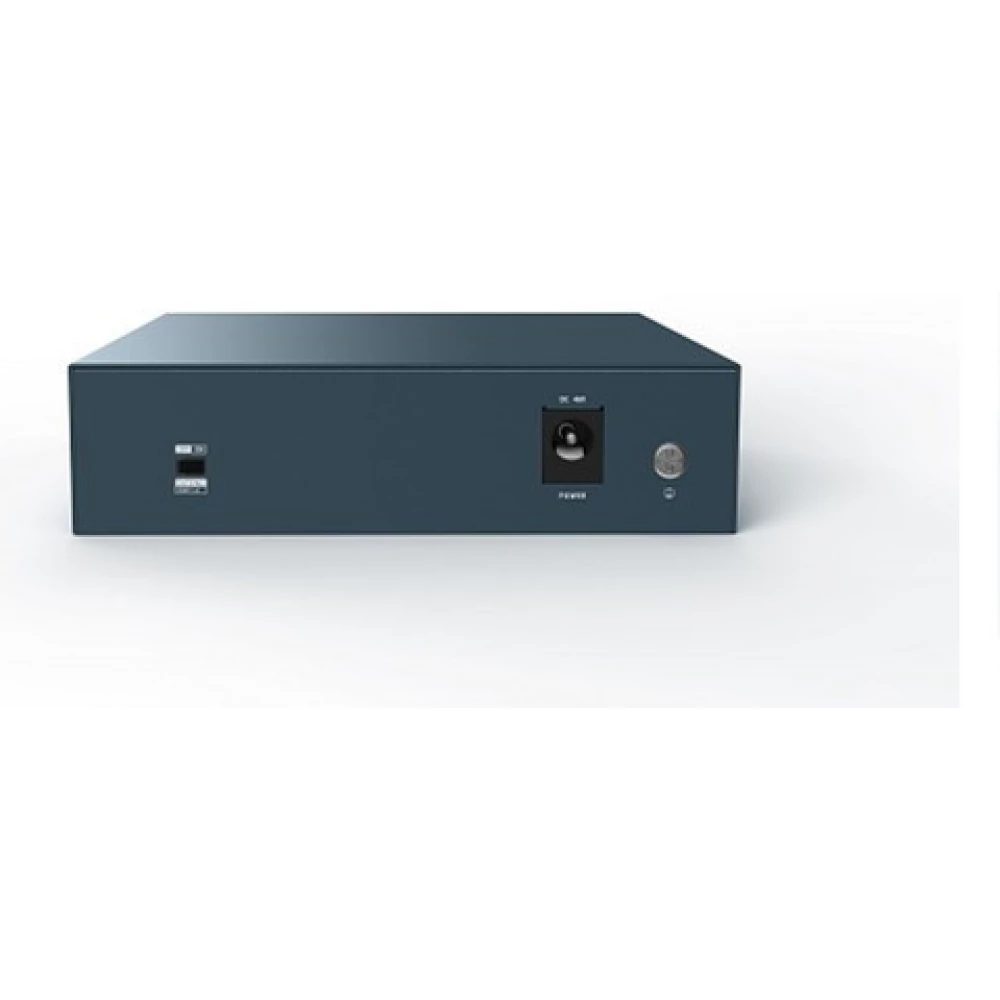

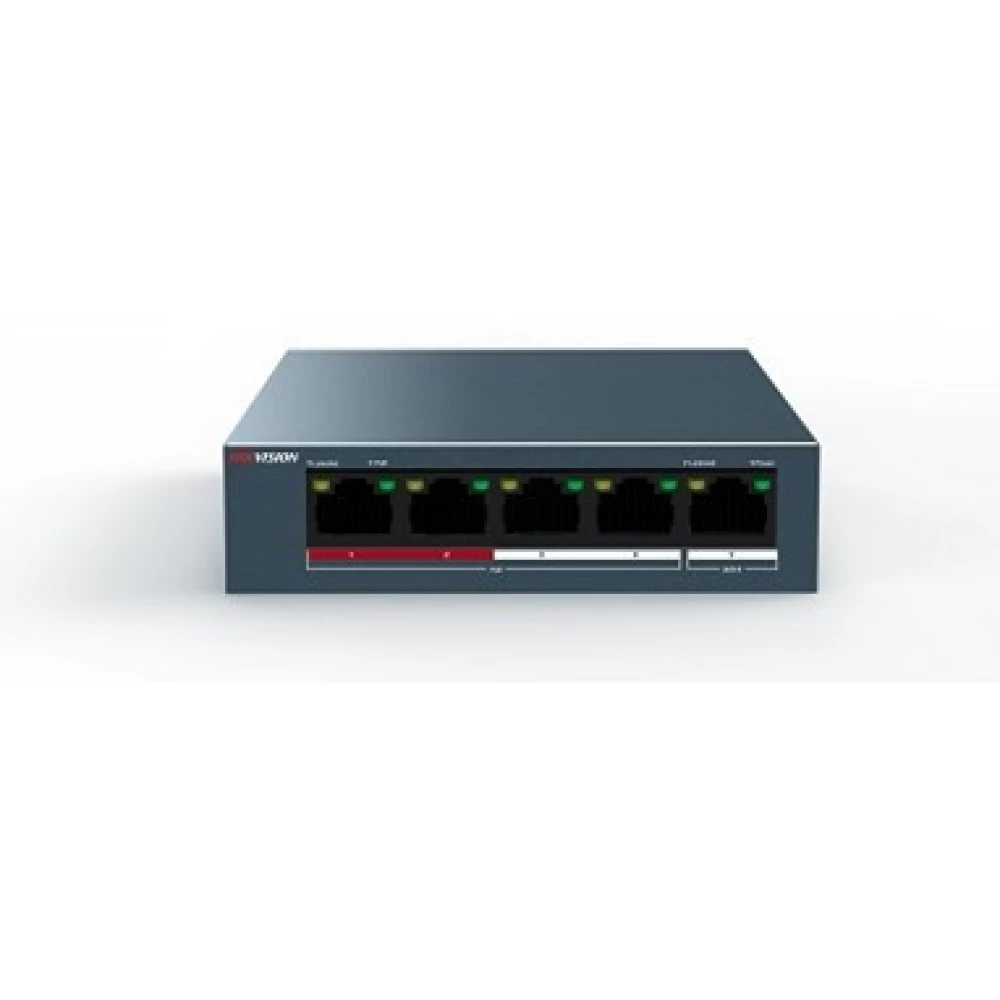

HIKVISION DS-3E0105P-E/M

Unmanaged PoE switch

The DS-3E0105P-E/M PoE switch contains five 100 Mbps Ethernet ports, and ports 1-4 of the switch can identify and power PoE-powered devices conforming to the IEEE 802.3af standard via Ethernet cables. The maximum output power of a single port is 15.4 W, and the entire switch is 35 W. Furthermore, the switch has plug and play functionality, making it a perfect choice for hotels, schools, colleges and SMEs to have a cost-effective PoE network.

- The 1-4. ports support the IEEE 802.3af standard.
- When the switch is in EXTEND mode and the data transfer rate is 10 Mbps, ports 1-4 support 250-meter long-distance data transmission.
- All connectors support 6 kV lightning protection.
- Supports automatic MDI/MDIX.
- Supports storage and forwarding.
- Supports MAC address auto-learning and auto-aging.
- Supports smart cache optimization.
- Supports desktop/wall mounting

Specifications
- 5 10/100 Mbps RJ45 ports
- Design: 0.6 mm galvanized metal plate, without electric fan
- Size: 100mm x 100mm x 26mm
- Weight: 0.141 kg
- Mounting type: Desktop/wall
- Operating temperature: 0°C ~ 40°C
- Operating humidity: 10% ~ 90%
- Storage temperature: -40°C ~ +70°C
- Storage humidity: 5% ~ 90%
- Supply voltage: 48 V DC, 0.8 A
- Reverse connection protection is supported
- Energy consumption: 38 W
