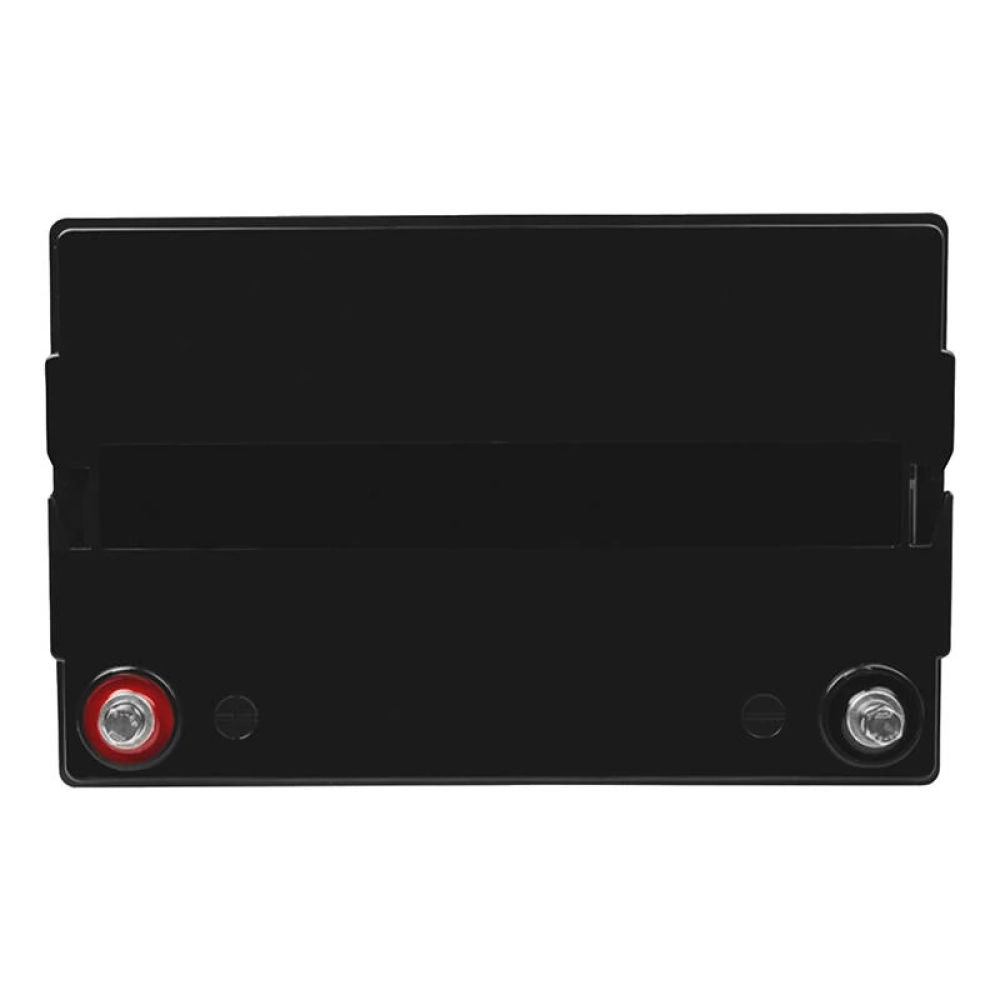

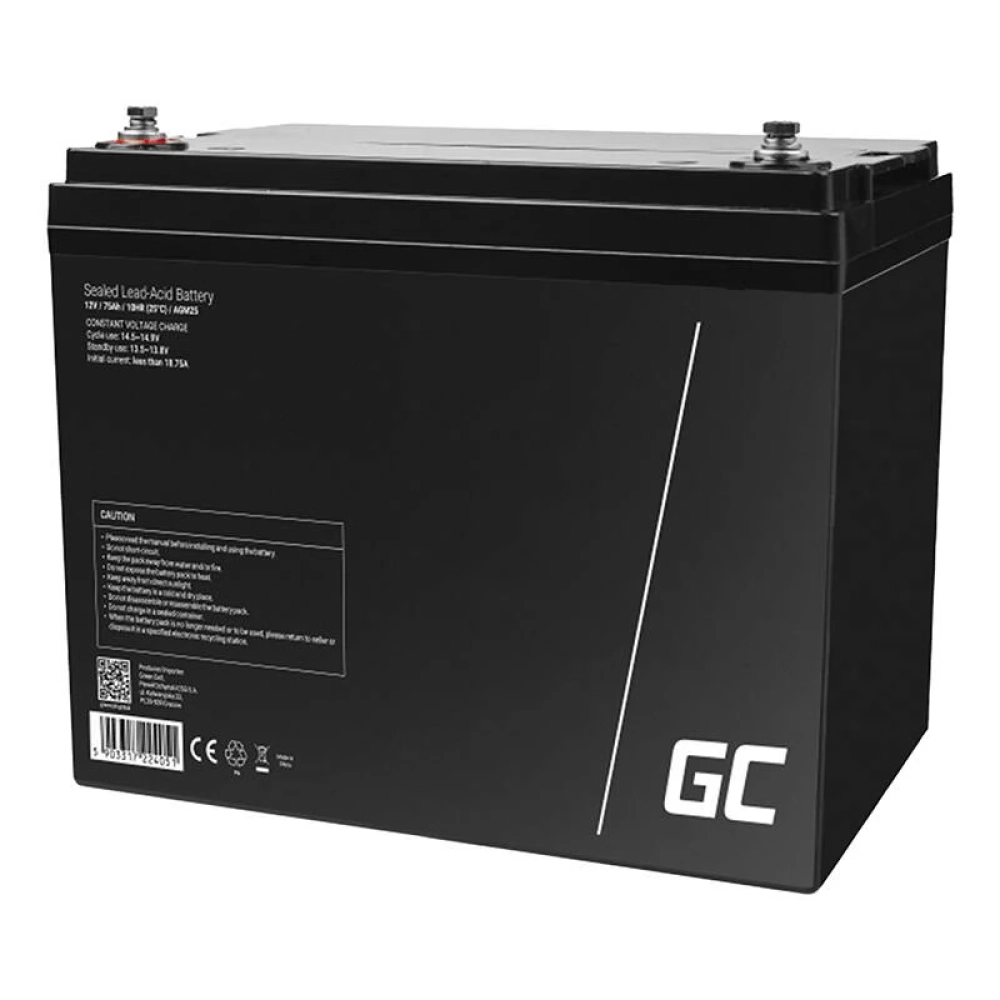

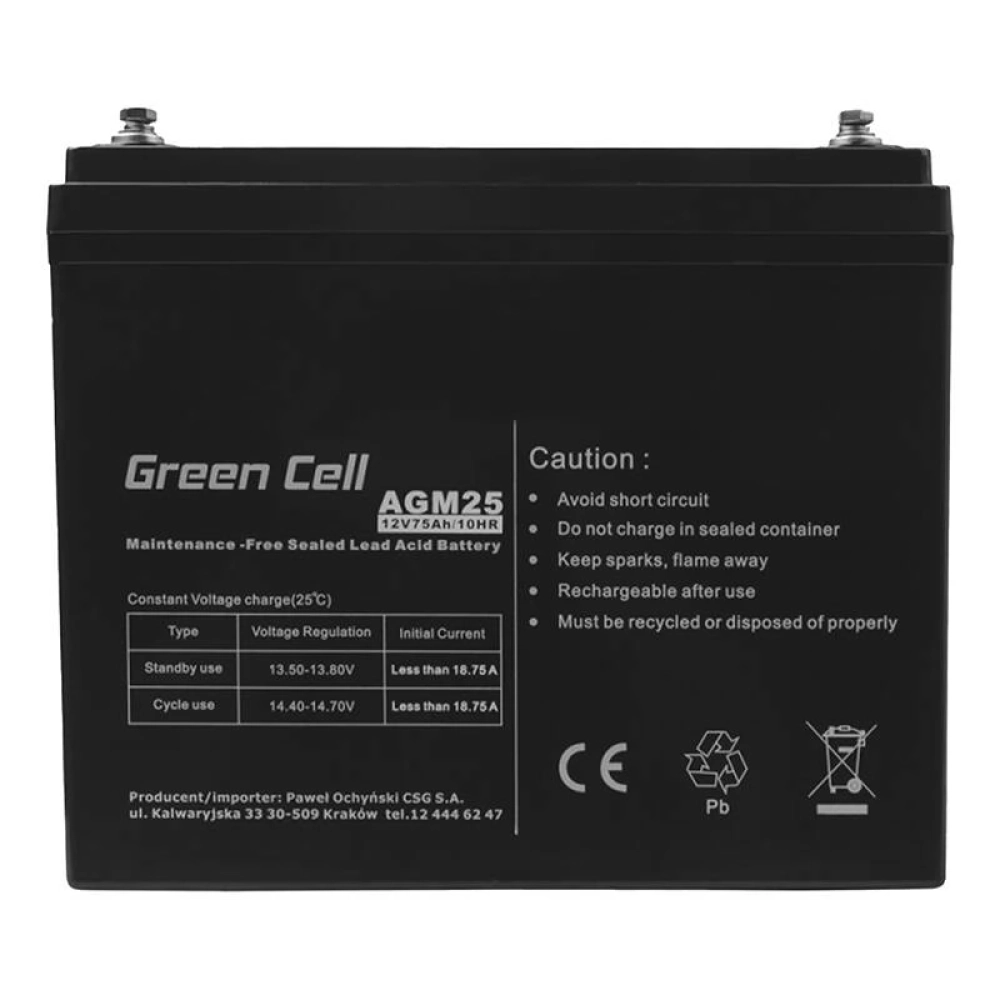

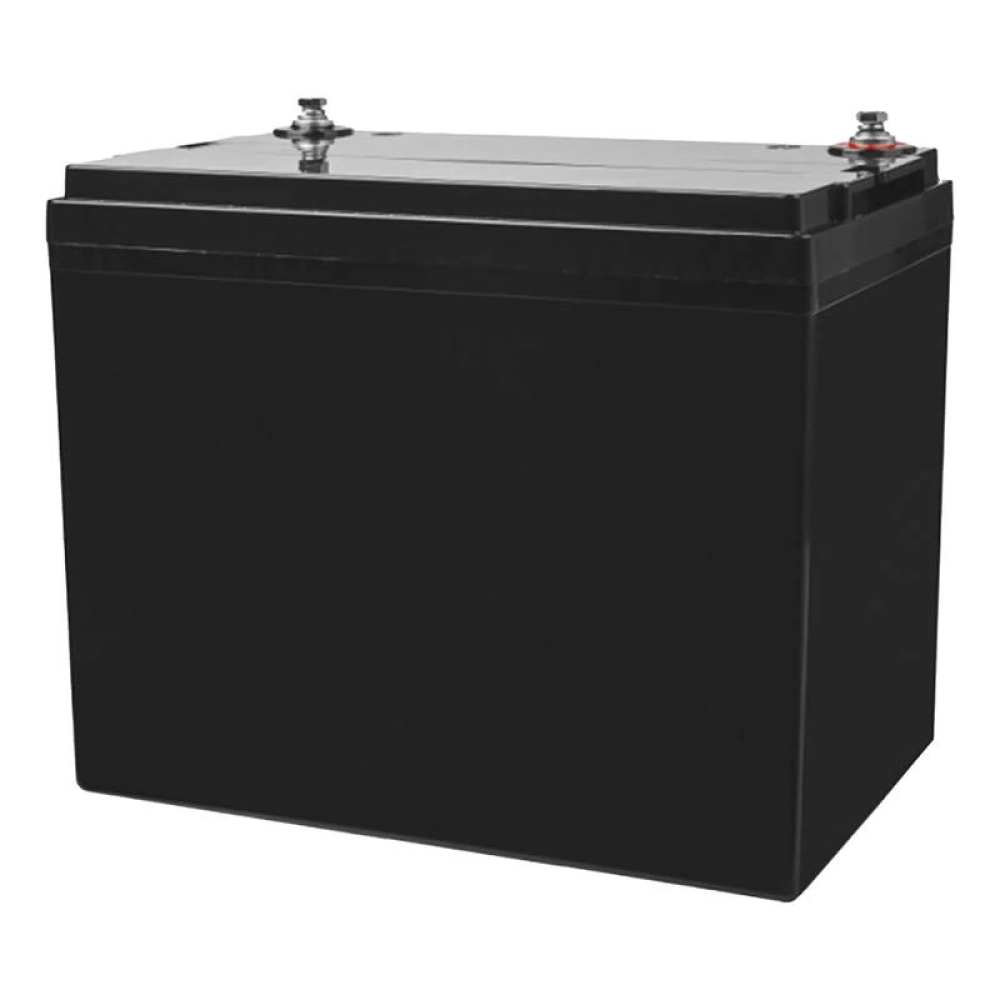

GREENCELL AGM25 12V 75Ah

Green Cell AGM25 is a reliable, sealed lead-acid battery with a capacity of 75Ah and a nominal voltage of 12V. Thanks to the AGM (Absorbent Glass Mat) technology, it is maintenance-free and has a completely sealed design, so it does not require fluid replacement.

The battery is an excellent solution for solar panels, photovoltaic systems, uninterruptible power supplies (UPS), solar systems, electric vehicles, security systems and other applications where reliable energy storage is required.

The sealed design prevents leakage of electrolytes, so the battery can be used safely in any position. Due to its long service life and deep submersion tolerance, it is also ideal as a backup power source.

Electrical and operational characteristics

• Nominal voltage: 12 V
• Nominal capacity: 75 Ah
• Internal resistance: ⩽ 6.5 mΩ (at 25 °C)
• Maximum charging current: 20.0 A – 22.5 A
• Buffer charging voltage: 13.5 V – 13.8 V (-20 mV/°C)
• Cyclic charging voltage: 14.5 V – 14.9 V (-30 mV/°C)
• Self-discharge: approx. 2% per month (at 25 °C)
• Planned lifetime: 5+ years

Physical properties and dimensions

• Length: 260 mm
• Width: 169 mm
• Height: 216 mm
• Total height (with heels): 227 mm
• Weight: 21.5 kg
