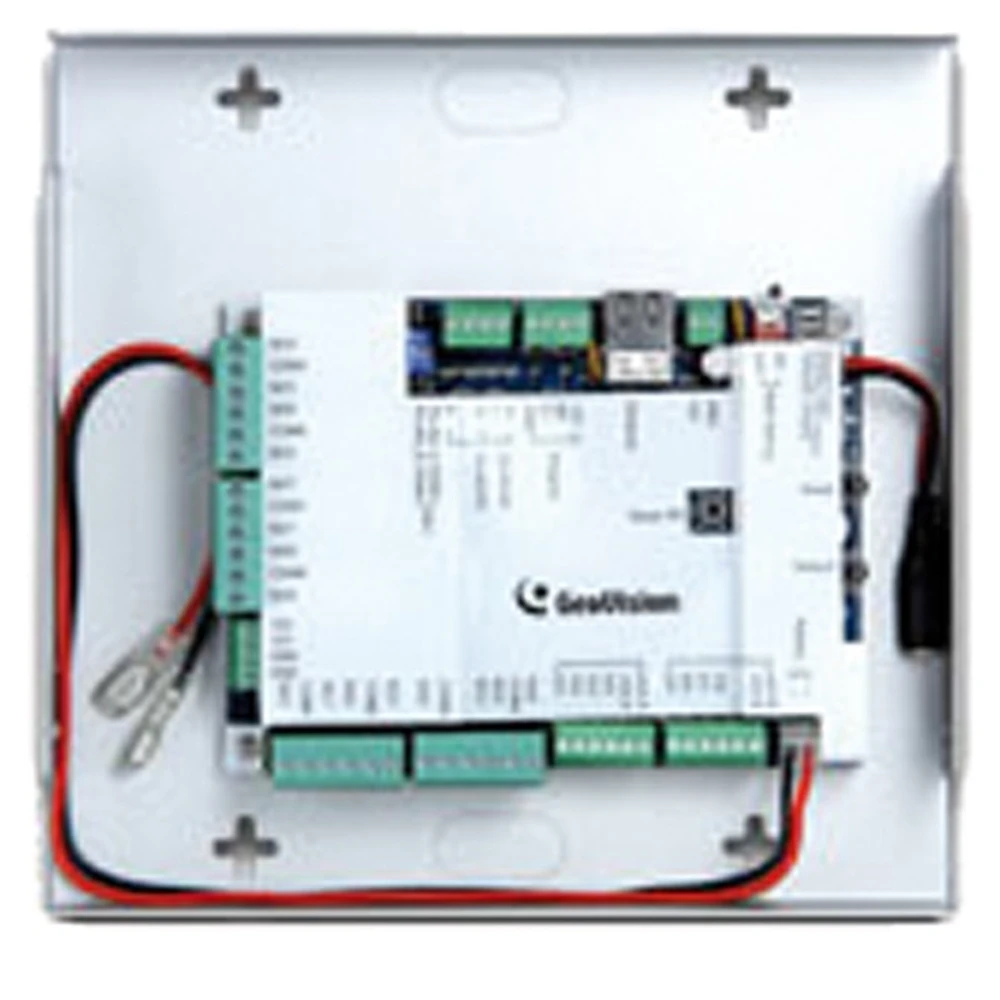

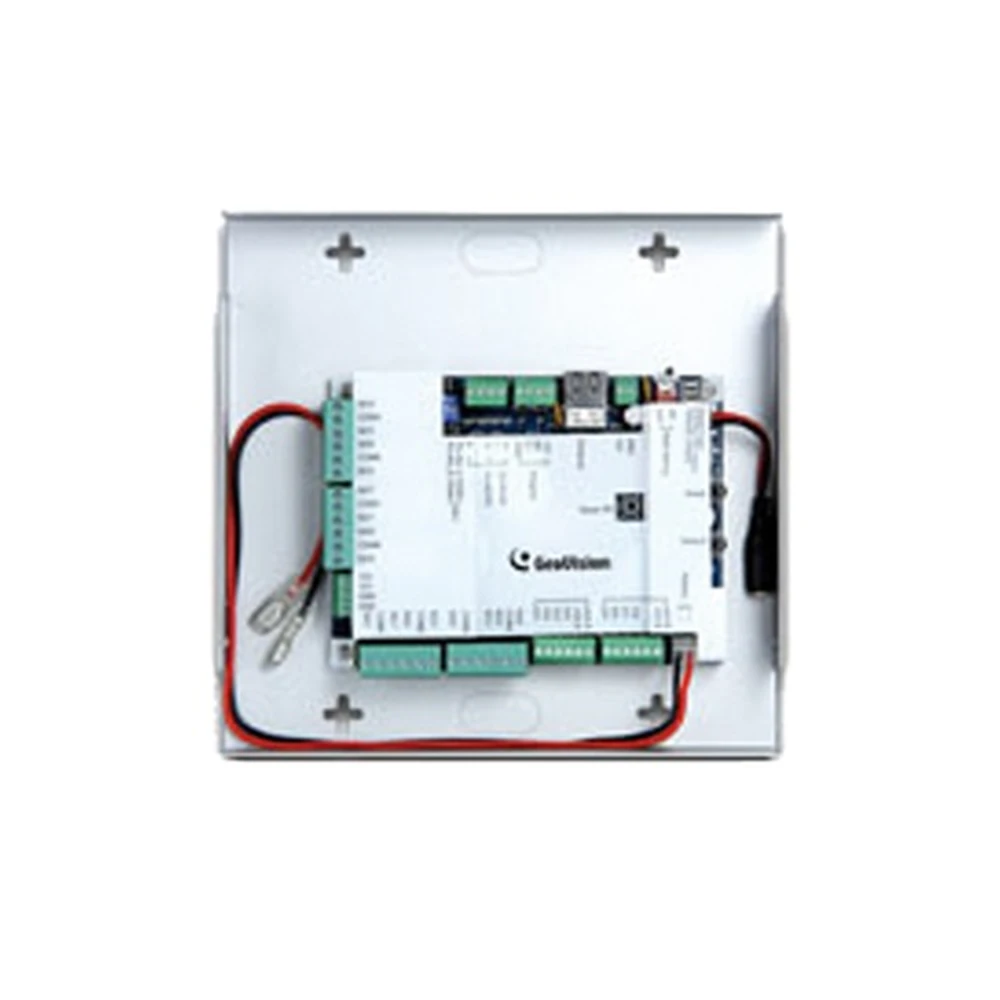

The optional GV-ASBox is a network I/O expansion module for the GV-AS100. With the GV-ASBox, 8 inputs, 8 outputs and 1 Wiegand reader can be added to the GV-AS100.

ASBOX main features:
- Extends the GV-AS100 unit with a TCP/IP network connection
- Instead of controlling 1 door, the GV-AS100 now manages 2 doors
- 1 Wiegand reader 26 - 64 bits can be connected to it
- 8 digital inputs and 8 relay outputs
- 4 special outputs for lighting control
- allows you to set the functions of the GV-AS100 via a web browser
- supports 4 GV-Readers and GeoFinger readers via RS-485 connection

Specifications:
- CPU: 8-bit RISC microprocessor
- Power supply: 100 ~ 240 V AC, 50 ~ 60Hz

Reader connector:
- 1 Wiegand (26 ~ 64 bit) and 1 RS-485

Digital Switch I/O:
- input: 8 NO / NC
- output: 8 outputs

- Operating temperature: 0 ~ 65°C
- Operating humidity: 10% ~ 90% RH (non-condensing)
- Dimensions: 214 x 206 x 48.5 mm
- Weight: 850 g
