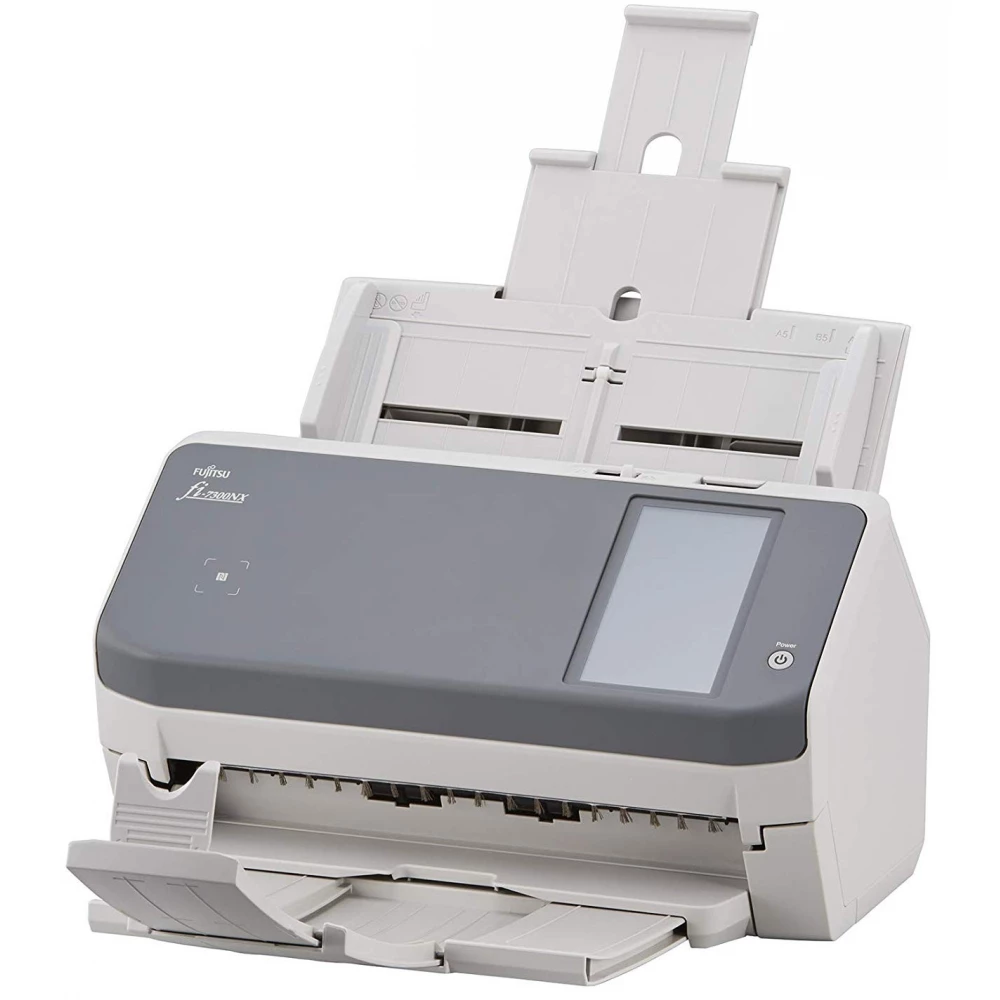

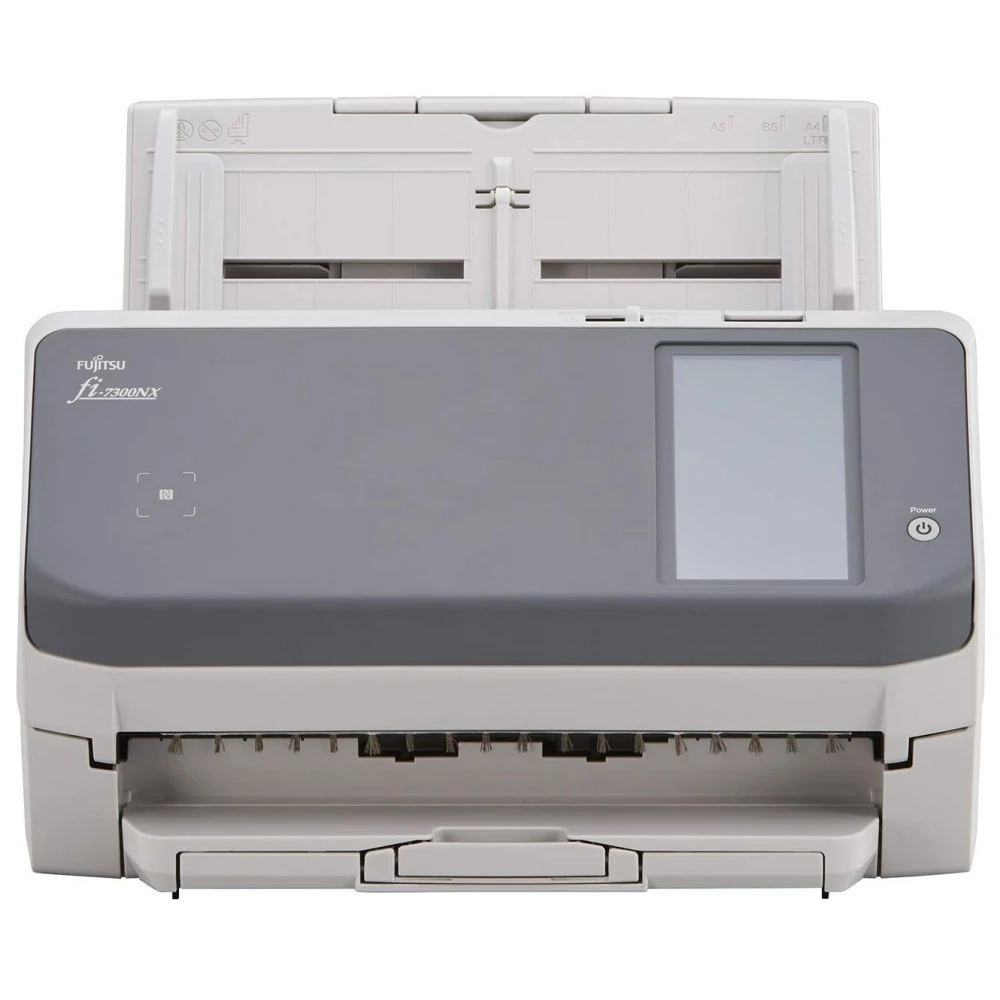

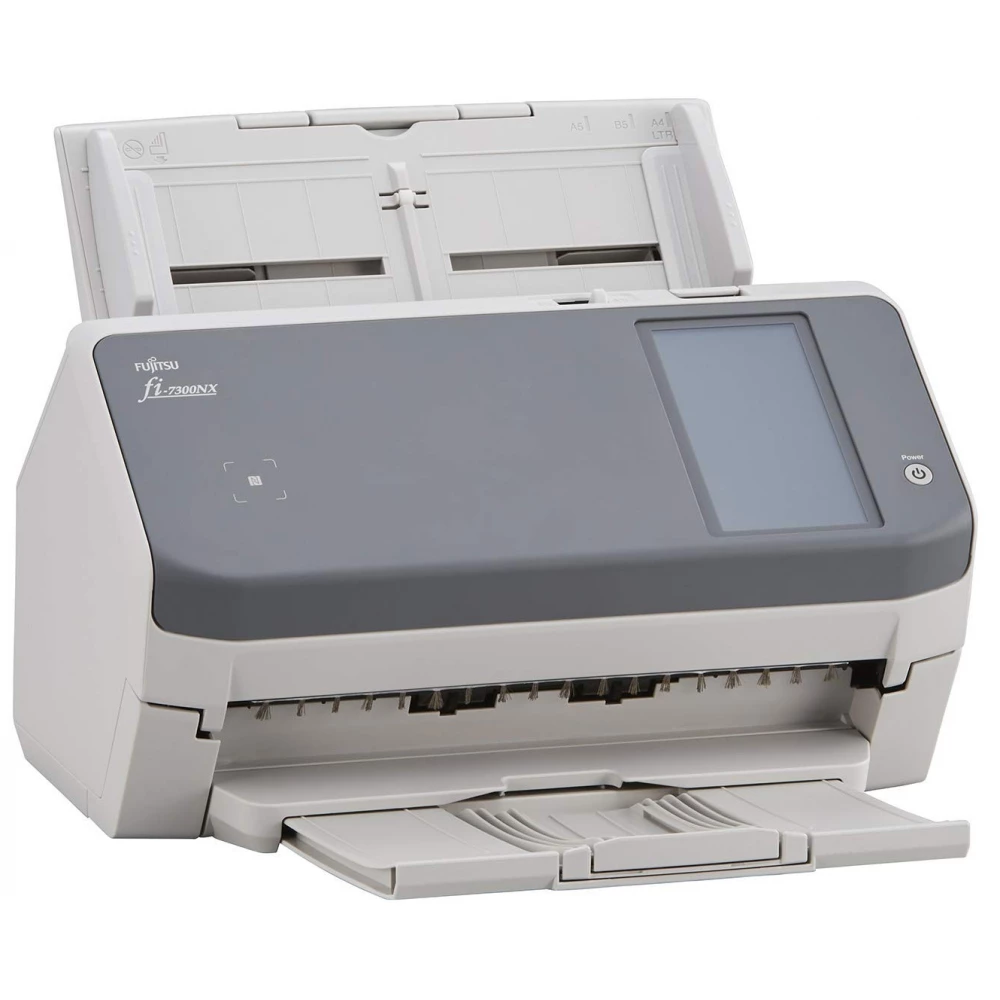

FUJITSU fi-7300NX

The fi-7300NX has a speed of 60ppm/120ipm (200/300dpi) for A4 portrait scanning, can load up to 80 sheets at a time, and provides the highest efficiency as the world's first stand-alone scanner to support 5GHz Wi-Fi.

- Scanning from the scanner with the touch screen
- Different authentication methods to improve efficiency and security
- Scan from your smart device to any business platform
- Using 3 types of SDK for any environment
- Centralized supervisor for PaperStream NX Manager and Scanner Central Admin
- The Paper Protection function protects scanning from jamming if anomalies are detected in the length and tone of the document
- Manual feed mode for scanning folded or bound documents

Technical data
- Scanner type: ADF (automatic document feeder), duplex
- Scanning speed (A4 portrait) (Colour/Grayscale/Monochrome): Simplex: 60 pages per minute (200/300 dpi), Duplex: 120 images per minute (200/300 dpi)
- Image sensor type: 2 color CCDs (1 front, 1 rear)
- Light source: 2 white LED arrays (1 in the front, 1 in the back)
- Optical resolution: 600 dpi
- Output Resolution (Color/Grayscale/Monochrome): 50 ~ 600 dpi (adjustable in 1 dpi steps), 1200 dpi (driver)
- Output format: Color: 24 bit, Grayscale: 8 bit, Monochrome: 1 bit
- Background colors: white/black (optional)
- Document size: Maximum: 216 mm x 355.6 mm, Minimum: 50.8 mm x 54 mm, Long scan: 5588 mm
- Paper weight (thickness): Paper: 27 g/m² ~ 413 g/m², Plastic card: 1.4 mm or less
- ADF capacity: 80 sheets (A4 80 g/m² or letter)
- Typical daily load cycle: 4000 sheets
- Multi-function detection: overlap detection (ultrasonic sensor), length detection
- Paper protection: Jam detection, sound detection (iSOP)
- Display: 4.3 inch TFT color touch screen
- Authentication: keyboard (on touch screen), NFC
- Interface: USB 3.1 Gen1 (USB 3.0/USB 2.0/USB 1.1), Gigabit Ethernet, IEEE802.11a/b/g/n/ac, 2.4 GHz/5 GHz
- Network protocols: IPv4, TCP, UDP, ICMP, DHCP, HTTP/HTTPS, DNS
- Power requirement: AC 100 V ~ 240 V ± 10%
- Power consumption: Operation: 42 W or less, Power saving: 2.4 W or less, Power off: 0.35 W or less
- Operating temperature: 5°C ~ 35°C
- Operating humidity: 20% ~ 80%
- Size: 300 x 202 x 170 mm
- Weight: 4.9 kg or less
- Supported operating system: Windows 10 (32/64 bit), Windows 8.1 (32/64 bit), Windows 7 (32/64 bit), Windows Server 2016 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2012 (64 bit), Windows Server 2008 R2 (64 bit), Windows Server 2008 (32/64 bit)
- Included software/drivers: PaperStream IP driver (TWAIN/TWAIN x64/ISIS), WIA driver, PaperStream Capture, ScanSnap Manager for fi Series, Software Operation Panel, Network Setup Tool, ABBYY FineReader for ScanSnap, Scanner Central Admin
- Image processing functions: Error diffusion, Dither
- Accessories: Network unit, AC cable, AC adapter, USB cable, installation DVD-ROM
