Class sheet feeder scanner

High-speed scanning with easy-to-use advanced processing capabilities for easy and efficient document management.

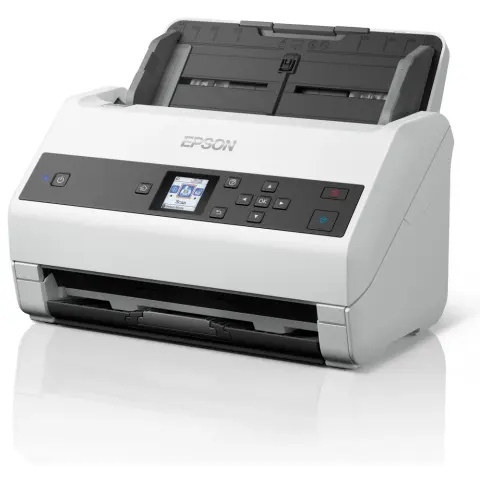

Create a better business environment with the support of the global leader in document scanning. Where a high-volume document scanning environment meets the need for document integrity, the WorkForce DS-870 offers class-leading performance with easy-to-use features to manage your documents.

Volume and speed
With a 100-page ADF (automatic document feeder), 65 pages or 130 images per minute scanning speed, and continuous scanning with automatic feed mode, the WorkForce DS-870 gets through large jobs quickly and efficiently. It also includes Hi-Speed ​​USB 3.0 for fast data transfer with TWAIN, WIA and ISIS drivers for better compatibility with document management systems.

Image enhancement and document management software
Epson Scan 2.0 software makes image playback easy with features such as orientation correction and automatic rotation, while Document Capture Pro is an easy-to-use solution for capturing and storing electronic documents at the touch of a button.

Efficient document processing
Users don't have to worry about the variety of documents to capture - it offers Epson's widest media handling from 27g/m2 to 413g/m2 and a long 6096mm paper scanning mode. For documents that cannot be scanned via the ADF, three different flatbed solutions up to A3 size are available. Slow Mode reduces document friction by reducing the speed of the rollers, making it easier to capture fragile or damaged documents without increasing file sizes. The Active Separation Roller system prevents double-feeding of boring documents, so every sheet of paper is scanned. In addition, DFDS (Double Feed Detection Skip) means you can check heavy media such as envelopes or documents by scanning.

- Fast and efficient scanning: 100 page ADF and 65 pages per minute scanning speed
- Low intervention: Active separating roller system to prevent double feeding
- Optional flatbed scanner: Choose from the conversion kit, or link to DS-5500 (A4) or DS-50000 (A3)
- Auto Scan Mode: Manage physical documents quickly in a manageable amount.
- Selectable network interface: Simple sharing between push scan and predefined work profiles

Specifications
- Scanner type: Sheetfed scanner
- Optical resolution (ADF): 600 dpi x 600 dpi
- Scanning resolution: 600 dpi x 600 dpi
- Paper formats: A3 with stapling function, Plastic cards, Business cards, Postcard, Legal, Letter, B6, B5, B4, A5, A6, A4
- Color depth: Input: 30-bit color, Output: 24-bit color
- Ultrasonic sensor
- Category: Large capacity, General office
- Optical sensor: CIS (Contact Image Sensor)
- Light source: ReadyScan-LED technology
- Output resolution: 1200 dpi
- Scanning speed: Monochrome: 65 pages per minute, Color: 65 pages per minute measured with: Size: A4, Resolution: 200/300 dpi
- Paper capacity: 100 sheets
- ADF paper weight: Automatic loading: 27 g/m² ~ 413 g/m²
- Automatic document feeder type: Double-sided scanning in one pass
- Recommended daily average load: 7,000 pages
- Automatic document indentation: 100 pages
- Double-sided scanning
- Publication format: BMP, JPEG, TIFF, Scan to multi-TIFF, PDF, Scan to searchable PDF, PDF/A, PNG
- File compression features: TIFF compression (JPEG(7) , CCITT G4, LZW), PDF compression, JPEG compression
- Scanning volume: 7,000 pages per day
- Connectors: USB 3.0
- Network interface panel: Optional
- Panel type: 5-line LCD with "Push scan" functions
- Supported protocols: TCP/IP, DHCP, DNS, SNMP, SLP
- IPv6 support
- "Push scan" functions with Document Capture Pro software
- Panel lock with password using Document Capture Pro software
- Power supply: AC 100 V ~ 240 V, 50 Hz ~ 60 Hz
- Power consumption: 30 W (Operation), 10 W (Standby), 1.5 W (sleep mode), 0.1 W (off)
- Size: 296 x 169 x 167 mm
- Weight: 3.6 kg
- Drivers: TWAIN, ISIS (web download), SANE (Linux), WIA (Windows)
- Included software: Document Capture Pro 2.0, Epson Scan 2
- Compatible operating system: Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 bit), Windows Server 2012 R2, Windows Vista, Windows XP SP3
- Operating temperature: 5°C ~ 35°C
- Operating humidity: 15% ~ 80%
- Storage temperature: 25°C ~ 60°C
- Storage humidity: 15% ~ 85%
- LCD display: Color, 3.7 cm

Accessories
- Power cable
- Network Adapter
- Printer driver and additional software CD
- Setup instructions
- USB cable
- Warranty card
