- Topology: Online double conversion
- Configuration: Tower
- Capacity: 1000 VA/800 W
- Size: 356mm x 228mm x 144mm
- Weight: 9.5 kg
- Input connection: 1 IEC 320 C14
- Input voltage range: 176V ~ 300V without derating, up to 100V ~ 300V derating
- Nominal input voltage: 208/220/230/240 V
- Input frequency: 50/60 Hz automatic selection
- Input frequency range: 40 Hz ~ 70 Hz
- Output voltage: 208 V, 220 V, 230 V, 240 V ± 1%
- THD output voltage: 150%: 300 ms
- Efficiency (normal mode): Up to 91% in online mode
- Output frequency: 50/60 Hz automatic selection

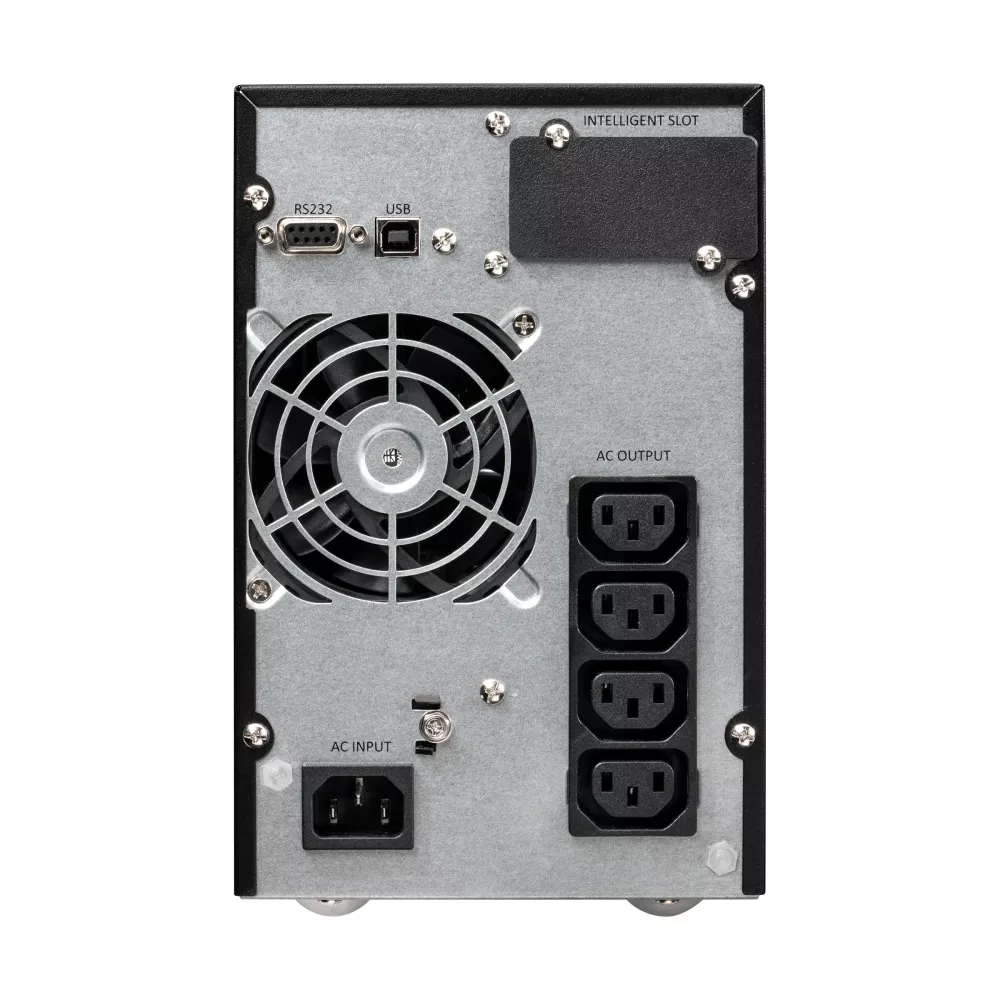

- Communication port: 1 USB port and 1 RS232 serial port (USB and RS232 ports cannot be used at the same time)
- Communication slot: 1 expansion slot for Network-M2, ModBus-MS or Relay-MS cards
- Energy management software: Intelligent Power Editions
- Audible noise:
